AUX Lexus IS F 2008 Audio/video System / LEXUS 2008 IS F OWNER'S MANUAL (OM53714U)

1
2
3
4
5
6
7
3
2-3. Operating the lights and windshield wipers .................... 139
Headlight switch ............................ 139
Fog light switch .............................. 142
Windshield wipers and washer............................................. 143
Headlight cleaner switch ........... 146
2-4. Using other driving systems.... 147 Cruise control ................................ 147
Dynamic radar cruise control............................................. 150
Intuitive parking assist ................. 160
Driving assist systems.................. 166
PCS (Pre-Collision System)..... 173
2-5. Driving information ................... 176 Cargo and luggage ...................... 176
Vehicle load limits ......................... 179
Winter driving tips ........................ 180
Trailer towing .................................. 182
Dinghy towing ................................ 183
3-1. Using the air conditioning system and defogger .............. 186
Automatic air conditioning system .................. 186
Rear window and outside rear view mirror defoggers ............. 194 3-2. Using the audio system............ 195
Audio system types ...................... 195
Using the radio............................... 198
Using the CD player.................. 205
Playing back MP3 and WMA discs..................................... 211
Optimal use of the audio system .............................................. 217
Using the AUX adapter ............ 220
Using the steering wheel audio switches ............................. 221
3-3. Using the interior lights .......... 223 Interior lights list............................ 223
• Interior lights ............................... 225
• Personal lights ............................ 225
3-4. Using the storage features .... 227 List of storage features .............. 227
• Glove box .................................... 227
• Console box................................ 228
• Overhead console ................... 229
• Cup holders................................. 230
• Bottle holders/door pockets ............................... 232
3-5. Other interior features .......... 233 Sun visors......................................... 233
Vanity mirror .................................. 234
Clock................................................. 235
Satellite sw itches .......................... 236
Ashtrays ........................................... 239
Cigarette li ghter ........................... 240
3Interior features

8
A
Power window
switches
P. 62

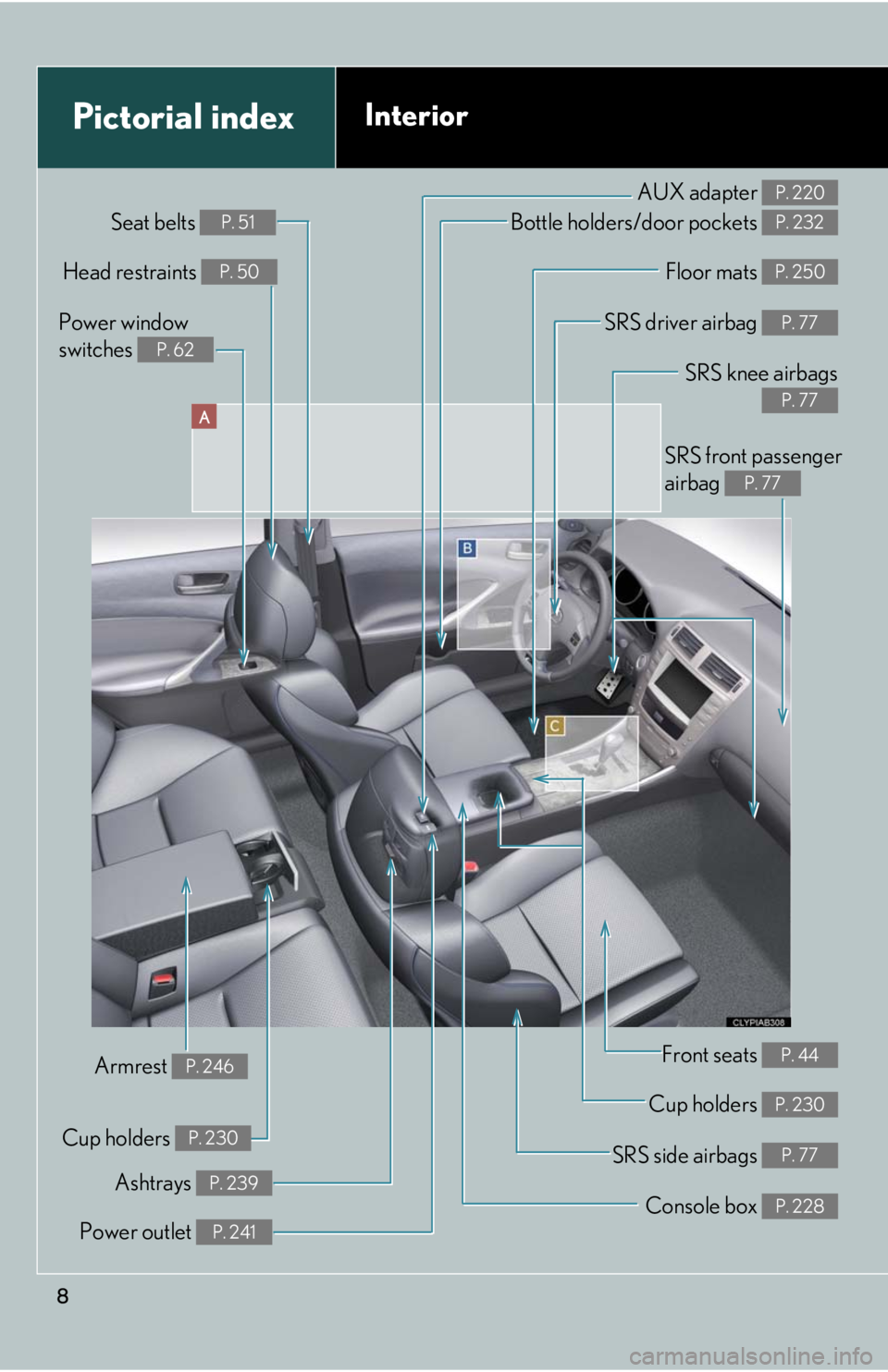

Pictorial indexInterior
Seat belts P. 51
SRS front passenger
airbag
P. 77
SRS knee airbags
P. 77
SRS driver airbag P. 77
Floor mats P. 250
Bottle holders/door pockets P. 232
Head restraints P. 50
Front seats P. 44
Cup holders P. 230
SRS side airbags P. 77
Console box P. 228
Power outlet P. 241
Ashtrays P. 239
Armrest P. 246
AUX adapter P. 220
Cup holders P. 230

Interior features3
185
3-1. Using the air conditioning system and defogger ... 186
Automatic air conditioning system............. 186
Rear window and outside rear
view mirror defoggers ........ 194
3-2. Using the audio system ............................ 195
Audio system types................. 195
Using the radio......................... 198
Using the CD player ............ 205
Playing back MP3 and WMA discs.............................. 211
Optimal use of the audio system ...................................... 217
Using the AUX adapter ...... 220
Using the steering wheel audio switches ....................... 221
3-3. Using the interior lights ............................. 223
Interior lights list .................... 223
• Interior lights ........................ 225
• Personal lights ...................... 225
3-4. Using the storage features ........................ 227
List of storage features ......... 227 • Glove box .............................. 227
• Console box ......................... 228
• Overhead console.............. 229
• Cup holders .......................... 230
• Bottle holders/
door pockets ........................ 232
3-5. Other interior features ........................ 233
Sun visors ................................. 233
Vanity mirror ........................... 234
Clock ......................................... 235
Satellite switches ................... 236
Ashtrays.................................... 239
Cigarette lighter .................... 240
Power outlet ............................. 241
Seat heaters ............................ 242
Seat heaters and ventilators ............................. 244
Armrest .................................... 246
Trunk storage extension ....... 247
Coat hooks .............................. 249
Floor mat .................................. 250
Trunk features .......................... 251
Garage door opener ............ 254
Compass .................................. 259

196
3-2. Using the audio system
■Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular phone is
being used inside or close to the vehicle while the audio system is operating.
CAUTION
■For vehicles sold in U.S.A. and Canada
●Pa r t 1 5 o f t h e F CC Ru l e s
FCC Warning:
Any unauthorized changes or modifications to this equipment will void the user’s
authority to operate this device.
●Laser products
• Do not take this unit apart or attempt to make any changes yourself.
This is an intricate unit that uses a lase r pickup to retrieve information from the
surface of compact discs. The laser is carefully shielded so that its rays remain
inside the cabinet. Therefore, never try to disassemble the player or alter any
of its parts since you may be exposed to laser rays and dangerous voltages.
• This product utilizes a laser. Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.
Ti t l ePa g e
Using the radioP. 1 9 8
Using the CD playerP. 2 0 5
Playing back MP3 and WMA discsP. 2 1 1
Optimal use of the audio systemP. 2 1 7
Using the AUX adapterP. 220
Using the steering wheel audio switchesP. 221

220
3-2. Using the audio system
Using the AUX adapter
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle's audio controls. All other adjust-
ments must be made on the portable audio device itself.
■When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable audio
device.
This adapter can be used to connect a portable audio device and listen to it
through the vehicle’s speakers.
Open the cover and connect
the portable audio device.
Press .STEP1
STEP2

221
3-2. Using the audio system
3
Interior features
Using the steering wheel audio switches
Turning on the power
Press when the audio system is turned off.
The audio system can be turned off by holding down for 1 second or
more.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time is pressed. If no discs are inserted in
the player, that mode will be skipped.
FM1 FM2 CD changer AUXAM SAT1 SAT2 SAT3
Adjusting the volume
Press “+” on to increase the volu me and “-” to decrease the vol-
ume.
Hold down to continue increa sing or decreasing the volume.
Some audio features can be controlled using the switches on the steering
wheel.
Turns the power on, select
audio source
Vo l u m e
Radio: Select radio stations
CD: Select tracks, files (MP3
and WMA) and discs

279
4-3. Do-it-yourself maintenance
4
Maintenance and care
Hood
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly it may open while the vehicle is in motion and
cause an accident, which may result in death or serious injury.
Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Lift the auxiliary catch lever and
lift the hood.
STEP1
STEP2

438
Alphabetical index
Alphabetical index
A/C ............................................................. 186
ABS.............................................................. 166
ACCESSORY mode ............................ 114
AFS .............................................................. 140
Adaptive front lighting system ......... 140
Air conditioning filter ........................... 313
Air conditioning systemAir conditioning filter .........................313
Automatic air conditioning system ................................................... 186
Airbags Airbag operating conditions........... 79
Airbag precautions for your child.......................................................... 83
Airbag warning light ..........................351
Curtain shield airbag operating conditions..............................................80
Curtain shield airbag precautions .......................................... 83
Front passenger occupant classification system.........................88
General airbag precautions ........... 83
Locations of airbags............................. 77
Modification and disposal of airbags .................................................... 87
Proper driving po sture ............. 75, 83
Side airbag operating conditions..............................................80
Side airbag precautions .................... 83
SRS airbags .............................................. 77 Alarm .............................................................72
Antenna .................................................... 202
Anti-lock brake system ........................166
Armrest .................................................... 246
Ashtrays.................................................... 239
Audio input.............................................. 220
Audio system
Antenna.................................................. 202
Audio input ........................................... 220
Audio visual input.............................. 220
AUX adapter ...................................... 220
CD player/changer ......................... 205
MP3/WMA disc................................... 211
Optimal use ............................................217
Portable music player ..................... 220
Radio .........................................................198
Steering wheel audio switch...........221
Audio visual input ................................. 220
Automatic air conditioning system ..................................................... 186
Automatic headlight leveling system ....................................................... 141
Automatic light control system.........139
Automatic transmission Automatic transmission .....................118
If the shift lever cannot be shifted from P................................... 384
M mode ....................................................122
AUX adapter ......................................... 220A

452
GAS STATION INFORMATION
Auxiliary catch leverP. 2 7 9Trunk openerP. 4 1Fuel filler door P. 6 7
Hood lock release lever P. 2 7 9Fuel filler door openerP. 6 7Tire inflation pressureP. 4 0 7
Fuel tank capacity16.9 gal. (64 L, 14.0 lmp.gal.)
Fuel typeUnleaded gasoline only P. 68, 401
Cold tire inflation
pressureP. 4 0 7
Engine oil capacity
(Drain and refill)qt. (L, Imp.qt.)
With filter 9.8 (9.3, 8.2)
Without filter 8.7 (8.2
, 7. 2)
Engine oil type
Toyota Genuine Motor Oil or equivalent
Oil grade: ILSAC multigrade engine oil P. 402
Recommended oil viscosity: SAE 5W-30
