AUDIO/VIDEO SYSTEM
242
FM
Fading and drifting stations— General-
ly, the effective range of FM is about 40 km
(25 miles). Once outside this range, you
may notice fading and drifting, which in-
crease with the distance from the radio
transmitter. They are often accompanied
by distortion.
Multi− path— FM signals are reflective,
making it possible for two signals to reach
your antenna at the same time. If this hap-
pens, the signals will cancel each other
out, causing a momentary flutter or loss of
reception.
Static and fluttering — These occur
when signals are blocked by buildings,
trees, or other large objects. Increasing
the bass level may reduce static and flut-
tering.
Station swapping — If the FM signal you
are listening to is interrupted or weakened,
and there is another strong station nearby
on the FM band, your radio may tune in the
second station until the original signal can
be picked up again.
AM
Fading — AM broadcasts are reflected by
the upper atmosphere — especially at
night. These reflected signals can inter-
fere with those received directly from the
radio station, causing the radio station to
sound alternately strong and weak.
Station interference — When a reflected
signal and a signal received directly from
a radio station are very nearly the same
frequency, they can interfere with each
other, making it difficult to hear the broad-
cast.
Static — AM is easily affected by external
sources of electrical noise, such as high
tension power lines, lightening, or electri-
cal motors. This results in static. MP3/WMA files
DMP3 (MPEG Audio Layer 3) and WMA
(Windows Media Audio) are audio
compression standards.
DThe MP3/WMA player can play MP3
and WMA files on CD
−ROM, CD −R
and CD −RW discs.
The unit can play disc recordings com-
patible with ISO 9660 level 1 and level
2 and with the Romeo and Joliet file
system.
DWhen naming an MP3 or WMA file, add
the appropriate file extension (.mp3 or
.wma).
DThe MP3/WMA player plays back files
with .mp3 or .wma file extensions as
MP3 or WMA files. To prevent noise
and playback errors, use the appropri-
ate file extensions.
DThe player can play only the first ses-
sion using multi −session compatible
CDs.
DMP3 files are compatible with the ID3
Tag Ver. 1.0, Ver. 1.1, Ver. 2.2, and Ver.
2.3 formats. The unit cannot display
disc title, track title and artist name in
other formats.
DWMA files can contain a WMA tag that
is used in the same way as an ID3 tag.
WMA tags carry information such as
track title, artist name.
DThe emphasis function is available
only when playing MP3/WMA files re-
corded at 32, 44.1 and 48 kHz. (The
system can play MP3 files with sam-
pling frequencies of 16, 22.05, and 24
kHz. However, the emphasis function
is not available for files recorded at
these frequencies.)
IS F/350/250_Navi_U
(L/O 0712)

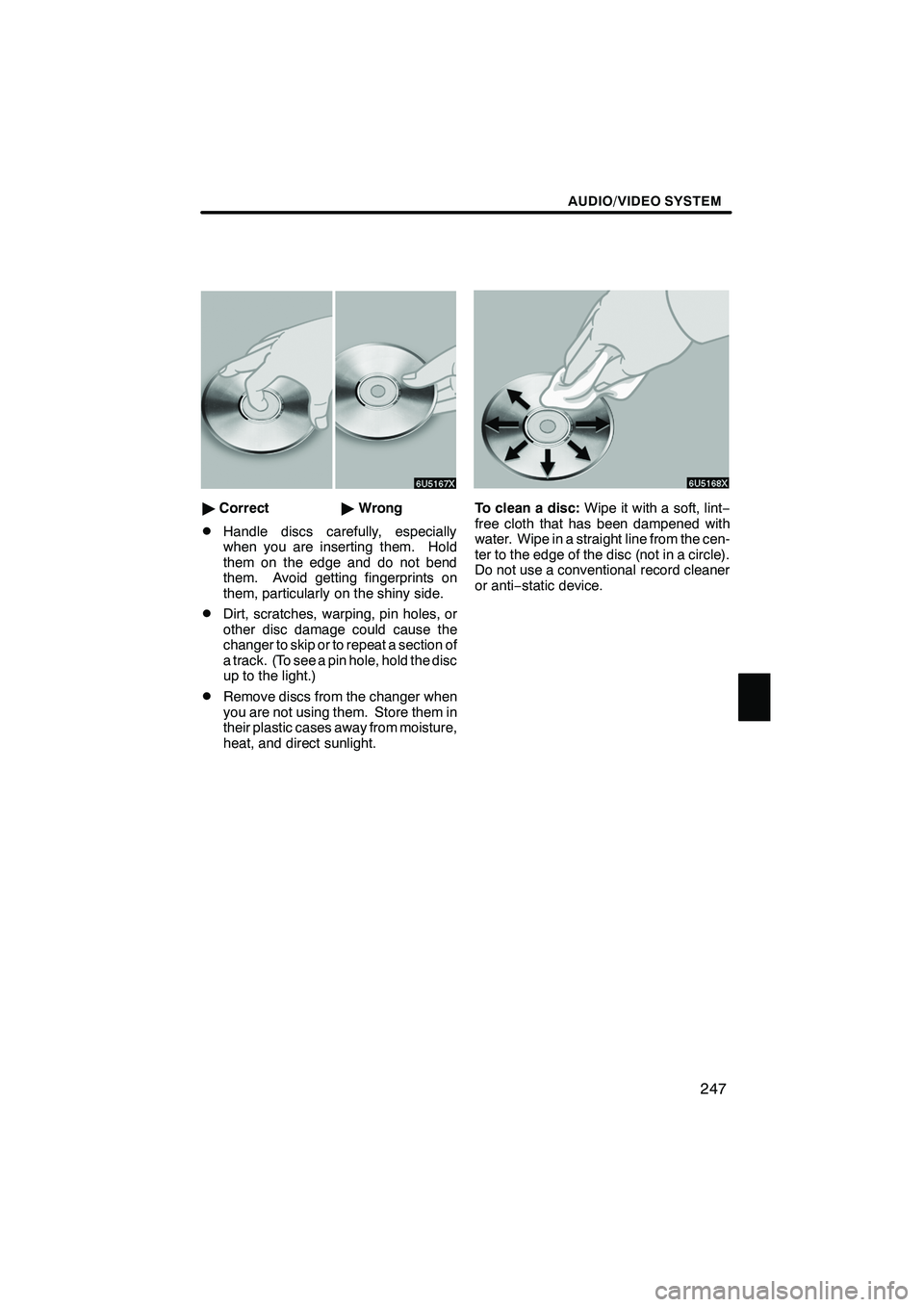

Finish
AUDIO/VIDEO SYSTEM
247
"Correct "Wrong
DHandle discs carefully, especially
when you are inserting them. Hold
them on the edge and do not bend
them. Avoid getting fingerprints on
them, particularly on the shiny side.
DDirt, scratches, warping, pin holes, or
other disc damage could cause the
changer to skip or to repeat a section of
a track. (To see a pin hole, hold the disc
up to the light.)
DRemove discs from the changer when
you are not using them. Store them in
their plastic cases away from moisture,
heat, and direct sunlight.
To clean a disc: Wipe it with a soft, lint −
free cloth that has been dampened with
water. Wipe in a straight line from the cen-
ter to the edge of the disc (not in a circle).
Do not use a conventional record cleaner
or anti −static device.
IS F/350/250_Navi_U
(L/O 0712)

Finish
AIR CONDITIONING
256
INFORMATION
Knowledge for the two−temperature
selector operation:
This air conditioning system has two
independent temperature selectors:
left and right (for the use of driver and
front passenger respectively).
D There are cases where the temper-
ature of the airflow may not accu-
rately correlate on the driver and
front passenger side according to
circumstances, even if the left and
right temperature selectors are set
at the same temperature. If this sit-
uation occurs, use the fine tune op-
eration to adjust the air tempera-
ture on one side.
D There are cases where one or both
of the airflow temperatures may
not accurately correlate with the
set temperature according to cir-
cumstances, when the airflow tem-
perature settings on the left and
right are substantially different.
For example, if the left controller is
set at central or neutral tempera-
ture while the right one is set at
maximum heating or maximum
cooling, or vice versa. If this situa-
tion occurs, use the fine tune op-
eration to adjust the air tempera-
ture on each side.
Driver side setting air flow
Passenger side setting air flow
Mixed air flow
IS F/350/250_Navi_U
(L/O 0712)

Finish
AIR CONDITIONING
257
SETTING OPERATION — manual con-
trol
When one of the manual control touch−
screen buttons is depressed while operat-
ing in automatic mode, the operation cor-
responding to the depressed button is set.
Other conditions continue to be adjusted
automatically.
If manual air flow selection is desired —
The outlets from which air is delivered can
be selected manually by touching the
touch− screen button. The function of each
mode is as follows:
1 Panel — Air flows mainly from the
instrument panel vents and rear
vents.
2Bi −level — Air flows from both the
floor vents, instrument panel vents
and rear vents.
When you set the temperature selec-
tor setting at about the middle in auto-
matic operation, warm air flows out of
the floor vents and relatively low −
temperature air flows out of the in-
strument panel vents and rear vents.
3 Floor — Air flows mainly from the
floor vents and rear vents.
4 Floor/windshield — Air flows mainly
from the floor vents, windshield vents
and rear vents.
Take in the fresh air with selecting the
OUTSIDE AIR mode by the air intake con-
trol button.
The selected mode is highlighted. If manual fan speed control is desired
—
"1Fan speed at low
2Fan speed at high
The fan speed can be set to your desired
speed by touching the appropriate air flow
control button.
The higher the fan speed is, the more air is
delivered.
Pushing the “OFF”button turns the fan off.
To remove the exterior windshield frost
and interior windshield fog, use the high
speed setting.
The selected mode is highlighted.
IS F/350/250_Navi_U
(L/O 0712)

Finish
AIR CONDITIONING
261
(c) Rear window and outside rear view
mirror defogging
To turn the electric rear window and
outside rear view mirror defogger on,
push the button above.
The “ENGINE START STOP” switch must
be in IGNITION ON mode.
The thin heater wires on the inside of the
rear window and the heater panels in the
outside rear view mirrors will quickly clear
the surface.
Keep your hands off the mirror faces when
the system is on.
The indicator light is on when the defogger
is operating.
CAUTION
Since the mirror surfaces can get hot,
do not touch them when the system
is on.
The system will automatically shut off
when the defogger has operated about 15
minutes.
If further defrosting or defogging is de-
sired, simply actuate the switch again.
When the surface has cleared, push the
button once again to turn the defogger off.
Continuous use may cause the battery to
discharge, especially during stop−and− go
driving. The defogger is not designed to
dry rain water or to melt snow.
If the outside rear view mirrors are heavily
coated with ice, use a spray de −icer before
operating the system.
NOTICE
DWhen cleaning the inside of the
rear window, be careful not to
scratch or damage the heater wires
or connectors.
DTo prevent the battery from being
discharged, turn the switch off
when the engine is not running.
IS F/350/250_Navi_U
(L/O 0712)

Finish
LEXUS PARKING ASSIST−SENSOR
286
(a) When snowflakes or mud gets on
the sensors
"1Multi−information display
2Touch screen
If foreign matter gets on the sensors
and the parking assist −sensor cannot
detect the object properly, the above
message appears. At this time, the ve-
hicle symbol and the indicator bars cor-
responding to the faulty sensors flash
for about 7 seconds and 2 beeps sound
5 times.
After about 7 seconds, the sensor indi-
cator bars will cease flashing, however
will stay lit until the affected sensor is
cleaned. Furthermore, the vehicle sym-
bol will continue to flash until the af-
fected sensor is cleaned.
The above illustration shows the sensor on
the left front of the vehicle malfunctioning.
If the failure warning does not go off even
after the foreign matter is removed, the
parking assist −sensor may be malfunc-
tioning. Have it checked by your Lexus
dealer. (b) When the sensor is malfunctioning
"1Multi−
information display
2Touch screen
If the sensor cable is broken and the
parking assist− sensor cannot detect
the object properly, the above message
appears. At this time, the indicator bars
corresponding to the faulty sensor
flash for about 7 seconds and 2 beeps
sound 5 times.
The indicator bars continue lighting af-
ter flashing.
The above illustration shows the sensor on
the right rear of the vehicle malfunctioning.
If this message appears, have the parking
assist− sensor checked by your Lexus
dealer.
IS F/350/250_Navi_U
(L/O 0712)

Finish
LEXUS PARKING ASSIST−SENSOR
287
As the parking assist−sensor might be
malfunctioning in the following cases,
have it checked by your Lexus dealer.
DThe indicator in the instrument cluster
does not come on and a beep does not
sound even when the parking assist −
sensor main switch is turned on.
DThe warning comes on despite no ob-
stacle around the vehicle.
On vehicles equipped with rear view
monitor system, a warning appears on
the right top of the parking assist moni-
tor in the following conditions.
DWhen the shift lever is put in “R” (auto-
matic transmission) or reverse (manu-
al transmission) and the rear view
monitor is turned on.
DWhen the parking assist −sensor main
switch is turned on and any sensor de-
tects an obstacle.
Although “Display OFF” is selected in the
Lexus parking assist −sensor setting
screen, the warning appears on the right
top of the rear view monitor display.
IS F/350/250_Navi_U
(L/O 0712)
— Rear view monitor
display (Vehicles with
rear view monitor system)

Finish

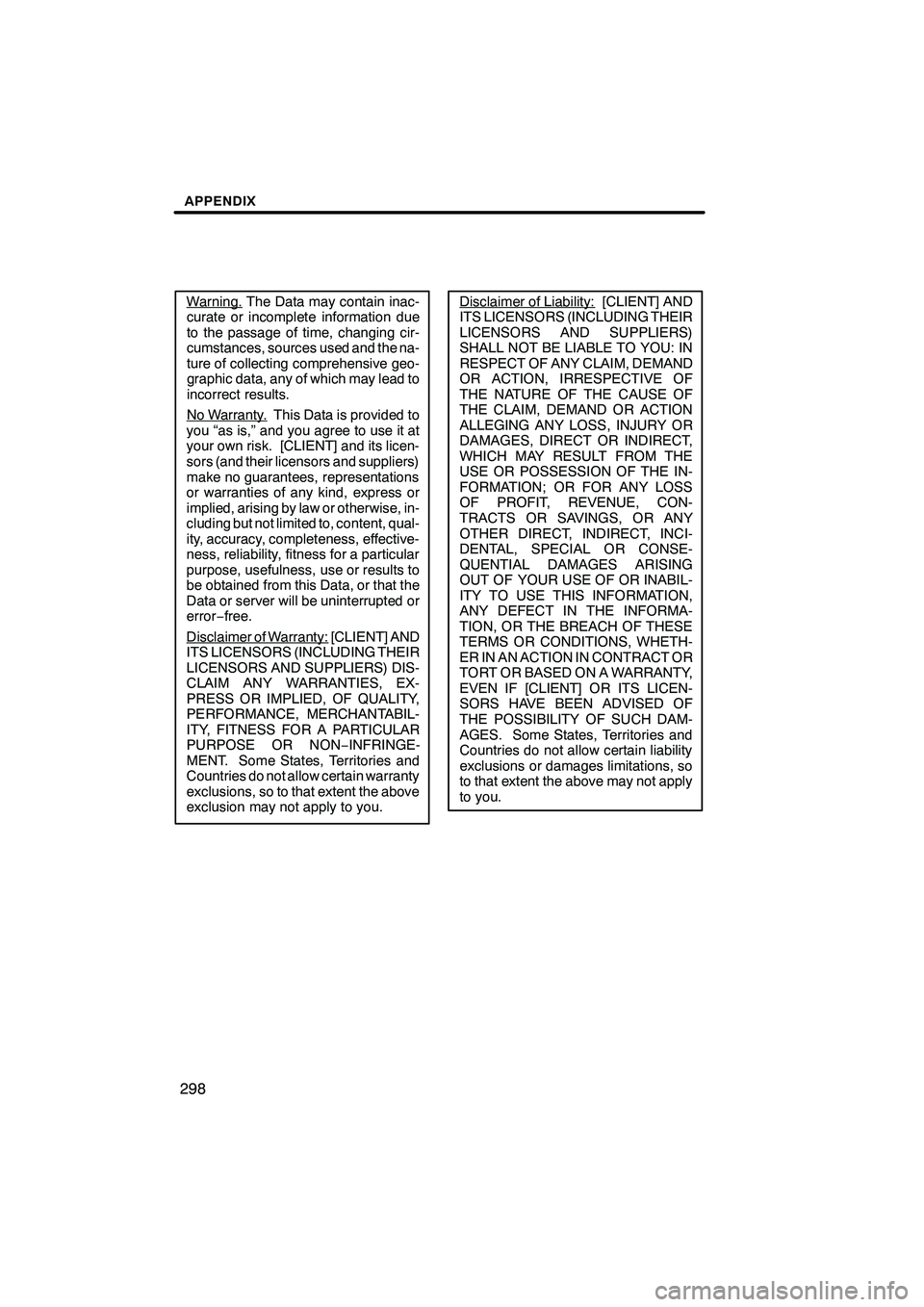

APPENDIX
298
Warning.The Data may contain inac-
curate or incomplete information due
to the passage of time, changing cir-
cumstances, sources used and the na-
ture of collecting comprehensive geo-
graphic data, any of which may lead to
incorrect results.
No Warranty.
This Data is provided to
you “as is,” and you agree to use it at
your own risk. [CLIENT] and its licen-
sors (and their licensors and suppliers)
make no guarantees, representations
or warranties of any kind, express or
implied, arising by law or otherwise, in-
cluding but not limited to, content, qual-
ity, accuracy, completeness, effective-
ness, reliability, fitness for a particular
purpose, usefulness, use or results to
be obtained from this Data, or that the
Data or server will be uninterrupted or
error− free.
Disclaimer of Warranty:
[CLIENT] AND
ITS LICENSORS (INCLUDING THEIR
LICENSORS AND SUPPLIERS) DIS-
CLAIM ANY WARRANTIES, EX-
PRESS OR IMPLIED, OF QUALITY,
PERFORMANCE, MERCHANTABIL-
ITY, FITNESS FOR A PARTICULAR
PURPOSE OR NON− INFRINGE-
MENT. Some States, Territories and
Countries do not allow certain warranty
exclusions, so to that extent the above
exclusion may not apply to you.
Disclaimer of Liability:[CLIENT] AND
ITS LICENSORS (INCLUDING THEIR
LICENSORS AND SUPPLIERS)
SHALL NOT BE LIABLE TO YOU: IN
RESPECT OF ANY CLAIM, DEMAND
OR ACTION, IRRESPECTIVE OF
THE NATURE OF THE CAUSE OF
THE CLAIM, DEMAND OR ACTION
ALLEGING ANY LOSS, INJURY OR
DAMAGES, DIRECT OR INDIRECT,
WHICH MAY RESULT FROM THE
USE OR POSSESSION OF THE IN-
FORMATION; OR FOR ANY LOSS
OF PROFIT, REVENUE, CON-
TRACTS OR SAVINGS, OR ANY
OTHER DIRECT, INDIRECT, INCI-
DENTAL, SPECIAL OR CONSE-
QUENTIAL DAMAGES ARISING
OUT OF YOUR USE OF OR INABIL-
ITY TO USE THIS INFORMATION,
ANY DEFECT IN THE INFORMA-
TION, OR THE BREACH OF THESE
TERMS OR CONDITIONS, WHETH-
ER IN AN ACTION IN CONTRACT OR
TORT OR BASED ON A WARRANTY,
EVEN IF [CLIENT] OR ITS LICEN-
SORS HAVE BEEN ADVISED OF
THE POSSIBILITY OF SUCH DAM-
AGES. Some States, Territories and
Countries do not allow certain liability
exclusions or damages limitations, so
to that extent the above may not apply
to you.
IS F/350/250_Navi_U
(L/O 0712)

Finish
APPENDIX
299
Export Control.You agree not to ex-
port from anywhere any part of the
Data provided to you or any direct
product thereof except in compliance
with, and with all licenses and approv-
als required under, applicable export
laws, rules and regulations.
Entire Agreement.
These terms and
conditions constitute the entire agree-
ment between [CLIENT] (and its licen-
sors, including their licensors and sup-
pliers) and you pertaining to the sub-
ject matter hereof, and supersedes in
their entirety any and all written or oral
agreements previously existing be-
tween us with respect to such subject
matter.
Governing Law.
The above terms and
conditions shall be governed by the
laws of the State of Illinois, without giv-
ing effect to (i) its conflict of laws provi-
sions, or (ii) the United Nations Con-
vention for Contracts for the Interna-
tional Sale of Goods, which is explicitly
excluded. You agree to submit to the
jurisdiction of the State of Illinois for
any and all disputes, claims and ac-
tions arising from or in connection with
the Data provided to you hereunder.
Government End Users.
If the Data is
being acquired by or on behalf of the
United States government or any other
entity seeking or applying rights similar
to those customarily claimed by the
United States government, this Data is
a “commercial item” as that term is
defined at 48 C.F.R. (“FAR”) 2.101, is
licensed in accordance with these End
User Terms, and each copy of the Data
delivered or otherwise furnished shall
be marked and embedded as appropri-
ate with the following “Notice of Use,”
and shall be treated in accordance with
such Notice:
NOTICE OF USE
CONTRACTOR (MANUFACTURER/ SUPPLIER) NAME: NAVTEQ
CONTRACTOR (MANUFACTURER/ SUPPLIER) ADDRESS: 222 Mer-chandise Mart Plaza, Suite 900, Chicago, Illinois 60654
This Data is a commercial item as
defined in FAR 2.101 and is subject to the End User Terms under which this Data was provided.

2006 NAVTEQ −All rights reser-
ved.
If the Contracting Officer, federal gov-
ernment agency, or any federal official
refuses to use the legend provided
herein, the Contracting Officer, federal
government agency, or any federal offi-
cial must notify NAVTEQ prior to seek-
ing additional or alternative rights in the
Data.
IS F/350/250_Navi_U
(L/O 0712)

Finish
APPENDIX
304
Disclaimer of Liability: DENSO SHALL
NOT BE LIABLE TO YOU FOR ANY
CLAIM, DEMAND OR ACTION, IR-
RESPECTIVE OF ITS NATURE, AL-
LEGING ANY LOSS, INJURY OR
DAMAGES, WHETHER DIRECT, IN-
DIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES, IN-
CLUDING ANY LOSS OF PROFIT,
REVENUE OR CONTRACTS ARIS-
ING OUT OF YOUR POSSESSION,
USE OF OR INABILITY TO USE THIS
INFORMATION, ANY DEFECT IN
THE INFORMATION, OR THE
BREACH OF THESE TERMS OR
CONDITIONS, WHETHER IN AN AC-
TION IN CONTRACT OR TORT OR
BASED ON A WARRANTY, EVEN IF
DENSO OR ITS LICENSORS HAVE
BEEN ADVISED OF THE POSSIBIL-
ITY OF SUCH DAMAGES. Some
states, territories and countries do not
allow certain liability exclusions or
damages limitations, so to that extent
the above may not apply to you.Indemnity. You agree to indemnify, de-
fend and hold DENSO and its licensors
(including their respective licensors,
suppliers, assignees, subsidiaries, af-
filiated companies, and the respective
officers, directors, employees, share-
holders, agents and representatives of
each of them) free and harmless from
and against any liability, loss, injury (in-
cluding injuries resulting in death), de-
mand, action, cost, expense, or claim
of any kind or character, including but
not limited to attorney’s fees, arising
out of or in connection with any use or
possession by you of this information.
END USER NOTICE
The marks of companies displayed by
this product to indicate business loca-
tions are the marks of their respective
owners. The use of such marks in this
product does not imply any sponsor-
ship, approval, or endorsement by
such companies of this product.
IS F/350/250_Navi_U
(L/O 0712)
