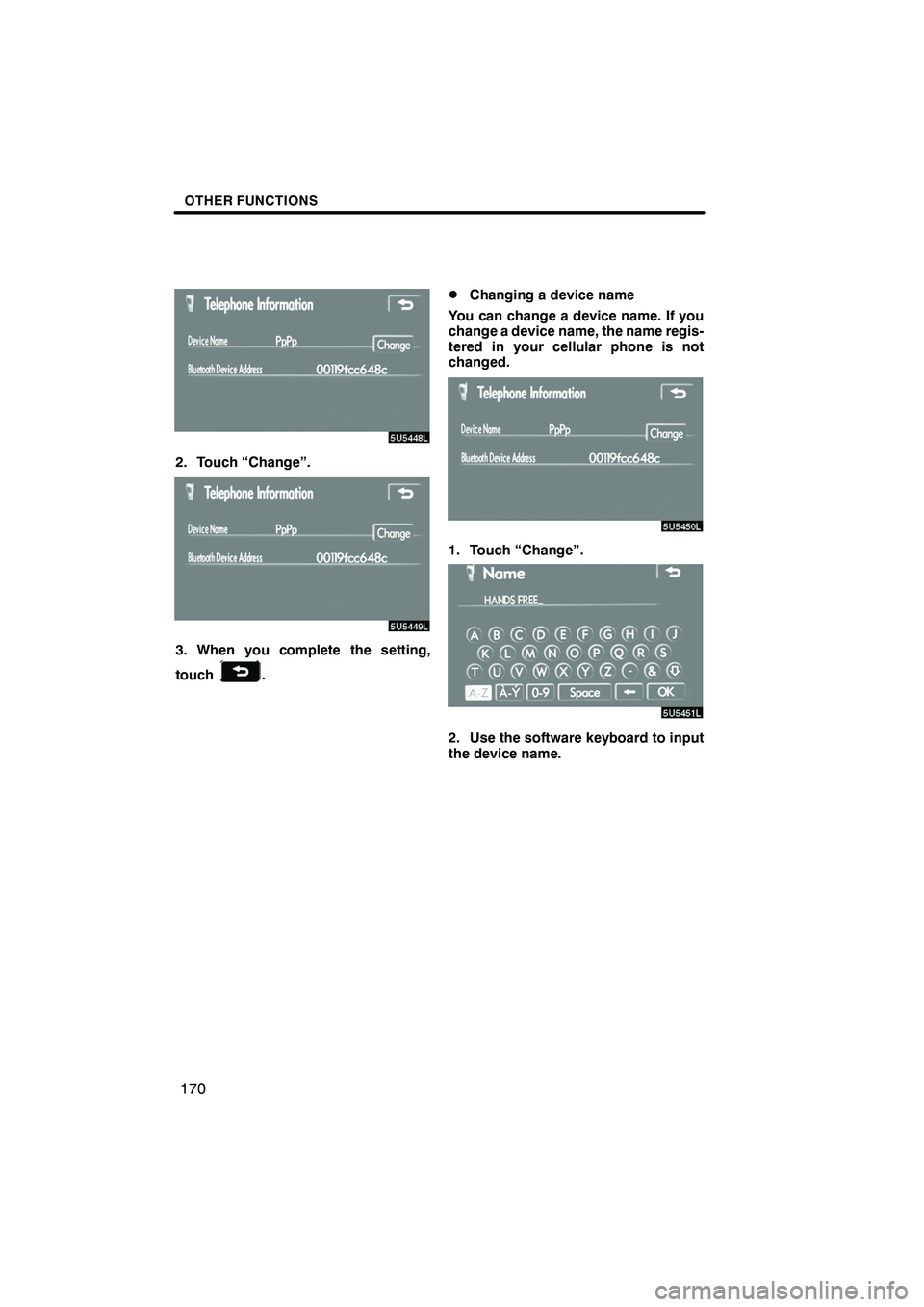

OTHER FUNCTIONS
170
2. Touch “Change”.
3. When you complete the setting,
touch
.
DChanging a device name
You can change a device name. If you
change a device name, the name regis-
tered in your cellular phone is not
changed.
1. Touch “Change”.
2. Use the software keyboard to input
the device name.
IS F/350/250_Navi_U
(L/O 0712)

Finish
OTHER FUNCTIONS
171
D
Changing the Bluetooth
rsettings
You can change the display and settings of
Bluetooth rinformation on the system.
The information displays the following
items.
“Device Name” The name in the Bluetooth r
....
network. You can change it.
“Passkey” The password when you regis-
....
ter your cellular phone in the
system. You can change it into
the figure of 4 −8 digits.
“Bluetooth

Device Address”
The address peculiar to the
....
system. You can not change it.
If you have registered two
Bluetooth rphones with the
same Device Name or Pass-
key and you cannot distinguish
one from the other, refer to it. When you change the device name or
Passkey, do the followings.
1. Touch “Bluetooth
”.
2. Touch “Change” of “Device Name”
or “Passkey”.

: Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
IS F/350/250_Navi_U
(L/O 0712)

Finish

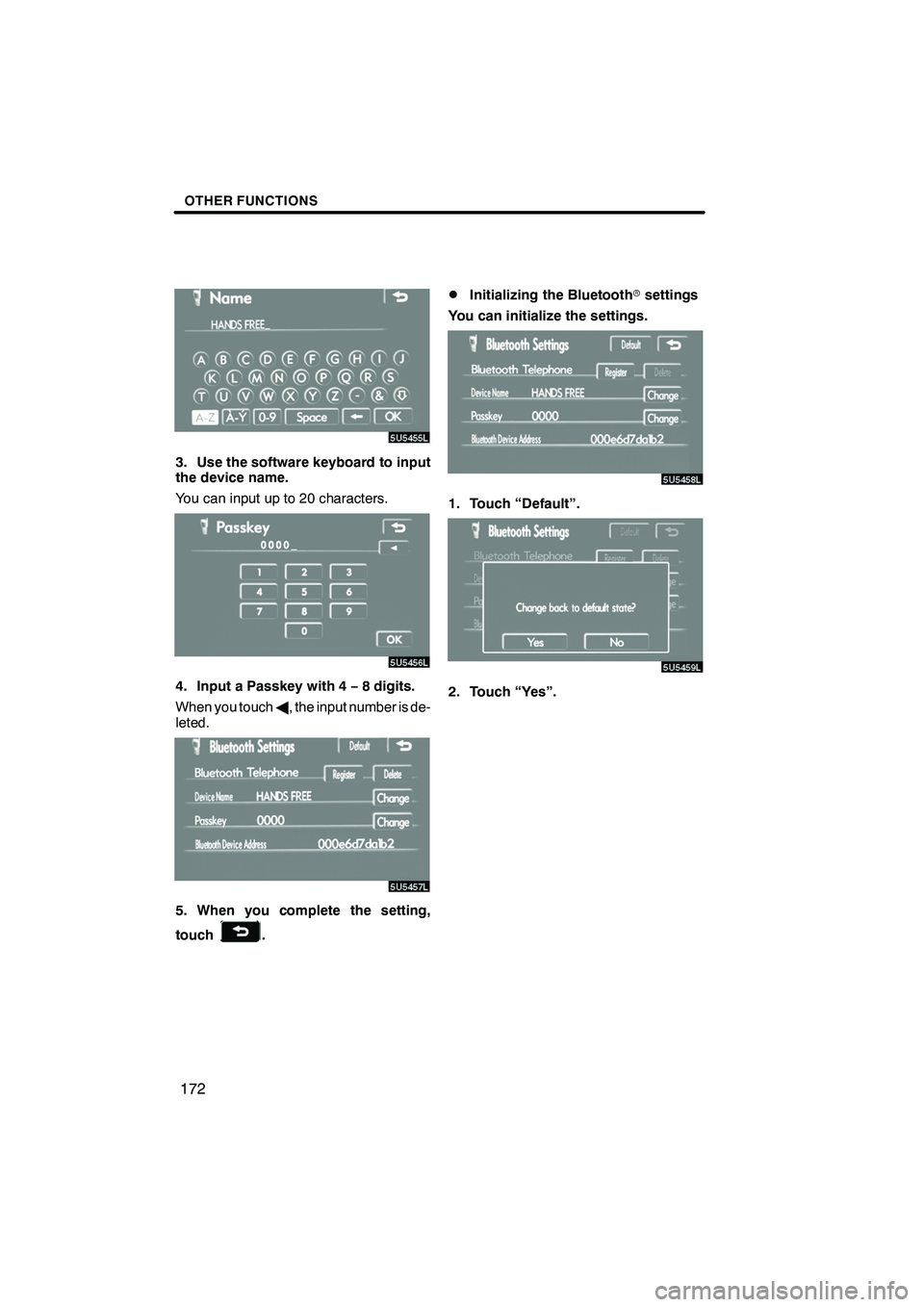

OTHER FUNCTIONS
172
3. Use the software keyboard to input
the device name.
You can input up to 20 characters.
4. Input a Passkey with 4−8 digits.
When you touch A, the input number is de-
leted.
5. When you complete the setting,
touch
.
DInitializing the Bluetooth rsettings
You can initialize the settings.
1. Touch “Default”.
2. Touch “Yes”.
IS F/350/250_Navi_U
(L/O 0712)

Finish
AUDIO/VIDEO SYSTEM
226
"DVD audio
If you touch a part of the screen, where
controls are not located while watching
video, DVD controls will appear.
“> Page2”: Touching this will display on
the second page of DVD controls.
“< Page1”: Touching this will display the
top page of DVD controls.
“Hide Buttons”: Touching this will turn off
the controls from the screen.
If “
”appears on the screen when you
touch a control, the operation relevant to
the control is not permitted.
DDescription of DVD controls
TOP PAGE OF DVD VIDEO CONTROLS
“Menu” and “Top Menu”: If you touch ei-
ther button, the menu screen for DVD vid-
eo appears. (For the operation, see the
manual that come with the DVD video disc
provided separately.)
: The menu control key appears on
the screen. (See page 227.)
: Touching this will pause the video
screen.
: Touching this will fast reverse.
: Touching this will stop the DVD
video disc.
: Touching this will resume normal
play after stop or pause.
: Touch this button to fast forward
during the playback. During pause, touch
this button briefly to advance frame by
frame, or touch and hold it to play slowly.
SECOND PAGE OF DVD VIDEO
CONTROLS
“Setup”: The initial setup screen appears.
(See page 232.)
“Select Number”: The track or number
search screen appears. (See page 237.)
“Search”: The title search screen ap-
pears. (See page 228.)
“Return”: Touching this will display the
predetermined scene and start playing
from there.
“AUDIO”: The audio changing screen ap-
pears. (See page 230.)
“Subtitle”: The subtitle changing screen
appears. (See page 230.)
“Angle”: The angle selection screen ap-
pears. (See page 231.)
IS F/350/250_Navi_U
(L/O 0712)

Finish
AUDIO/VIDEO SYSTEM
227
TOP PAGE OF DVD AUDIO CONTROLS
“Top Menu”:If you touch this button, the
menu screen for DVD audio appears. (For
operation, refer to the DVD audio disc
manual that is provided separately.)
“AUDIO”: The audio changing screen ap-
pears. (See page 231.)
: The menu control key appears on
the screen. (See page 227.)
: Touch this button to pause the
disc.
: Touching this will fast reverse.
:Touching this will stop the disc.
:Touching this will resume normal
play after stop or pause.
: Touch this button to fast forward
during the playback. During pause, touch
this button briefly to advance frame by
frame, or touch and hold it to play slowly.
SECOND PAGE OF DVD AUDIO
CONTROLS
“Setup”: The initial setup screen ap-
pears. (See page 232.)
“Search”: The group search screen ap-
pears. (See page 228.)
“Return”: Touching this will display the
predetermined scene and start playing
from there.
“Prev. Still”: Touch this button to reverse
the still pictures. (See page 229.)
“Next Still”: Touch this button to forward
the still pictures. (See page 229.)
“Subtitle”: The subtitle changing screen
appears. (See page 230.)
“Angle”: The angle selection screen ap-
pears. (See page 231.)
DSelecting a menu item
Enter the menu item using Y," ,B and
A buttons and touch “Enter”.
The player starts playing video for that
menu item. (For details, see the manual
that comes with the DVD video disc pro-
vided separately.)
Each time you touch “Move Buttons”, the
controls on the screen move upward and
downward.
When you touch “< will disappear. To display them again,
touch “>>ON” .
When you touch
, the previous
screen returns.
IS F/350/250_Navi_U
(L/O 0712)

Finish
AUDIO/VIDEO SYSTEM
229
D
Selecting the bonus group
DVD audio only —
Enter the bonus group number on the
searching group screen and touch “En-
ter”.
The “Enter Key Code” screen will appear.
To enter the number of the group you want
to play, push the group number.
If you enter the wrong number, touch
Ato
delete the number.
Touch “Enter” on the screen.
The player starts playing the disc from the
selected bonus group number.
DChanging the still picture
DVD audio only —
Touch “Prev. Still” or “Next Still” on the
screen to forward or reverse the still
pictures.
IS F/350/250_Navi_U
(L/O 0712)

Finish
INDEX
310
Numbers/Symbols
? button
38,86,87
......................
3 Routes selection 62 ..................
A
A/C touch−screen button 250
...........
Adding a memo 124 ...................
Adding destinations 72 .................
Adding the data to the phone book 157 ...
Address button 38 .....................
Adjusting the position of and opening and closing the air outlets 266 ..........
Air conditioning filter 267 ...............
Air flow control touch −screen
button 250 ...........................
Air intake control button 250 ............
Air outlets 266 ........................
Alphabet key 24 .......................
AM·SAT button 186 ....................
Angle mark 232 .......................
Area to avoid 101 .....................
Arrow screen 32,68 ....................
ASL 192 .............................
AUDIO button 186 .....................
Audio language 232 ...................
Audio/video remote controls 240 .........
Auto Answer 151 ......................
AUTO button 250 ......................
Auto Voice Guidance 87,113 .............
Automatic sound levelizer 192 ...........
Automatic transition 181 ................
B
Back sensors 282
.....................
BASS 191
............................
Beep setting 183
......................
Bluetooth r 127
........................
Bluetooth rinformation 169
.............
Brightness 178
........................
Building information 35
.................
C
Calendar with memo 122
...............
Calibration 87 .........................
Call by dial 134 .......................
Call by dialed numbers 135 .............
Call by phone book 134 ................
Call by POI 140 .......................
Call by received calls 136 ..............
Call by speed dial 137 .................
Call by voice recognition 138 ............Call on the Bluetooth
rphone 134 ........
Categories 50 .........................
CAUTION screen 22 ...................
CD changer operation 206 ..............
Cellular phone 127 ....................
CH/DISC button 186 ...................
Change “Area Size” 105 ................
Change “Icon” 95 ......................
Change “Location” 98,104 ...............
Change “Name” 97,103 .................
Change “Phone #” 99 ..................
Change “Quick Access” 96 .............
Change button 38 .....................
Change the route 62 ...................
Change the settings of the
Bluetooth rphone 143 .................
Changing a device name 170 ...........
Changing the angle 231 ................
Changing the audio format 231 ..........
Changing the audio language 230 .......
Changing the Bluetooth rsettings 171 ....
Changing the map DVD −ROM 305 .......
Changing the security code 165
.........
Changing the still picture 229
...........
Changing the subtitle language 230 ......
Chapter 239
..........................
Checking and replacing the air
conditioning filter 267
.................
City center 51
.........................
City name 45,49
.......................
City to search 45,48
....................
CLIMATE button 250 ...................
Climate control 254 ....................
Color 178 ............................
Command list 177 .....................
Compass mode 34 ....................
Compass mode screen 32 ..............
Contrast 178 ..........................
Coordinates button 38 .................
Current position as the search point 52 ...
Current position display 28 .............
Current position/tire change calibration 115 .......................
Cursor position as a destination 29 ......
Cursor position as a memory point 29 ....D
Dealer setting 120
.....................
Default 87 ............................
Del. Dest. button 38 ...................
Delete personal data 182 ...............
Deleting “Quick Access” 97 .............
Deleting a Bluetooth rphone 173
........
Deleting a group name 163 .............
Deleting all of the speed dial 145 ........
IS F/350/250_Navi_U
(L/O 0712)

Finish
INDEX
312
I
If the player malfunctions
238
...........
Incoming call display 151 ...............
Incoming Calls 136 ....................
INFO button 10 .......................
Information about the icon 30 ...........
Information items 119 ..................
Initial screen 22 .......................
Initializing the Bluetooth rsettings 172 ....
Initializing the security code 167 .........
Inputting letters and numbers 24 .........
Inserting or ejecting discs 206,220 .......
Intersection button 38 ..................
Intersection guidance screen 32,67 .......
K
Key layout 108
........................
Keyboard Layout 87
...................
L
Last 5 cities 46,50
......................
Lexus parking assist sensor 278
.........
Lexus parking assist −sensor
failure warning 285 ...................
Limitations of the navigation
system 294 ..........................
List 25 ...............................
List All categories button 50,53 ...........
List screen operation 24 ................
Listening to satellite radio 200 ...........
Listening to the radio 195 ...............
LOAD button 186,206,220 ...............
Local POI list 80 ......................
M
Maintenance information 22,118
..........
Maintenance information setting 118 .....
Map button 38
........................
Map database information and updates 296
.........................
Map DVD button 86,305
.................
Map scale 34
.........................
Map screen operation 28
...............
Map View 78
.........................
Map View switch 10
...................
MAP/VOICE button 10,28
...............
Mark switch 10
........................ Marks shown on DVD video discs 238
....
Memo information 23
..................
Memo list 125
.........................
Memory button 38
.....................
Memory point information 31
............
Memory point names 98
................
Memos for a specified period of time 126
....................
MENU button 10,86,87
.................
Menu screen 86
.......................
Message 197
.........................
Micro dust and pollen filter 250,262 ......
Microphone 127,174
...................
MID 191
.............................
MP3/WMA 214
........................
MSG button 197
.......................
My places 92
.........................
My Places button 86
...................
N
Names of areas to be avoided 104 .......
Nearest 5 cities 46,49 ..................
North− up 10..........................
North− up symbol 36 ...................
Notifying traffic restriction 112 ...........
Numbers and symbols 25 ..............
Numerous obstacles are detected on the front and real of the vehicle
simultaneously 283 ...................
O
OFF button 250
.......................
Off function 10,87,110
..................
On Route button 53
....................
One− touch scroll 28
...................
Operating a DVD disc 224
..............
Operating a MP3/WMA disc 214
.........
Operating a video CD 236
..............
Operating an audio CD 211
.............
Operating guide 177
...................
OPP (Object Push Profile) 127
..........
Orientation of the map 36
...............
Outgoing Calls 135
....................
Outside rear view mirror defogging 261 ...
Outside temperature display 250,263 ....
Overview buttons and guidance
screen 10
...........................
IS F/350/250_Navi_U
(L/O 0712)
