356
5-2. Steps to take in an emergency
08_IS F_U_(L/O_0711)
■If the tire pressure warning system is inoperative
The tire pressure warning system will be disabled in the following conditions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used.
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered in the tire pressure warning computer.
●If a different set of tires has been selected using the satellite switch.
●If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or higher.
●If electronic devices or facilities using similar radio wave frequencies are nearby.
●If a radio set at similar frequencies is in use in the vehicle.
●If there is a lot of snow or ice on the vehicle, in particular, around the wheels or
wheel housings.
●If non-genuine Lexus wheels are used. (Even if you use Lexus wheels, the tire
pressure warning system may not work properly with some types of tires.)
■If the tire pressure warning light comes on after blinking for 1 minute frequently
If the tire pressure warning light comes on after blinking for 1 minute frequently
when the “ENGINE START STOP” switch is turned to IGNITION ON mode, have
it checked by your Lexus dealer.
■Customization that can be configured at Lexus dealer
The vehicle speed linked seat belt reminder buzzer can be disabled.
(Customizable features →P. 4 2 4 )

370
5-2. Steps to take in an emergency
08_IS F_U_(L/O_0711)
Follow the correction procedures.After taking the specified steps to correct the suspected problem, check
that the warning light turns off.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure
Once
(Comes on for 10 seconds.)
Indicates that an
attempt was
made to start the
engine without
the electronic
key being
present, or the
electronic key
was not function-
ing normally.
Start the engine
with the elec-
tronic key
present.
*
Once3 times
(Flashing)
Indicates that a
door other than
the driver’s door
has been opened
and closed with
the “ENGINE
START STOP”
switch in any
mode other than
OFF and the
electronic key
has been taken
out of the detec-
tion area.
Confirm the loca-
tion of the elec-
tronic key.

390
5-2. Steps to take in an emergency
08_IS F_U_(L/O_0711)
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■When the battery is removed or discharged
The power windows must be initialized.
(→ P. 6 2 )
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Open and close any of the doors with the “ENGINE START
STOP” switch OFF.
Maintain the engine speed of the second vehicle and turn the
“ENGINE START STOP” switch to IGNITION ON mode,
then start the vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Lexus dealer
as soon as possible.STEP2
STEP3
STEP4
STEP5

404
6-1. Specifications
08_IS F_U_(L/O_0711)
Electrical system
Differential
*: “Toyota Genuine Differential Gear Oil” is filled in your Lexus vehicle at factory
fill. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equiva-
lent of matching quality to satisfy the above specification. Please contact your
Lexus dealer for further details.
Battery
Open voltage* at
68 °F (20 °C):12.6  12.8 V Fully charged
12.2 
12.4 V Half charged
11.8 
12.0 V Discharged
(*: Voltage checked 20 minutes after
the engine and all the lights are turned
off)
Charging rates5 A max.
Oil capacity1.42 qt. (1.35 L, 1.19 lmp.qt.)
Oil type and viscosity*“Toyota Genuine Differential Gear Oil
LT 75W-85 GL-5” or equivalent

441
Alphabetical index
08_IS F_U_(L/O_0711)
Electric power steering ....................... 166
Electronic keyIf the electronic key does not operate properly ............................ 386
Emergency, in case of If the engine will not start ............... 383
If the shift lever cannot be shifted from P ................................... 384
If the vehicle has discharged battery.................................................. 389
If the warning buzzer sounds......350
If the warning light turns on ..........350
If the warning message is displayed ............................................360
If you have a flat tire .........................374
If you lose your keys ........................385
If you think something is wrong................................................... 346
If the electronic key does not operate properly ............................ 386
If your vehicle becomes stuck .... 395
If your vehicle needs to be towed ................................................... 340
If your vehicle overheats................ 392 Engine
ACCESSORY mode......................... 114
Compartment......................................282
Engine switch .......................................... 114
Hood ........................................................ 279
How to start the engine ..................... 114
Identification number ...................... 399
If the engine will not start............... 383
Ignition switch ......................................... 114
Overheating .........................................392
Engine compartment cover .............283
Engine coolant Capacity ................................................ 403
Checking .............................................. 288
Preparing and checking before winter .....................................180
Engine coolant temperature gauge....................................................... 128
Engine immobilizer system.................. 70
Engine oil Capacity .................................................402
Checking ...............................................284
Preparing and checking before winter .....................................180
Engine oil maintenance data............286
EPS .............................................................. 166
Event data recorder ............................348E

446
Alphabetical index
08_IS F_U_(L/O_0711)
Tachometer..................................................128
Tail lights
Switch ........................................................139
Talk switch*
Telephone switch*
Theft deterrent system
Alarm ...........................................................72
Engine immobilizer system ............. 70
Theft prevention labels .......................... 74
Tire inflation pressure .........................307
Tire information Glossary................................................... 417
Size ............................................................. 414
Tire identification number ............... 414
Uniform tire quality grading ...........415
Tires
Chains ...................................................... 180
Checking ............................................... 296
If you have a flat tire.......................... 374
Inflation pressure................................ 307
Inflation pressure sensor................ 296
Information.............................................. 412
Replacing............................................... 374
Rotating tires ......................................... 301
Size ........................................................... 407
Snow tires ............................................... 180
Tools ........................................................... 374
Total load capacity ................................ 179
Towing Dinghy towing ...................................... 183
Emergency towing ...........................340
Trailer towing.........................................182 TRAC ..........................................................166
Traction control.......................................166
Transmission shift switches.......120, 122
Trip meter ................................................. 128
Trunk
Extending a space ............................. 247
Opener ........................................................41
Trunk light
Trunk light ................................................. 42
Wattage ................................................. 408
Turn signal lights Replacing light bulbs ....................... 334
Switch........................................................ 126
Wattage ................................................. 408
Vanity lights Vanity lights...........................................234
Wattage ................................................. 408
Vanity mirrors ........................................ 234
VDIM...........................................................166
Vehicle dynamics integrated management .........................................166
Vehicle identification number ......... 399
Vehicle stability control .......................166
Ventilators ............................................... 244
VSC .............................................................166T
V

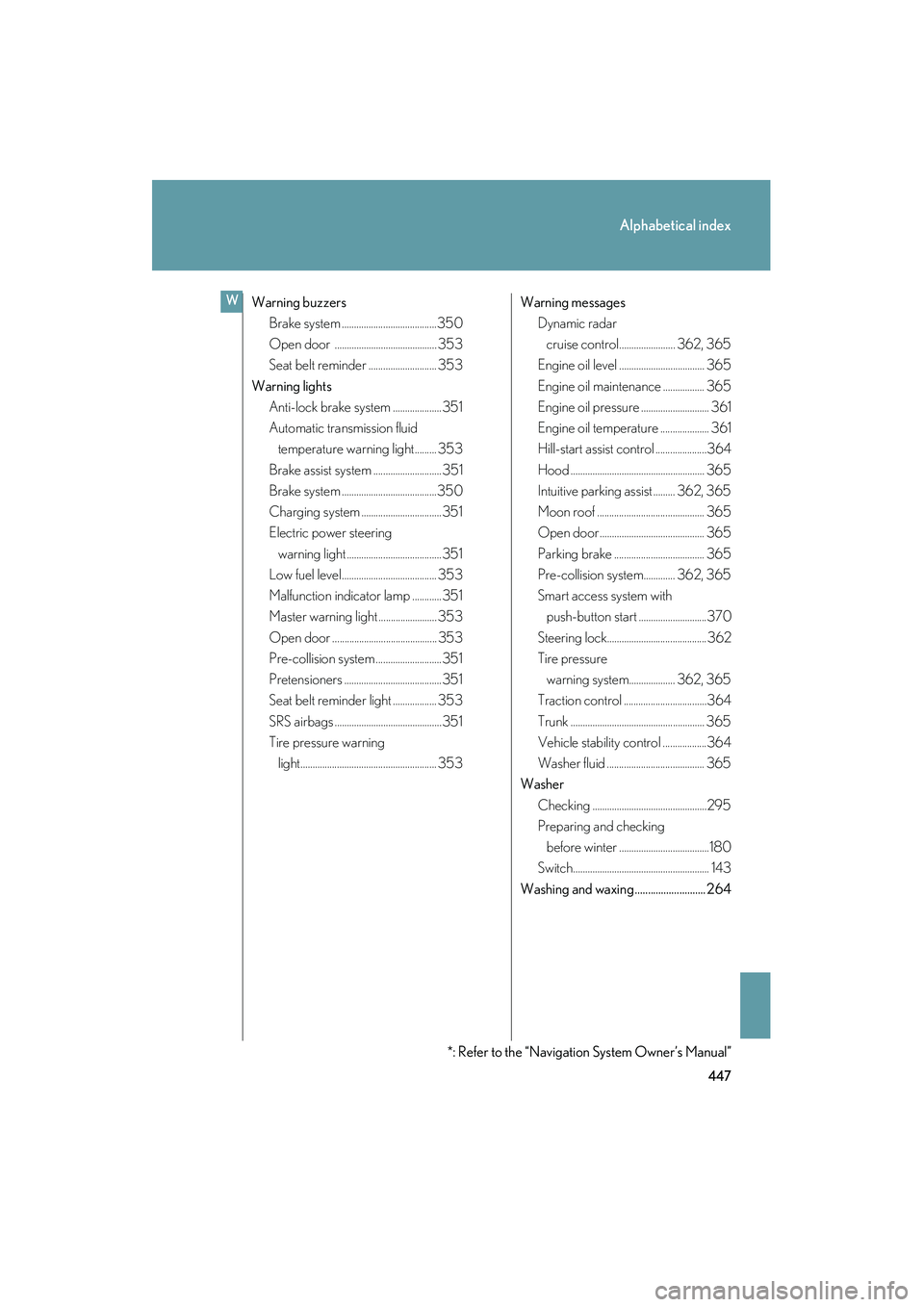

447
Alphabetical index
08_IS F_U_(L/O_0711)
Warning buzzersBrake system .......................................350
Open door .......................................... 353
Seat belt reminder ............................ 353
Warning lights Anti-lock brake system ....................351
Automatic transmission fluid temperature warning light......... 353
Brake assist system ............................ 351
Brake system .......................................350
Charging system ................................. 351
Electric power steering warning light ....................................... 351
Low fuel level....................................... 353
Malfunction indicator lamp ............ 351
Master warning light ........................ 353
Open door ........................................... 353
Pre-collision system ........................... 351
Pretensioners ........................................ 351
Seat belt reminder light .................. 353
SRS airbags ............................................351
Tire pressure warning
light........................................................ 353 Warning messages
Dynamic radar
cruise control....................... 362, 365
Engine oil level ................................... 365
Engine oil maintenance ................. 365
Engine oil pressure ............................ 361
Engine oil temperature .................... 361
Hill-start assist control .....................364
Hood ....................................................... 365
Intuitive parking assist ......... 362, 365
Moon roof ............................................ 365
Open door ........................................... 365
Parking brake ..................................... 365
Pre-collision system............. 362, 365
Smart access system with push-button start ............................370
Steering lock......................................... 362
Tire pressure warning system................... 362, 365
Traction control ..................................364
Trunk ....................................................... 365
Vehicle stability control ..................364
Washer fluid ........................................ 365
Washer
Checking ...............................................295
Preparing and checking before winter .....................................180
Switch........................................................ 143
Washing and waxing ........................... 264W
*: Refer to the “Navigation System Owner’s Manual”
