Lexus IS F 2008 Owner's Manual

220
3-2. Using the audio system
08_IS F_U_(L/O_0711)

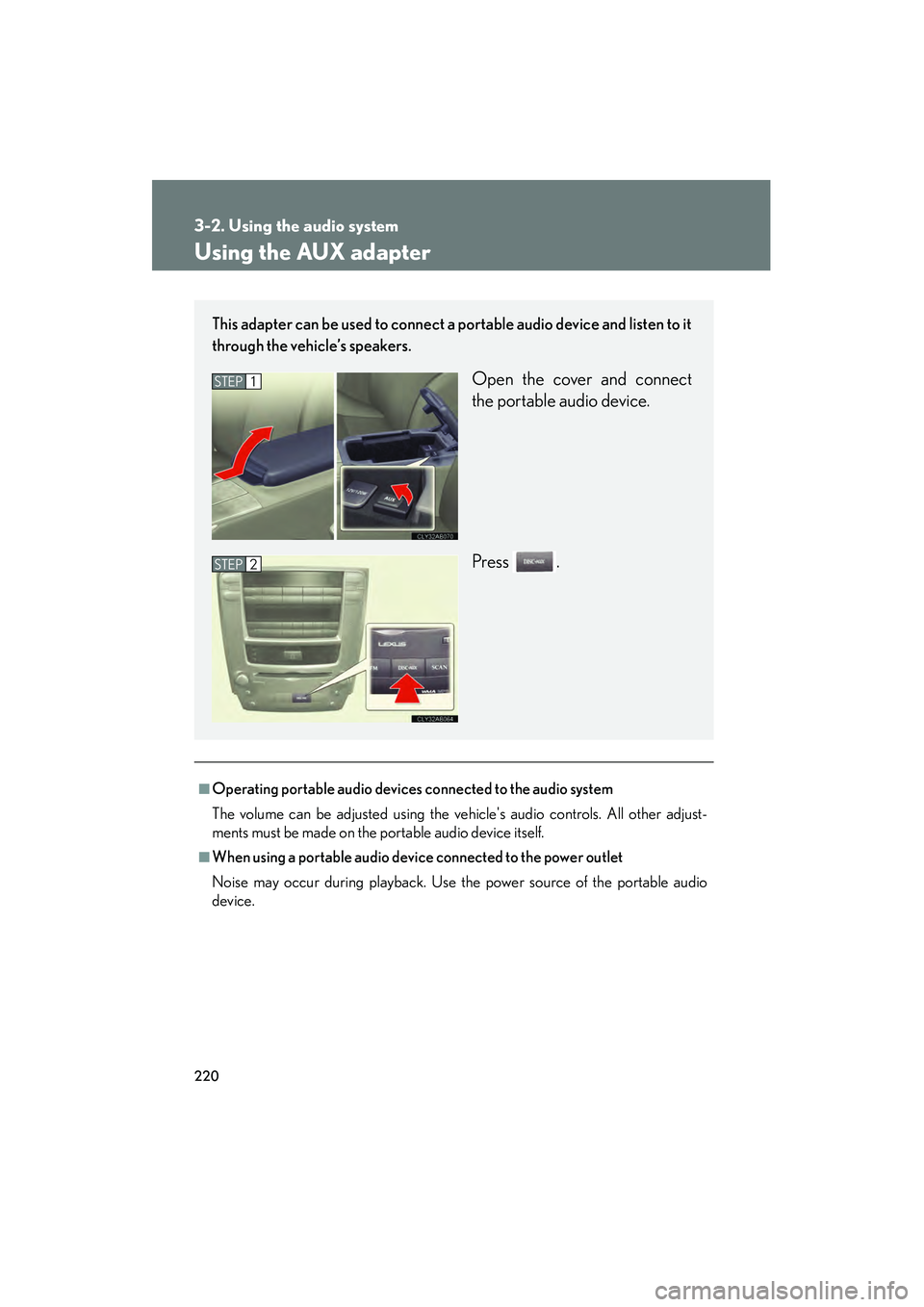

Using the AUX adapter
■Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle's audio controls. All other adjust-
ments must be made on the portable audio device itself.
■When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable audio
device.
This adapter can be used to connect a portable audio device and listen to it
through the vehicle’s speakers.
Open the cover and connect
the portable audio device.
Press .STEP1
STEP2

221
3-2. Using the audio system
3
Interior features
08_IS F_U_(L/O_0711)
Using the steering wheel audio switches
Turning on the powerPress when the audio system is turned off.
The audio system can be turned off by holding down for 1 second or
more.
Changing the audio sourcePress when the audio system is turned on. The audio source
changes as follows each time is pressed. If no discs are inserted in
the player, that mode will be skipped.
FM1 →FM2 →CD changer →AUX →AM →SAT1 →SAT2 →SAT3
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down to continue increasing or decreasing the volume.
Some audio features can be controlled using the switches on the steering
wheel.
Turns the power on, select
audio source
Vo l u m e
Radio: Select radio stations
CD: Select tracks, files (MP3
and WMA) and discs

222
3-2. Using the audio system
08_IS F_U_(L/O_0711)
Selecting a radio stationPress to select the radio mode.
Press “∧” or “ ∨” on to select a radio station.
To scan for receivable stations, press and hold until you hear a
beep.
Selecting a track/file
Press to select the CD mode.
Press “∧” or “ ∨” on to select the desired track/file.
Selecting a disc in the CD changer
Press to select the CD mode.
Press and hold “ ∧” or “ ∨” on until a beep is heard.
■Canceling automatic selection of a radio station
Push the same switch.
CAUTION
■To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

223
3
Interior features
08_IS F_U_(L/O_0711)
3-3. Using the interior lights
Interior lights list
Your Lexus is equipped with the illuminated entry system to assist in enter-
ing the vehicle. Owing to the function of the system, the lights shown in the
following illustration automatically turn on/off according to the presence of
the electronic key, whether the door s are locked/unlocked, whether the
doors are opened/closed, and the “ENGINE START STOP” switch mode.
Front personal lights (→P. 225)
Shift lever light (when the “ENGINE START STOP” switch is in
ACCESSORY or IGNITION ON mode)
Front overhead courtesy light
Front interior light ( →P. 225)
Rear personal lights ( →P. 225)
Rear overhead courtesy light
Rear interior light
Front door courtesy lights

224
3-3. Using the interior lights
08_IS F_U_(L/O_0711)
■To prevent battery discharge
If the overhead courtesy lights and interior lights remain on when the door is not
fully closed and the interior light switch (door position on/off) is on, the lights will go
off automatically after 20 minutes.
■Customization that can be configured at Lexus dealer
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features
→P. 4 2 4 )
Front foot well lights
Outer foot lights
Turning the instrument panel light control knob fully to the left disables the
shift lever light and front foot well lights.

225
3-3. Using the interior lights
3
Interior features
08_IS F_U_(L/O_0711)

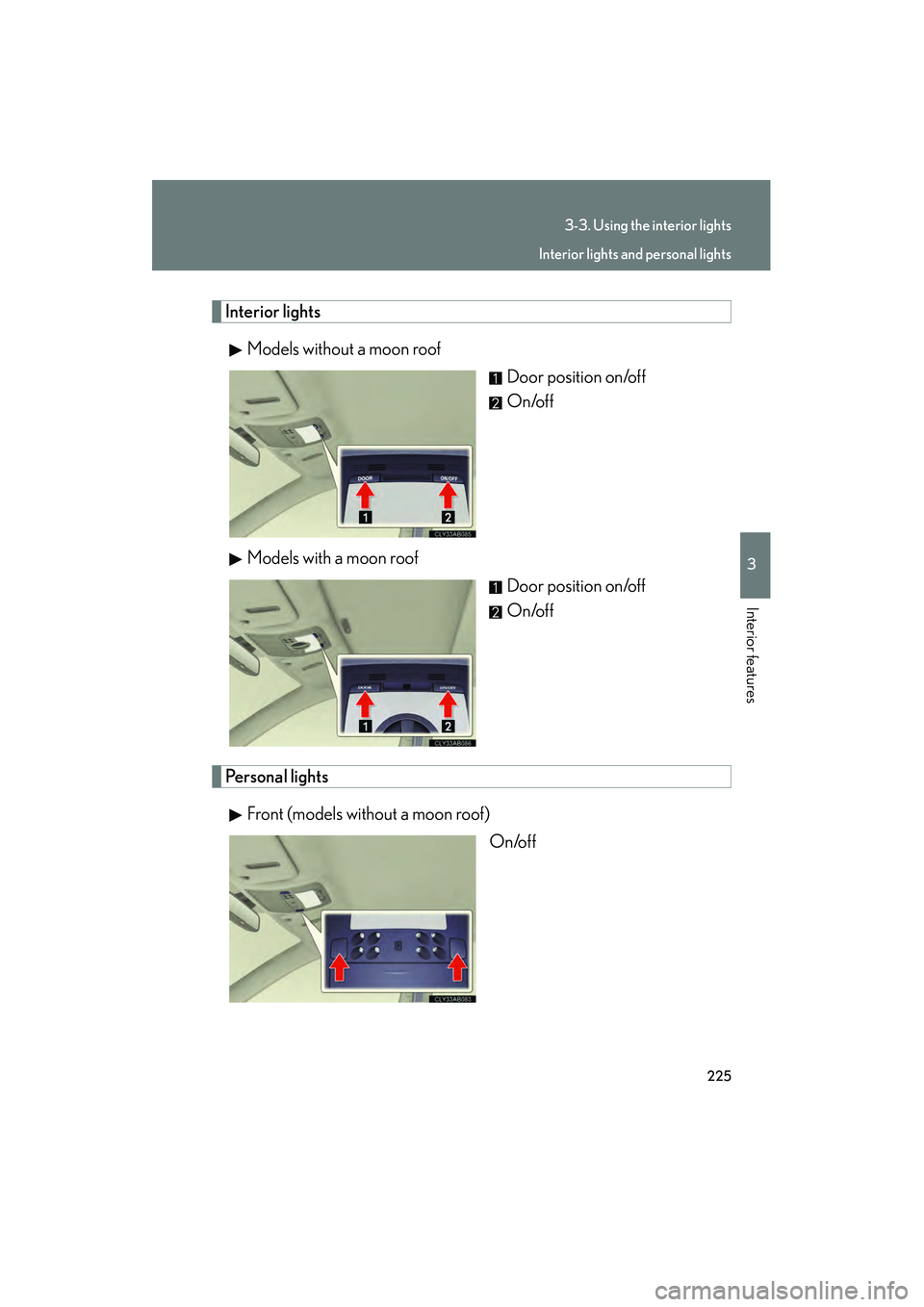

Interior lightsModels without a moon roof Door position on/off
On/off
Models with a moon roof Door position on/off
On/off
Personal lights
Front (models without a moon roof) On/off
Interior lights and personal lights

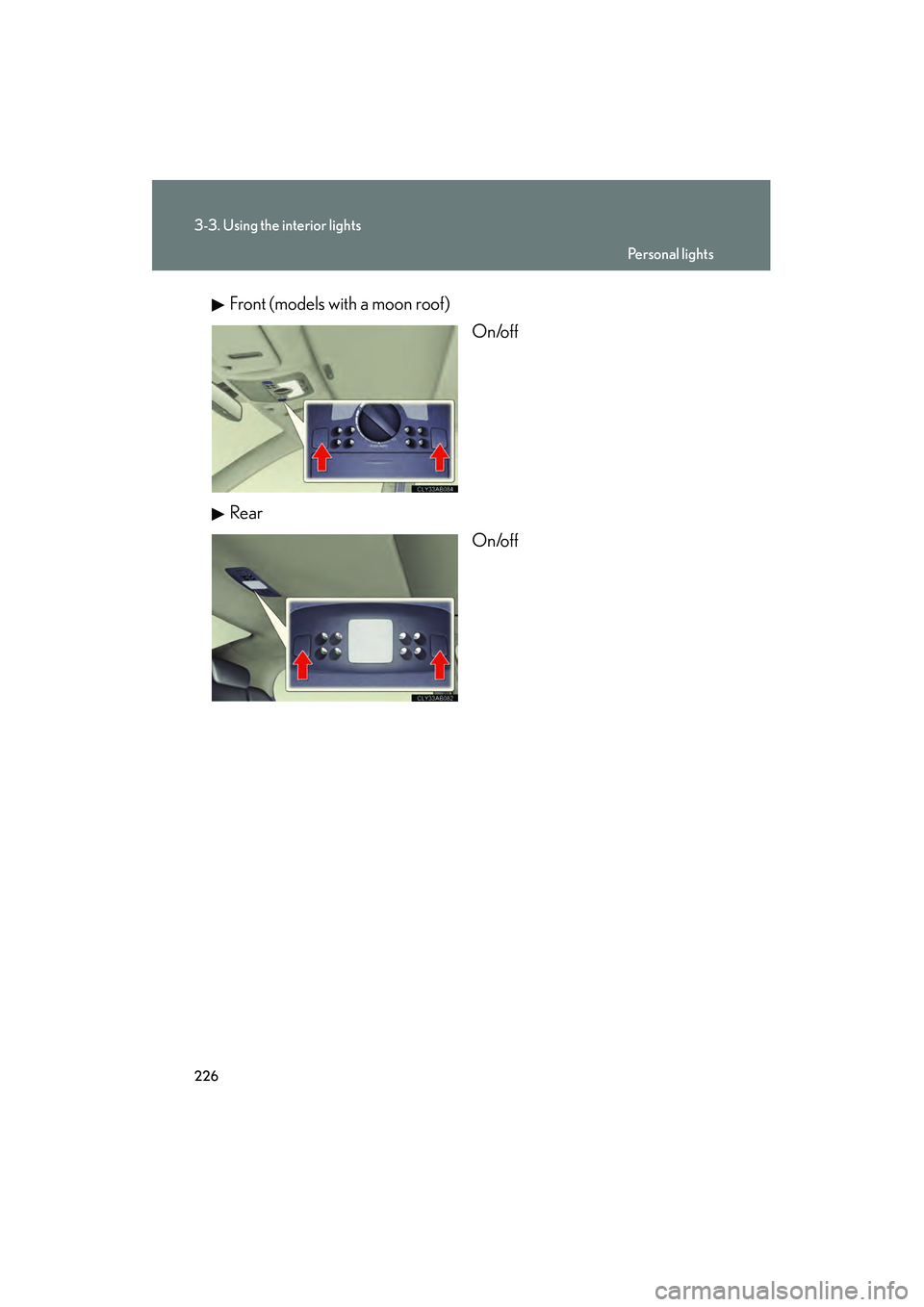

226
3-3. Using the interior lights
08_IS F_U_(L/O_0711)Front (models with a moon roof)
On/off
Rear On/off
Personal lights

227
3
Interior features
08_IS F_U_(L/O_0711)
3-4. Using the storage features
List of storage features
Glove boxOpen (push button)
Lock with the mechanical key
Unlock with the mechanical key
Overhead console
Glove box
Bottle holders/door pockets
Cup holders
Console box/cup holder
Glove box

228
3-4. Using the storage features
08_IS F_U_(L/O_0711)
Console boxPull up the knob to release the
lock.
Slide the armrest.
Pull up the knob to release the
lock.
Lift the armrest to open.
■Glove box light
The glove box light turns on when the “ENGINE START STOP” switch is in IGNI-
TION ON mode.
■Trunk opener main switch
The trunk opener main switch is located in the glove box. ( → P. 4 1 )
CAUTION
■Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box and console box

229
3-4. Using the storage features
3
Interior features
08_IS F_U_(L/O_0711)
Overhead consolePress the overhead console.
The overhead console is useful for
temporarily storing sunglasses and
similar small items.
■Console box light
The console box light turns on when the “ENGINE START STOP” switch is in
IGNITION ON mode.
■Using the console box to store CD cases
CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
Store a CD case with the hinged portion fac-
ing either the front or back of the console
box.
Console box and overhead console
