3-5. Other interior features
08_IS F_U_(L/O_0711)
Seat heaters and ventilators (if equipped)
■The seat heaters and ventilators can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When not in use
Set the dial to “0”. The indicator light turns off.
The seat heaters and ventilators heat the seats and maintain good airflow
by blowing air from the seats.
Heats the seats
The indicator light (amber)
comes on.
The higher the number, the
warmer the seats become.
Blows air from the seats
The indicator light (green)
comes on.
The higher the number, the
stronger the airflow becomes.
Driver’s seatFront passenger ’s
seat

245
3-5. Other interior features
3
Interior features
08_IS F_U_(L/O_0711)
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
NOTICE
■To prevent seat heaters and ventilators damage
Do not put unevenly weighted objects on the seat and do not stick sharp objects
(needles, nails, etc.) into the seat.
■To prevent battery discharge
Turn the switches off when the engine is not running.

Maintenance and care4
263
08_IS F_U_(L/O_0711)
4-1. Maintenance and care ............................... 264
Cleaning and protecting the vehicle exterior............. 264
Cleaning and protecting the vehicle interior .............. 267
4-2. Maintenance .................. 270 Maintenance requirements ........................ 270
General maintenance .......... 272
Emission inspection and maintenance (I/M)
programs................................ 275 4-3. Do-it-yourself
maintenance ................ 276
Do-it-yourself service precautions ............................ 276
Hood ........................................... 279
Positioning a floor jack ......... 280
Engine compartment ........... 282
Tires............................................ 296
Tire inflation pressure........... 307
Wheels ........................................ 311
Air conditioning filter ............ 313
Electronic key battery........... 316
Checking and replacing fuses ......................................... 318
Headlight aim ......................... 332
Light bulbs................................ 334

265
4-1. Maintenance and care
4
Maintenance and care
08_IS F_U_(L/O_0711)
■Bumpers
Do not scrub with abrasive cleaners.
■To prevent deterioration and body corrosion
●Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If you see coal tar or tree sap on the paint surface
• If you see dead insects or insect droppings on the paint
• After driving in an area contaminated with soot, oily smoke, mine dust, ironpowder or chemical substances
• If the vehicle becomes heavily soiled in dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
●If the paint is chipped or scratched, have it repaired immediately.
CAUTION
■Exhaust pipes and rear bumper exhaust diffusers
Exhaust gasses cause the exhaust pipes and rear bumper exhaust diffusers to
become quite hot. Therefore, do not touch them while the engine is running or
immediately after turning the engine off.
When washing the vehicle, be careful not to touch the exhaust pipes and rear
bumper exhaust diffusers until they have cooled sufficiently, as touching hot exhaust
pipes and diffusers can cause burns.

271
4-2. Maintenance
4
Maintenance and care
08_IS F_U_(L/O_0711)
■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained specialists and are kept up to date with the
latest service information. They are well informed about the operations of all
systems on your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been
performed is under warranty coverage. If any problem should arise while your
vehicle is under warranty, your Lexus dealer will promptly take care of it.
CAUTION
■Warning in handling of battery
●Engine exhaust, some of its constituents, and a wide variety of automobile com-
ponents contain or emit chemicals known to the State of California to cause can-
cer and birth defects and other reproductive harm. Work in a well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by compo-
nent wear contain or emit chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm. Avoid exposure and wash
any affected area immediately.
●Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after han-
dling. (→P. 2 9 2 )

272
4-2. Maintenance
08_IS F_U_(L/O_0711)
General maintenance
Engine compartment
ItemsCheck points
BatteryMaintenance-free. (→P. 2 9 2 )
Brake fluidAt the correct level? ( →P. 2 9 0 )
Engine coolantAt the correct level? ( →P. 288)
Engine oilAt the correct level? ( →P. 2 8 4 )
Exhaust systemNo fumes or strange sounds?
Radiator/condenser/hosesNot blocked with foreign matter?
(→ P. 2 9 0 )
Wa s h e r f l u i dAt the correct level? ( →P. 2 9 5 )
Listed below are the general maintenance items that should be performed
at the intervals specified in the “Warranty and Services Guide” or “Owners
Manual Supplement”. It is recommended that any problem you notice
should be brought to the attention of your Lexus dealer or qualified service
shop for advice.

274
4-2. Maintenance
08_IS F_U_(L/O_0711)
Vehicle exterior
ItemsCheck points
Steering wheel
• Moves smoothly?
• Has correct free play?
• No strange noises?
ItemsCheck points
Door/trunk• Operate smoothly?
Engine hood• The lock system works properly?
Fluid leaks• Is there any leakage after parking?
Ti r e
• Inflation pressure is correct?
• Tire surfaces not worn or dam-aged?
• Wheel nuts are not loose?
CAUTION
■If the engine is running
Turn the engine off and ensure that there is adequate ventilation before performing
maintenance checks.

276
08_IS F_U_(L/O_0711)
4-3. Do-it-yourself maintenance
Do-it-yourself service precautions
If you perform maintenance yourself, be sure to follow the correct proce-
dure as given in these sections.
ItemsParts and tools
Battery condition ( →P. 2 9 2)
•Warm water
• Baking soda
•Grease
•Conventional wrench
(for terminal clamp bolts)
Brake fluid level ( →P. 2 9 0 )
• FMVSS No.116 DOT 3 or SAE
J1703 brake fluid
•Rag or paper towel
• Funnel (used only for adding brake
fluid)
Engine coolant level ( →P. 288)
• “Toyota Super Long Life Coolant”
or similar high-quality ethylene gly-
col-based non-silicate, non-amine,
non-nitrite and non-borate coolant
with long-life hybrid organic acid
technology.
For the U.S.A.:
“Toyota Super Long Life Coolant”
is pre-mixed with 50% coolant and
50% deionized water.
For Canada:
“Toyota Super Long Life Coolant”
is pre-mixed with 55% coolant and
45% deionized water.
• Funnel (used only for adding
engine coolant)

277
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS F_U_(L/O_0711)
ItemsParts and tools
Engine oil level (→P. 2 8 4 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses (→ P. 3 1 8 )• Fuse with same amperage rating as
original
Headlight aim ( →P. 3 3 2 )• Phillips-head screwdriver
Radiator and condenser ( →P. 2 9 0 )
Tire inflation pressure ( →P. 3 0 7 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( →P. 2 9 5 )
• Water washer fluid containing anti-
freeze (for winter use)
•Funnel

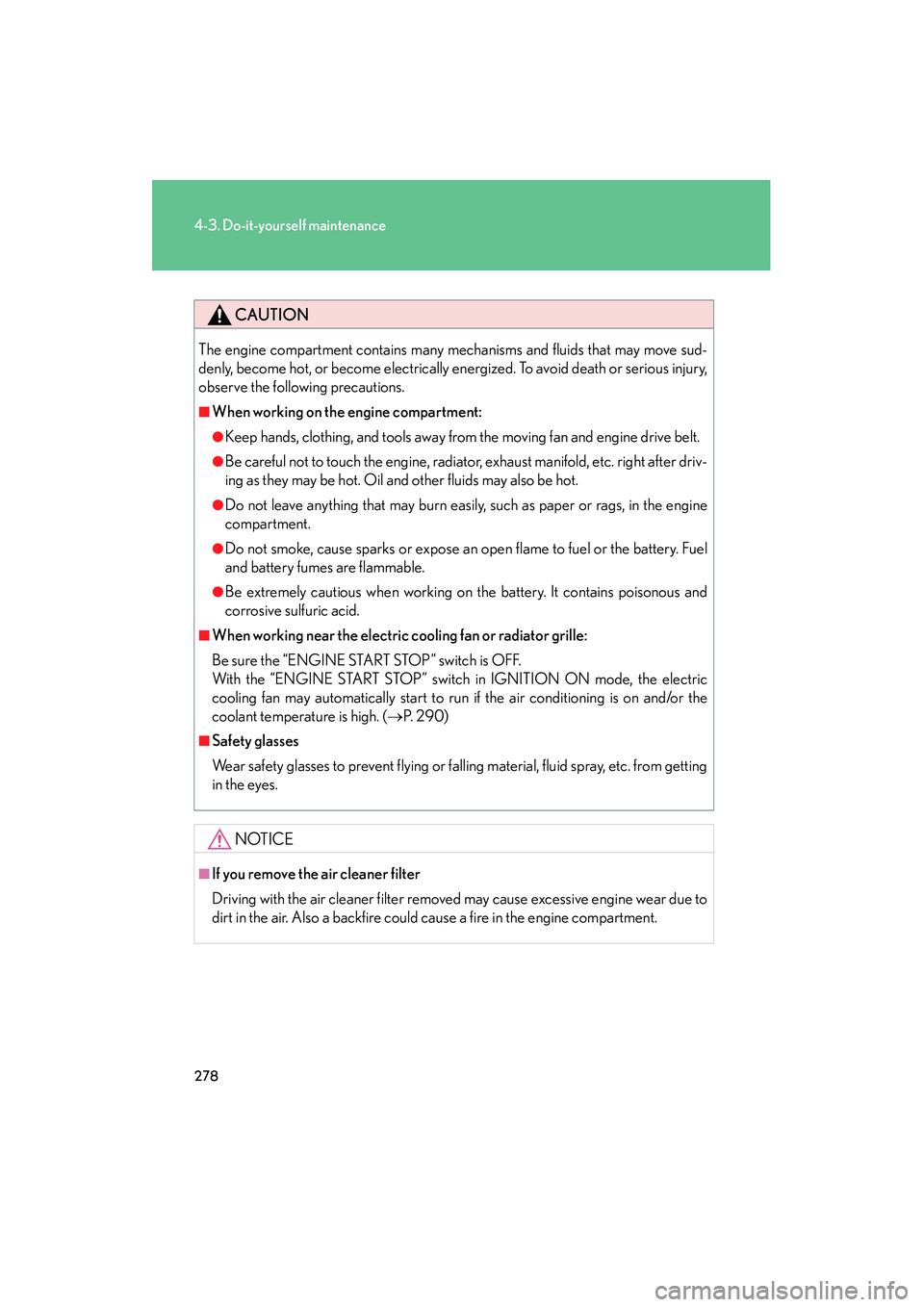

278
4-3. Do-it-yourself maintenance
08_IS F_U_(L/O_0711)
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury,
observe the following precautions.
■When working on the engine compartment:
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
■When working near the electric cooling fan or radiator grille:
Be sure the “ENGINE START STOP” switch is OFF.
With the “ENGINE START STOP” switch in IGNITION ON mode, the electric
cooling fan may automatically start to run if the air conditioning is on and/or the
coolant temperature is high. (→P. 2 9 0 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting
in the eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air. Also a backfire could cause a fire in the engine compartment.
