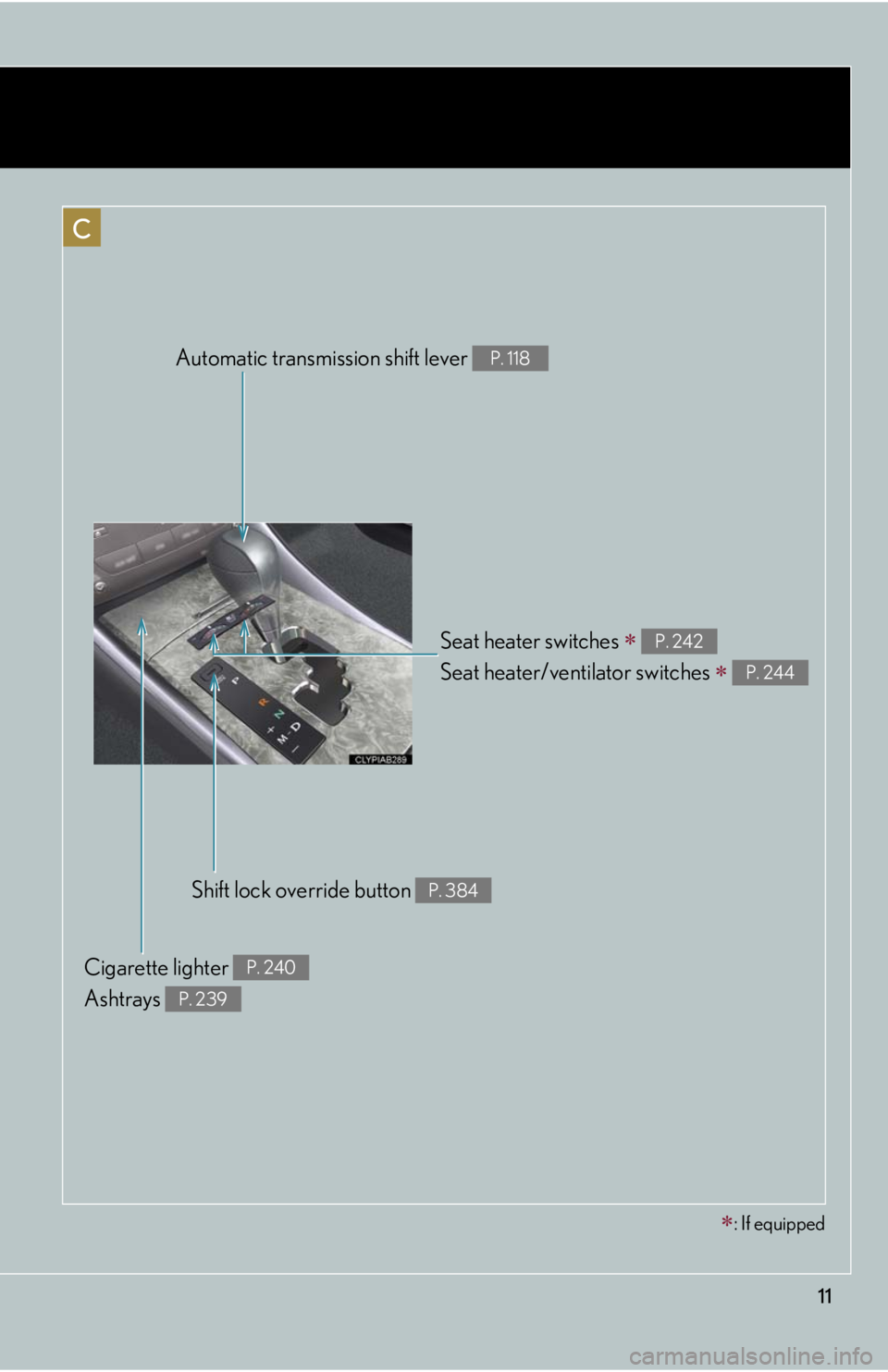

11
C
Seat heater switches 
Seat heater/ventilator switches

P. 242
P. 244
Automatic transmi ssion shift lever P. 118
Shift lock override button P. 384
Cigarette lighter
Ashtrays P. 240
P. 239
: If equipped

12
Pictorial indexInstrument panel
Headlight switch Turn signal lever Fog light switch P. 139
P. 126
P. 142
Paddle shift switches P. 120, 122
Gauges and meters P. 128
Multi-information display P. 135
Windshield wiper and washer switch P. 143
Engine (ignition) switch P. 114
Trunk opener main switch P. 41
Glove box P. 227
Tilt and telescopic steering control switch P. 57
Parking brake pedal P. 127
Hood release lever P. 279

13
Without navigation system
Navigation
system
*
Clock

P. 235
Audio
system

P. 195
Air conditioning
system
P. 186
Rear window and out-
side rear view mirror
defoggers
P. 194
Security indicator
P. 70, 72
Emergency
flashers
Clock P. 235
Audio system*
Security indicator
P. 70, 72
Emergency flashers
Air conditioning
system
*
With navigation system
*: Refer to “Navigation System Owner's Manual”.
Rear window and
outside rear view
mirror defoggers
*
A

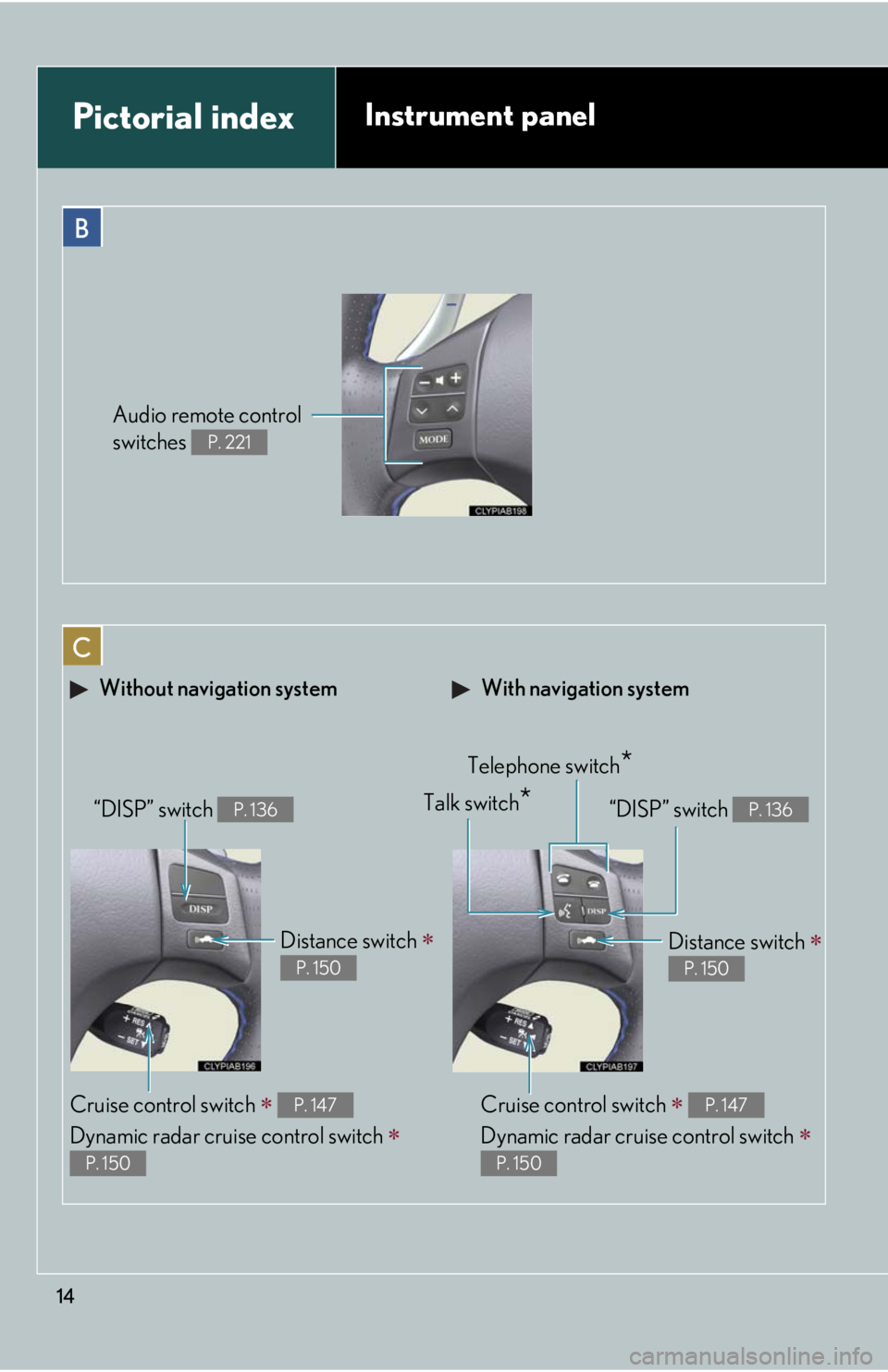

14
Pictorial indexInstrument panel
With navigation system Without navigation system
Telephone switch*
Cruise control switch 
Dynamic radar cruise control switch

P. 147
P. 150
Distance switch 
P. 150
“DISP” switch P. 136Talk switch*“DISP” switch P. 136
Distance switch 
P. 150
Cruise control switch 
Dynamic radar cruise control switch

P. 147
P. 150
C
B
Audio remote control
switches
P. 221

15
E
Trunk opener P. 41
Fuel filler door opener P. 67
Headlight cleaner switch  P. 146
Satellite switches P. 236
Instrument panel light
control knob
P. 130
: If equipped
*: Refer to “Navigation System Owner's Manual”.
VSC off switch P. 168
F-sport mode total control switch P. 120, 169
D

16
For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equipment, includ-
ing options. Therefore, you may find some explanations for equipment not installed
on your vehicle.
All specifications provided in this manual are current at the time of printing. How-
ever, because of the Lexus policy of continual product improvement, we reserve the
right to make changes at any time without notice.
Depending on specifications, the vehicle sh own in the illustration may differ from
your vehicle in terms of color and equipment.
Accessories, spare parts and modification of your Lexus
A wide variety of non-genuine spare parts and accessories for Lexus vehicles are
currently available in the market. You should know that Toyota does not warrant
these products and is not responsible for their performance, repair, or replacement,
or for any damage they may cause to, or adverse effect they may have on, your
Lexus vehicle.
This vehicle should not be modified with non-genuine Lexus products. Modification
with non-genuine Lexus products could affect its performance, safety or durability,
and may even violate governmental regula tions. In addition, damage or perfor-
mance problems resulting from the modification may not be covered under war-
ranty.
Installation of a mobile two-way radio system
As the installation of a mobile two-way radio system in your vehicle could affect
electronic systems such as the multiport fuel injection system/sequential multiport
fuel injection system, cruise control syst em, anti-lock brake system, SRS airbag sys-
tem and seat belt pretensioner system, be sure to check with your Lexus dealer for
precautionary measures or special instructions regarding installation.

17
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus deal er before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.d tsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These components may
include airbag, seat belt pretensioners, and wireless remote control batteries.
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, impair judgment and reduce coordination,
which could lead to an accident that will hurt or kill you, your occupants or others.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full at tention to driving. Anything that distracts
the driver, such as adjusting controls, ta lking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■General precaution regarding children’s safety
Never leave children unattended in the vehi cle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the moon roof, or othe r features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to children.

18
Symbols used throughout this manual
Cautions & Notices
Safety symbol
CAUTION
This is a warning against anything which may cause injury to people if the warning is
ignored. You are informed about what you must or must not do in order to reduce the
risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause damage to the vehicle or its
equipment if the warning is ignored. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Lexus and its equipment.
Throughout this manual, you will also see the symbol of a circle
with a slash through it. This mea ns “Do not”, “Do not do this”, or
“Do not let this happen”.

Before driving1
19
1-1. Key information ............... 20Keys .............................................. 20
1-2. Opening, closing and locking the doors and
trunk ............................... 22
Smart access system with push-button start .................... 22
Wireless remote control ......... 34
Doors ............................................ 37
Trunk .............................................. 41
1-3. Adjustable components
(seats, mirrors,
steering wheel) .............. 44
Front seats ................................... 44
Driving position memory ........ 45
Seat position memory............. 48
Head restraints ......................... 50
Seat belts ...................................... 51
Steering wheel ........................... 57
Anti-glare inside rear view mirror ......................................... 59
Outside rear view mirrors ...... 60 1-4. Opening and closing the
windows and
moon roof ........................ 62
Power windows .......................... 62
Moon roof ................................... 64
1-5. Refueling .......................... 67 Opening the fuel tank cap ...... 67
1-6. Theft deterrent system ... 70 Engine immobilizer system........................................ 70
Alarm............................................ 72
Theft prevention labels (U.S.A.)....................................... 74
1-7. Safety information........... 75 Correct driving posture ......... 75
SRS airbags ................................ 77
Front passenger occupant classification system.............. 88
Child restraint systems ........... 93
Installing child restraints......... 96

20
1-1. Key information
Keys
Using the mechanical keyTake out the mechanical key.
The mechanical key can only be
inserted in one direction, as the key
only has grooves on one side. If the
key cannot be inserted in a lock
cylinder, turn it over and re-attempt
to insert it.
After using the mechanical key,
store it in the electronic key. Carry
the mechanical key together with
the electronic key. If the electronic
key battery is depleted or the entry
function does not operate properly,
you will need the mechanical key.
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart accesssystem with push-button start
( P. 22)
• Operating the wireless remote control function
( P. 3 4 )
Mechanical keys
Key number plate
