4-3. Do-it-yourself maintenance
4
Maintenance and care
ItemsPa r t s a n d t o o l s
Engine oil level (P. 2 8 4 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used only for adding engine oil)
Fuses ( P. 3 1 8 )• Fuse with same amperage rating as
original
Headlight aim ( P. 3 3 2 )• Phillips-head screwdriver
Radiator and condenser (P. 2 9 0 )
Tire inflation pressure ( P. 3 0 7 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( P. 2 9 5 )
• Water washer fluid containing anti-
freeze (for winter use)
•Funnel

282
4-3. Do-it-yourself maintenance
Engine compartment
Battery (P. 2 9 2 )
Engine oil level dipstick (P. 2 8 4 )
Engine oil filler cap (P. 2 8 4 )
Brake fluid reservoir (P. 290)
Fuse boxes ( P. 318)Washer fluid tank
(P. 2 9 5 )
Electric cooling fans
Condenser ( P. 2 9 0 )
Radiator ( P. 2 9 0 )
Engine coolant reservoir (P. 2 8 8 )

318
4-3. Do-it-yourself maintenance
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch to OFF.
Engine compartment (type B): Remove the engine compart-
ment cover. ( P. 283)
Open the fuse box cover.
Engine compartment (type A)
Push the tabs in and lift the lid
off.
Engine compartment (type B) Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3

319
4-3. Do-it-yourself maintenance
4
Maintenance and care
Driver's side instrument panelRemove the lid.
Passenger's side instrument panel Remove the lid.
After a system failure, see “Fuse layout and amperage ratings”
( P. 322) for details about which fuse to check.
Remove the fuse with the pull-
out tool.
STEP4
STEP5

320
4-3. Do-it-yourself maintenance

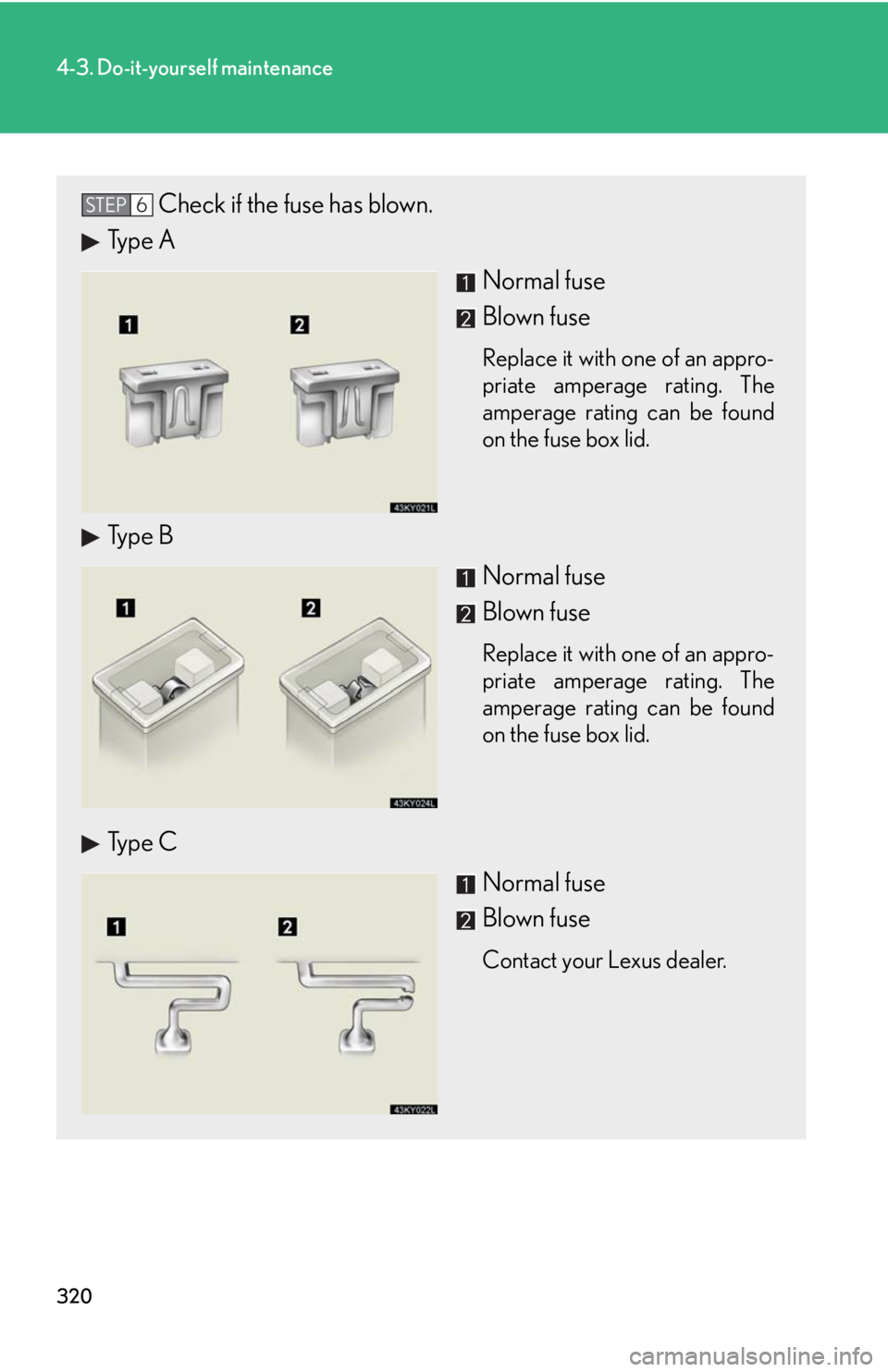

Check if the fuse has blown.
Type A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type BNormal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Type CNormal fuse
Blown fuse
Contact your Lexus dealer.
STEP6
