key Lexus IS F 2008 Scheduled Maintenace Guide / LEXUS 2008 IS F QUICK GUIDE OWNER'S MANUAL (OM53613U)

1
When Driving
Topic 3
Entering and Exiting
Topic 1
Before Driving
Topic 2
Overview
Contents
●Engine (Ignition) SwitchP.1 7
●Automatic TransmissionP.1 8
●F-Sport Mode Total Control
SwitchP. 2 1
●Parking BrakeP. 2 2
●Tu r n S i g n a l L e v e rP. 2 2
●Multi-information DisplayP. 2 3
●Satellite SwitchesP. 2 4
●Emergency Flasher SwitchP. 2 5
●KeysP. 7
●Smart Access System with
Push-button StartP. 8
●Theft Deterrent SystemP.9
The Quick Guide is not intended as a substitute for your Owner’s
Manual. We strongly encourage you to review the Owner’s
Manual and supplementary manuals so you will have a better
understanding of your vehicle’s capabilities and limitations.
●Intuitive Parking AssistP. 2 5
●Cruise ControlP. 2 6
●Dynamic Radar Cruise
ControlP. 2 7
●Seats P.1 1
●Outside Rear View MirrorsP.1 2
●Steering WheelP.1 2
●Driving and Seat Position
Memory SystemP.1 3
●Head RestraintsP.1 4
●Seat BeltsP.1 4
●Anti-glare Inside
Rear View MirrorP.1 5

Entering and ExitingTopic 1
Keys ............................................................................. 7
Smart Access System with
Push-button Start .................................................... 8
Theft Deterrent System ......................................... 9

Topic 1
Entering and Exiting
7
Keys
■Electronic key
Smart access system with push-button start
(P. 8 , 1 7 )
■Mechanical key
●Locks and unlocks the doors
●Opens the trunk
●Locks and unlocks the glove box
The mechanical key is stored inside the electronic
key. To extract the key, release the latch and pull.
■Wireless remote control
Press: locks all doors
Press once: unlocks the driver's door
Press twice: unlocks all doors
Press and hold: opens the windows and moon
roof*
Press and hold: opens the trunk
Press and hold: sounds the alarm
(Use the alarm to attract attention to the vehi-
cle in order to help deter break-ins. To stop the
alarm, press any button on the wireless remote
control.)
*: If equipped1
2
3
4

Topic 1
Entering and Exiting
8
Entering and Exiting
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Before DrivingBefore Driving
Smart Access System with Push-button Start
■Entering the vehicle
To unlock the vehicle, simply grasp either of the
front door handles.
■Exiting the vehicle
To lock the vehicle, press the lock button on either
of the front door handles.
■Opening the trunk
To open the trunk, press the trunk release button.
The smart access system with push-button start allows you to enter and exit the vehicle
or start the engine by simply carrying the electronic key in your pocket or bag.
For details on starting the engine, see page 17.
For details on what to do when the electronic key does not operate properly, see page 52.

Topic 1
Entering and Exiting
9
Theft Deterrent System
■Engine immobilizer system
The engine immobilizer system prevents the
engine from being started in the event that an
attempt is made to start the vehicle using an
unregistered key.
The security indicator light flashes to indicate that
the system is set.
■Alarm
The system sounds the alarm and flashes the lights when forcible entry is detected.
To set the alarm: close the doors, trunk and hood, and lock all doors. The security indicator
light comes on to indicate that the alarm is in its preparation state. When the indicator light
begins to flash, the system is armed.
To deactivate or stop the alarm: turn the “ENGINE START STOP” switch to ACCESSORY
or IGNITION ON mode, or unlock the doors or trunk using the entry function or the wire-
less remote control.
■Steering lock
The steering wheel locks when the “ENGINE
START STOP” switch is turned OFF and the
driver’s door is opened.
When the steering lock cannot be released, the
green indicator light on the “ENGINE START
STOP” switch will flash and a message will be
shown on the multi-information display. To release
it, press the “ENGINE START STOP” switch
while gently turning the wheel left and right.
The theft deterrent system includes the following features to help protect your vehicle from
theft.

Topic 2
Before Driving
13
Driving and Seat Position Memory System
■Setting memory positions
While holding down the “SET” button, press and
hold one of the memory buttons (“1”, “2”, or “3”)
until you hear a beep.
The current position of the seat, as well as the
position of the steering wheel and the outside
rear view mirrors (for the driver's seat only) is
recorded.
■Recalling memory positions
Press one of the memory buttons (“1”, “2”, or “3”).
■Linking driving position memory with door unlock operation
While holding down the desired memory button,
press and hold on the wireless remote control
until you hear a beep.
To prevent triggering of the alarm, open one of
the doors within 60 seconds after the beep is
heard.
Your preferred driving position (the position of the driver's seat, steering wheel and the
outside rear view mirrors) and front passenger seat position can be memorized and
recalled with the touch of a button.
Linking driving position memory to the door unlock operation allows the memory position
to be recalled automatically when the driver's door is opened. (The linked function does not
operate if the driver's door is unlocked using the mechanical key or manually from inside
the vehicle.)

Topic 3
When Driving
17
Engine (Ignition) Switch
■Starting the engine
Make sure the parking brake is set and the shift
lever is in P.
Depress the brake pedal.
The “ENGINE START STOP” switch indi-
cator light turns green.
Press the “ENGINE START STOP” switch.
■Stopping the engine
Set the parking brake and shift the shift lever to P.
Press the “ENGINE START STOP” switch.
■Changing “ENGINE START STOP” switch modes
To change the “ENGINE START STOP” switch mode without turning on the engine, press
the “ENGINE START STOP” switch without depressing the brake pedal. The mode can be
changed in the following order:
With the electronic key on your person, the engine can be started by simply pressing the
“ENGINE START STOP” switch while depressing the brake pedal.
(The mechanical key cannot be used to start the engine.)
ACCE SSORY modeIGNITION ON mode
(Indicator light: amber) OFF
(Indicator light: off)

Topic 5
Driving Comfort
40
Entering and Exiting
When Driving
Rain and
Night Driving
Driving ComfortDriving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Before Driving
Glove Box
Opens: press the button.
Locks
Unlocks
The glove box can be locked and unlocked using
the mechanical key.
Cup Holders
Front (type A)
To open, press down on the front of the lid.
Front (type B)
To open, pull and hold the knob and slide the arm-
rest.
Rear
To open, press in and release.
1
2
3

52
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s

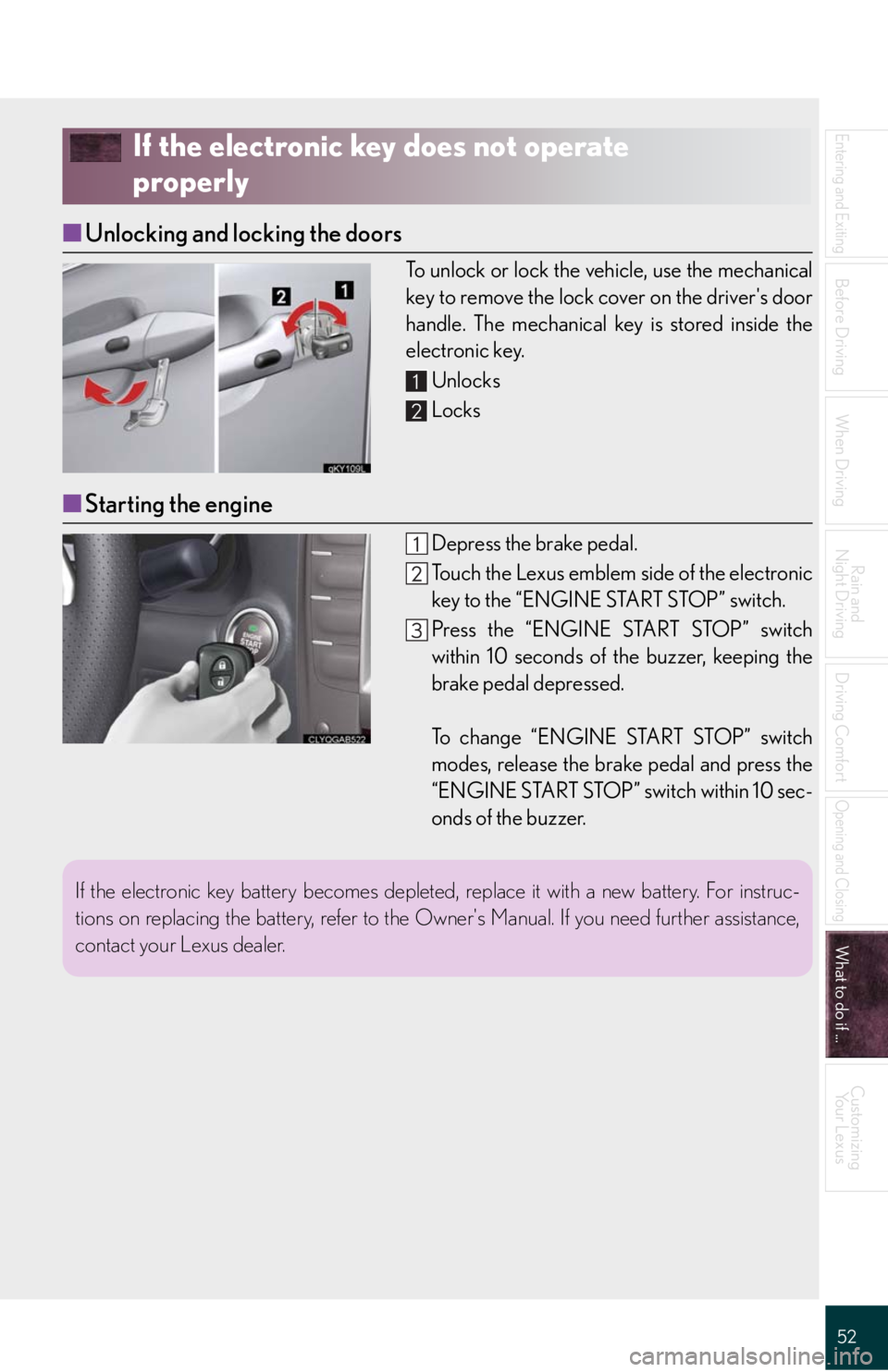

If the electronic key does not operate
properly
■Unlocking and locking the doors
To unlock or lock the vehicle, use the mechanical
key to remove the lock cover on the driver's door
handle. The mechanical key is stored inside the
electronic key.
Unlocks
Locks
■Starting the engine
Depress the brake pedal.
Touch the Lexus emblem side of the electronic
key to the “ENGINE START STOP” switch.
Press the “ENGINE START STOP” switch
within 10 seconds of the buzzer, keeping the
brake pedal depressed.
To change “ENGINE START STOP” switch
modes, release the brake pedal and press the
“ENGINE START STOP” switch within 10 sec-
onds of the buzzer.
1
2
If the electronic key battery becomes depleted, replace it with a new battery. For instruc-
tions on replacing the battery, refer to the Owner's Manual. If you need further assistance,
contact your Lexus dealer.

54
Entering and Exiting
Before Driving
When Driving
Rain and
Night Driving
Driving Comfort
Opening and Closing
What to do if ...
Customizing
Yo u r L e x u s
Electronic Key Alarm
The electronic key alarm uses an alarm and warning messages to indicate that the electronic
key has been used improperly. Take appropriate measures in response to any warning mes-
sages that are displayed. In some cases, an alarm may sound without an accompanying
warning message. If so, follow the correction procedure in the table below.
AlarmSituationCorrection procedure
Exterior alarm sounds
once for 2 seconds
Tried to lock the doors
using the entry function
while the electronic key is
still inside the passenger
compartment.Retrieve the electronic key
from the passenger com-
partment and lock the
doors again.
Closed the trunk while the
electronic key is still inside
and all doors are locked.Retrieve the electronic key
from the trunk and close
the trunk lid.
Exterior alarm sounds
once for 60 seconds
Tried to exit the vehicle
with the electronic key and
lock the doors without first
turning the “ENGINE
START STOP” switch OFF.
Turn the “ENGINE START
STOP” switch OFF and
lock the doors again.
Exterior alarm sounds
once for 10 secondsTried to lock the vehicle
using the entry function
while a door is open.Close all of the doors and
lock the doors again.
Interior alarm sounds
continuouslyTried to open the door and
exit the vehicle without
shifting the shift lever to P.
Shift the shift lever to P.
Interior alarm pings
continuously
Switched to ACCES-
SORY mode while the
driver's door is open.
(Opened the driver's door
when the “ENGINE
START STOP” switch is in
ACCESSORY mode.)
Close the driver's door.
Tu r n e d t h e “ E N G I N E
START STOP” switch OFF
while the driver's door is
still open.
Close the driver's door.
