Lexus IS F 2009 Owner's Manual

130
2-1. Driving procedures
08_IS F_U_(L/O_0808)

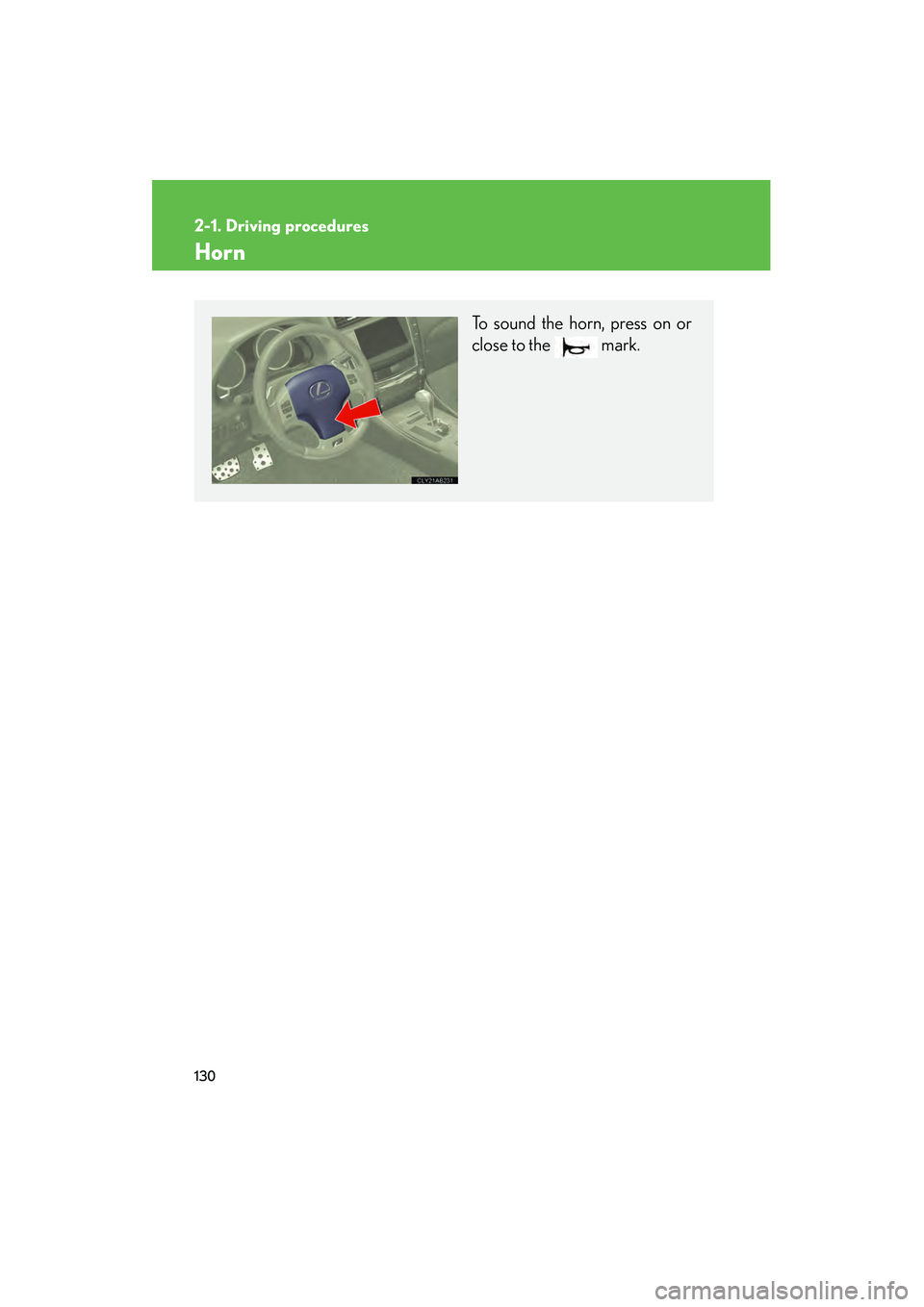

Horn
To sound the horn, press on or
close to the mark.

131
2
When driving
08_IS F_U_(L/O_0808)
2-2. Instrument cluster
Gauges and meters
The units used on the speedometer and the tachometer gauge display may
differ depending on the model/type.

The following gauges, meters and display illuminate when the
“ENGINE START STOP” switch is in IGNITION ON mode.Speedometer
Displays the vehicle speed.
Vo l t a g e g a u g e
Displays the battery voltage. If the voltage is either too high or too low, the
display will flash.
Shift position and shift range/gear display
Displays the shift position along with the currently selected shift range or
gear. (→ P. 122, 124)
Multi-information display
→P. 1 3 8
Engine oil temperature gauge
Displays the engine oil temperature. If the temperature is too high, the dis-
play will flash.
Tachometer
Displays the engine speed in revolutions per minute.

132
2-2. Instrument cluster
08_IS F_U_(L/O_0808)
Engine coolant temperature gauge
Displays the engine coolant temperature.
Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven sincethe meter was last reset. Trip meters “A” and “B” can be
used to record and display different distances indepen-
dently.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter and trip meter reset button
Switches between odometer and trip meter displays. Pushing and holding
the button will reset the trip meter when the trip meter is being displayed.

133
2-2. Instrument cluster
2
When driving
08_IS F_U_(L/O_0808)
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted. Darker
Brighter
CAUTION
■When the temperature of the display is extremely low
Allow the interior of the vehicle to warm up before using the shift position and shift
range/gear display. At extremely low temperatures, the display may respond slowly,
and display changes may be delayed.
For example, there is a lag between the driver’s downshifting and the new gear
number appearing on the display. This lag could cause the driver to downshift again,
causing rapid and excessive engine braking and possibly an accident resulting in
death or serious injury.

134
2-2. Instrument cluster
08_IS F_U_(L/O_0808)
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The following may indicate that the engine is overheating. Immediately stop the
vehicle in a safe place. (
→P. 3 9 7 )
• The engine coolant temperature gauge is in the red zone (H)
• The display on the engine oil temperature gauge flashes
■When driving the vehicle
If the display on the voltage gauge starts to flash while the engine is running, it may
indicate that there is a malfunction in the vehicle’s charging system. Have your vehi-
cle inspected by your Lexus dealer.

135
2-2. Instrument cluster
2
When driving
08_IS F_U_(L/O_0808)
Indicators and warning lights
The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
The units used on the speedometer and the tachometer gauge display may
differ depending on the model/type.

Center panel

136
2-2. Instrument cluster
08_IS F_U_(L/O_0808)
■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator
(→ P. 1 2 8 )Cruise control indicator
(→ P. 150, 153)
Headlight high beam indi-
cator ( →P. 1 4 2 )“AFS OFF” indicator
(→ P. 1 4 3 )
(U.S.A.)
Headlight indicator
(→ P. 1 4 2 )
(if equipped)
Intuitive parking assist
indicator ( →P. 163)
(Canada)
Tail light indicator
(→ P. 1 4 2 ) Slip indicator ( →P. 1 7 0 )
Front fog light indicator
(→ P. 1 4 5 ) “VSC OFF” indicator
(→ P. 171)
“SNOW” indicator
(→ P. 122) SRS airbag on-off indica-
tor (→ P. 8 9 )
“SPORT” indicator
(→ P. 122, 172)
*
*
*
*

137
2-2. Instrument cluster
2
When driving
08_IS F_U_(L/O_0808)
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine, this could mean that these systems are not available to
help protect you in an accident, which could result in death or serious injury. Have
the vehicle inspected by your Lexus dealer immediately if this occurs.
■Warning lights
Warning lights inform the driver of malfunctions in any of the vehi-
cle’s systems. (→ P. 355)
*: These lights turn on when the “ENGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the engine is started, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by your Lexus
dealer.
(U.S.A.)(Canada)(Canada)(U.S.A.)
(Canada)(U.S.A.)(if equipped)(for
driver)(for front
passenger)
******
*******

138
2-2. Instrument cluster
08_IS F_U_(L/O_0808)
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data, including the current outside air temperature.
●Trip information ( →P. 1 3 9 )
Displays driving range, fuel con-
sumption and other cruising-
related information.
●Satellite switch mode display
(→P. 2 4 0 )
This switch is used to configure
various function settings.
●Intuitive parking assist dis-
play (if equipped)
(→P. 163)
Automatically displayed when
using intuitive parking assist.
●Dynamic radar cruise con-
trol display (if equipped)
(→P. 153)
Automatically displayed when
using dynamic radar cruise con-
trol.
●Warning messages
(→P. 365)
Automatically displayed when a
malfunction occurs in one of the
vehicle’s systems.

139
2-2. Instrument cluster
2
When driving
08_IS F_U_(L/O_0808)
Trip informationWithout navigation system Display items can be switched by
pushing the “DISP” switch.
With navigation system
■ Outside temperature
Displays the outside air temperature.
The temperature range that can be displayed is from
-40 °F (-40 °C) to 122 °F (50 °C).
When the temperature drops to 37°F (3°C), the dig-
its of the display will flash for 10 seconds.
