CD player Lexus IS F 2009 User Guide

217
3-2. Using the audio system
3
Interior features
08_IS F_U_(L/O_0808)
■Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding for 1 second or
more will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed for 1 second or more again or has not been pressed for 6 sec-
onds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed prop-
erly or may not be displayed at all.
■Canceling random, repeat and scan playback
Press (RAND), (RPT) or again.
■When “LOAD”, “ERROR”, “WAIT” or “NO MUSIC” is shown on the display.
“LOAD”: This indicates that the CD player has completed loading the CD.
“ERROR”: Make sure the label of the displayed disc is facing up, and then reinsert itin the player.
“WAIT”: Operation is stopped due to a high temperature inside the player. Wait for a while and then press . Contact your Lexus dealer if the CD
still cannot be played back.
“NO MUSIC”: This indicates that the MP3/WMA file is not included in the CD.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
■CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected while the CD player is being used.
■If CDs are left inside the CD player or in the ejected position for extended peri-
ods
CDs may be damaged and may not play properly.

218
3-2. Using the audio system
08_IS F_U_(L/O_0808)

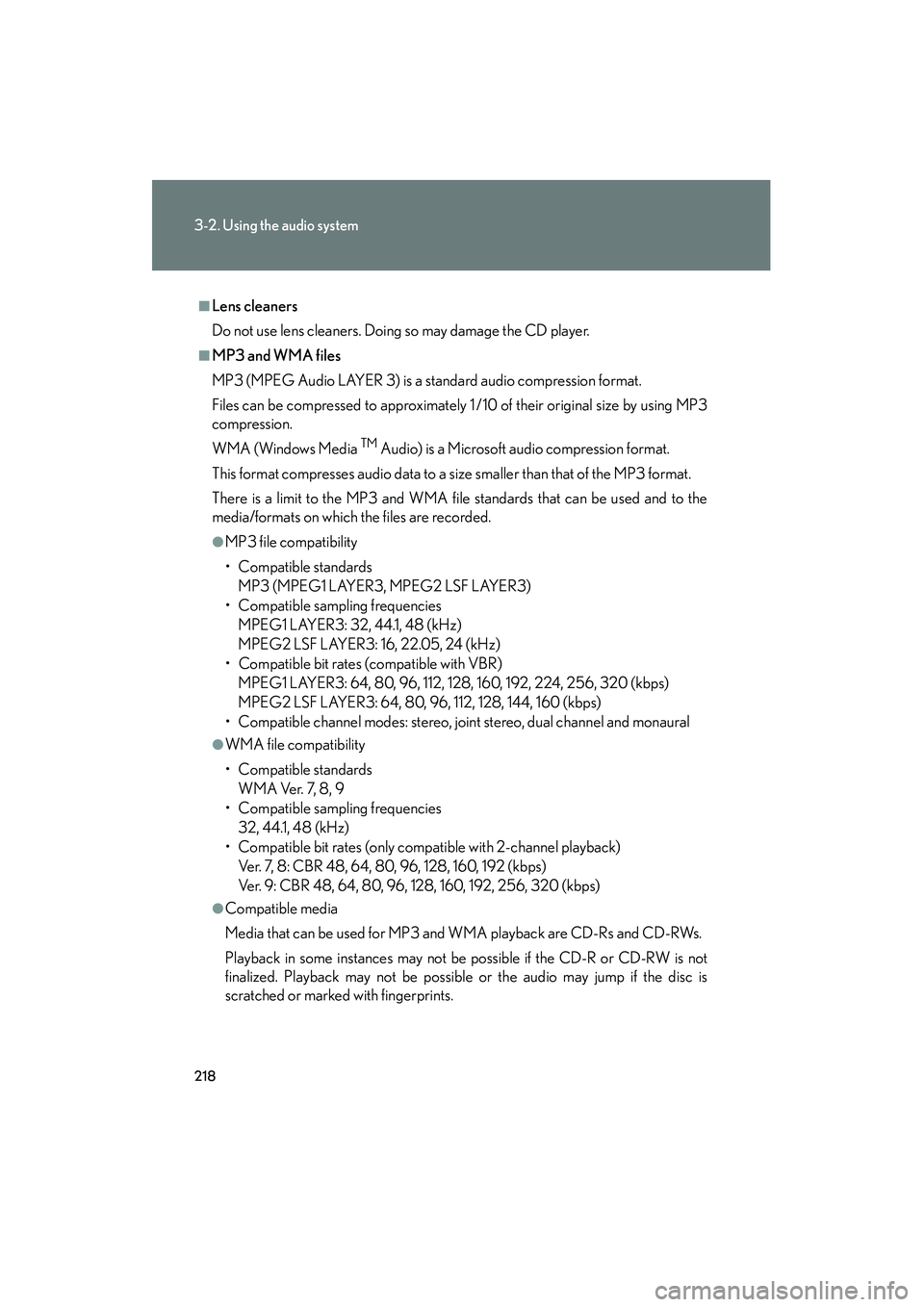

■Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
■MP3 and WMA files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1 /10 of their original size by using MP3
compression.
WMA (Windows Media
TM Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 format.
There is a limit to the MP3 and WMA file standards that can be used and to the
media/formats on which the files are recorded.
●MP3 file compatibility
• Compatible standards MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR) MPEG1 LAYER3: 64, 80, 96, 112, 128, 160, 192, 224, 256, 320 (kbps)
MPEG2 LSF LAYER3: 64, 80, 96, 112, 128, 144, 160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and monaural
●WMA file compatibility
• Compatible standards WMA Ver. 7, 8, 9
• Compatible sampling frequencies 32, 44.1, 48 (kHz)
• Compatible bit rates (only compatible with 2-channel playback) Ver. 7, 8: CBR 48, 64, 80, 96, 128, 160, 192 (kbps)
Ver. 9: CBR 48, 64, 80, 96, 128, 160, 192, 256, 320 (kbps)
●Compatible media
Media that can be used for MP3 and WMA playback are CD-Rs and CD-RWs.
Playback in some instances may not be possible if the CD-R or CD-RW is not
finalized. Playback may not be possible or the audio may jump if the disc is
scratched or marked with fingerprints.

220
3-2. Using the audio system
08_IS F_U_(L/O_0808)
●MP3 and WMA playback
When a disc containing MP3 or WMA files is inserted, all files on the disc are first
checked. Once the file check is finished, the first MP3 or WMA file is played. To
make the file check finish more quickly, we recommend you do not write in any
files other than MP3 or WMA files or create any unnecessary folders.
Discs that contain a mixture of music data and MP3 or WMA format data cannot
be played.
●Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and WMA
files, they will be mistakenly recognized and played as MP3 and WMA files. This
may result in large amounts of interference and damage to the speakers.
●Playback
• To play MP3 file with steady sound quality, we recommend a fixed bit rate of at least 128 kbps and a sampling frequency of 44.1 kHz.
• CD-R or CD-RW playback may not be possible in some instances, depend-
ing on the characteristics of the disc.
• There is a wide variety of freeware and other encoding software for MP3 and WMA files on the market, and depending on the status of the encoding
and the file format, poor sound quality or noise at the start of playback may
result. In some cases, playback may not be possible at all.
• When files other than MP3 or WMA files are recorded on a disc, it may take
more time to recognize th e disc and in some cases, playback may not be
possible at all.
• Microsoft, Windows, and Windows Media are the registered trademarks of
Microsoft Corporation in the U.S.A. and other countries.
NOTICE
■CDs and adapters that cannot be used
→ P. 2 1 3
■CD player precautions
→P. 2 1 4

225
3-2. Using the audio system
3
Interior features
08_IS F_U_(L/O_0808)
Using the steering wheel audio switches
Turning on the powerPress when the audio system is turned off.
The audio system can be turned off by holding down for 1 second or
more.
Changing the audio sourcePress when the audio system is turned on. The audio source
changes as follows each time is pressed. If no discs are inserted in
the player, that mode will be skipped.
FM1 →FM2 →CD changer →AUX →AM →SAT1 →SAT2 →SAT3
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the vol-
ume.
Hold down to continue increasing or decreasing the volume.
Some audio features can be controlled using the switches on the steering
wheel.
Turns the power on, select
audio source
Vo l u m e
Radio: Select radio stations
CD: Select tracks, files (MP3
and WMA) and discs

442
08_IS F_U_(L/O_0808)
Alphabetical index
Alphabetical index
A/C ............................................................. 190
ABS.............................................................. 169
ACCESSORY mode ............................ 116
AFS .............................................................. 143
Adaptive front lighting system ......... 143
Air conditioning filter ........................... 317
Air conditioning systemAir conditioning filter ......................... 317
Automatic air conditioning system ................................................... 190
Airbags Airbag operating conditions...........80
Airbag precautions for your child.......................................................... 84
Airbag warning light ........................356
Curtain shield airbag operating conditions................................................ 81
Curtain shield airbag
precautions .......................................... 84
Front passenger occupant
classification system......................... 89
General airbag precautions ........... 84
Locations of airbags............................ 78
Modification and disposal of airbags ....................................................88
Proper driving posture ............. 76, 84
Side airbag operating conditions................................................ 81
Side airbag precautions .................... 84
SRS airbags ............................................. 78 Alarm............................................................ 73
Antenna .................................................... 206
Anti-lock brake system ........................169
Armrest .................................................... 248
Ashtrays.................................................... 243
Audio input.............................................. 224
Audio system
Antenna.................................................. 206
Audio input............................................ 224
Audio visual input............................... 224
AUX adapter ....................................... 224
CD player/changer ......................... 209
MP3/WMA disc................................. 215
Optimal use ............................................221
Portable music player ...................... 224
Radio ....................................................... 202
Steering wheel audio switch.........225
Audio visual input ................................. 224
Automatic air conditioning system ..................................................... 190
Automatic headlight leveling system ......................................................144
Automatic light control system.........142
Automatic transmission Automatic transmission ................... 120
If the shift lever cannot be shifted from P................................... 389
M mode ................................................... 124
AUX adapter ......................................... 224A

443
Alphabetical index
08_IS F_U_(L/O_0808)
Back-up lightsWattage ................................................... 412
Battery Checking ............................................... 296
If the vehicle has discharged battery.................................................. 394
Preparing and checking before winter ......................................184
Bottle holders .........................................236
Brake Fluid .......................................................... 294
Parking brake ........................................ 129
Brake assist ............................................... 169
Care Exterior ................................................... 268
Interior....................................................... 271
Seat belts ................................................ 272
Cargo capacity ...................................... 180
Cargo hooks .......................................... 253
CD changer ........................................... 209
CD player................................................ 209
Chains......................................................... 184 Child restraint system
Booster seats, definition .................... 94
Booster seats, installation ...............100
Convertible seats, definition ............ 94
Convertible seats, installation .......100
Front passenger occupant
classification system .........................89
Infant seats, definition .......................... 94
Infant seats, installation .....................100
Installing CRS with lower
anchorages...........................................99
Installing CRS with seat belts ........ 100
Installing CRS with top straps....... 104
Child safety
Airbag precautions ..............................84
Battery precautions ..............297, 396
Child restraint system ......................... 94
Child-protectors ...................................38
How your child should wear the seat belt ..........................................55
Installing child restraints.....................98
Moon roof precautions...................... 67
Power window lock switch .............. 63
Power window precautions ............ 64
Removed electronic key battery precautions..........................................321
Seat belt comfort guide ..................... 53
Seat belt extender precautions...... 57
Seat belt precautions ..........................56
Seat heater precautions.................. 247
Trunk precautions................................. 43B
C
