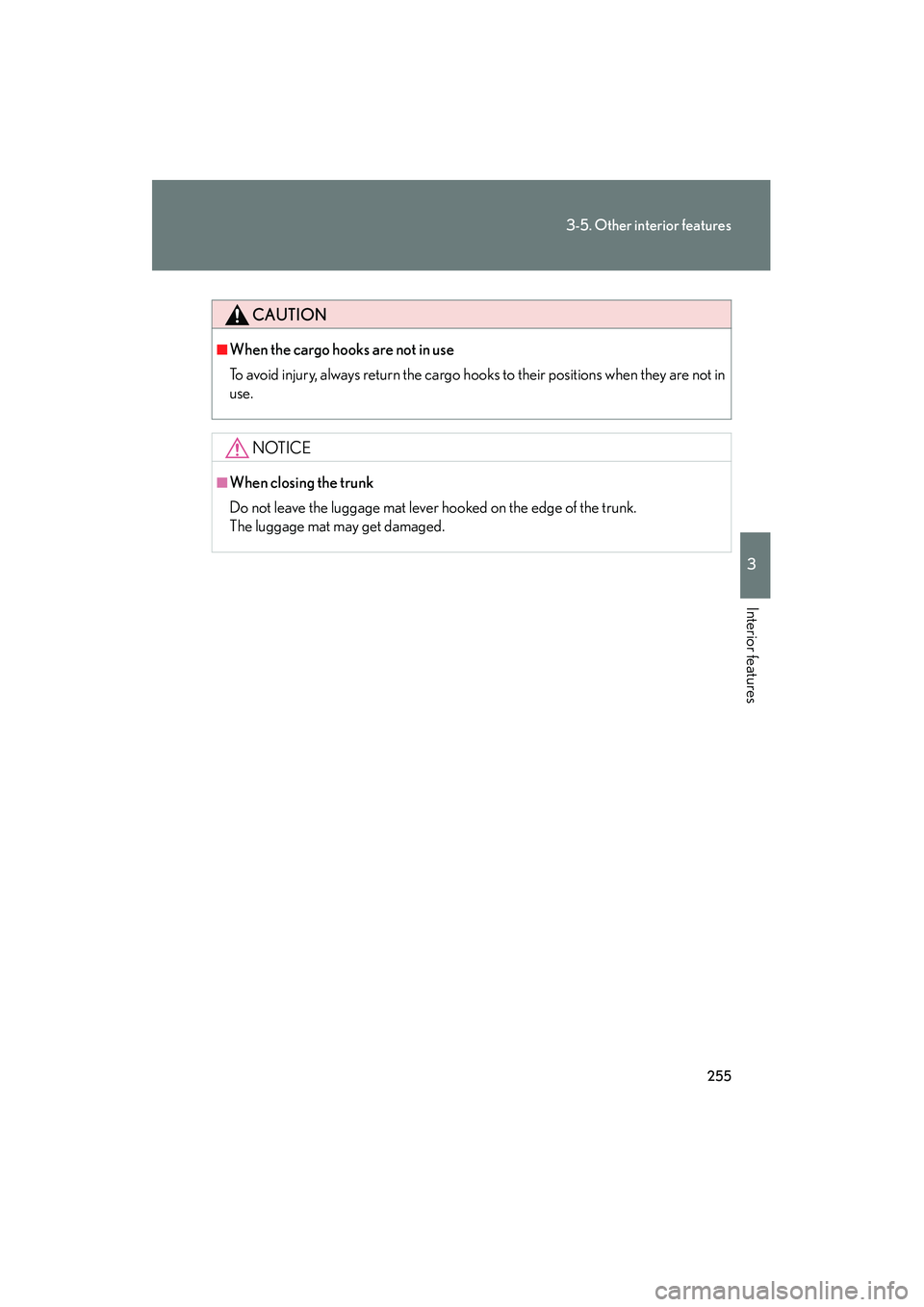

3-5. Other interior features
3
Interior features
08_IS F_U_(L/O_0808)
CAUTION
■When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their positions when they are not in
use.
NOTICE
■When closing the trunk
Do not leave the luggage mat lever hooked on the edge of the trunk.
The luggage mat may get damaged.

278
4-2. Maintenance
08_IS F_U_(L/O_0808)
Vehicle exterior
ItemsCheck points
Steering wheel
• Moves smoothly?
• Has correct free play?
• No strange noises?
ItemsCheck points
Door/trunk• Operate smoothly?
Engine hood• The lock system works properly?
Fluid leaks• Is there any leakage after parking?
Ti r e
• Inflation pressure is correct?
• Tire surfaces not worn or dam-aged?
• Wheel nuts are not loose?
CAUTION
■If the engine is running
Turn the engine off and ensure that there is adequate ventilation before performing
maintenance checks.

338
4-3. Do-it-yourself maintenance
08_IS F_U_(L/O_0808)
Light bulbs
Replacing light bulbs■ Back-up lights
Open the trunk door and remove
the cover clips.
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Preparing a replacement light bulb
Check the wattage of the light bulb being replaced. ( →P. 4 1 2 )
■ Bulb locations
Rear turn signal light Back-up light
STEP1

339
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS F_U_(L/O_0808)Partly remove the cover. Remove
the wire harness and turn the bulb
base counterclockwise.
Remove the light bulb.
■ Rear turn si gnal lights
Open the trunk door and remove
the cover.
Remove the connector and turn
the bulb base counterclockwise.
STEP2
STEP3
STEP1
STEP2

358
5-2. Steps to take in an emergency
08_IS F_U_(L/O_0808)
Follow the correction procedures.After taking the specified steps to correct the suspected problem, check
that the warning light turns off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
Indicates that a door or the
trunk is not fully closed.
Check that all doors and the
trunk are closed.
Low fuel level warning light Remaining fuel
(Approximately 2.9 gal. [11 L,
2.4 Imp.gal.] or less)
Refuel the vehicle.
Automatic transmission fluid
temperature warning lightIndicates that the automatic
transmission fluid tempera-
ture is too high.
→ P. 1 2 7
(On the instru-
ment cluster)
Driver’s seat belt reminder
light (warning buzzer)
*2
Warns the driver to fasten
his/her seat belt.Fasten the seat belt.
(On the center panel)
Front passenger’s seat belt
reminder light
(warning buzzer)
*2
Warns the front passenger to
fasten his/her seat belt.
Fasten the seat belt.

5
When trouble arises
371
5-2. Steps to take in an emergency
08_IS F_U_(L/O_0808)
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates that the trunk is
not fully closed. flashes and a
buzzer sounds to indi-
cate that trunk is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the trunk.
(Flashing)
(If equipped)
Indicates that the moon
roof is not fully closed
(with the “ENGINE
START STOP” switch
OFF and the driver’s
door opened).
Close the moon roof.
Indicates that the parking
brake is still engaged.
flashes and a
buzzer sounds to indi-
cate that the parking
brake is still engaged
(with the vehicle having
reached a speed of 3
mph [5 km/h]).
Release the parking
brake.
Indicates that the washer
fluid level is low.Add washer fluid.

380
5-2. Steps to take in an emergency
08_IS F_U_(L/O_0808)
Taking out the spare tireLift up the hook of the panel on the
trunk floor.
Secure the panel using the hook
provided.
Loosen the center fastener that
secures the spare tire.
STEP1
STEP2
STEP3

5
When trouble arises
391
5-2. Steps to take in an emergency
08_IS F_U_(L/O_0808)
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk and key linked functions
Doors
Remove the cover on the driver’s
door handle using the mechanical
key (→P. 21) in order to perform
the following operations.
Locks all doors
Closes the windows/moon roof
(turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows/moon roof
(turn and hold)
Return the cover to the original
position after use.
If communication between the electronic key and vehicle is interrupted
( → P. 28) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors and trunk can be
opened or the engine can be started by following the procedure below.

429
6-2. Customization
6
Vehicle specifications
08_IS F_U_(L/O_0808)
Wireless
remote con-
trol
(
→P. 3 5 )
Operation signal
(Emergency flashers)OnOff
Operation signal
(Buzzer) OnOff
Door lock buzzerOnOff
Trunk unlocking functionOnOff
Trunk unlocking operationPush and holdPush twice
One short push
Pa n i c f u n c t i o nOnOff
Door lock
(
→P. 3 7 )
Unlocking using a key
Driver's door
unlocked in one
step, all doors
unlocked in two
steps
All doors
unlocked in one step
Speed-detecting auto-
matic door lock functionOffOn
Opening driver's door
unlocks all doorsOffOn
Shifting gears to P
unlocks all doorsOnOff
Shifting gears to position
other than P locks all
doors
OnOff
Steering
wheel
(
→P. 5 8 )
Auto tilt-away functionOnOff
ItemFunctionDefault settingCustomized
setting

443
Alphabetical index
08_IS F_U_(L/O_0808)
Back-up lightsWattage ................................................... 412
Battery Checking ............................................... 296
If the vehicle has discharged battery.................................................. 394
Preparing and checking before winter ......................................184
Bottle holders .........................................236
Brake Fluid .......................................................... 294
Parking brake ........................................ 129
Brake assist ............................................... 169
Care Exterior ................................................... 268
Interior....................................................... 271
Seat belts ................................................ 272
Cargo capacity ...................................... 180
Cargo hooks .......................................... 253
CD changer ........................................... 209
CD player................................................ 209
Chains......................................................... 184 Child restraint system
Booster seats, definition .................... 94
Booster seats, installation ...............100
Convertible seats, definition ............ 94
Convertible seats, installation .......100
Front passenger occupant
classification system .........................89
Infant seats, definition .......................... 94
Infant seats, installation .....................100
Installing CRS with lower
anchorages...........................................99
Installing CRS with seat belts ........ 100
Installing CRS with top straps....... 104
Child safety
Airbag precautions ..............................84
Battery precautions ..............297, 396
Child restraint system ......................... 94
Child-protectors ...................................38
How your child should wear the seat belt ..........................................55
Installing child restraints.....................98
Moon roof precautions...................... 67
Power window lock switch .............. 63
Power window precautions ............ 64
Removed electronic key battery precautions..........................................321
Seat belt comfort guide ..................... 53
Seat belt extender precautions...... 57
Seat belt precautions ..........................56
Seat heater precautions.................. 247
Trunk precautions................................. 43B
