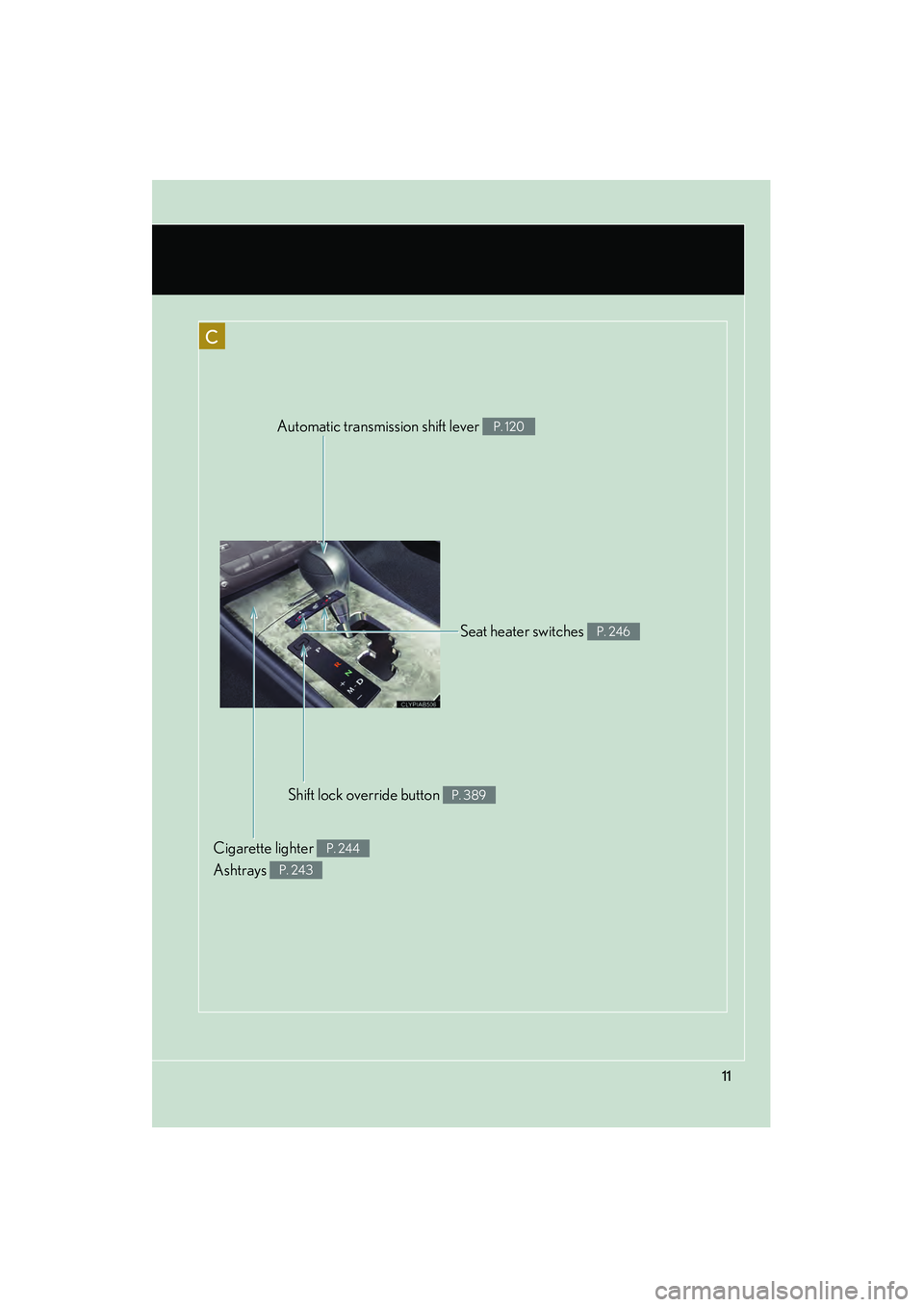

Seat heater switches P. 246
Automatic transmission shift lever P. 120
Shift lock override button P. 389
Cigarette lighter
Ashtrays P. 244
P. 243

Interior features3
189
08_IS F_U_(L/O_0808)
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ...................................... 190
Rear window and outside
rear view mirror
defoggers ............................... 198
3-2. Using the audio system Audio system types................. 199
Using the radio....................... 202
Using the CD player ............ 209
Playing back MP3 and WMA discs............................. 215
Optimal use of the audio
system ...................................... 221
Using the AUX adapter ....... 224
Using the steering wheel
audio switches ...................... 225
3-3. Using the interior lights Interior lights list ..................... 227
• Interior lights ........................ 229
• Personal lights ...................... 229 3-4. Using the storage features
List of storage features.......... 231
• Glove box ............................... 231
• Console box ......................... 232
• Overhead console.............. 233
• Cup holders .......................... 234
• Bottle holders/door pockets ........................ 236
3-5. Other interior features Sun visors ................................. 237
Vanity mirror ........................... 238
Clock ......................................... 239
Satellite switches ................... 240
Ashtrays.................................... 243
Cigarette lighter .................... 244
Power outlet ............................ 245
Seat heaters ............................ 246
Armrest .................................... 248
Trunk storage extension ...... 249
Coat hooks ............................... 251
Floor mat .................................. 252
Trunk features ......................... 253
Garage door opener ............ 256
Compass .................................. 262

196
3-1. Using the air conditioning system and defogger
08_IS F_U_(L/O_0808)
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature setting and
ambient conditions. As a result, the following may occur.
●The system may switch automatically to recirculated mode when the coolest
temperature setting is selected in summer.
●Immediately after is pressed, the fan may stop for a while until warm or
cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is on.
■Using the system in recirculated air mode
The windows will fog up more easily if the recirculated air mode is used for an
extended period.
■Window defogger feature
Recirculated air mode may automatically switch to
(outside air) mode in situ-
ations where the windows need to be defogged.
■When outside air temperature approaches 32° F (0°C)
The air conditioning system may not operate even when is pressed.
■When the indicator light on flashes
Press and turn off the air conditioning system before turning it on once
more. There may be a problem in the air conditioning system if the indicator light
continues to flash. Turn the air conditioning system off and have it inspected by your
Lexus dealer.
■Automatic mode for air intake control
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.
■Micro dust and pollen filter
●In order to prevent the windows from fogging up when the outside air is cold,
the following may occur.
• Outside air mode does not switch to .
• The air conditioning system operates automatically.
• The operation cancels after 1 minute.
●In rainy weather, the windows may fog up. Press .

246
3-5. Other interior features
08_IS F_U_(L/O_0808)
Seat heaters
■The seat heaters can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When not in use
Set the dial to “0”. The indicator light turns off.
Heats the seats
The indicator light comes on.
The higher the number, the
warmer the seats become.Driver’s seat
Front passenger ’s
seat

247
3-5. Other interior features
3
Interior features
08_IS F_U_(L/O_0808)
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp objects
(needles, nails, etc.) into the seat.
■To prevent battery discharge
Turn the switches off when the engine is not running.

273
4-1. Maintenance and care
4
Maintenance and care
08_IS F_U_(L/O_0808)
NOTICE
■Cleaning detergents
Do not use organic substances such as benzene or gasoline, acidic or alkaline solu-
tions, dye, bleach or other detergent. Doing so may discolor the vehicle interior or
cause streaks or damage to painted surfaces.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces.
●Remove any dust or dirt on leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or that contain wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components under the floor of the vehicle, and may also
cause the body to rust.
■Cleaning the inside of the rear window
●Be careful not to scratch or damage the heater wires or antenna.
●Do not use glass cleaner to clean the rear window, as this may cause damage to
the rear window defogger heater wires or antenna. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.

327
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS F_U_(L/O_0808)
11E/G-B60 AFR CTRL-B, ETCS, A/F, STR LOCK,
INJ2
12P/ I - B60 AEFI, F/PMP, INJ
13ABS 150 AVDIM
14RH J/B-B30 AFR DOOR RH, RR DOOR RH, AM2
15VVT40 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
16MAIN30 AH-LP R LWR, H-LP L LWR, headlight
low beams
17STARTER30 ASmart access system with push-button
start
18LH J/B-B30 AFR DOOR LH, RR DOOR LH,
SECURITY
19EPS80 AElectric power steering
20ALT180 ALH J/B-AM, E/G-AM, HEATER,
FAN1, FAN2, DEFOG, RH J/B-AM
21LH J/B-AM80 A
S/ROOF, FR P/SEAT LH, TV NO.1,
A/C, FUEL OPEN, PSB, FR WIP,
H-LP LVL, LH-IG, ECU-IG LH,
PANEL, TAIL, MIR HTR, TV NO. 2,
FR S/HTR LH
22RH J/B-AM80 A
OBD, STOP SW, TI&TE, FR P/SEAT
RH, RAD NO. 3, ECU-IG RH,
RH-IG, FR S/HTR RH, ACC, CIG,
PWR OUTLET
23DEFOG50 ARear window defogger
24FA N 240 AElectric cooling fans
FuseAmpereCircuit

328
4-3. Do-it-yourself maintenance
08_IS F_U_(L/O_0808)
25FA N 140 AElectric cooling fans
26HEATER50 ACDS, air conditioning system
27E/G-AM60 AH-LP CLN, FR CTRL-AM
FuseAmpereCircuit

331
4-3. Do-it-yourself maintenance
4
Maintenance and care
08_IS F_U_(L/O_0808)■
Driver’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30 APo w e r s e a t
2A/C7. 5 AAir conditioning system
3MIR HTR15 AOutside rear view mirror defoggers
4TV NO. 110 ADisplay
5FUEL OPEN10 AFuel filler door opener
6TV NO. 27. 5 A
7PSB30 APre-collision seat belt
8S/ROOF25 AMoon roof
9TA I L10 ATail lights, license plate lights, parking
lights, rear side marker lights
10PA N E L7. 5 ASwitch illumination, air conditioning
system, display
11RR FOG7. 5 A
12ECU-IG LH10 A
Cruise control, air conditioning sys-
tem, electric power steering, shift lock
system, moon roof, tire inflation pres-
sure warning system
13FR S/HTR LH15 ASeat heaters and ventilators
