remote start Lexus IS F 2009 Owner's Manual

TABLE OF CONTENTSIndex
08_IS F_U_(L/O_0808)
2
1-1. Key informationKeys ...................................................... 20
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .......................... 24
Wireless remote control .............. 35
Doors.................................................... 37
Trunk...................................................... 41
1-3. Adjustable components (seats, mirrors, steering wheel)
Front seats .......................................... 44
Driving position memory (driver’s seat) ................................. 45
Seat position memory (front passenger’s seat) ............. 49
Head restraints.................................. 51
Seat belts ............................................ 52
Steering wheel................................. 58
Anti-glare inside rear view mirror ................................................ 60
Outside rear view mirrors ............ 61
1-4. Opening and closing the windows and moon roof
Power windows................................ 63
Moon roof .......................................... 65 1-5. Refueling
Opening the fuel tank cap........... 68
1-6. Theft deterrent system Engine immobilizer system ........... 71
Alarm.................................................... 73
Theft prevention labels (U.S.A.) ............................................. 75
1-7. Safety information Correct driving posture ............... 76
SRS airbags ....................................... 78
Front passenger occupant classification system .................... 89
Child restraint systems ................. 94
Installing child restraints ............... 98
2-1. Driving procedures Driving the vehicle ........................ 108
Engine (ignition) switch ................ 116
Automatic transmission.............. 120
Turn signal lever............................. 128
Parking brake ................................. 129
Horn.................................................... 130
1Before driving
2When driving

08_IS F_U_(L/O_0808)
17
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus dealer before you scrap your vehicle.
Perchlorate Material
Special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Your vehicle has components that may contain perchlorate. These components may
include airbag, seat belt pretensioners, and wireless remote control batteries.
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol
and certain drugs delay reaction time, impair judgment and reduce coordination,
which could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers
or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts
the driver, such as adjusting controls, talking on a cellular phone or reading can
result in a collision with resulting death or serious injury to you, your occupants or
others.
■General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or
use the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is
also a danger that children may injure themselves by playing with the cigarette
lighter, the windows, the moon roof, or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures inside the vehicle can be fatal to children.

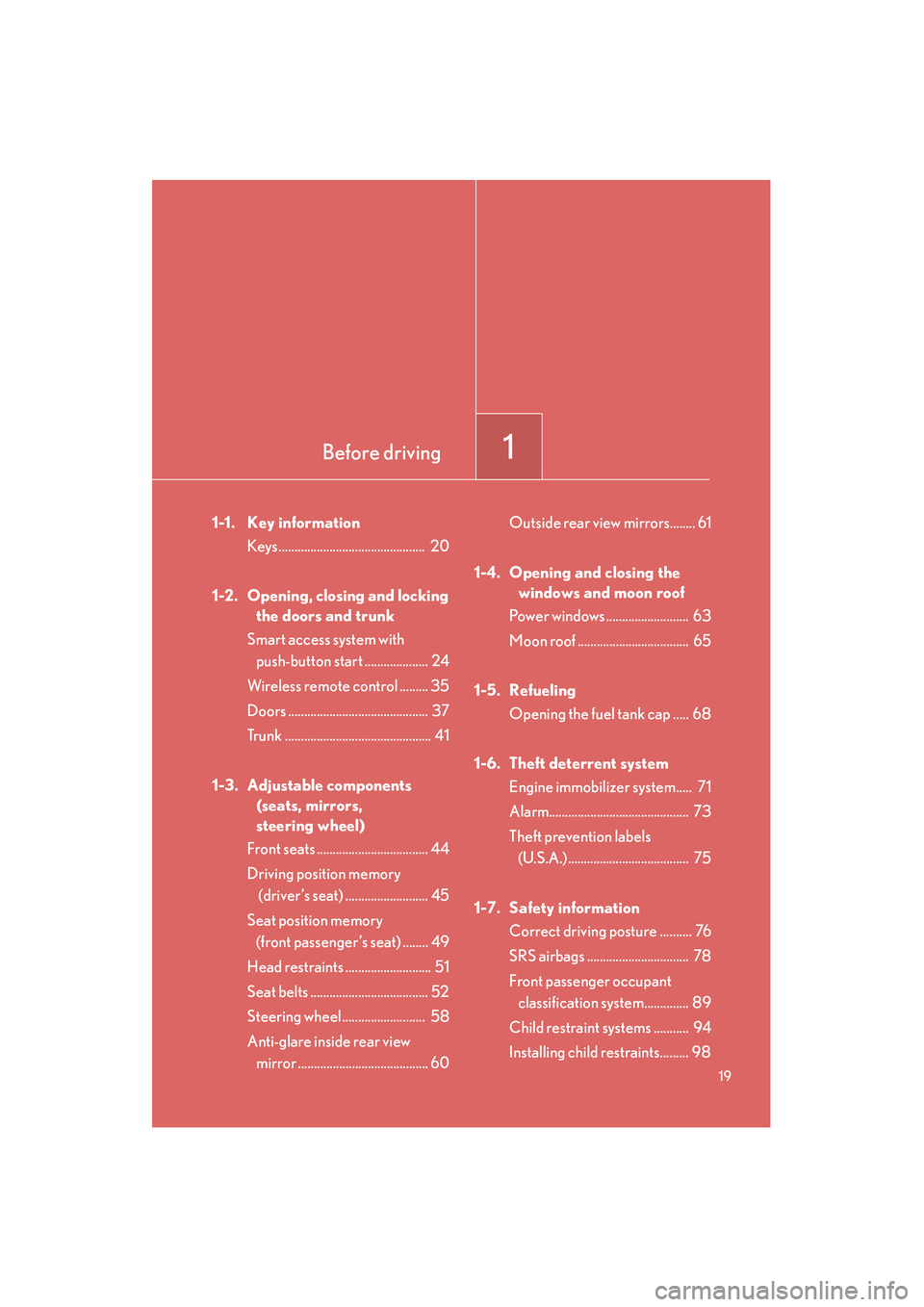

Before driving1
19
08_IS F_U_(L/O_0808)
1-1. Key informationKeys .............................................. 20
1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start .................... 24
Wireless remote control ......... 35
Doors ............................................ 37
Trunk .............................................. 41
1-3. Adjustable components (seats, mirrors,
steering wheel)
Front seats ................................... 44
Driving position memory (driver’s seat) .......................... 45
Seat position memory (front passenger’s seat) ........ 49
Head restraints ........................... 51
Seat belts ..................................... 52
Steering wheel.......................... 58
Anti-glare inside rear view mirror ......................................... 60 Outside rear view mirrors........ 61
1-4. Opening and closing the windows and moon roof
Power windows .......................... 63
Moon roof ................................... 65
1-5. Refueling Opening the fuel tank cap ..... 68
1-6. Theft deterrent system Engine immobilizer system..... 71
Alarm............................................ 73
Theft prevention labels (U.S.A.)...................................... 75
1-7. Safety information Correct driving posture .......... 76
SRS airbags ................................ 78
Front passenger occupant classification system.............. 89
Child restraint systems ........... 94
Installing child restraints......... 98

20
08_IS F_U_(L/O_0808)
1-1. Key information
Keys
The following keys are provided with the vehicle.
Electronic keys
• Operating the smart accesssystem with push-button start
(→ P. 2 4 )
• Operating the wireless remote control function
(→ P. 3 5 )
Mechanical keys
Key number plate
■ Card key (Canada only)
Electronic key
Operating the smart access sys-
tem with push-button start
(→ P. 2 4 )
Mechanical key
The card key comes with an information card that includes instructions
for use. Lexus recommends that you carry the information card with
the card key.

29
1-2. Opening, closing and locking the doors and trunk
1
Before driving
08_IS F_U_(L/O_0808)
■Switching the door unlock function
It is possible to set which doors the entry function unlocks. Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surface is turned off, push and
hold , , or for approximately 5 seconds while pushingon the key.
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step 2.)
Unlock the doors using the wireless remote control and open one of the
doors.
If a door is not opened within 60 seconds after is pressed, the doors
will be locked again and the alarm will automatically be set. In case that
the alarm is triggered, immediately stop the alarm. ( →P. 7 3 )
STEP1
STEP2
Multi-information
displayUnlocking doorsBeep
Hold the driver's door handle
to unlock only the driver's
door.
Exterior: Beeps three
times
Interior: Pings once
Hold the front passenger’s
door handle to unlock all
doors.
Hold either front door handle
to unlock all doors.Exterior: Beeps twice
Interior: Pings once
STEP3

30
1-2. Opening, closing and locking the doors and trunk
08_IS F_U_(L/O_0808)
■Battery-saving function
In the following circumstances, the entry function is disabled in order to prevent the
vehicle and electronic key batteries from discharging.
●When the entry function has not been used for 30 days or more
●When the electronic key has been left within approximately 3 ft. (1 m) of the
vehicle for 10 minutes or more
The system will resume operation when...
●The vehicle is locked using the door handle lock switch.
●The vehicle is locked/unlocked using the wireless remote control function.
( → P. 3 5 )
●The vehicle is locked/unlocked using the mechanical key. ( →P. 3 9 1 )
■Electronic key battery depletion
●The standard battery life is 1 to 2 years. (The card key battery life is about a year
and a half.)
●The battery becomes depleted even if the electronic key is not used because
the key always transmits radio waves. If the smart access system with push-but-
ton start or the wireless remote control does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when nec-
essary. ( → P. 3 2 0 )
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances that produce a magnetic field.
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
•Glass top ranges
•Table lamps
■To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected correctly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not function.)

31
1-2. Opening, closing and locking the doors and trunk
1
Before driving
08_IS F_U_(L/O_0808)
■Note for the entry function
●Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is unlocked.
• The electronic key is on the instrument panel, rear package tray or floor, or in
the glove box when the engine is started or “ENGINE START STOP” switch
modes are changed.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone.
●Even if the electronic key is not inside the vehicle, it may be possible to start the
engine if the electronic key is near the window.
●The doors may unlock if a large amount of water splashes on the door handle,
such as in the rain or in a car wash. (The doors will automatically be locked after
approximately 60 seconds if the doors are not opened and closed.)
●Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
entry function. (Use the wireless re mote control to unlock the doors.)
●A sudden approach to the effective range or door handle operation may prevent
the doors from being unlocked. In this case, return the door handle to the original
position and check that the doors unlock before pulling the door handle again.
■When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of
the vehicle.
■Security feature
If a door is not opened within approximately 60 seconds after the vehicle is
unlocked, the anti-theft system automatically locks the vehicle again.

46
1-3. Adjustable components (seats, mirrors, steering wheel)
08_IS F_U_(L/O_0808)
Linking driving position memory with door unlock operation
Record your driving position to button “1”, “2” or “3” before performing
the following. Using the wireless remote control Turn the “ENGINE START STOP” switch OFF and close the
driver's door.
While pressing the desired button
(“1”, “2” or “3”), push on the
wireless remote control until the
signal beeps.
The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver’s
door is opened.
Open one of the doors
If a door is not opened within 60 seconds after is pressed, the doors
will be locked again and the alarm will automatically be set. In case that
the alarm is triggered, immediately stop the alarm.
(→ P. 7 3 )
STEP1
STEP2
STEP3

47
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
08_IS F_U_(L/O_0808)Using the door lock switch
Carry only the key (including the card key
∗) to which you want to link
the driving position. If 2 or more keys are in the vehicle, the driving
position cannot be linked properly.
Turn the “ENGINE START STOP” switch OFF and close the
driver's door. While pressing the desired button
(“1”, “2” or “3”), press the lock or
unlock side on the driver’s door
lock switch until the signal beeps.
The driving position is recalled
when the driver's door is unlocked
using the entry function or wireless
remote control and the driver's
door is opened.
∗: Canada only
STEP1
STEP2

48
1-3. Adjustable components (seats, mirrors, steering wheel)
08_IS F_U_(L/O_0808)
■Canceling the linked door unlock operation
Turn the “ENGINE START STOP” switch OFF and close the driver's door.
Using the wireless remote control: While pushing the “SET” button, press on the wireless remote control until the signal beeps.
Using the door lock switch: While pr essing the “SET” button, press the
lock or unlock side on the door lock switch until the signal beeps.
■Operating the driving position memory after turning the “ENGINE START
STOP” switch OFF
Memorized positions (except for the steering wheel positions) can be activated up
to 180 seconds after the driver’s door is opened and another 60 seconds after it is
closed again, even after turning the “ENGINE START STOP” switch OFF.
■To cancel seat position recall
Perform any of the following operations.
●Push the “SET” button.
●Push button “1”, “2” or “3”.
●Adjust the seat using the switches (only cancels seat position recall).
■If the battery is disconnected
The memorized positions are erased when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
STEP1
STEP2
