359
4-1. Maintenance and care
4
Maintenance and care
NOTICE
■Cleaning detergents
Do not use organic substances such as benzene or gasoline, acidic or alkaline solu-
tions, dye, bleach or other detergent. Doing so may discolor the vehicle interior or
cause streaks or damage to painted surfaces.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces.
●Remove any dust or dirt on leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended periods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or that contain wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components under the floor of the vehicle, and may also
cause the body to rust.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the rear window, as this may cause damage to
the rear window defogger heater wires or antenna. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

412
4-3. Do-it-yourself maintenance
Fuse layout and amperage ratings
■Engine compartment (type A)
FuseAmpereCircuit
1ALT-S7. 5 ACharging system
2TURN-HAZ15 AEmergency flashers, turn signals
3IG2 MAIN20 AIG2, IGN, GAUGE
4RAD NO. 230 AAudio system
5D/C C UT20 ADOME, MPX-B
6RAD NO. 130 AAudio system
7MPX-B10 A
Headlights, front fog lights, parking
lights, windshield washer, horns,
power door lock system, power win-
dows, power seats, electric tilt and
telescopic steering column, meters
and gauges, smart access system with
push-button start, outside rear view
mirrors, air conditioning system
8DOME10 AInterior lights, meters and gauges,
front footwell lights
9CDS10 AElectric cooling fans

413
4-3. Do-it-yourself maintenance
4
Maintenance and care
10E/G-B60 AFR CTRL-B, ETCS, A/F, STR LOCK,
INJ2, TEL
11P/I-B60 AEFI, F/PMP, INJ
12ABS 150 AVDIM
13RH J/B-B30 AFR DOOR RH, RR DOOR RH, AM2
14VVT40 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
15MAIN30 AH-LP R LWR, H-LP L LWR, headlight
low beams
16STARTER30 ASmart access system with push-button
start
17LH J/B-B30 AFR DOOR LH, RR DOOR LH,
SECURITY
18EPS80 AElectric power steering
19ALT180 A
LH J/B-AM, E/G-AM, HEATER,
FAN1, FAN2, DEFOG, RH J/B-AM,
ABS 2
20LH J/B-AM80 A
S/ROOF, FR P/SEAT LH, TV NO.1,
A/C, F/OPN, PSB, FR WIP,
H-LP LVL, LH-IG, ECU-IG LH,
PANEL, TAIL, MIR HTR, TV NO. 2,
FR S/HTR LH
21RH J/B-AM80 A
OBD, STOP SW, TI&TE, FR P/SEAT
RH, RAD NO. 3, ECU-IG RH,
RH-IG, FR S/HTR RH, ACC, CIG,
PWR OUTLET
22ABS230 AVDIM
23DEFOG50 ARear window defogger
FuseAmpereCircuit

415
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Engine compartment (type B)
FuseAmpereCircuit
1SPARE30 ASpare fuse
2SPARE25 ASpare fuse
3SPARE10 ASpare fuse
4FR CTRL-B25 AHORN, H-LP HI
5A/F15 AExhaust system
6ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
7TEL10 ASafety connect
8INJ225 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
9STR LOCK25 ASteering lock system
10H-LP CLN30 AHeadlight cleaner
11DEICER25 A
12FR CTRL-AM30 AFR FOG, WASHER, FR TAIL

416
4-3. Do-it-yourself maintenance

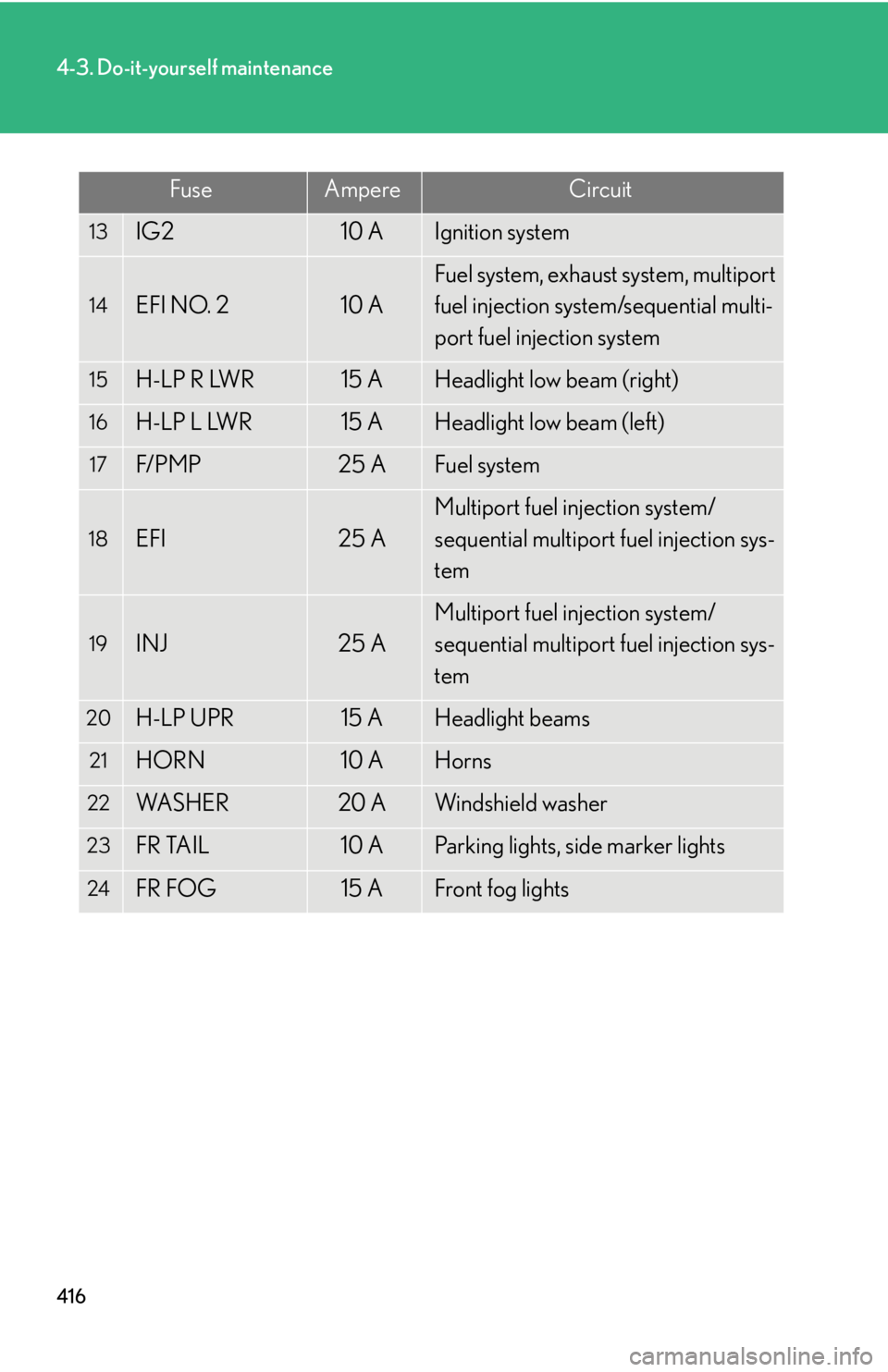

13IG210 AIgnition system
14EFI NO. 210 A
Fuel system, exhaust system, multiport
fuel injection system/sequential multi-
port fuel injection system
15H-LP R LWR15 AHeadlight low beam (right)
16H-LP L LWR15 AHeadlight low beam (left)
17F/ P M P25 AFuel system
18EFI25 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
19INJ25 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
20H-LP UPR15 AHeadlight beams
21HORN10 AHorns
22WA S H E R20 AWindshield washer
23FR TAIL10 AParking lights, side marker lights
24FR FOG15 AFront fog lights
FuseAmpereCircuit

417
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Driver’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30 APo w e r s e a t
2A/C7. 5 AAir conditioning system
3MIR HTR15 AOutside rear view mirror defoggers
4TV NO. 110 ADisplay
5FUEL OPEN10 AFuel filler door opener
6TV NO. 27. 5 A
7PSB30 APre-collision seat belt
8S/ROOF25 AMoon roof
9TA I L10 ATail lights, license plate lights, rear side
marker lights
10PA N E L7. 5 A
Switch illumination, air conditioning
system, display, safety connect, ciga-
rette lighter illumination, shift lever
light, instrument panel lights
11RR FOG7. 5 A
12ECU-IG LH10 A
Cruise control, air conditioning sys-
tem, electric power steering, shift lock
system, moon roof, tire inflation pres-
sure warning system

418
4-3. Do-it-yourself maintenance

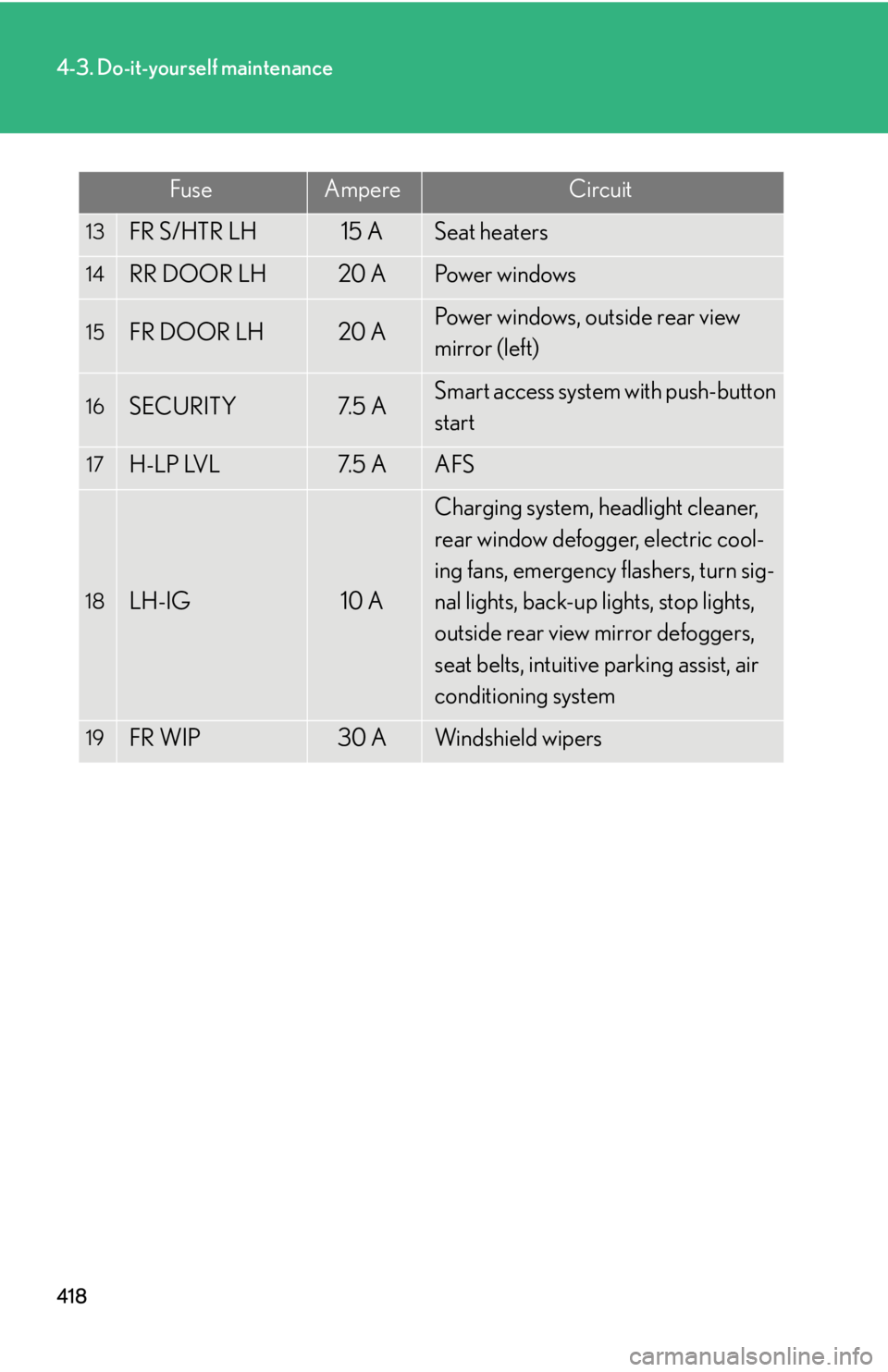

FuseAmpereCircuit
13FR S/HTR LH15 ASeat heaters
14RR DOOR LH20 APo w e r w i n d o w s
15FR DOOR LH20 APower windows, outside rear view
mirror (left)
16SECURITY7. 5 ASmart access system with push-button
start
17H-LP LVL7. 5 AAFS
18LH-IG10 A
Charging system, headlight cleaner,
rear window defogger, electric cool-
ing fans, emergency flashers, turn sig-
nal lights, back-up lights, stop lights,
outside rear view mirror defoggers,
seat belts, intuitive parking assist, air
conditioning system
19FR WIP30 AWindshield wipers

420
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
12RR DOOR RH20 APo w e r w i n d o w s
13FR DOOR RH20 APower windows, outside rear view
mirrors
14AM27. 5 ASmart access system with push-button
start
15RH-IG7. 5 ASeat belts, intuitive parking assist,
automatic transmission, seat heaters
16FR S/HTR RH15 ASeat heaters
17ECU-IG RH10 A
Power seats, smart access system with
push-button start, outside rear view
mirrors, VDIM, air conditioning sys-
tem, pre-collision seat belt, electric tilt
and telescopic steering, power win-
dows, navigation system, headlights,
front fog lights, parking lights, license
plate lights, windshield washer
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (P. 4 2 4 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.

426
4-3. Do-it-yourself maintenance
Remove the light bulb.
■Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Lexus dealer
replace it.
●Headlight low and high beams (discharge bulbs)
●Headlight high beams
●Front fog lights
●Parking lights
●Front turn signal lights
●Front side marker lights
●Stop/tail lights
●Tail lights
●Rear side marker lights
●High mounted stoplight
●License plate lightsSTEP3

499
6-1. Specifications
6
Vehicle specifications
Light bulbs
A: D4S discharge bulbs
B: H11 halogen bulbs
C: Wedge base bulbs (amber)
D: HB3 halogen bulbs
E: Wedge base bulbs (clear)
F: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights
High beam
Low/high beam
9005
D4S60
35D
A
Front turn signal lights21C
Parking lights1685E
Front fog lights55B
Rear turn signal lights21C
Back-up lights92116E
Outer foot lights5E
Interior
Vanity lights8E
Interior lights
Front
Rear
5
3E
F
Rear overhead courtesy light3F
Front door courtesy lights5E
Trunk light5F
