4
Security and system setup ........ 296
Using the phone book............... 300
3-5. Using the interior lights
Interior lights list........................... 306
• Interior lights .............................. 308
• Personal lights ........................... 308
3-6. Using the storage features
List of storage features................ 310
• Glove box...................................... 310
• Console box ................................... 311
• Overhead console..................... 312
• Cup holders.................................. 313
• Bottle holders/
door pockets ................................ 315
3-7. Other interior features
Sun visors.......................................... 316
Vanity mirrors ................................. 317
Clock .................................................. 318
Satellite switches ........................... 319
Ashtrays ........................................... 322
Cigarette lighter ........................... 323
Power outlet ................................... 324
Seat heaters .................................... 325
Armrest ............................................ 327
Trunk storage extension........... 328
Coat hooks .................................... 330
Floor mat........................................... 331
Trunk features................................ 332
Garage door opener ................. 335
Compass........................................... 341Safety Connect............................. 345
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior................... 354
Cleaning and protecting
the vehicle interior .................... 357
4-2. Maintenance
Maintenance requirements .... 360
General maintenance ................ 362
Emission inspection and
maintenance (I/M)
programs ...................................... 365
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions .................................. 366
Hood.................................................. 369
Positioning a floor jack............... 370
Engine compartment.................. 372
Tires .................................................. 386
Tire inflation pressure................. 397
Wheels............................................... 401
Air conditioning filter................. 403
Electronic key battery ............... 406
Checking and replacing
fuses ............................................... 408
Headlight aim................................. 422
Light bulbs ....................................... 424
4Maintenance and care

198
3-1. Using the air conditioning system and defogger
Automatic air conditioning system
Using the automatic mode
Press .
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature setting.
Press to switch to automatic mode.
The air conditioning system automatically switches between outside air
and recirculated air modes.
Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
With navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner's Manual”.
Without navigation system
Automatic mode Driver’s side temperature
setting displayChanges the air outlets used
OffFan speedAirflow display
Fan speed display
Passenger’s side temperature
setting display
Micro dust and pollen filter
Driver's side
temperature control
Air conditioning on/off
Outside air or recirculated air modeWindshield defoggerPassenger’s side
temperature control
Dual operation
STEP1
STEP2

202
3-1. Using the air conditioning system and defogger
Micro dust and pollen filter
Press .
Outside air mode switches to
(recirculated air) mode. Pol-
len is removed from the air and the
air flows to the upper part of the
body.
Usually the system will turn off
automatically after approximately 1
to 3 minutes.
To stop the operation, press
again.
Adjusting the sensitivity of the air intake control in automatic mode
Press for 2 or more sec-
onds.
Press “” (increase) or “”
(decrease) on .
From -3 (low) to 3 (high) can be
set.
STEP1
STEP2

204
3-1. Using the air conditioning system and defogger
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature setting and
ambient conditions. As a result, the following may occur.
●Immediately after is pressed, the fan may stop for a while until warm or
cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is on.
■Using the system in recirculated air mode
The windows will fog up more easily if recirculated air mode is used for an extended
period.
■Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched in accor-
dance with the temperature setting and the inside temperature.
■Window defogger feature
Recirculated air mode may automatically switch to
(outside air) mode in situ-
ations where the windows need to be defogged.
■When outside air temperature approaches 32F (0C)
The air conditioning system may not operate even when is pressed.
■When the indicator light on flashes
Press and turn off the air conditioning system before turning it on once
more. There may be a problem in the air conditioning system if the indicator light
continues to flash. Turn the air conditioning system off and have it inspected by your
Lexus dealer.
■Automatic mode for air intake control
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.
■Micro dust and pollen filter
●In order to prevent the windshield from fogging up when the outside air is cold,
the following may occur.
• Outside air mode does not switch to .
• The air conditioning system operates automatically.
• The operation cancels after 1 minute.
●In rainy weather, the windows may fog up. Press .

Maintenance and care4
353
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior............. 354
Cleaning and protecting
the vehicle interior .............. 357
4-2. Maintenance
Maintenance
requirements ........................ 360
General maintenance .......... 362
Emission inspection and
maintenance (I/M)
programs................................ 3654-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ........................... 366
Hood .......................................... 369
Positioning a floor jack ......... 370
Engine compartment ........... 372
Tires............................................ 386
Tire inflation pressure........... 397
Wheels ....................................... 401
Air conditioning filter ........... 403
Electronic key battery.......... 406
Checking and replacing
fuses ........................................ 408
Headlight aim ......................... 422
Light bulbs ................................ 424

368
4-3. Do-it-yourself maintenance
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury,
observe the following precautions.
■When working on the engine compartment:
●Keep hands, clothing, and tools away from the moving fan and engine drive belt.
●Be careful not to touch the engine, radiator, exhaust manifold, etc. right after driv-
ing as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper or rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel or the battery. Fuel
and battery fumes are flammable.
●Be extremely cautious when working on the battery. It contains poisonous and
corrosive sulfuric acid.
■When working near the electric cooling fan or radiator grille:
Be sure the “ENGINE START STOP” switch is OFF.
With the “ENGINE START STOP” switch in IGNITION ON mode, the electric
cooling fan may automatically start to run if the air conditioning is on and/or the
coolant temperature is high. (P. 3 8 0 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting
in the eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air. Also, a backfire could cause a fire in the engine compartment.

403
4-3. Do-it-yourself maintenance
4
Maintenance and care

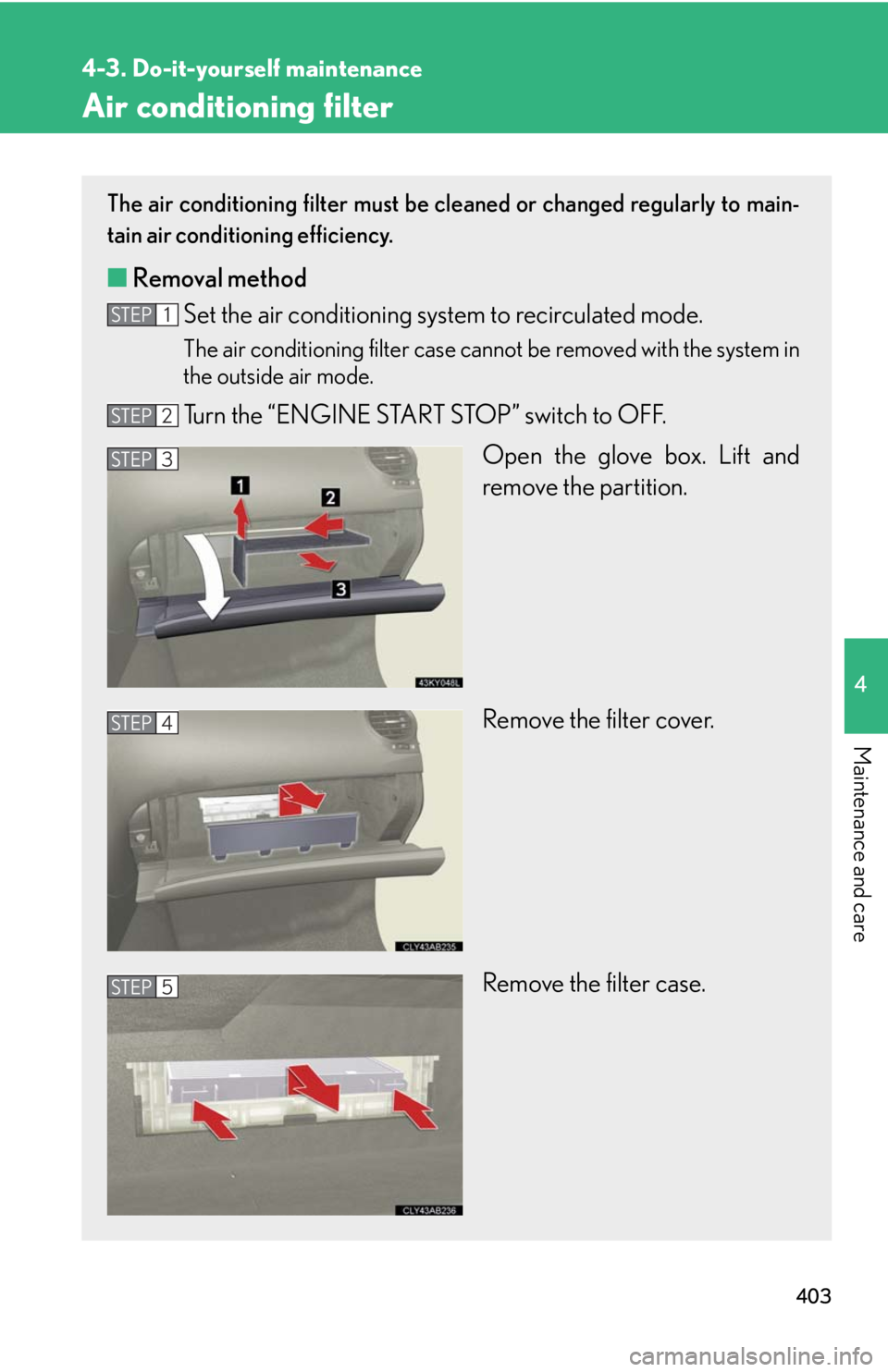

Air conditioning filter
The air conditioning filter must be cleaned or changed regularly to main-
tain air conditioning efficiency.
■Removal method
Set the air conditioning system to recirculated mode.
The air conditioning filter case cannot be removed with the system in
the outside air mode.
Turn the “ENGINE START STOP” switch to OFF.
Open the glove box. Lift and
remove the partition.
Remove the filter cover.
Remove the filter case.
STEP1
STEP2
STEP3
STEP4
STEP5

404
4-3. Do-it-yourself maintenance
■Checking interval
Inspect and replace the air conditioning filter according to the maintenance sched-
ule. In dusty areas or areas with heavy traffic flow, early replacement may be
required. (For scheduled maintenance information, please refer to the “Warranty
and Services Guide/Owner's Manual Supplement/Scheduled Maintenance”.)
■If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
■Cleaning method
If the filter is dirty, clean by blow-
ing compressed air through the
filter from the downward side.
Hold the air gun 2 in. (5 cm)
from the filter and blow for
approximately 2 minutes at
72 psi (500 kPa, 5.0 kgf/cm
2
or bar).
If it is not available, have the
filter cleaned by your Lexus
dealer.
■Replacement method
Remove the air conditioning fil-
ter from the filter case and
replace it with a new one.
The “UP” marks shown on the
filter and the filter case should
be pointing up.

405
4-3. Do-it-yourself maintenance
4
Maintenance and care
NOTICE
■To prevent damage to the system
●When using the air conditioning system, make sure that a filter is always installed.
●When cleaning the filter, do not clean the filter with water.

528
Alphabetical index
Alphabetical index
A/C ............................................................. 198
ABS............................................................... 177
ACCESSORY mode .......................... 124
AFS ................................................................151
Adaptive front lighting system ...........151
Air conditioning filter ..........................403
Air conditioning system
Air conditioning filter .......................403
Automatic air conditioning
system ................................................... 198
Airbags
Airbag operating conditions...........88
Airbag precautions for your
child.......................................................... 92
Airbag warning light ........................ 442
Curtain shield airbag operating
conditions..............................................88
Curtain shield airbag
precautions .......................................... 92
Front passenger occupant
classification system......................... 97
General airbag precautions ........... 92
Locations of airbags............................ 85
Modification and disposal of
airbags .................................................... 96
Proper driving posture ............. 83, 92
Side airbag operating
conditions..............................................88
Side airbag precautions .................... 92
SRS airbags ............................................. 85Alarm ............................................................ 80
Antenna ......................................................215
Anti-lock brake system ........................ 177
Armrest .................................................... 327
Ashtrays.................................................... 322
Audio input.............................................. 252
Audio system
Antenna.................................................... 215
Audio input ............................................252
AUX adapter .......................................252
Bluetooth
® audio ..............................257
CD player/changer ........................... 218
iPod
®.......................................................233
MP3/WMA disc................................225
Optimal use ......................................... 250
Portable music player ......................252
Radio ......................................................... 210
Steering wheel audio switch........ 254
USB memory ........................................ 241
Automatic air conditioning
system ..................................................... 198
Automatic headlight leveling
system ......................................................152
Automatic light control system........ 150
Automatic transmission
Automatic transmission ................... 128
If the shift lever cannot be
shifted from P....................................475
M mode ................................................... 132
AUX adapter ......................................... 252
A
