5
When trouble arises
437
5-1. Essential information
10_IS F_U
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■Visible symptoms
●Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points
higher than normal
■ Audible symptoms
●Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
●Engine missing, stumbling or running rough
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor

5
When trouble arises
483
5-2. Steps to take in an emergency
10_IS F_U
If your vehicle overheats
If your engine overheats:
Stop the vehicle in a safe place and turn off the automatic air
conditioning system.
Check to see if steam is coming out from under the hood.
If you see steam: Stop the engine. Carefully lift the hood after the steam sub-
sides and then restart the engine.
If you do not see steam: Leave the engine running and carefully lift the hood.
Remove the engine compartment cover (front). ( →P. 373)
Check to see if the cooling fans are operating.
If the fans are operating: Wait until the temperature of the engine (shown on the
instrument cluster) begins to fall and then stop the engine.
If the fans are not operating: Stop the engine immediately and call your local Lexus
dealer.
After the engine has cooled
down sufficiently, check the
engine coolant level and inspect
the radiator core (radiator) for
any leaks.STEP1
STEP2
STEP3
STEP4
STEP5

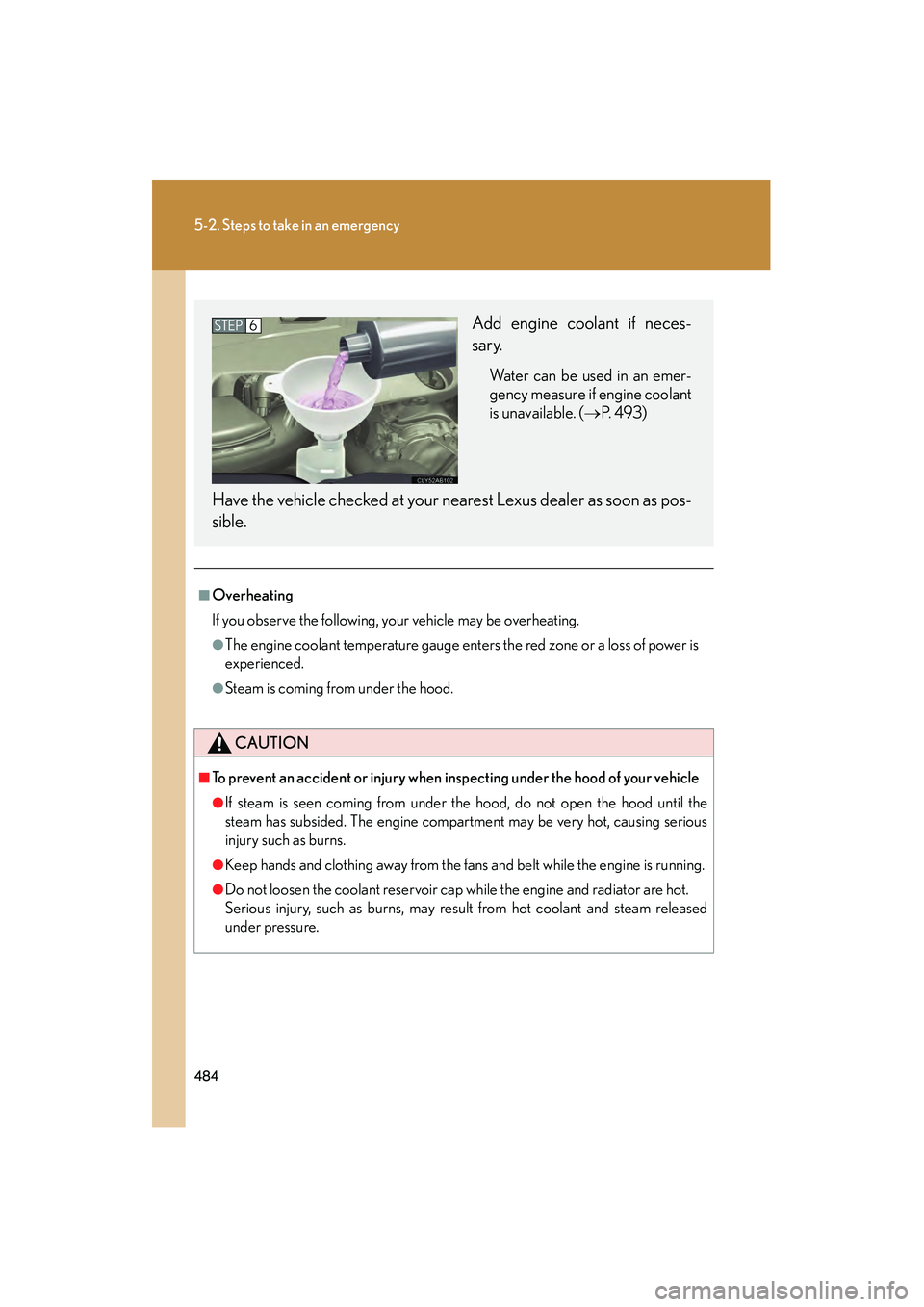

484
5-2. Steps to take in an emergency
10_IS F_U
■Overheating
If you observe the following, your vehicle may be overheating.
●The engine coolant temperature gauge enters the red zone or a loss of power is
experienced.
●Steam is coming from under the hood.
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot, causing serious
injury such as burns.
●Keep hands and clothing away from the fans and belt while the engine is running.
●Do not loosen the coolant reservoir cap while the engine and radiator are hot.
Serious injury, such as burns, may result from hot coolant and steam released
under pressure.
Add engine coolant if neces-
sary.
Water can be used in an emer-
gency measure if engine coolant
is unavailable. (→P. 4 9 3 )
Have the vehicle checked at your nearest Lexus dealer as soon as pos-
sible.
STEP6

5
When trouble arises
485
5-2. Steps to take in an emergency
10_IS F_U
NOTICE
■When adding engine coolant
Wait until the engine has cooled down before adding engine coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot engine too quickly
can cause damage to the engine.

508
6-1. Specifications
10_IS F_U
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows
Occupant distributionDistribution of occupants in a vehicle as specified in
the third column of Table 1
* below
Production options
weight
The combined weight of installed regular production
options weighing over 5 lb. (2.3 kg) in excess of the
standard items which they replace, not previously
considered in curb weight or accessory weight,
including heavy duty brakes, ride levelers, roof rack,
heavy duty battery, and special trim
RimA metal support for a tire or a tire and tube assembly
upon which the tire beads are seated
Rim diameter
(Wheel diameter)Nominal diameter of the bead seat
Rim size designationRim diameter and width
Rim type designationThe industry manufacturer's designation for a rim by
style or code
Rim widthNominal distance between rim flanges
Vehicle capacity weight
(Total load capacity)The rated cargo and luggage load plus 150 lb. (68
kg) times the vehicle's designated seating capacity
Tire related termMeaning

531
Alphabetical index
10_IS F_U
Emergency, in case ofIf the engine will not start ................474
If the shift lever cannot be shifted from P ................................... 475
If the vehicle has a discharged battery..................................................480
If the warning buzzer sounds........ 441
If the warning light turns on ............ 441
If a warning message is displayed .............................................. 451
If you have a flat tire ........................ 465
If you lose your keys ........................ 476
If you think something is wrong....................................................437
If the electronic key does not operate properly .............................477
If your vehicle becomes stuck ....486
If your vehicle needs to be towed ..................................................... 431
If your vehicle overheats................ 483
Engine ACCESSORY mode ....................... 124
Compartment ......................................372
Engine switch ........................................ 124
Hood ....................................................... 369
How to start the engine.................... 124
Identification number.......................489
If the engine will not start ................474
Ignition switch........................................ 124
Overheating......................................... 483
Engine compartment cover..............373 Engine coolant
Capacity .................................................493
Checking ...............................................378
Preparing and checking
before winter ......................................192
Engine coolant temperature
gauge....................................................... 139
Engine immobilizer system.................. 78
Engine oil Capacity .................................................492
Checking ............................................... 374
Preparing and checking
before winter ......................................192
Engine oil maintenance data............ 376
EPS ............................................................... 177
Event data recorder ............................ 439
First-aid kit storage belt ..................... 332
Floor mat ................................................... 331
Fluid
Brake ....................................................... 380
Washer .................................................. 385
Fog lights Switch........................................................ 153
Wattage ................................................. 498
Footwell lights ........................................306
Front fog lights Switch........................................................ 153
Wattage ................................................. 498
Front passenger occupant
classification system ............................ 97
F

538
10_IS F_U
What to do if...
What to do if...
A tire puncturesP. 4 6 5If you have a flat tire
The engine does not start
P. 4 74If the engine will not start
P. 7 8Engine immobilizer system
P. 4 8 0If the vehicle battery is discharged
The shift lever cannot be
moved out of PP. 4 7 5If the shift lever cannot be shifted
from P
The engine coolant temperature
gauge enters the red zone
Steam can be seen coming
from under the hood
P. 4 8 3If your vehicle overheats
The key is lostP. 4 76If you lose your keys
The battery runs outP. 4 8 0If the vehicle battery is discharged
The doors cannot be lockedP. 3 9Doors
The horn begins to soundP. 8 0Alarm
The vehicle is stuck in mud or
sandP. 4 8 6If the vehicle becomes stuck
