USB Lexus IS F 2010 Owner's Manual

1
2
3
4
5
6
7
10_IS F_U
3
Multi-information display........... 146
2-3. Operating the lights and windshield wipers
Headlight switch ............................ 150
Fog light switch .............................. 153
Windshield wipers and washer............................................. 154
Headlight cleaner switch ........... 157
2-4. Using other driving systems Cruise control ................................ 158
Dynamic radar cruise control .... 161
Intuitive parking assist ................... 171
Driving assist systems................... 177
PCS (Pre-Collision System)..... 184
2-5. Driving information Cargo and luggage ...................... 188
Vehicle load limits ........................... 191
Winter driving tips ........................ 192
Trailer towing .................................. 194
Dinghy towing ................................ 195
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ............................................. 198
Rear window and outside rear view mirror defoggers ............ 206 3-2. Using the audio system
Audio system type ....................... 207
Using the radio............................... 210
Using the CD player.................... 218
Playing back MP3 and WMA discs ................................................ 225
Operating an iPod
®................... 233
Operating a USB memory........ 241
Optimal use of the audio system ........................................... 250
Using the AUX adapter............ 252
Using the steering wheel audio switches ............................ 254
3-3. Using the Bluetooth
® audio
system
Bluetooth
® audio system ......... 257
Using the Bluetooth
® audio
system ............................................ 260
Operating a Bluetooth
®
enabled portable player ......... 265
Setting up a Bluetooth
®
enabled portable player ......... 268
Bluetooth
® audio system
setup ............................................... 274
3-4. Using the hands-free phone system (for mobile phones)
Hands-free system for mobile phones ........................................... 275
Using the hands-free system (for mobile phones).................. 279
Making a phone call.................... 287
3Interior features

10_IS F_U
8
A
Power window
switches
P. 69
Pictorial indexInterior
Seat belts P. 57
SRS front passenger
airbag
P. 85
SRS knee airbags
P. 85
SRS driver airbag P. 85
Floor mats P. 331
Bottle holders/door pockets P. 315Head restraints P. 54
Front seats P. 47
Cup holders P. 313
SRS side airbags P. 85
Console box P. 311
Power outlet P. 324
Ashtrays P. 322
Armrest P. 327
AUX adapter
USB adapter P. 252
P. 233, 241
Cup holders P. 313

196
10_IS F_U
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ...................................... 198
Rear window and
outside rear view
mirror defoggers................. 206
3-2. Using the audio system Audio system type ................. 207
Using the radio ........................ 210
Using the CD player .............. 218
Playing back MP3 and WMA discs ........................... 225
Operating an iPod
®.............. 233
Operating a USB memory...................... 241
Optimal use of the audio
system ..................................... 250
Using the AUX adapter....... 252
Using the steering wheel
audio switches...................... 254

208
3-2. Using the audio system
10_IS F_U
Ti t l ePa g e
Using the radioP. 2 1 0
Using the CD playerP. 2 1 8
Playing back MP3 and WMA discsP. 2 2 5
Operating an iPod®P. 2 3 3
Operating a USB memoryP. 2 4 1
Optimal use of the audio systemP. 2 5 0
Using the AUX adapterP. 2 5 2
Using the steering wheel audio switchesP. 2 5 4

241
3-2. Using the audio system
3
Interior features
10_IS F_U
Operating a USB memory
Connecting a USB memory enables you to enjoy music from the vehicle
speakers.
■Connecting a USB memory
Open the cover and connect
the portable audio device.
Ty p e A Press .
Ty p e B Press .
STEP1
STEP2
STEP2

244
3-2. Using the audio system
10_IS F_U
Selecting files■ Selecting one fi le at a time
Turn or press “ ∧” or “ ∨” on to select the desired file.
■ Selecting the desired file by cueing the files in the folder (type A)
Press .
When the desired file is reached, press once again.
Playing and pausing files
To play or pause a file, press ( ).
Fast-forwarding and rewinding files
To fast-forward or rewind, press and hold “ ∧” or “ ∨” on until you
hear a beep.
Random playback ■ Playing files from a folder in random order
Press (RAND).
■ Playing all the files from a USB memory in random order
Press and hold (RAND) until you hear a beep.

245
3-2. Using the audio system
3
Interior features
10_IS F_U
Repeat play■ Repeating a file
Press (RPT).
■ Repeating all the files in a folder
Press and hold (RPT) until you hear a beep.
Switching the display
Press .
Each time is pressed, the display changes in the order of Elapsed time
→ Folder name → File name → Album title (MP3 only) → Track title →
Artist name.
■USB memory functions
●Depending on the USB memory that is connected to the system, the device
itself may not be operable and certain functions may not be available. If the
device is inoperable or a function is unavailable due to a malfunction (as
opposed to a system specification), disconnecting the device and reconnecting
it once again may resolve the problem.
●If the USB memory still does not begin operation after being disconnected and
reconnected, format the memory.
■Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding until you hear a
beep will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed until you hear a beep again or has not been pressed for 6 sec-
onds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed prop-
erly or may not be displayed at all.
■Canceling random, repeat and scan playback
Press (RAND), (RPT), again.

246
3-2. Using the audio system
10_IS F_U
■Error messages
“ERROR”: This indicates a problem in the USB memory or its connection.
“NO MUSIC”: This indicates that no MP3/WMA files are included in the USBmemory.
■USB memory
●Compatible devices
USB memory that can be used for MP3 and WMA playback
●Compatible device formats
The following device formats can be used:
• USB communication formats: USB2.0 FS (12 mbps)
• File formats: FAT16 /32 (Windows)
• Correspondence class: Mass storage class
MP3 and WMA files written in any format other than those listed above may not
play correctly, and their file names and folder names may not be displayed cor-
rectly.
Items related to standards and limitations are as follows:
• Maximum directory hierarchy: 8 levels
• Maximum number of folders in a device: 999 (including the root)
• Maximum number of files in a device: 65025
• Maximum number of files per folder: 255
●MP3 and WMA files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1 /10 of their original size using MP3
compression.
WMA (Windows Media
TM Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3 format.
There is a limit to the MP3 and WMA file standards that can be used and to the
media/formats on which the files are recorded.

248
3-2. Using the audio system
10_IS F_U

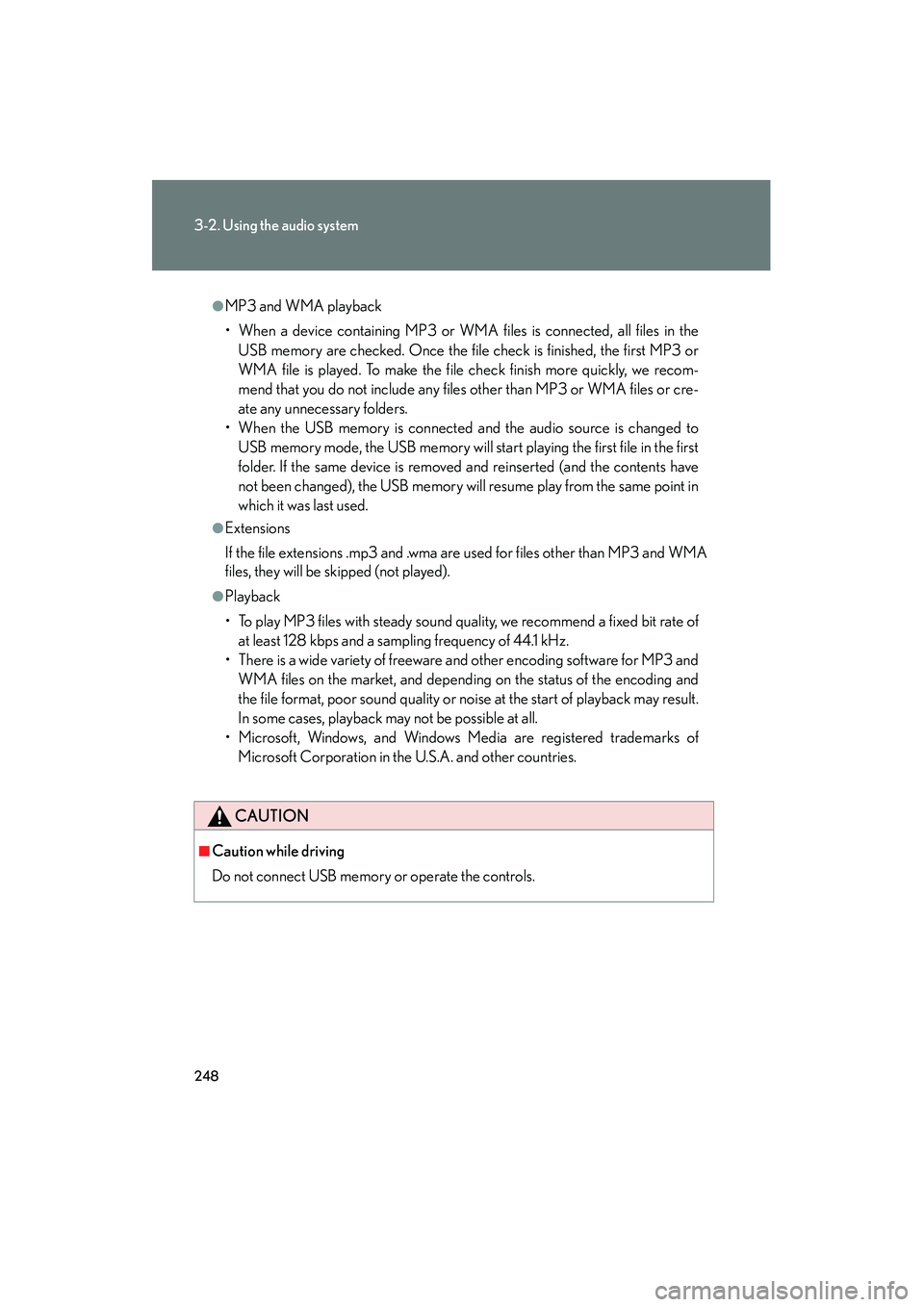

●MP3 and WMA playback
• When a device containing MP3 or WMA files is connected, all files in theUSB memory are checked. Once the file check is finished, the first MP3 or
WMA file is played. To make the file check finish more quickly, we recom-
mend that you do not include any files other than MP3 or WMA files or cre-
ate any unnecessary folders.
• When the USB memory is connected and the audio source is changed to USB memory mode, the USB memory will start playing the first file in the first
folder. If the same device is removed and reinserted (and the contents have
not been changed), the USB memory will resume play from the same point in
which it was last used.
●Extensions
If the file extensions .mp3 and .wma are used for files other than MP3 and WMA
files, they will be skipped (not played).
●Playback
• To play MP3 files with steady sound quality, we recommend a fixed bit rate ofat least 128 kbps and a sampling frequency of 44.1 kHz.
• There is a wide variety of freeware and other encoding software for MP3 and WMA files on the market, and depending on the status of the encoding and
the file format, poor sound quality or noise at the start of playback may result.
In some cases, playback may not be possible at all.
• Microsoft, Windows, and Windows Media are registered trademarks of Microsoft Corporation in the U.S.A. and other countries.
CAUTION
■Caution while driving
Do not connect USB memory or operate the controls.

249
3-2. Using the audio system
3
Interior features
10_IS F_U
NOTICE
■To prevent damage to USB memory
●Do not leave USB memory in the vehicle. The temperature inside the vehicle may
become high, resulting in damage to the player.
●Do not push down on or apply unnecessary pressure to the USB memory while it
is connected as this may damage the USB memory or its terminal.
●Do not insert foreign objects into the port as this may damage the USB memory
or its terminal.
