10_IS F_U
13
Without navigation system (type A)
Clock

P. 318
Audio
system

P. 207
Air conditioning
system
P. 198
Rear window and out-
side rear view mirror
defoggers
P. 206
Security indicator
P. 78, 80
Emergency flasher
switch
P. 430
A
Clock

P. 318
Audio
system

P. 207
Air conditioning
system
P. 198
Rear window and out-
side rear view mirror
defoggers
P. 206
Security indicator
P. 78, 80
Emergency
flasher switch
P. 430
Without navigation system (type B)

10_IS F_U
14
Pictorial indexInstrument panel
A
Navigation
system
*1
Clock P. 318
Security indicator
P. 78, 80
Emergency flasher
switch
P. 430
Air conditioning
system
*1
With navigation system (type A)Rear window and
outside rear view
mirror defoggers
*1
Audio system*1
Navigation
system
*1
Clock P. 318
Security indicator
P. 78, 80
Emergency flasher
switch
P. 430
Air conditioning
system
*1
With navigation system (type B)Rear window and
outside rear view
mirror defoggers
*1
Audio system*1

10_IS F_U
15
Type B Type A
Telephone switch *2P. 280
Cruise control switch ∗
Dynamic radar cruise control switch
∗
P. 158
P. 161
Distance switch ∗
P. 161
“DISP” switch P. 147Talk switch *2P. 280“DISP” switch P. 147
Distance switch ∗
P. 161
Cruise control switch ∗
Dynamic radar cruise control switch
∗
P. 158
P. 161
C
B
Audio remote control
switches
P. 254
∗: If equipped
*1: Refer to “Navigation System Owner’s Manual”.
*2: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.

171
2-4. Using other driving systems
2
When driving
10_IS F_U
Intuitive parking assist∗
∗: If equipped
The distance to obstacles measured by the sensors is communicated via
the multi-information display and a buzzer when parallel parking or
maneuvering into a garage. Always check the surrounding area when
using this system.
For vehicles equipped with a navigation system, refer to the separate
“Navigation System Owner’s Manual” for further details.
■Types of sensors
Front corner sensors
Rear corner sensors
Back sensors
■ Multi-information display ( →P. 146)
Front corner sensor opera-
tion
Rear corner sensor operation
Back sensor operation

198
10_IS F_U
3-1. Using the air conditioning system and defogger
Automatic air conditioning system
Using the automatic modePress .
The air conditioning system begins to operate. Air outlets and fan
speed are automatically adjusted according to the temperature setting.
Press to switch to automatic mode.
The air conditioning system automati cally switches between outside air
and recirculated air modes.
Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.
With navigation system
Owners of models equipped with a navigation system should refer to the
“Navigation System Owner's Manual”.
Without navigation system
Automatic mode
Driver’s side temperature
setting display Changes the air outlets used
Off Fan speed
Airflow display
Fan speed display
Passenger’s side temperature
setting display
Micro dust and pollen filter
Driver's side
temperature control Air conditioning on/off Outside air or recirculated air modeWindshield defoggerPa ss e n g e r ’s s i d e
temperature control
Dual operation
STEP1
STEP2

207
3
Interior features
10_IS F_U
3-2. Using the audio system
Audio system type
With navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Without navigation system (type A)
CD player with changer and AM/FM radio
Without navigation system (type B)
CD player with changer and AM/FM radio

257
3
Interior features
10_IS F_U
3-3. Using the Bluetooth® audio system
Bluetooth® audio system∗
■Conditions under which the system will not operate
●If using a portable player that does not support Bluetooth®
●If the portable player is switched off
●If the portable player is not connected
●If the portable player’s battery is low
●If the portable player is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on a por-
table digital audio player (portable player) from the vehicle speakers via
wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of
playing portable audio music without cables. If your portable player does
not support Bluetooth
®, the Bluetooth® audio system will not function.
Vehicles with a navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Vehicles without a navigation system
Ti t l ePa g e
Using the Bluetooth® audio systemP. 2 6 0
Operating a Bluetooth® enabled portable playerP. 2 6 5
Setting up a Bluetooth® enabled portable playerP. 2 6 8
Bluetooth® audio system setupP. 2 74
∗: If equipped

275
3
Interior features
10_IS F_U

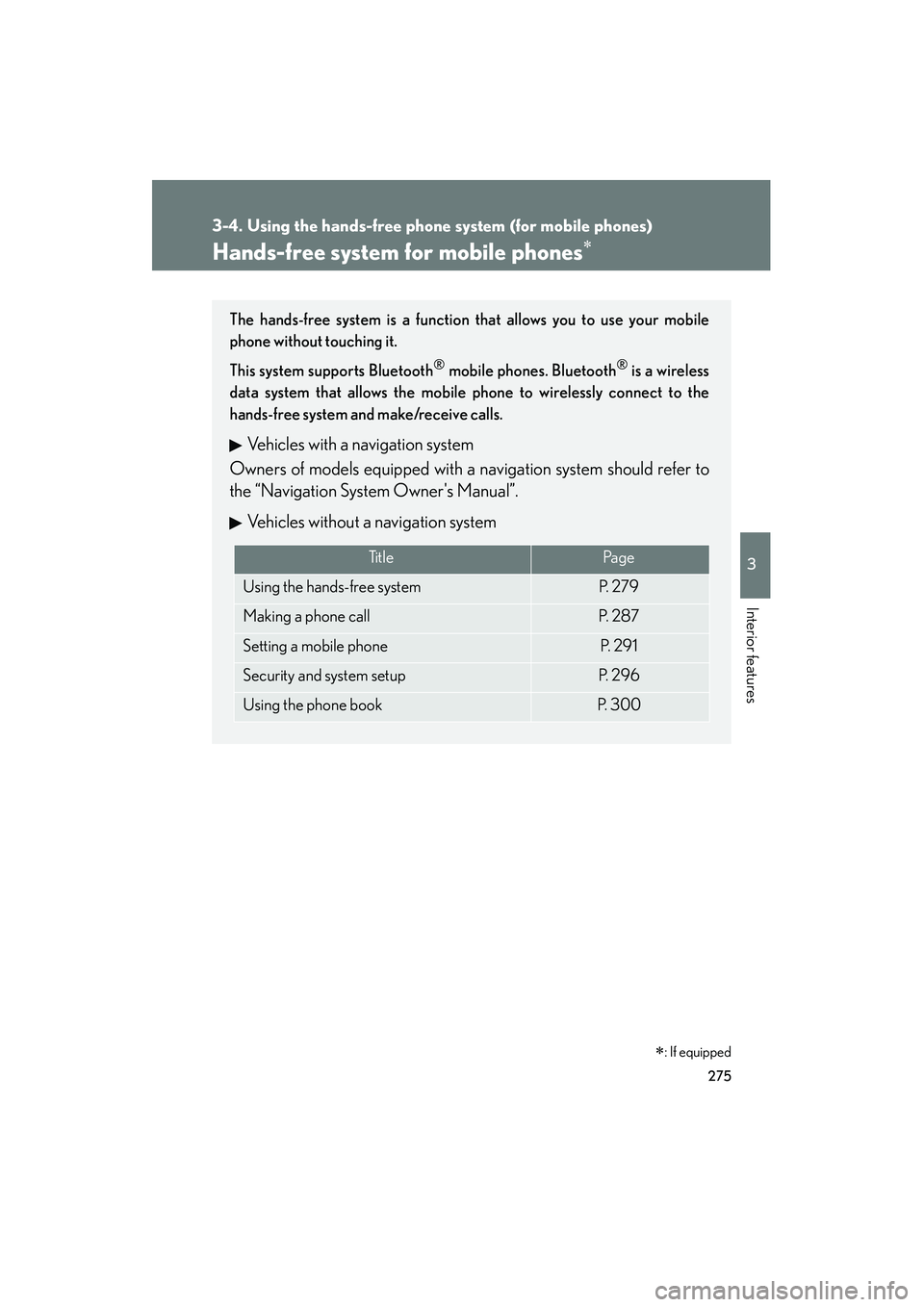

3-4. Using the hands-free phone system (for mobile phones)
Hands-free system for mobile phones∗
The hands-free system is a function that allows you to use your mobile
phone without touching it.
This system supports Bluetooth
® mobile phones. Bluetooth® is a wireless
data system that allows the mobile phone to wirelessly connect to the
hands-free system and make/receive calls.
Vehicles with a navigation system
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner's Manual”.
Vehicles without a navigation system
Ti t l ePa g e
Using the hands-free systemP. 2 7 9
Making a phone callP. 2 8 7
Setting a mobile phoneP. 2 9 1
Security and system setupP. 2 9 6
Using the phone bookP. 3 0 0
∗: If equipped

419
4-3. Do-it-yourself maintenance
4
Maintenance and care
10_IS F_U■
Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30 APo w e r s e a t
2DOOR DL15 A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 AStop lights, VDIM, shift lock system
5TI & TE20 AElectric tilt and telescopic steering
column
6RAD NO. 310 AAudio system
7GAUGE7. 5 AMeters and gauges
8IGN10 A
SRS airbag system, stop lights, steer-
ing lock system, fuel system, front pas-
senger occupant classification system,
safety connect
9ACC7. 5 A
Clock, air conditioning system, audio
system, navigation system, display,
outside rear view mirrors, smart
access system with push-button start,
glove box light, console box light,
safety connect
10CIG15 ACigarette lighter
11PWR OUTLET15 APo w e r o u t l e t

420
4-3. Do-it-yourself maintenance
10_IS F_U
FuseAmpereCircuit
12RR DOOR RH20 APo w e r w i n d o w s
13FR DOOR RH20 APower windows, outside rear view
mirrors
14AM27. 5 ASmart access system with push-button
start
15RH-IG7. 5 ASeat belts, intuitive parking assist,
automatic transmission, seat heaters
16FR S/HTR RH15 ASeat heaters
17ECU-IG RH10 A
Power seats, smart access system with
push-button start, outside rear view
mirrors, VDIM, air conditioning sys-
tem, pre-collision seat belt, electric tilt
and telescopic steering, power win-
dows, navigation system, headlights,
front fog lights, parking lights, license
plate lights, windshield washer
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. (→P. 4 2 4 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.
