TABLE OF CONTENTSIndex
4
3-3. Using the Bluetooth®
audio system
Bluetooth
® audio system ......... 270
Using the Bluetooth
® audio
system ............................................ 273
Operating a Bluetooth
®
enabled portable player ......... 278
Setting up a Bluetooth
®
enabled portable player .......... 281
Bluetooth
® audio system
setup ............................................... 287
3-4. Using the hands-free phone system (for mobile phones)
Hands-free system for mobile phones ........................... 288
Using the hands-free system (for mobile phones) .................. 292
Making a phone call ................... 300
Setting a mobile phone ............. 304
Security and system setup ....... 309
Using the phone book................. 313
3-5. Using the interior lights Interior lights list............................. 319
• Interior lights ................................. 321
• Personal lights ............................. 321 3-6. Using the storage features
List of storage features............... 323
• Glove box .................................... 324
• Console box ................................ 324
• Overhead console ................... 325
• Cup holders................................. 326
• Bottle holders/door pockets ............................... 328
• Auxiliary box .............................. 328
3-7. Other interior features Sun visors......................................... 329
Vanity mirrors ............................... 330
Clock .................................................. 331
Satellite sw itches .......................... 332
Ashtrays .......................................... 335
Cigarette lighter . .......................... 336
Power outlet ................................... 337
Seat heaters................................... 338
Armrest ........................................... 340
Trunk storage extension ............ 341
Coat hooks ..................................... 343
Floor mat.......................................... 344
Trunk features................................ 345
Garage door opener................. 348
Compass.......................................... 354
Safety Connect ............................ 358

13
C
Seat heater switches P. 338
Automatic transmission shift lever P. 134
Shift lock override button P. 487
Cigarette lighter 
Ashtray

Auxiliary box

P. 336
P. 335
P. 328
: If equipped

Interior features3
209
3-5. Using the interior lightsInterior lights list ...................... 319
• Interior lights ......................... 321
• Personal lights ....................... 321
3-6. Using the storage features List of storage features ........ 323
• Glove box .............................. 324
• Console box .......................... 324
• Overhead console ............. 325
• Cup holders .......................... 326
• Bottle holders/door pockets ......................... 328
• Auxiliary box........................ 328 3-7. Other interior features
Sun visors ................................. 329
Vanity mirrors ......................... 330
Clock .......................................... 331
Satellite switches ................... 332
Ashtrays.................................... 335
Cigarette lighter .................... 336
Power outlet ............................ 337
Seat heaters ............................ 338
Armrest .................................... 340
Trunk storage extension ....... 341
Coat hooks .............................. 343
Floor mat .................................. 344
Trunk features ......................... 345
Garage door opener ............ 348
Compass .................................. 354
Safety Connect ...................... 358

216
3-1. Using the air conditioning system and defogger
■Using the automatic mode
Fan speed is adjusted automatically in accordance with the temperature setting and
ambient conditions. As a result, the following may occur.
●Immediately after is pressed, the fan may stop for a while until warm or
cool air is ready to flow.
●Cool air may flow to the area around the upper body when the heater is on.
■Using the system in recirculated air mode
The windows will fog up more easily if recirculated air mode is used for an extended
period.
■Switching between outside air and recirculated air modes
Recirculated air mode or outside air mode may be automatically switched in accor-
dance with the temperature setting and the inside temperature.
■Window defogger feature
Recirculated air mode may automatically switch to
(outside air) mode in situ-
ations where the windows need to be defogged.
■When outside air temperature approaches 32 F (0C)
The air conditioning system may not operate even when is pressed.
■When the indicator light on flashes
Press and turn off the air conditioning system before turning it on once
more. There may be a problem in the air conditioning system if the indicator light
continues to flash. Turn the air conditioning system off and have it inspected by your
Lexus dealer.
■Automatic mode for air intake control
In automatic mode, the system detects exhaust gas and other pollutants and auto-
matically switches between outside air and recirculated air modes.
■Micro dust and pollen filter
●In order to prevent the windshield from fogging up when the outside air is cold,
the following may occur.
• Outside air mode does not switch to .
• The air conditioning syst em operates automatically.
• The operation cancels after 1 minute.
●In rainy weather, the windows may fog up. Press .

338
3-7. Other interior features
Seat heaters
■The seat heaters can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
■When not in use
Set the dial to “0”. The indicator light turns off.
Heats the seats
The indicator light comes on.
The higher the number, the
warmer the seats become.Driver’s seat
Front passenger’s
seat

339
3-7. Other interior features
3
Interior features
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat heater on
to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs,
cold remedies, etc.)
●Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature of the
seat and may lead to overheating.
NOTICE
■To prevent seat heater damage
Do not put unevenly weighted objects on the seat and do not stick sharp objects
(needles, nails, etc.) into the seat.
■To prevent battery discharge
Turn the switches off when the engine is not running.

371
4-1. Maintenance and care
4
Maintenance and care
NOTICE
■Cleaning detergents
●Do not use organic substances such as benzene or gasoline, acidic or alkaline
solutions, dye, bleach or other detergent. Doing so may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces.
●Do not use polish wax or polish cleaner. The instrument panel's or other interior
part’s painted surface may be damaged.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces.
●Remove any dust or dirt on leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended pe riods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or that contain wax on the upholstery, as
they may stick to the leather surface if th e vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio system may be damaged if water comes into
contact with electrical components under the floor of the vehicle, and may also
cause the body to rust.
■Cleaning the inside of the rear window
●Do not use glass cleaner to clean the re ar window, as this may cause damage to
the rear window defogger heater wires or antenna. Use a cloth dampened with
lukewarm water to gently wipe the window clean. Wipe the window in strokes
running parallel to the heater wires or antenna.
●Be careful not to scratch or damage the heater wires or antenna.

424
4-3. Do-it-yourself maintenance
10E/G-B60 AFR CTRL-B, ETCS, A/F, STR LOCK,
INJ2, TEL
11P/I-B60 AEFI, F/PMP, INJ
12ABS 150 AVDIM
13RH J/B-B30 AFR DOOR RH, RR DOOR RH, AM2
14VVT40 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
15MAIN30 AH-LP R LWR, H-LP L LWR, headlight
low beams
16STARTER30 ASmart access system with push-button
start
17LH J/B-B30 AFR DOOR LH, RR DOOR LH,
SECURITY
18EPS80 AElectric power steering
19ALT180 A
LH J/B-AM, E/G-AM, HEATER,
FA N 1 , FA N 2 , D E F O G, R H J / B - A M ,
ABS 2
20LH J/B-AM80 A
S/ROOF, FR P/SEAT LH, TV NO.1,
A/C, F/OPN, PSB, FR WIP,
H-LP LVL, LH-IG, ECU-IG LH,
PANEL, TAIL, MIR HTR, TV NO. 2,
FR S/HTR LH
21RH J/B-AM80 A
OBD, STOP SW, TI&TE, FR P/SEAT
RH, RAD NO. 3, ECU-IG RH,
RH-IG, FR S/HTR RH, ACC, CIG,
PWR OUTLET
22ABS230 AVDIM
23DEFOG50 ARear window defogger
FuseAmpereCircuit

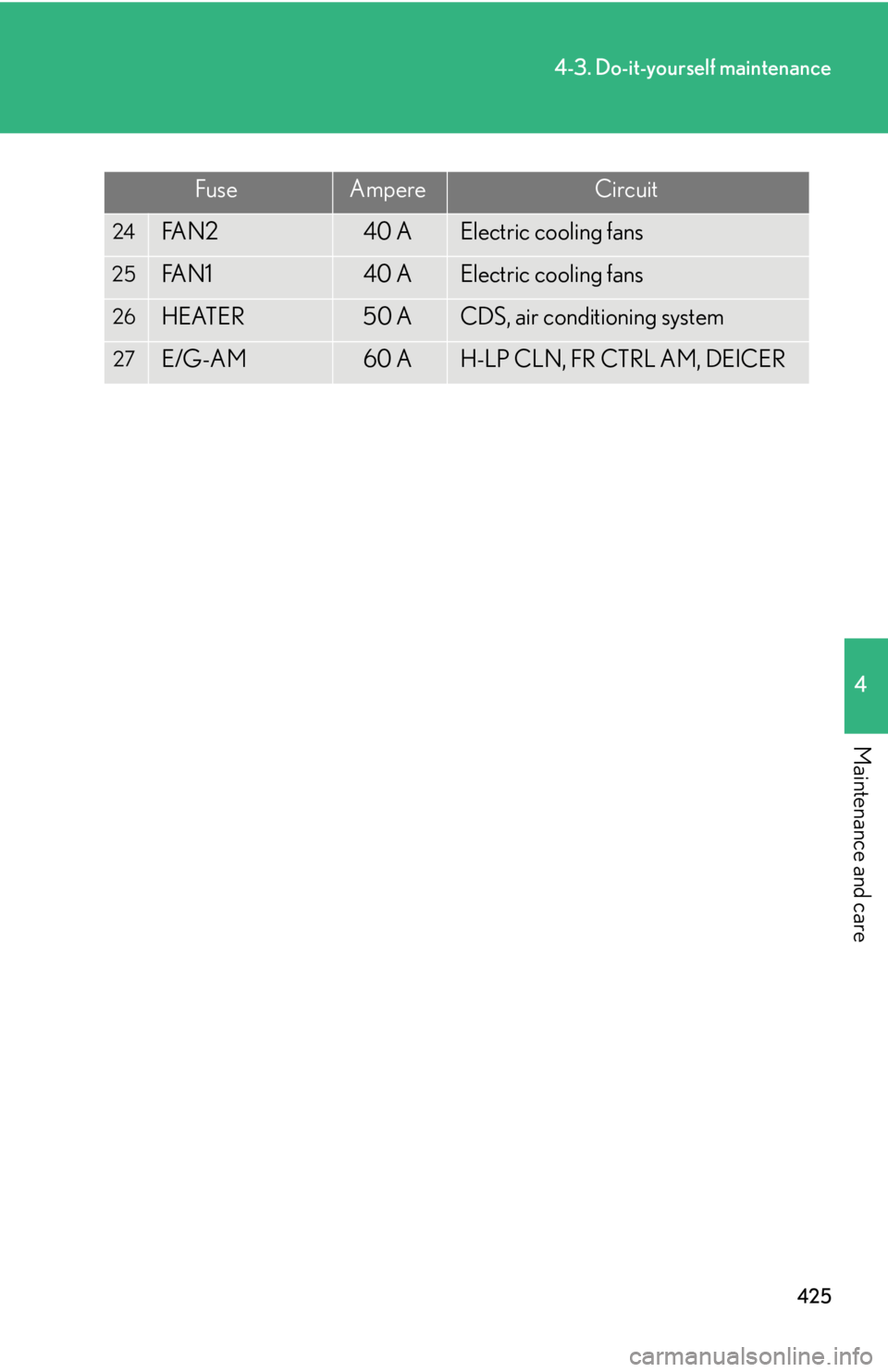

425
4-3. Do-it-yourself maintenance
4
Maintenance and care
24FA N 240 AElectric cooling fans
25FA N 140 AElectric cooling fans
26HEATER50 ACDS, air conditioning system
27E/G-AM60 AH-LP CLN, FR CTRL AM, DEICER
FuseAmpereCircuit

429
4-3. Do-it-yourself maintenance
4
Maintenance and care
13FR S/HTR LH15 ASeat heaters
14RR DOOR LH20 APo w e r w i n d o w s
15FR DOOR LH20 APower windows, outside rear view
mirror (left)
16SECURITY7. 5 ASmart access system with push-button
start
17H-LP LVL7. 5 AAutomatic headlight leveling system
18LH-IG10 A
Charging system, headlight cleaner,
rear window defogger, electric cool-
ing fans, emergency flashers, turn sig-
nal lights, back-up lights, stop lights,
outside rear view mirror defoggers,
seat belts, intuitive parking assist, air
conditioning system
19FR WIP30 AWindshield wipers
FuseAmpereCircuit
