remote control Lexus IS F 2011 User Guide

53
1-2. Opening, closing and locking the doors and trunk
1
Before driving
IS F_EE
When the electronic key battery is fully depleted
P. 3 8 8
Conditions affecting operation
P. 4 1
Customization that can be configured at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
Settings (e.g. trunk unlocking function) can be changed.
(Customizable features P. 484)
Certification for wireless remote control
- Replace only with the same or equivalent type recommended by the manu-
facturer.
- Dispose of used batteries according to the local laws.
Hereby, DENSO CORPORATION declares that this 14AAC/14ABC/
13BZK is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
CAUTION
When closing the windows or moon roof using wireless remote control
Observe the following precautions.
Failing to do so may result in death or serious injury.
Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window or moon roof is
being operated.
To prevent inadvertent power windows and moon roof operation, never let
a small child have and use the wireless remote control.
Jam protection function
Never try jamming any part of your body to activate the jam protection
function intentionally.
The jam protection function may not work if something gets caught just
before the window or moon roof fully closes.

54
1-2. Opening, closing and locking the doors and trunk
IS F_EE

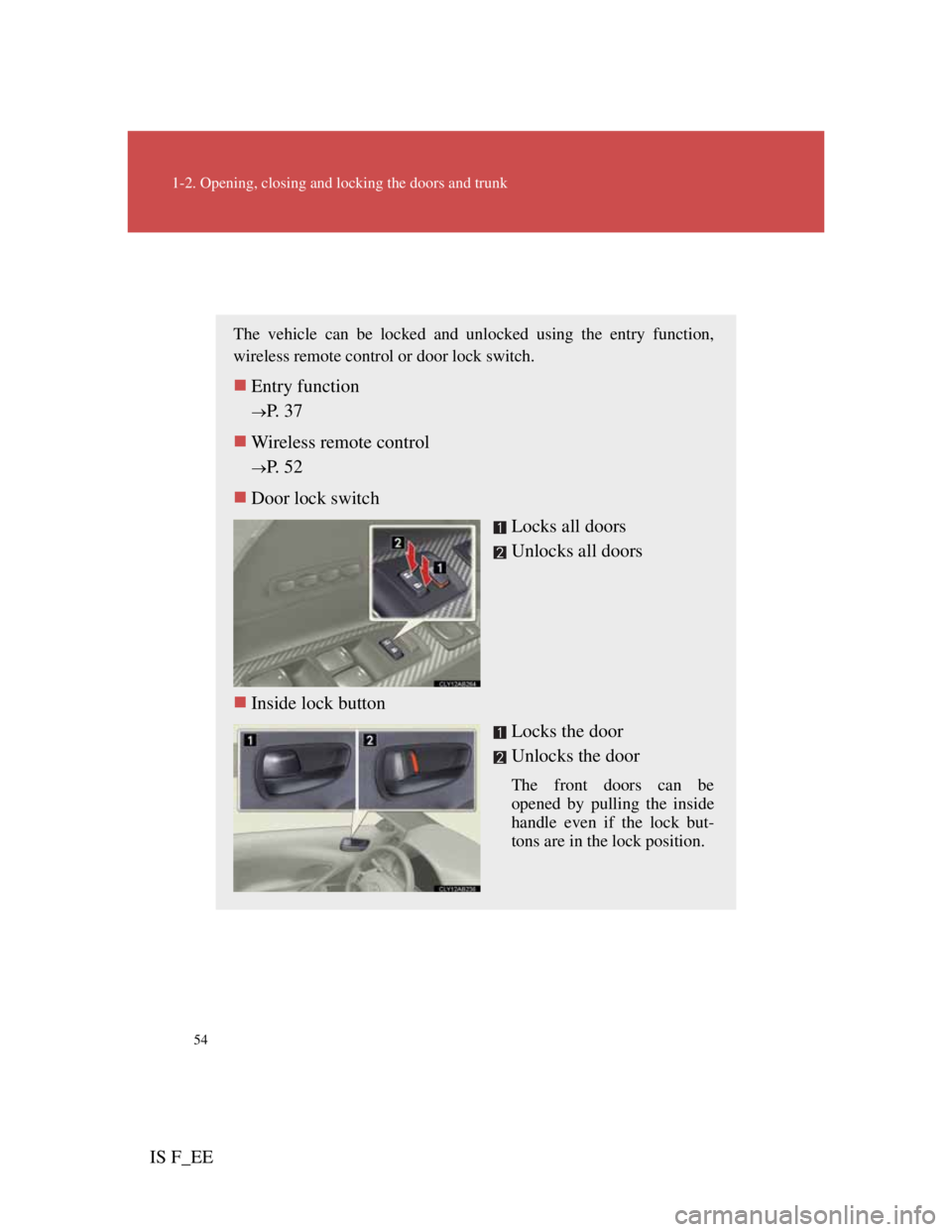

Doors
The vehicle can be locked and unlocked using the entry function,
wireless remote control or door lock switch.
Entry function
P. 37
Wireless remote control
P. 52
Door lock switch
Locks all doors
Unlocks all doors
Inside lock button
Locks the door
Unlocks the door
The front doors can be
opened by pulling the inside
handle even if the lock but-
tons are in the lock position.

59
1-2. Opening, closing and locking the doors and trunk
1
Before driving
IS F_EE
Trunk
Locking the trunk opener feature
Turn the main switch in the
glove box off to disable the
trunk opener.
On
Off
The trunk lid cannot be opened
even with the wireless remote
control or the entry function.
The trunk can be opened using the trunk opener, entry function or
wireless remote control.
Opening the trunk from inside the vehicle
Press the opener switch.
Opening the trunk from outside the vehicle
Entry function
P. 37
Wireless remote control
P. 52

63
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_EE
Linking driving position memory with door unlock operation
Record your driving position to button “1”, “2” or “3” before per-
forming the following.
Using the wireless remote control
Turn the “ENGINE START STOP” switch OFF and close
the driver's door.
While pressing the desired but-
ton (“1”, “2” or “3”), push
on the wireless remote control
until the signal beeps.
The driving position is recalled
when the driver's door is
unlocked using the entry func-
tion or wireless remote control
and the driver's door is opened.
To prevent unintended triggering of the alarm, open and close a
door once after a driving position has been recorded. (If a door is
not opened within 30 seconds after is pressed, the doors will be
locked again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm.
(P. 9 7 )
STEP1
STEP2

64
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_EEUsing the door lock switch
Carry only the key (including the card key
) to which you want
to link the driving position. If 2 or more keys are in the vehicle,
the driving position cannot be linked properly.
Turn the “ENGINE START STOP” switch OFF and close
the driver's door.
While pressing the desired but-
ton (“1”, “2” or “3”), press the
lock or unlock side on the
driver’s door lock switch until
the signal beeps.
The driving position is recalled
when the driver's door is
unlocked using the entry func-
tion or wireless remote control
and the driver's door is opened.
: If equipped
STEP1
STEP2
Canceling the linked door unlock operation
Turn the “ENGINE START STOP” switch OFF and close the
driver's door.
Using the wireless remote control: While pushing the “SET” but-
ton, press on the wireless remote control until the signal
beeps.
Using the door lock switch: While pressing the “SET” button, press
the lock or unlock side on the door lock switch until the signal
beeps.
Operating the driving position memory after turning the “ENGINE START
STOP” switch OFF
Memorized positions (except for the steering wheel position) can be acti-
vated up to 180 seconds after the driver’s door is opened and another 60 sec-
onds after it is closed again, even after turning the “ENGINE START
STOP” switch OFF.
STEP1
STEP2

96
1-6. Theft deterrent system
IS F_EE
Double locking system
Setting the double locking system
Turn the “ENGINE START STOP” switch OFF, have all the pas-
sengers exit the vehicle and ensure that all the doors are closed.
Using the entry function:
Press the lock button on the outside door handle twice within 2.5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Canceling the double locking system
Using the entry function: Hold the outside door handle.
Using the wireless remote control: Press .
CAUTION
Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the vehicle.
Unauthorized access to the vehicle is prevented by disabling the door
unlocking function from both the interior and exterior of the vehicle.
Vehicles employing this sys-
tem have labels on the win-
dow glass of both front
doors.

97
1
1-6. Theft deterrent system
Before driving
IS F_EE
Alarm
The system sounds the alarm and flashes the lights when forcible entry
is detected.
Triggering of the alarm
The alarm is triggered in the following situations with the
alarm set.
A locked door or trunk is unlocked or opened in any way
other than using the entry function or wireless remote door
lock function.
The hood is opened.
The intrusion sensor detects something moving inside the
vehicle. (An intruder gets in the vehicle.)
Setting the alarm system
Close the doors, trunk and
hood, and lock all doors
using the entry function or
the wireless remote control.
The system will be set auto-
matically after 30 seconds.
The indicator light changes
from being on to flashing
when the system is set.
Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
Unlock the doors or trunk using the entry function or the
wireless remote control.
Start the engine. (The alarm will be deactivated or stopped

280
3-3. Using the Bluetooth® audio system
IS F_EE
When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( P. 314)
About Bluetooth®
Compatible models
Bluetooth® specifications:
Ver. 1.1 or higher (Recommended: Ver. 1.2 or higher)
Following profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (Con-
formed: Ver. 1.2)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher
(Conformed: Ver. 1.3)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth
® audio system. However, please note that some
functions may be limited depending on the type of portable player.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

391
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
If the electronic key battery is discharged
The following symptoms may occur.
The smart entry & start system and wireless remote control will not
function properly.
The operational range is reduced.
Use a CR1632 lithium battery
Batteries can be purchased at any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional, jewelers, or camera
stores.
Replace only with the same or equivalent type recommended by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Dispose of used batteries according to the local laws.
When the card key battery needs to be replaced (if equipped)
The battery for the card key is available only at Lexus dealers. Your Lexus
dealer can replace the battery for you.
CAUTION
Removed battery and other parts
Keep away from children. These parts are small and if swallowed by a child,
they can cause choking. Failure to do so could result in death or serious
injury.
Certification for the smart entry & start system
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCOR-
RECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE
INSTRUCTIONS.

392
4-3. Do-it-yourself maintenance
IS F_EE
NOTICE
For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
Always work with dry hands.
Moisture may cause the battery to rust.
Do not touch or move any other components inside the remote control.
Do not bend either of the battery terminals.
