mirror Lexus IS F 2011 Owner's Guide

70
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_EE

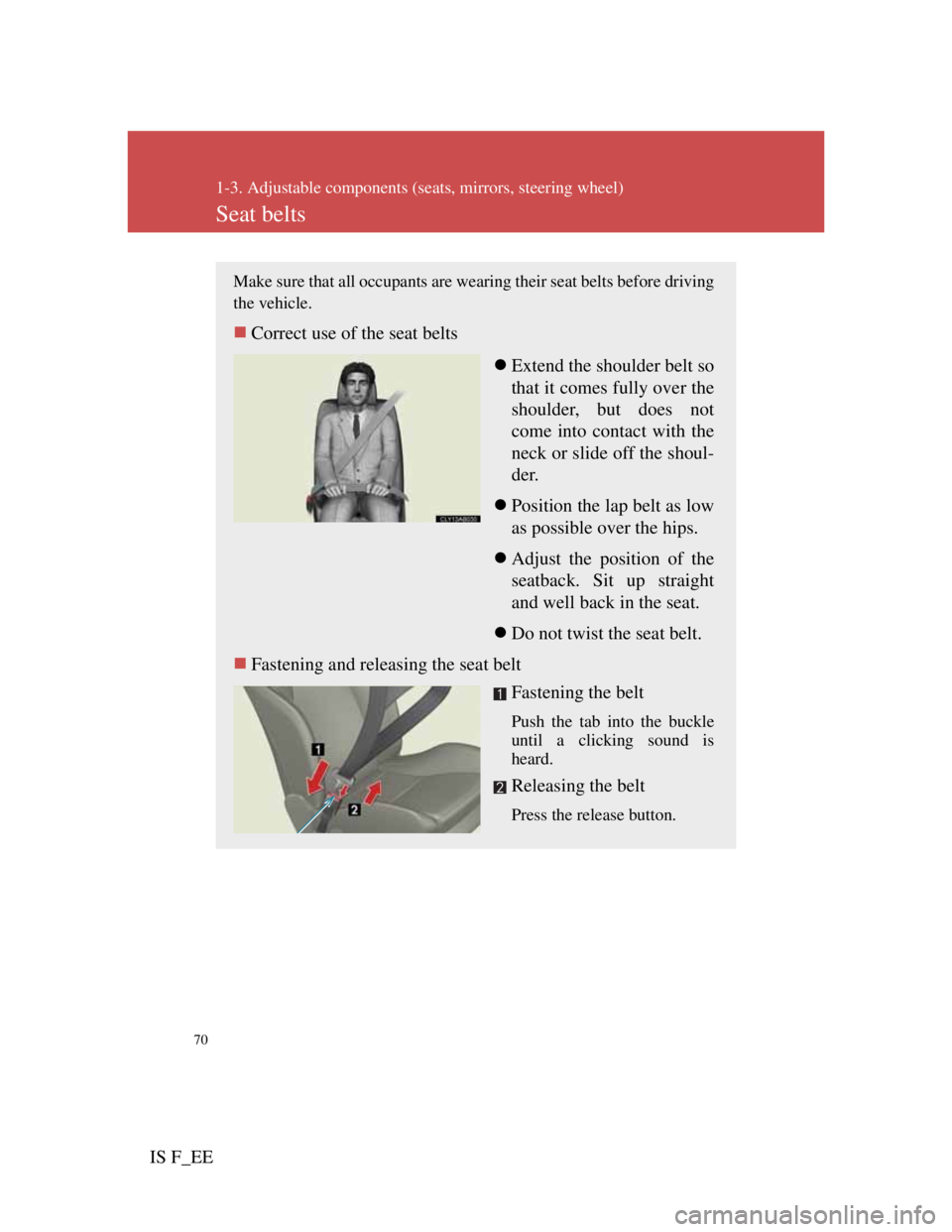

Seat belts
Make sure that all occupants are wearing their seat belts before driving
the vehicle.
Correct use of the seat belts
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
Fastening and releasing the seat belt
Fastening the belt
Push the tab into the buckle
until a clicking sound is
heard.
Releasing the belt
Press the release button.

71
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_EE
Seat belt comfort guide (rear seats)
If the shoulder belt sits close to
a person’s neck, slide the seat
belt comfort guide forward.
Adjusting the height of the belt (front seats)
Down (while pressing the
height adjuster)
Up
Move the height adjuster up
and down as needed until you
hear a click.

72
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_EE
Seat belt pretensioners
The pretensioner helps the seat
belt to quickly restrain the
occupant by retracting the seat
belt when the vehicle is sub-
jected to certain types of severe
frontal collision.
The pretensioner may not acti-
vate in the event of a minor
frontal impact, a side impact or
a rear impact.
Pre-crash seat belts (front seats of vehicles with pre-crash safety sys-
tem)
If the pre-crash sensor detects that a collision is unavoidable, the
pre-crash safety system will retract the seat belt, thus enhancing
the effectiveness of the seat belt pretensioner in a crash.
The same will happen if the driver makes an emergency braking or
loses control of the vehicle. (P. 2 1 1 )
Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may
also lock if you lean forward or pull out the belt too quickly. Allow the belt
to fully retract, and then slowly extend the belt. If the belt cannot be pulled
out of the retractor, firmly pull the belt and release it. You will then be able
to smoothly pull the belt out of the retractor.

73
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_EE
Pregnant women
People suffering illness
Obtain medical advice and wear the seat belt in the proper way.
Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult
size.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle's seat belt. (P. 1 1 6 )
When the child becomes large enough to properly wear the vehicle's seat
belt, follow the instructions on P. 70 regarding seat belt usage.
Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will acti-
vate for the first collision, but will not activate for the second or subsequent
collisions.
Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional, for seat belt replacement or installation.
Obtain medical advice and wear the seat
belt in the proper way. (P. 70)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seat belt is not worn properly, not
only a pregnant woman, but also the fetus
could suffer death or serious injury as a
result of sudden braking or a collision.

74
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_EE
CAUTION
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failing to do so may cause death or severe injury.
Wearing a seat belt
Ensure that all passengers wear a seat belt.
Always wear a seat belt properly.
Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
Lexus recommends that children be seated in the rear seat and always use
a seat belt and/or an appropriate child restraint system.
Do not recline the seat any more than necessary to achieve a proper seat-
ing position. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
Do not wear the shoulder belt under your arm.
Always wear your seat belt low and snug across your hips.
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.

75
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_EE
CAUTION
Seat belt damage and wear
Inappropriate handling of the pretensioner may prevent it from operating
properly resulting in death or serious injury.
Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
Inspect the seat belt system periodically. Check for cuts, fraying, and
loose parts. Do not use a damaged seat belt until it is replaced. Damaged
seat belts cannot protect an occupant from death or serious injury.
Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there's no obvious damage.
Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that
case, the seat belt cannot be used again and must be replaced at any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.

76
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_EE
Steering wheel
Auto tilt away
When the “ENGINE START
STOP” switch is turned OFF,
the steering wheel returns to its
stowed position by moving up
and away to enable easier
driver entry and exit.
Switching to ACCESSORY or
IGNITION ON mode will
return the steering wheel to the
original position.
The steering wheel can be adjusted to a comfortable position.
Up
Down
Away from the driver
Toward the driver

77
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_EE
The steering wheel can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
Automatic adjustment of the steering position
A desired steering position can be entered to memory and recalled automat-
ically by the driving position memory. (P. 6 2 )
Customization that can be configured at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
It is possible to deactivate the auto tilt-away function.
(Customizable features P. 484)

78
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_EE
CAUTION
Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.

79
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_EE
Anti-glare inside rear view mirror
Adjusting the height of rear view mirror
Adjust the height of the rear
view mirror by moving it up
and down.
In automatic mode, sensors are used to detect the headlights of vehi-
cles behind and automatically reduce the reflected light.
Turns automatic mode on/off
The indicator comes on when
automatic mode is turned on.
The anti-glare mirror default
mode is automatic. The anti-
glare mirror is automatically
set to automatic whenever the
“ENGINE START STOP”
switch is turned IGNITION
ON d
