6-1. Specifications
6
Vehicle specifica-
IS F_EE
tion. Please contact any authorized Lexus dealer or repairer, or another
duly qualified and equipped professional for further details.
Automatic transmission
*: The fluid capacity is provided as a reference.
If replacement is necessary, contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Brakes
*1:Minimum pedal clearance when depressed with a force of 490 N (50
kgf, 110 lbf) while the engine is running.
*2:Parking brake pedal travel when depressed with a force of 300 N (30.6
kgf, 67.4 lbf).
Steering
Fluid capacity*11.0 L (11.6 qt., 9.7 Imp. qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
Using automatic transmission fluid other than “Toyota Genuine ATF WS”
may cause deterioration in shift quality, locking up of your transmission
accompanied by vibration, and ultimately damage the automatic transmission
of your vehicle.
Pedal clearance *1110.0 mm (4.3 in.) Min.
Pedal free play1.0  2.0 mm (0.04  0.08 in.)
Parking brake pedal travel *27  9 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
Free playLess than 30 mm (1.2 in.)

485

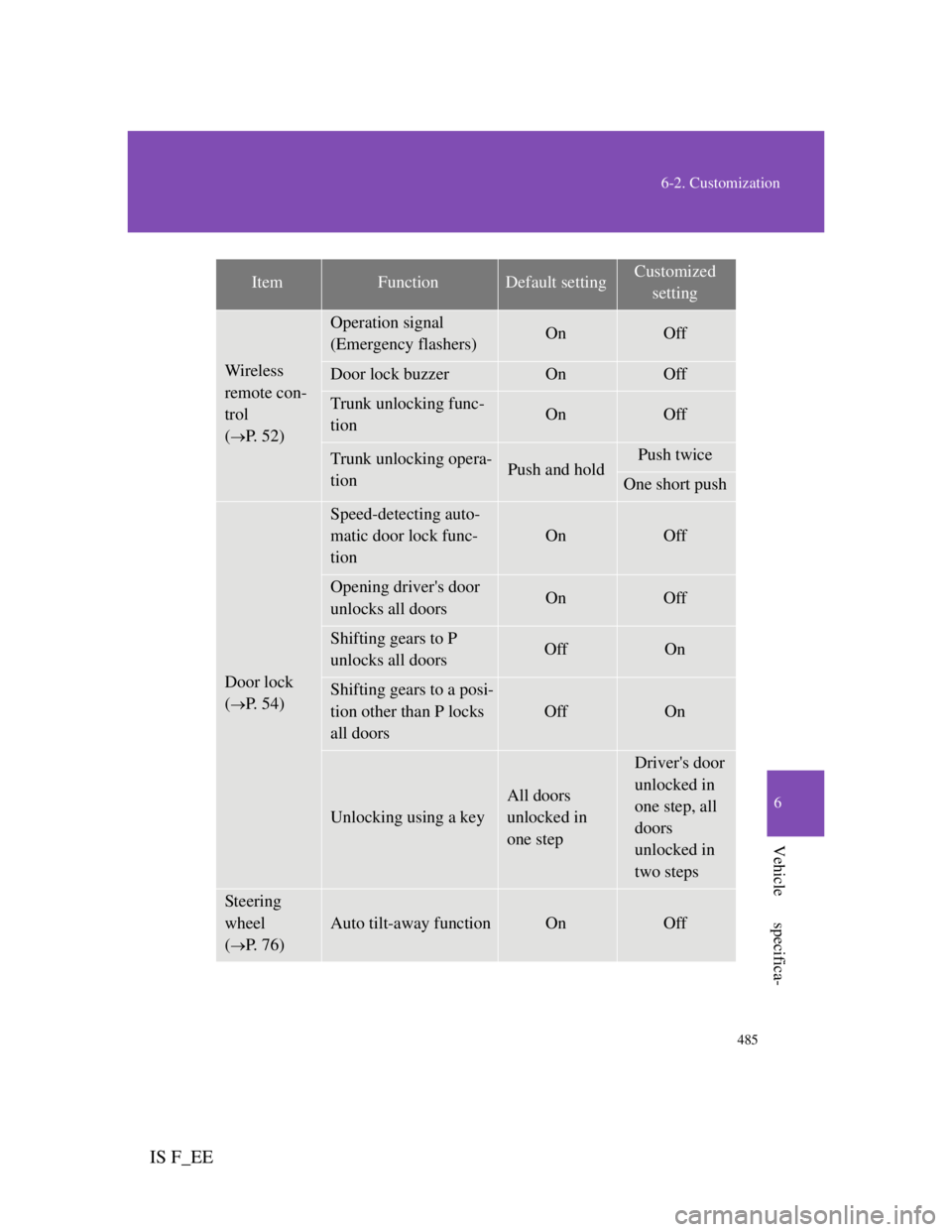

6-2. Customization
6
Vehicle specifica-
IS F_EE
Wireless
remote con-
trol
(
P. 52)
Operation signal
(Emergency flashers) OnOff
Door lock buzzerOnOff
Trunk unlocking func-
tionOnOff
Trunk unlocking opera-
tionPush and holdPush twice
One short push
Door lock
(
P. 54)
Speed-detecting auto-
matic door lock func-
tion
OnOff
Opening driver's door
unlocks all doorsOnOff
Shifting gears to P
unlocks all doorsOffOn
Shifting gears to a posi-
tion other than P locks
all doors
OffOn
Unlocking using a key
All doors
unlocked in
one step
Driver's door
unlocked in
one step, all
doors
unlocked in
two steps
Steering
wheel
(
P. 76)
Auto tilt-away functionOnOff
ItemFunctionDefault settingCustomized
setting

490
IS F_EE
Abbreviation list
Abbreviation/Acronym list
ABBREVIA-
TIONSMEANING
ABSAnti-lock Brake System
AI-SHIFTArtificial Intelligence Shift
CRSChild Restraint System
DISPDisplay
DRLDaytime running light system
ECTElectronic Controlled Transmission
ELREmergency Locking Retractor
EPSElectric Power Steering
LEDLight Emitting Diode
LSDLimited Slip Differential
PCSPre-Crash Safety system
SRSSupplemental Restraint System
TRCTraction Control
VDIMVehicle Dynamics Integrated Management
VINVehicle Identification Number
VSCVehicle Stability Control

491
