43
1-2. Opening, closing and locking the doors and trunk
1
Before driving
IS F_EE
Battery-saving function
In the following circumstances, the entry function is disabled in order to
prevent the vehicle and electronic key batteries from discharging.
When the entry function has not been used for 30 days or more
When the electronic key has been left within approximately 1 m (3 ft.) of
the vehicle for 10 minutes or more
The system will resume operation when...
The vehicle is locked using the door handle lock switch.
The vehicle is locked/unlocked using the wireless remote control func-
tion.
(P. 52)
The vehicle is locked/unlocked using the mechanical key. (P. 458)
Electronic key battery depletion
The standard battery life is 1 to 2 years. (The card key battery life is
about a year and a half.)
If the battery becomes low, an alarm will sound in the cabin when the
engine stops. (P. 440)
The battery becomes depleted even if the electronic key is not used
because the key always receives radio waves. If the smart entry & start
system or the wireless remote control does not operate, or the detection
area becomes smaller, the battery may be depleted. Replace the battery
when necessary.
(P. 388)
To avoid serious deterioration, do not leave the electronic key within 1 m
(3 ft.) of the following electrical appliances that produce a magnetic
field.
•TVs
• Personal computers
• Cellular phones, cordless phones and battery chargers
• Recharging cellular phones or cordless phones
• Glass top ranges
• Table lamps

91
1-5. Refueling
1
Before driving
IS F_EE
CAUTION
Refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so may result in death or serious injury.
Touch the vehicle or some other metal surface to discharge any static elec-
tricity.
Sparks resulting from discharging static electricity may cause the fuel
vapors to ignite.
Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out of the filler neck and cause
injury.
Do not allow anyone that has not discharged static electricity from their
bodies to come close to an open fuel tank.
Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible igni-
tion hazard.
When replacing the fuel cap
Do not use anything but a genuine Lexus fuel tank cap designed for your
vehicle. Failure to do so may cause a fire or other incident which may result
in death or serious injury.

99
1-6. Theft deterrent system
1
Before driving
IS F_EE

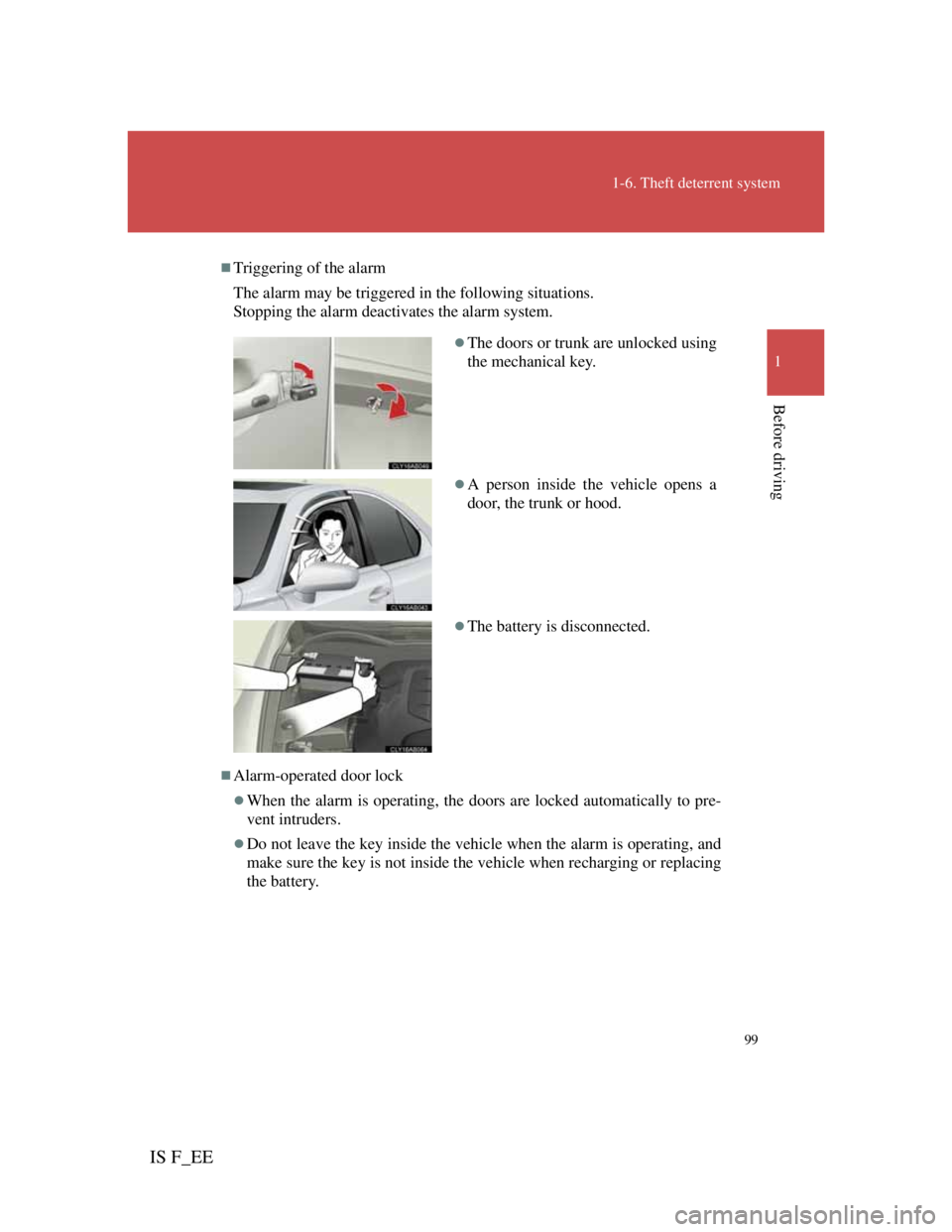

Triggering of the alarm
The alarm may be triggered in the following situations.
Stopping the alarm deactivates the alarm system.
Alarm-operated door lock
When the alarm is operating, the doors are locked automatically to pre-
vent intruders.
Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing
the battery.
The doors or trunk are unlocked using
the mechanical key.
A person inside the vehicle opens a
door, the trunk or hood.
The battery is disconnected.

376
4-3. Do-it-yourself maintenance
IS F_EEAdding distilled water
Remove the vent plug.
Add distilled water.
If the “UPPER LEVEL” line cannot be seen, check the fluid level
by looking directly at the cell.
Put the vent plug back on and close securely.
Lo O.K
Before recharging
When recharging, the battery produces hydrogen gas which is flammable
and explosive. Therefore, before recharging:
If recharging with the battery installed on the vehicle, be sure to discon-
nect the ground cable.
Make sure the power switch on the charger is off when connecting and
disconnecting the charger cables to the battery.
After recharging/reconnecting the battery
In some cases, the engine may not start. Follow the procedure below to ini-
tialize the system.
Shift the shift lever to P, and turn the “ENGINE START STOP”
switch OFF.
Open and close any of the doors.
Start the engine. (If the engine does not start first time, repeat the
procedure.)
If the engine will not start even after multiple attempts at the above method,
contact any authorized Lexus dealer or repairer, or another duly qualified
and equipped professional.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3

378
4-3. Do-it-yourself maintenance
IS F_EE

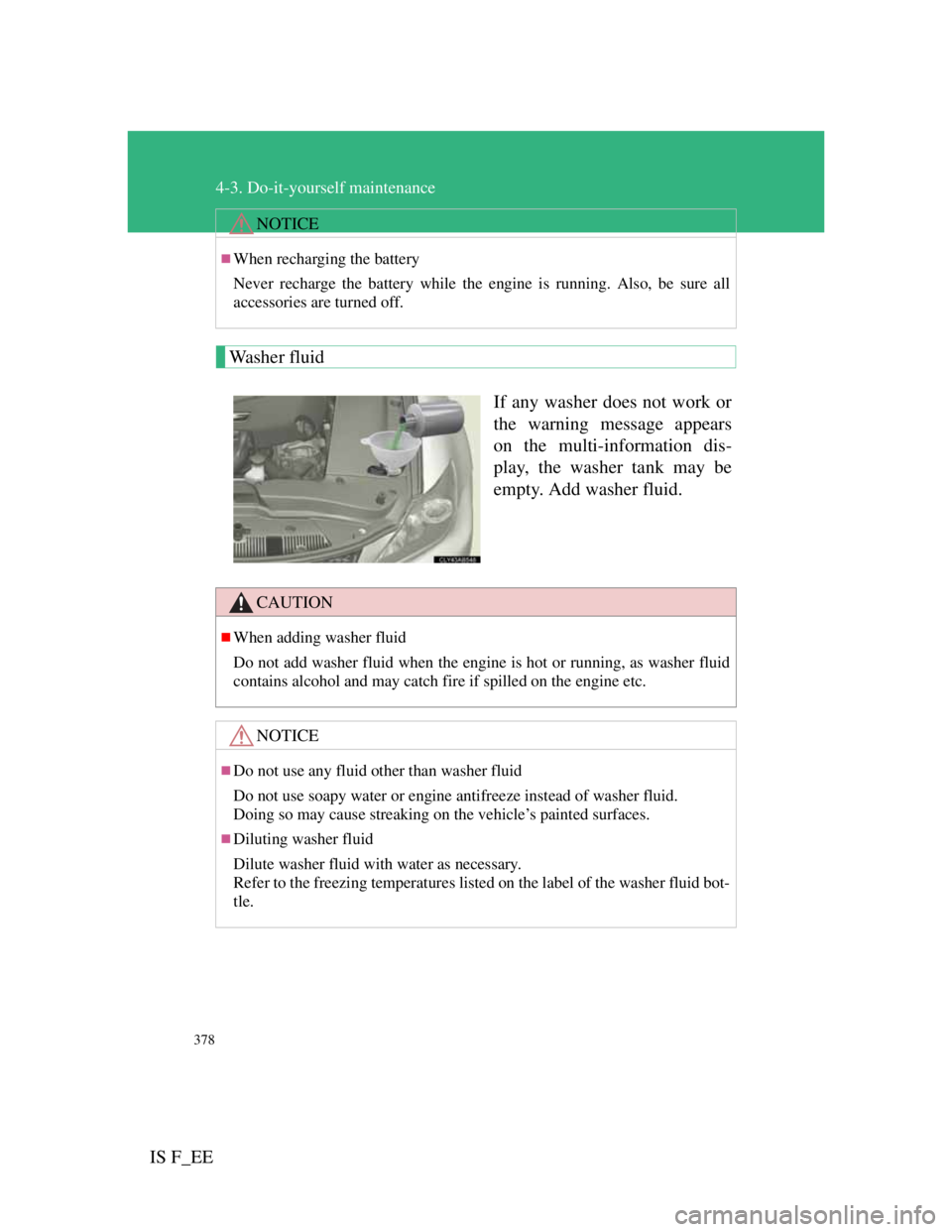

Washer fluid
If any washer does not work or
the warning message appears
on the multi-information dis-
play, the washer tank may be
empty. Add washer fluid.
NOTICE
When recharging the battery
Never recharge the battery while the engine is running. Also, be sure all
accessories are turned off.
CAUTION
When adding washer fluid
Do not add washer fluid when the engine is hot or running, as washer fluid
contains alcohol and may catch fire if spilled on the engine etc.
NOTICE
Do not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the vehicle’s painted surfaces.
Diluting washer fluid
Dilute washer fluid with water as necessary.
Refer to the freezing temperatures listed on the label of the washer fluid bot-
tle.

397
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
Fuse layout and amperage ratings
Engine compartment (type A fuse box)
Left-hand drive vehicles
Right-hand drive vehicles
FuseAmpereCircuit
1A LT- S7.5 ACharging system
2TURN-HAZ15 AEmergency flashers, turn signals
3IG2 MAIN20 AIG2, IGN, GAUGE
4RAD NO. 230 AAudio system
5D/C CUT20 ADOME, MPX-B
6RAD NO. 130 AAudio system

403
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_EE
14RR DOOR LH20 APower windows
15FR DOOR LH20 APower windows, outside rear view
mirror (left)
16SECURITY7.5 ASmart entry & start system
17H-LP LVL7.5 AAutomatic headlight leveling sys-
tem
18LH-IG10 A
Charging system, headlight
cleaner, rear window defogger,
electric cooling fans, emergency
flashers, turn signal lights, back-up
lights, stop lights, outside rear
view mirror defoggers, seat belts,
Lexus parking assist-sensor, air
conditioning system
19FR WIP30 AWindshield wipers
FuseAmpereCircuit

426
5-2. Steps to take in an emergency
IS F_EE
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the
vehicle that may lead to an accident. Immediately stop the vehicle
in a safe place and contact any authorized Lexus dealer or repairer,
or another duly qualified and equipped professional.
Have the vehicle inspected immediately.
Failing to investigate the cause of the following warnings may lead
to the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional,
immediately.
Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system.
Warning lightWarning light/Details
Malfunction indicator lamp
Indicates a malfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system.
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system.

5
463
5-2. Steps to take in an emergency
When trouble arises
IS F_EE
Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
To prevent battery discharge
Turn off the headlights and the audio system while the engine is off.
Turn off any unnecessary electrical components when the vehicle is run-
ning at a low speed for an extended period, such as in heavy traffic, etc.
Charging the battery
The electricity stored in the battery will discharge gradually even when
the vehicle is not in use, due to natural discharge and the draining effects
of certain electrical appliances. If the vehicle is left for a long time, the
battery may discharge, and the engine may be unable to start. (The bat-
tery recharges automatically during driving.)
Start the engine of the second vehicle. Increase the
engine speed slightly and maintain at that level for
approximately 5 minutes to recharge the battery of your
vehicle.
Open and close any of the doors with the “ENGINE
START STOP” switch OFF.
Maintain the engine speed of the second vehicle and turn
the “ENGINE START STOP” switch to IGNITION ON
mode, then start the vehicle's engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at any autho-
rized Lexus dealer or repairer, or another duly qualified and
id fil iblSTEP2
STEP3
STEP4
STEP5

478
6-1. Specifications
IS F_EE
Ignition system
Electrical system
Differential
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil”
at the factory. Use Lexus approved “Toyota Genuine Differential Gear
Oil” or an equivalent of matching quality to satisfy the above specifica-
Spark plug
Make
GapDENSO FK20HBR11
1.1 mm (0.043 in.)
NOTICE
Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning the
engine.
Battery
Open voltage* at
20C (68F):12.6 12.8 V Fully charged
12.2 
12.4 V Half charged
11.8 
12.0 V Discharged
(*: Voltage checked 20 minutes
after the engine and all the lights are
turned off)
Charging rates5 A max.
Oil capacity1.35 L (1.42 qt., 1.19 Imp. qt.)
Oil type and viscosity*Toyota Genuine Differential Gear
Oil LX 75W-85 GL-5 or equivalent
