octane Lexus IS F 2011 Owner's Manual

90
1-5. Refueling
IS F_EE
Closing the fuel tank cap
When replacing the fuel tank
cap, turn it until a clicking
sound is heard.
After releasing your hand, the
cap will turn slightly in the
opposite direction.
Fuel types
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher
Use of ethanol blended gasoline in a gasoline engine
Lexus allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
Fuel tank capacity (reference)
64 L (16.9 gal., 14.0 Imp. gal.)
When the fuel filler door opener is inoperable
The lever can be used to open the fuel
filler door if the fuel filler door cannot be
opened using the inside switch because
the battery is discharged or for any other
reason.

474

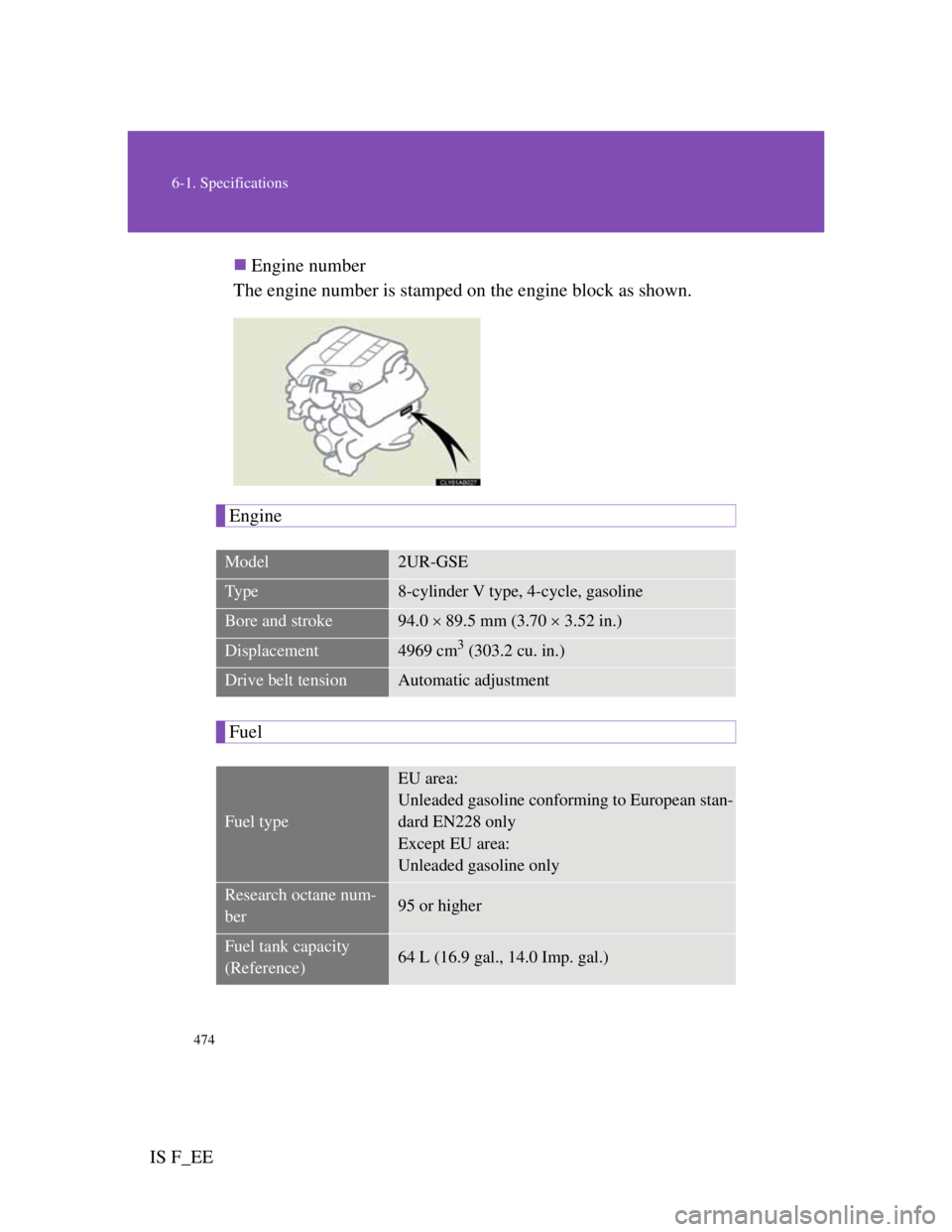

6-1. Specifications
IS F_EEEngine number
The engine number is stamped on the engine block as shown.
Engine
Fuel
Model2UR-GSE
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke94.0  89.5 mm (3.70 3.52 in.)
Displacement4969 cm3 (303.2 cu. in.)
Drive belt tensionAutomatic adjustment
Fuel type
EU area:
Unleaded gasoline conforming to European stan-
dard EN228 only
Except EU area:
Unleaded gasoline only
Research octane num-
ber95 or higher
Fuel tank capacity
(Reference)64 L (16.9 gal., 14.0 Imp. gal.)

482
6-1. Specifications
IS F_EE
Fuel information
Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that
only accommodates the special nozzle on unleaded fuel pumps.
If premium gasoline is not available
If this premium type cannot be obtained, you can temporarily use unleaded
gasoline with a Research Octane Number as low as 91.
If your engine knocks
Consult any authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
You may occasionally notice light knocking for a short time while accel-
erating or driving uphill. This is normal and there is no need for concern.
EU area:
Your vehicle must use only unleaded gasoline conforming to Euro-
pean standard EN228.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
Except EU area:
Your vehicle must use only unleaded gasoline.
For optimum engine performance, select unleaded gasoline with a
Research Octane Number of 95 or higher.
