1
2
3
4
5
6
7
3
2-1. Driving proceduresDriving the vehicle ........................ 122
Engine (ignition) switch .............. 130
Automatic transmission.............. 134
Turn signal lever ............................ 143
Parking brake ................................. 144
Horn.................................................... 145
2-2. Instrument cluster Gauges and meters ..................... 146
Indicators and warning lights................................................. 150
Multi-information display........... 153
2-3. Operating the lights and windshield wipers
Headlight switch ............................ 158
Fog light switch ................................ 161
Windshield wipers and washer............................................. 162
Headlight cleaner switch ........... 165
2-4. Using other driving systems Cruise control ................................ 166
Dynamic radar cruise control............................................. 169
Intuitive parking assist .................. 181
Driving assist systems.................. 187
PCS (Pre-Collision System) ............ 193 2-5. Driving information
Cargo and luggage .................... 200
Vehicle load limits ........................ 203
Winter driving tips ....................... 204
Trailer towing ................................. 206
Dinghy towing ............................... 207
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ............................................. 210
Rear window and outside rear view
mirror defoggers ........................ 218
Windshield wiper de-icer .......... 219
3-2. Using the audio system Audio system type ....................... 220
Using the radio.............................. 223
Using the CD player.................... 231
Playing back MP3 and WMA discs.................................. 238
Operating an iPod....................... 246
Operating a USB memory....... 254
Optimal use of the audio system ............................................ 263
Using the AUX port ................... 265
Using the steering wheel audio switches ............................ 267
2When driving
3Interior features

When driving2
121
2-1. Driving proceduresDriving the vehicle.................. 122
Engine (ignition) switch ......... 130
Automatic transmission ........ 134
Turn signal lever ....................... 143
Parking brake ........................... 144
Horn ............................................ 145
2-2. Instrument cluster Gauges and meters ................ 146
Indicators and warning lights ......................................... 150
Multi-information display ..... 153
2-3. Operating the lights and windshield wipers
Headlight switch...................... 158
Fog light switch ......................... 161
Windshield wipers and washer ..................................... 162
Headlight cleaner switch...... 165 2-4. Using other driving
systems
Cruise control.......................... 166
Dynamic radar cruise control ...................................... 169
Intuitive parking assist ............ 181
Driving assist systems ............ 187
PCS (Pre-Collision System) ....... 193
2-5. Driving information Cargo and luggage ............... 200
Vehicle load limits .................. 203
Winter driving tips ................. 204
Trailer towing .......................... 206
Dinghy towing ......................... 207

146
2-2. Instrument cluster
Gauges and meters
The units used on the speedometer and the tachometer gauge display may
differ depending on the model/type.

The following gauges, meters and display illuminate when the
“ENGINE START STOP” switch is in IGNITION ON mode.
Engine coolant temperature gauge
Displays the engine coolant temperature. If the temperature is too high,
the display will flash.
Engine oil temperature gauge
Displays the engine oil temperature. If the temperature is too high, the dis-
play will flash.
Odometer and trip meter
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance th e vehicle has been driven since
the meter was last reset. Trip meters “A” and “B” can be
used to record and display different distances indepen-
dently.
Multi-information display
 P. 1 5 3

147
2-2. Instrument cluster
2
When driving
Tachometer
Displays the engine speed in revolutions per minute.
Shift position and shift range/gear display
Displays the shift position along with the currently selected shift range or
gear. (P. 137, 139)
Odometer/trip meter and trip meter reset button
Switches between odometer and trip meter displays. Pushing and holding
the button will reset the trip meter when the trip meter is being displayed.
Speedometers
Display the vehicle speed.
Fuel gauge
Displays the quantity of fuel remaining in the tank.

148
2-2. Instrument cluster
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted. Darker
Brighter
■Changing units for the digital speedometer
Units for the digital speedometer can be changed between km/h and mph by push-
ing and holding the odometer/trip meter re set button while the odometer is dis-
played. At this time, all the units for the multi-information display will also change.

149
2-2. Instrument cluster
2
When driving
CAUTION
■When the temperature of the display is extremely low
Allow the interior of the vehicle to warm up before using the shift position and shift
range/gear display. At extremely low temperatures, the display may respond slowly,
and display changes may be delayed.
For example, there is a lag between the driver’s downshifting and the new gear
number appearing on the display. This lag could cause the driver to downshift again,
causing rapid and excessive engine brakin g and possibly an accident resulting in
death or serious injury.
NOTICE
■To prevent damage to the engine and its components
●Do not let the indicator needle of the tachometer enter the red zone, which indi-
cates the maximum engine speed.
●The following may indicate that the engine is overheating. Immediately stop the
vehicle in a safe place. (
P. 4 9 5 )
• The display on the engine c oolant temperature gauge flashes
• The display on the engine oil temperature gauge flashes

150
2-2. Instrument cluster
Indicators and warning lights
The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
The units used on the speedometer and the tachometer gauge display may
differ depending on the model/type.

Center panel

151
2-2. Instrument cluster
2
When driving
■Indicators
The indicators inform the driver of th e operating state of the vehi-
cle’s various systems.
*1:These lights turn on when the “ENGINE START STOP” switch is turned to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the en gine is started, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by your Lexus
dealer.
*2:The light flashes to indicate that the system is operating.
Turn signal indicator
( P. 1 4 3 )Cruise control indicator
( P. 166, 169)
Headlight high beam indi-
cator ( P. 1 5 9 )
(if equipped)
Intuitive parking assist
indicator ( P. 1 8 1 )
(U.S.A.)
Headlight indicator
( P. 1 5 8 )Slip indicator ( P. 188)
(Canada)
Tail light indicator
( P. 1 5 8 ) VSC off indicator
( P. 188)
Front fog light indicator
( P. 161) “TRAC OFF” indicator
( P. 188)
“SNOW” indicator
( P. 1 3 6 ) SRS airbag on-off indica-
tor ( P. 1 0 3 )
“SPORT” indicator
( P. 136, 189)
*1, 2
*1
*1
*1

152
2-2. Instrument cluster
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine, this could mean that these systems are not available to
help protect you in an accident, which could result in death or serious injury. Have
the vehicle inspected by your Lexus dealer immediately if this occurs.
■ Warning lights
Warning lights inform the driver of malfunctions in any of the vehi-
cle’s systems. ( P. 453)
*: These lights turn on when the “ENGINE START STOP” switch is turned
to IGNITION ON mode to indicate that a system check is being per-
formed. They will turn off after the en gine is started, or after a few sec-
onds. There may be a malfunction in a system if a light does not come on,
or if the lights do not turn off. Have the vehicle inspected by your Lexus
dealer.
(U.S.A.)(Canada)(Canada)(U.S.A.)
(Canada)(U.S.A.)(if equipped)(for
driver)(for front
passenger)
******
******
*

153
2-2. Instrument cluster
2
When driving

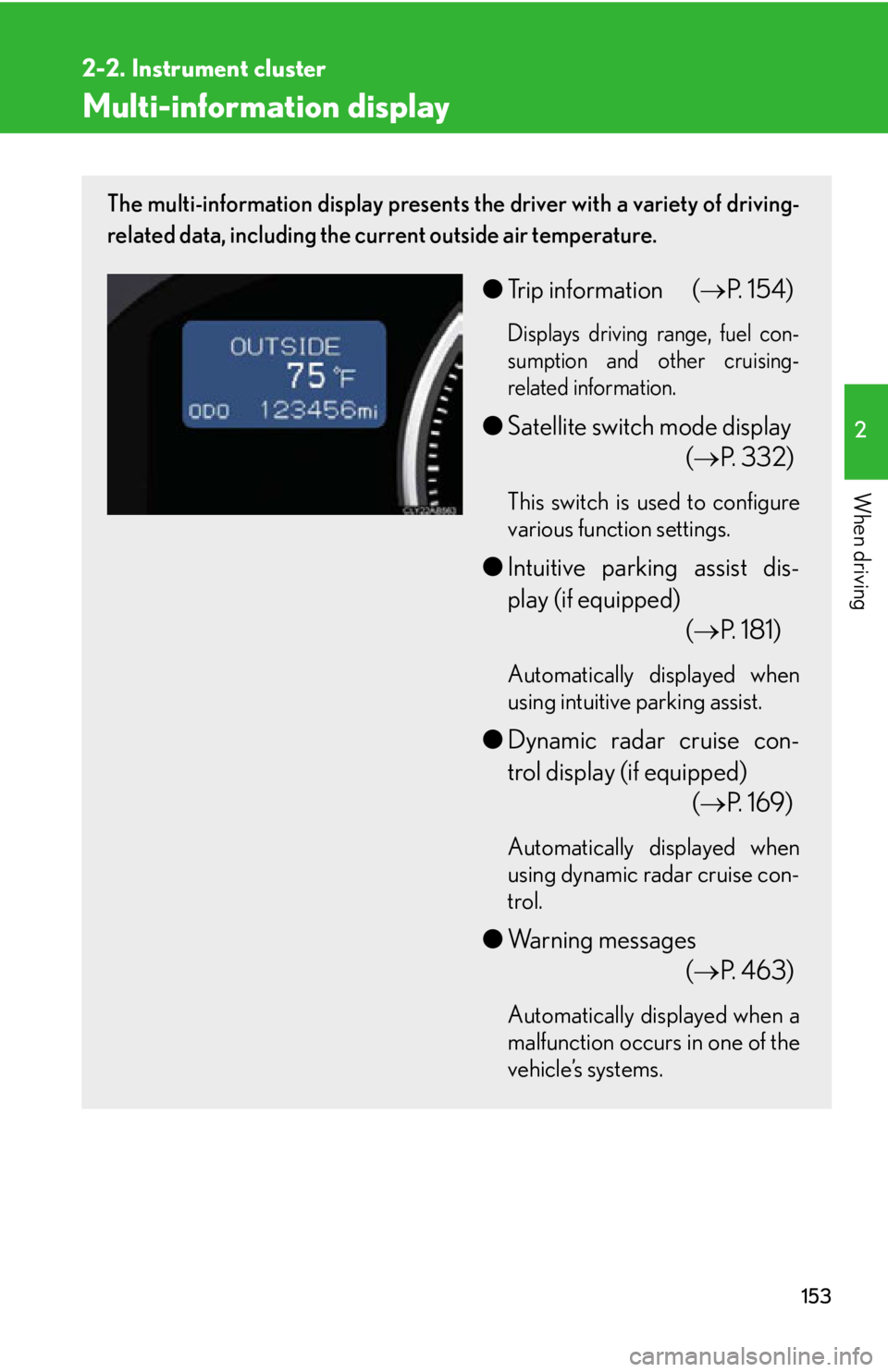

Multi-information display
The multi-information display presents the driver with a variety of driving-
related data, including the current outside air temperature.
●Trip information ( P. 1 5 4 )
Displays driving range, fuel con-
sumption and other cruising-
related information.
●Satellite switch mode display
(P. 3 3 2 )
This switch is used to configure
various function settings.
●Intuitive parking assist dis-
play (if equipped)
(P. 181)
Automatically displayed when
using intuitive parking assist.
●Dynamic radar cruise con-
trol display (if equipped)
(P. 1 6 9 )
Automatically displayed when
using dynamic radar cruise con-
trol.
●Warning messages
(P. 463)
Automatically displayed when a
malfunction occurs in one of the
vehicle’s systems.
