180
2-4. Using other driving systems
IS F_U
■Changing the vehicle- to-vehicle distance
Pressing the button changes the
vehicle-to-vehicle distance as
follows:
Long
Medium
Short
The vehicle-to-vehicle distance
is set automatically to long
mode when the “ENGINE
START STOP” switch is turned
to IGNITION ON mode.
If a vehicle is running ahead of
you, the preceding vehicle mark
will also be displayed.
■Vehicle-to-vehicle distance settings
Select a distance from the table below. Note that the distances
shown correspond to a vehicle sp eed of 50 mph (80 km/h). Vehi-
cle-to-vehicle distance increases/decreases in accordance with
vehicle speed.
Preceding
vehicle mark
Distance optionsVehicle-to-vehicle distance
LongApproximately 210 ft. (65 m)
MediumApproximately 150 ft. (45 m)
ShortApproximately 100 ft. (30 m)

184
2-4. Using other driving systems
IS F_U
Selecting conventional constant speed control mode
Constant speed control mode differs from vehicle-to-vehicle distance
control mode. When constant speed co ntrol mode is selected, your vehi-
cle will maintain a set speed regardless of whether or not there are other
vehicles in the lane ahead.
Press the “ON-OFF” button to
activate the cruise control.
Cruise control indicator will come
on.
Press the button again to deacti-
vate the cruise control.
Switch to constant speed con-
trol mode.
(Push the lever forward and
hold for approximately one sec-
ond.)
When in constant speed control
mode, to return to vehicle-to-vehi-
cle distance control mode, push
the lever forward again and hold
for approximately 1 second.
After the desired speed has been
set, it is not possible to return to
vehicle-to-vehicle distance control
mode.
If the “ENGINE START STOP”
switch is turned off and then turned
to IGNITION ON mode again, the
vehicle will automatically return to
vehicle-to-vehicle distance control
mode.

335
3-6. Using the storage features
3
Interior features
IS F_U
Glove boxOpen (push button)
Lock with the mechanical key
Unlock with the mechanical key
Console boxPull up the knob to release the
lock.
Slide the armrest.
Pull up the knob to release the
lock.
Lift the armrest to open.
■Glove box light
The glove box light turns on when the “ENGINE START STOP” switch is in IGNI-
TION ON mode.
■Trunk opener main switch
The trunk opener main switch is located in the glove box. ( → P. 5 0 )
CAUTION
■Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box and console box

385
4-2. Maintenance
4
Maintenance and care
IS F_U
■Reset the maintenance data (U.S.A. only)
After the required maintenance is performed according to the maintenance sched-
ule, please reset the maintenance data.
To reset the data, follow the procedures described below:Switch the display to the odometer ( →P. 150) when the engine is running.
Turn the “ENGINE START STOP” switch OFF.
While pressing the trip meter reset button, set the “ENGINE START
STOP” switch to IGNITION ON mode (but do not start the engine
because otherwise the reset mode will be cancelled). Continue to press
and hold the button until the multi-information display .
■Allow inspection and repairs to be performed by a Lexus dealer
●Lexus technicians are well-trained specialists and are kept up to date with the
latest service information. They are well informed about the operations of all
systems on your vehicle.
●Keep a copy of the repair order. It proves that the maintenance that has been
performed is under warranty coverage. If any problem should arise while your
vehicle is under warranty, your Lexus dealer will promptly take care of it.
CAUTION
■If your vehicle is not properly maintained
It could result in serious damage to the vehicle and possible serious injury or death.
■Warning in handling of battery
●Engine exhaust, some of its constituents, and a wide variety of automobile com-
ponents contain or emit chemicals known to the State of California to cause can-
cer and birth defects and other reproductive harm. Work in a well ventilated area.
●Oils, fuels and fluids contained in vehicles as well as waste produced by compo-
nent wear contain or emit chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm. Avoid exposure and wash
any affected area immediately.
●Battery posts, terminals and related accessories contain lead and lead com-
pounds which are known to cause brain damage. Wash your hands after han-
dling. ( →P. 406)
STEP1
STEP2
STEP3

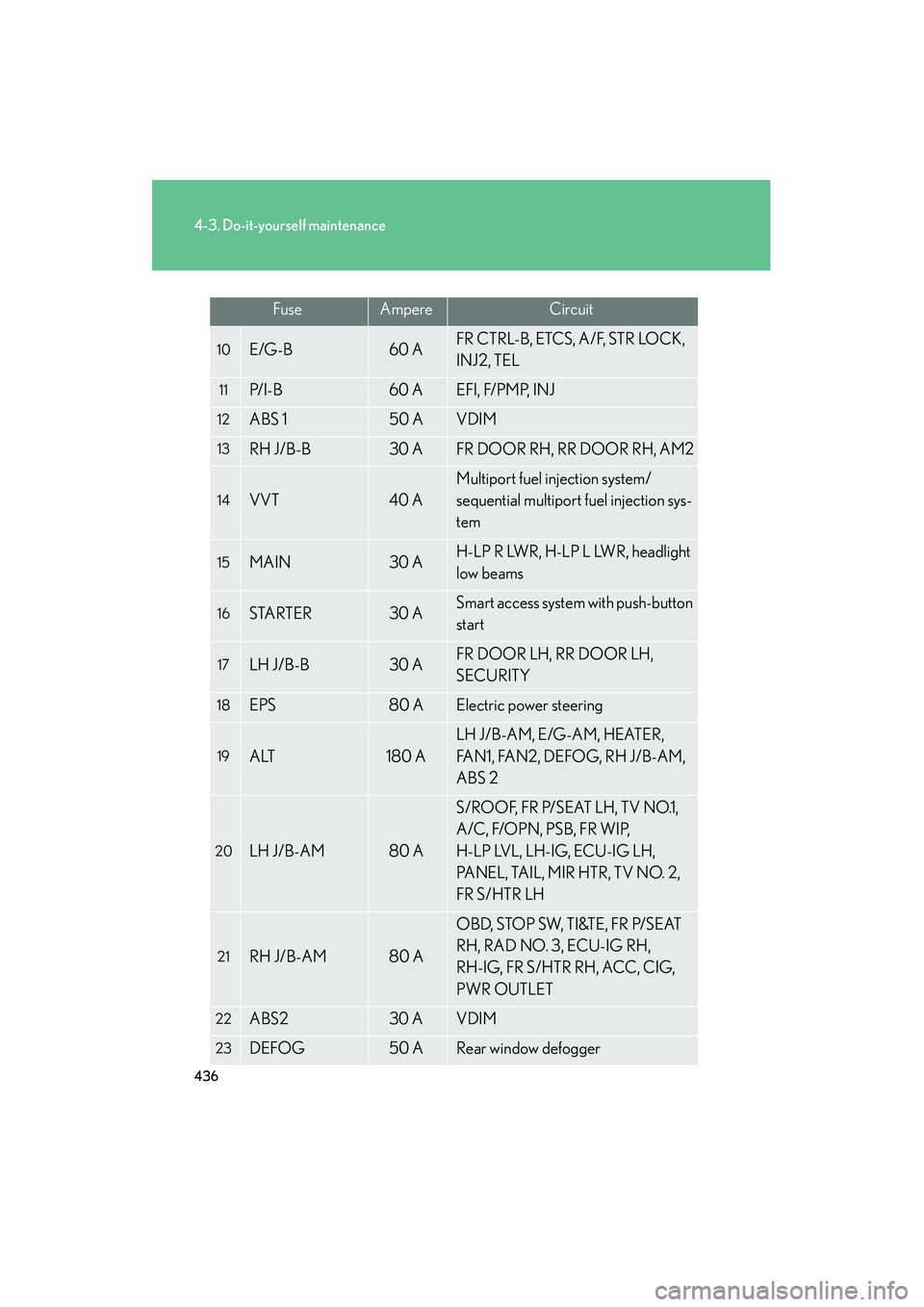

436
4-3. Do-it-yourself maintenance
IS F_U
10E/G-B60 AFR CTRL-B, ETCS, A/F, STR LOCK,
INJ2, TEL
11P/ I - B60 AEFI, F/PMP, INJ
12ABS 150 AVDIM
13RH J/B-B30 AFR DOOR RH, RR DOOR RH, AM2
14VVT40 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
15MAIN30 AH-LP R LWR, H-LP L LWR, headlight
low beams
16STARTER30 ASmart access system with push-button
start
17LH J/B-B30 AFR DOOR LH, RR DOOR LH,
SECURITY
18EPS80 AElectric power steering
19ALT180 A
LH J/B-AM, E/G-AM, HEATER,
FAN1, FAN2, DEFOG, RH J/B-AM,
ABS 2
20LH J/B-AM80 A
S/ROOF, FR P/SEAT LH, TV NO.1,
A/C, F/OPN, PSB, FR WIP,
H-LP LVL, LH-IG, ECU-IG LH,
PANEL, TAIL, MIR HTR, TV NO. 2,
FR S/HTR LH
21RH J/B-AM80 A
OBD, STOP SW, TI&TE, FR P/SEAT
RH, RAD NO. 3, ECU-IG RH,
RH-IG, FR S/HTR RH, ACC, CIG,
PWR OUTLET
22ABS230 AVDIM
23DEFOG50 ARear window defogger
FuseAmpereCircuit

441
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_U
13FR S/HTR LH15 ASeat heaters
14RR DOOR LH20 APo w e r w i n d o w s
15FR DOOR LH20 APower windows, outside rear view
mirror (left)
16SECURITY7. 5 ASmart access system with push-button
start
17H-LP LVL7. 5 AAutomatic headlight leveling system
18LH-IG10 A
Charging system, headlight cleaner,
rear window defogger, electric cool-
ing fans, emergency flashers, turn sig-
nal lights, back-up lights, stop lights,
outside rear view mirror defoggers,
seat belts, intuitive parking assist, air
conditioning system
19FR WIP30 AWindshield wipers
FuseAmpereCircuit

442
4-3. Do-it-yourself maintenance
IS F_U■
Passenger’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT RH30 APo w e r s e a t
2DOOR DL15 A
3OBD7. 5 AOn-board diagnosis system
4STOP SW7. 5 A
Stop lights, VDIM, shift lock system,
multiport fuel injection system/
sequential multiport fuel injection sys-
tem, smart access system with push-
button start
5TI & TE20 AElectric tilt and telescopic steering
column
6RAD NO. 310 AAudio system
7GAUGE7. 5 AMeters and gauges
8IGN10 A
SRS airbag system, stop lights, steer-
ing lock system, fuel system, front pas-
senger occupant classification system
9ACC7. 5 A
Clock, air conditioning system, audio
system, navigation system, display,
outside rear view mirrors, smart
access system with push-button start,
glove box light, console box light

5
When trouble arises
497
5-2. Steps to take in an emergency
IS F_U
If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake, there may be
a problem with the shift lock system (a system to prevent accidental opera-
tion of the shift lever). Have the vehicle inspected by your Lexus dealer
immediately.
The following steps may be used as an emergency measure to ensure that
the shift lever can be shifted.
Set the parking brake.
Turn the “ENGINE START STOP” switch to IGNITION ON
mode.
Depress the brake pedal.
Pry the cover up with a flathead
screwdriver or equivalent.
Press the shift lock override but-
ton.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4
STEP5
