automatic transmission fluid Lexus IS F 2012 Owner's Manual

143
2-1. Driving procedures
2
When driving
IS F_U
Selecting gears in the M positionTo enter M mode, shift the shift lever to the M position. Gears can then be
selected by operating the shift lever or paddle shift switches, allowing you
to drive in the gear of your choosing. Upshifting
Downshifting
The gear changes once every time
the shift lever or paddle shift switch
is operated.
The selected gear, from 1 to 8, will
be displayed in the meter cluster.
When in the M position, the gear will not change unless the shift lever or
paddle shift switches are operated.
However, even when in the M position, the gears will be automatically
changed in the following situations:
● When vehicle speed drops (downshift only).
● When the automatic transmission fluid or engine coolant temperature
is low.

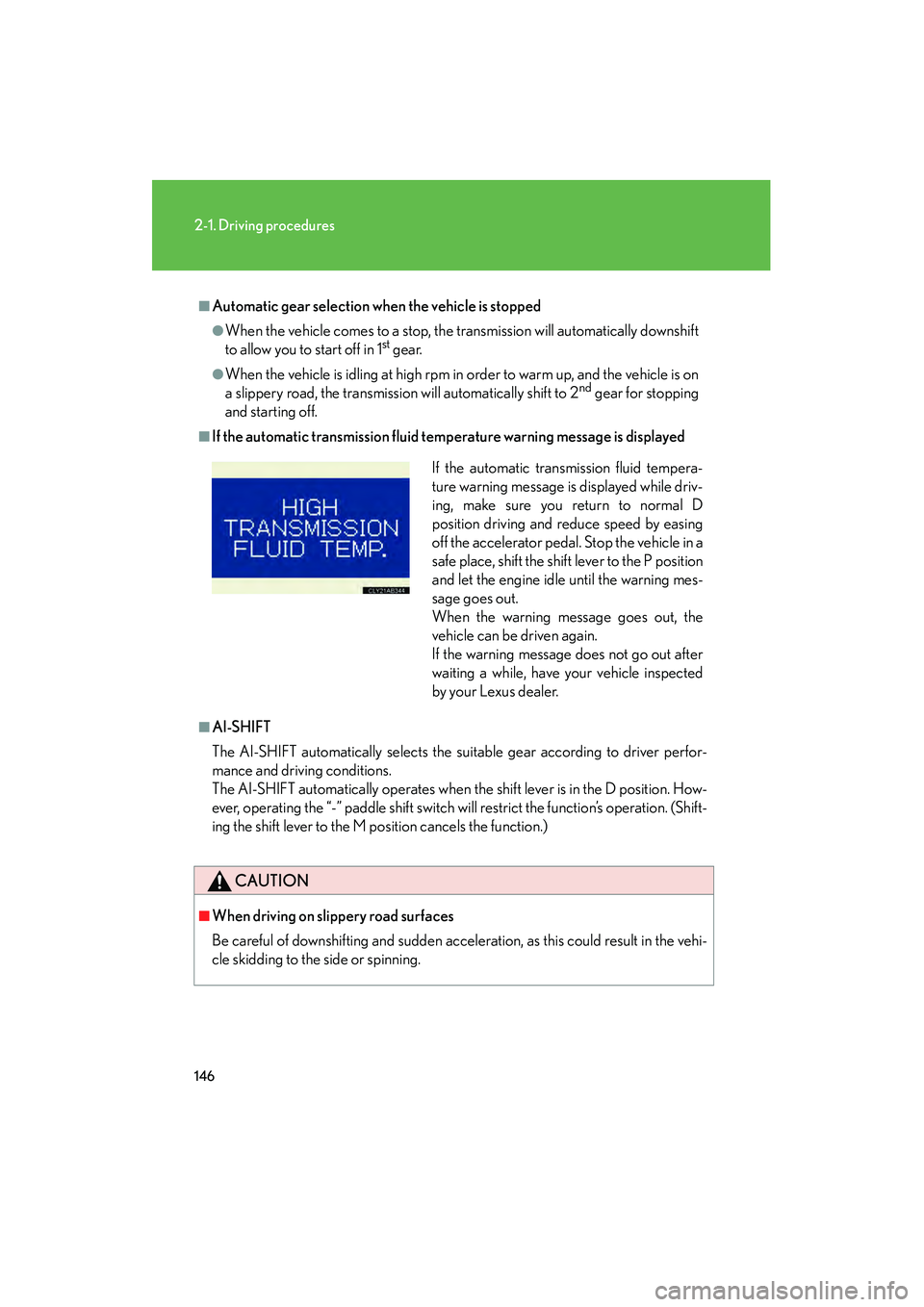

146
2-1. Driving procedures
IS F_U
■Automatic gear selection when the vehicle is stopped
●When the vehicle comes to a stop, the transmission will automatically downshift
to allow you to start off in 1st gear.
●When the vehicle is idling at high rpm in order to warm up, and the vehicle is on
a slippery road, the transmission will automatically shift to 2nd gear for stopping
and starting off.
■If the automatic transmission fluid te mperature warning message is displayed
■AI-SHIFT
The AI-SHIFT automatically selects the suitable gear according to driver perfor-
mance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in the D position. How-
ever, operating the “-” paddle shift switch will restrict the function’s operation. (Shift-
ing the shift lever to the M position cancels the function.)
CAUTION
■When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this could result in the vehi-
cle skidding to the side or spinning.
If the automatic transmission fluid tempera-
ture warning message is displayed while driv-
ing, make sure you return to normal D
position driving and reduce speed by easing
off the accelerator pedal. Stop the vehicle in a
safe place, shift the shift lever to the P position
and let the engine idle until the warning mes-
sage goes out.
When the warning message goes out, the
vehicle can be driven again.
If the warning message does not go out after
waiting a while, have your vehicle inspected
by your Lexus dealer.

519
6-1. Specifications
6
Vehicle specifications
IS F_U
Automatic transmission
*: The fluid capacity is provided as a reference. If replacement is necessary, con-
tact your Lexus dealer.
Fluid capacity*11.6 qt. (11.0 L, 9.7 Imp. qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
Using automatic transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by vibra-
tion, and ultimately damage the automatic transmission of your vehicle.

571
Alphabetical index
IS F_U
Warning lightsAnti-lock brake system .................. 464
Brake assist system .......................... 464
Brake system ....................................... 463
Charging system ............................... 464
Electric power steering system
warning light ..................................... 464
Low fuel level....................................... 466
Malfunction indicator lamp .......... 464
Master warning light ........................ 466
Open door ........................................... 466
Pre-collision system ......................... 464
Pretensioners ...................................... 464
Seat belt reminder light .................. 466
SRS airbags .......................................... 464
Tire pressure warning
light........................................................ 466 Warning messages
Automatic transmission
fluid ........................................................ 477
Dynamic radar
cruise control........................ 475, 477
Engine oil level .................................... 477
Engine oil maintenance .................. 477
Engine oil pressure ........................... 474
Engine oil temperature ................... 474
Headlight................................................ 475
Hood ........................................................ 477
Intuitive parking assist .......... 475, 477
Moon roof ............................................. 477
Open door ............................................ 477
Parking brake ...................................... 477
Pre-collision system.............. 475, 477
Smart access system with push-button start ........................... 483
Steering lock......................................... 475
Trunk ........................................................ 477
Washer fluid ......................................... 477
Washer
Checking .............................................. 409
Preparing and checking before winter ......................................214
Switch........................................................ 168
Washing and waxing ........................... 378
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
