4-1. Maintenance and careCleaning and protecting the vehicle exterior................... 378
Cleaning and protecting the vehicle interior ..................... 381
4-2. Maintenance Maintenance requirements.............................. 384
General maintenance ............... 386
Emission inspection and maintenance (I/M)
programs ..................................... 389
4-3. Do-it-yourself maintenance Do-it-yourself service precautions ................................. 390
Hood.................................................. 393
Positioning a floor jack............... 394
Engine compartment.................. 396
Tires .................................................... 410
Tire inflation pressure................. 420
Wheels.............................................. 424
Air conditioning filter.................. 426
Electronic key battery ................ 429
Checking and replacing fuses ................................................. 431
Headlight aim ................................ 445
Light bulbs ....................................... 447 5-1. Essential information
Emergency flashers .................... 454
If your vehicle needs to be towed ............................................. 455
If you think something is wrong .............................................. 461
Fuel pump shut off system ........ 462
5-2. Steps to take in an emergency If a warning light turns on or a warning buzzer
sounds... ........................................ 463
If a warning message is displayed....................................... 473
If you have a flat tire..................... 487
If the engine will not start .......... 496
If the shift lever cannot be shifted from P .............................. 497
If you lose your keys ................... 498
If the electronic key does not operate properly ............... 499
If the vehicle battery is discharged .................................. 502
If your vehicle overheats .......... 505
If the vehicle becomes stuck............................................... 508
If your vehicle has to be stopped in an
emergency .................................. 509
4Maintenance and care5When trouble arises

131
2-1. Driving procedures
2
When driving
IS F_U
CAUTION
■When the vehicle is parked
●Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in the vehi-
cle when it is in the sun.
Doing so may result in the following.
• Gas may leak from a cigarette lighter or spray can, and may lead to a fire.
• The temperature inside the vehicle may cause the plastic lenses and plasticmaterial of eye glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the interior of the vehicle, and may also cause a short circuit in the vehicle's electrical com-
ponents.
●Always apply the parking brake, shift the shift lever to P, stop the engine and lock
the vehicle.
Do not leave the vehicle unattended while the engine is running.
●Do not touch the exhaust pipes or rear bumper exhaust diffusers while the engine
is running or immediately after turning the engine off.
Doing so may cause burns.
●Do not leave the engine running in an area with snow build-up, or where it is
snowing. If snowbanks build up around the vehicle while the engine is running,
exhaust gases may collect and enter the vehicle. This may lead to death or a seri-
ous health hazard.
■Exhaust gases
Exhaust gases include harmful carbon monoxide (CO) that is colorless and odor-
less. Inhaling exhaust gases may lead to death or a serious health hazard.
●If the vehicle is in a poorly ventilated area, stop the engine. In a closed area, such
as a garage, exhaust gases may collect and enter the vehicle. This may lead to
death or a serious health hazard.
●The exhaust should be checked occasionally. If there is a hole or crack caused by
corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehi-
cle inspected and repaired by your Lexus dealer. Failure to do so may allow
exhaust gases to enter the vehicle, resulting in death or a serious health hazard.

304
3-4. Using the hands-free phone system (for mobile phones)
IS F_U
■Steering wheel switches
Vo l u m e
During an incoming call:
Adjusts the ring tone volume
During an ongoing call:
Adjusts the receiver volume
The voice guidance volume can-
not be adjusted using this but-
ton.
Off-hook switch
Turns the hands-free system
on/starts a call
On-hook switch
Turns the hands-free system
off/ends a call/refuses a call
Talk switch
Turns the voice command
system on (press)/turns the
voice command system off
(press and hold)
■ Microphone

313
3-4. Using the hands-free phone system (for mobile phones)
3
Interior features
IS F_U

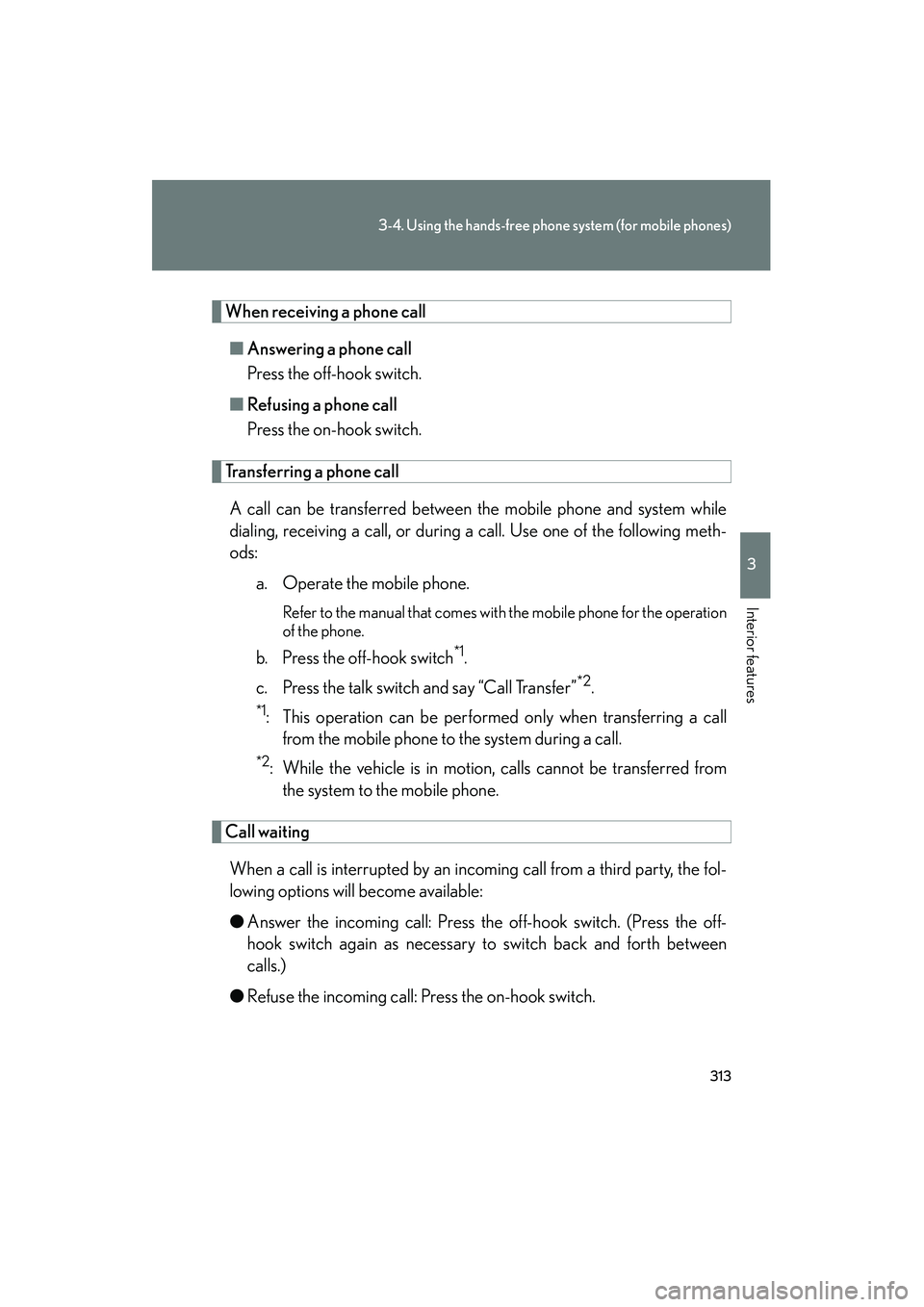

When receiving a phone call■ Answering a phone call
Press the off-hook switch.
■ Refusing a phone call
Press the on-hook switch.
Transferring a phone call
A call can be transferred between the mobile phone and system while
dialing, receiving a call, or during a call. Use one of the following meth-
ods: a. Operate the mobile phone.
Refer to the manual that comes with the mobile phone for the operation
of the phone.
b. Press the off-hook switch*1.
c. Press the talk switch and say “Call Transfer”
*2.
*1: This operation can be performed only when transferring a call from the mobile phone to the system during a call.
*2: While the vehicle is in motion, calls cannot be transferred fromthe system to the mobile phone.
Call waiting
When a call is interrupted by an incoming call from a third party, the fol-
lowing options will become available:
● Answer the incoming call: Press the off-hook switch. (Press the off-
hook switch again as necessary to switch back and forth between
calls.)
● Refuse the incoming call: Press the on-hook switch.

348
3-7. Other interior features
IS F_U
Power outlet
■The power outlet can be used when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
■To prevent the fuse from being blown
Do not use an accessory that uses more than 12 V 10 A.
■To prevent battery discharge
Do not use the power outlet longer than necessary when the engine is not running.
The power outlet can be used for 12 V accessories that run on less than 10
A.

Maintenance and care4
377
IS F_U
4-1. Maintenance and careCleaning and protecting the vehicle exterior............. 378
Cleaning and protecting the vehicle interior ............... 381
4-2. Maintenance Maintenance requirements ....................... 384
General maintenance ......... 386
Emission inspection and maintenance (I/M)
programs............................... 389 4-3. Do-it-yourself
maintenance
Do-it-yourself service precautions ........................... 390
Hood .......................................... 393
Positioning a floor jack ......... 394
Engine compartment ........... 396
Tires............................................. 410
Tire inflation pressure........... 420
Wheels ...................................... 424
Air conditioning filter ........... 426
Electronic key battery.......... 429
Checking and replacing fuses ......................................... 431
Headlight aim ......................... 445
Light bulbs................................ 447

379
4-1. Maintenance and care
4
Maintenance and care
IS F_U
■Aluminum wheels
●Remove any dirt immediately by using a neutral detergent. Do not use hard
brushes or abrasive cleaners. Do not use strong or harsh chemical cleaners.
Use the same mild detergent and wax as used on the paint.
●Do not use detergent on the wheels when they are hot, for example after driving
for long distance in the hot weather.
●Wash detergent from the wheels immediately after use.
■Bumpers
Do not scrub with abrasive cleaners.
CAUTION
■When cleaning the windshield
●When the upper part of the windshield where the raindrop sensor is located is
touched by hand
●When a wet rag or similar is held close to the raindrop sensor
●If something bumps against the windshield
●If you directly touch the raindrop sensor body or if something bumps into the
raindrop sensor
■Exhaust pipes and rear bumper exhaust diffusers
Exhaust gasses cause the exhaust pipes and rear bumper exhaust diffusers to
become quite hot. Therefore, do not touch them while the engine is running or
immediately after turning the engine off.
When washing the vehicle, be careful not to touch the exhaust pipes and rear
bumper exhaust diffusers until they have cooled sufficiently, as touching hot exhaust
pipes and diffusers can cause burns.
Set the wiper switch to off.
If the wiper switch is in “AUTO”, the wipers
may operate unexpectedly in the following
situations, and may result in hands being
caught or other serious injuries and cause
damage to the wiper blades.
Off

391
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_U
ItemsParts and tools
Engine oil level (→P. 399)
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used
only for adding engine oil)
Fuses (→ P. 4 3 1 )• Fuse with same amperage rating as
original
Headlight aim ( →P. 4 4 5 )• Phillips-head screwdriver
Radiator and condenser ( →P. 404)
Tire inflation pressure ( →P. 4 2 0 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( →P. 4 0 9 )
• Water washer fluid containing anti-
freeze (for winter use)
•Funnel

396
4-3. Do-it-yourself maintenance
IS F_U
Engine compartment
Battery (→P. 4 0 6 )
Engine oil level dipstick (→P. 399)
Engine oil filler cap (→P. 399)
Brake fluid reservoir (→P. 404)
Fuse boxes ( →P. 4 3 1 )Washer fluid tank
(→P. 4 0 9 )
Electric cooling fans
Condenser ( →P. 404)
Radiator ( →P. 404)
Engine coolant reservoir (→P. 4 0 2 )

431
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_U
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the “ENGINE START STOP” switch to OFF.
Engine compartment (type B): Remove the engine compart-
ment cover. (→P. 397)
Open the fuse box cover.
Engine compartment (type A)
Push the tabs in and lift the lid
off.
Engine compartment (type B) Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3
