trunk release Lexus IS F 2012 Specifications / LEXUS 2012 IS F OWNERS MANUAL (OM53A41U)

14
Multi-information display P. 157
Pictorial indexInstrument panel
Headlight switch Turn signal lever Fog light switch P. 162
P. 147
P. 166
Paddle shift switches P. 141, 143
Gauges and meters P. 150
Windshield wiper and washer switch P. 168
Engine (ignition) switch P. 134
Trunk opener main switch P. 50
Glove box P. 335
Tilt and telescopic steering control switch P. 70
Parking brake pedal P. 148
Hood release lever P. 393
Horn P. 149

35
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■Effective range (areas within wh ich the electronic key is detected)
When locking or unlocking
the doors
The system can be operated
when the electronic key is
within about 2.3 ft. (70 cm) of
either of the outside front
door handles. (Only the doors
detecting the key can be
operated.)
When unlocking the trunk
The system can be operated
when the electronic key is
within about 2.3 ft. (70 cm) of
the trunk release button.
When starting the engine
or changing “ENGINE
START STOP” switch
modes
The system can be operated
when the electronic key is
inside the vehicle.

37
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■Switching the door unlock function
It is possible to set which doors the entry function unlocks. Turn the “ENGINE START STOP” switch OFF.
When the indicator on the key surface is turned off, push and
hold , , or for approximately 5 seconds while pushingon the key.
The setting changes each time an operatio n is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step 2.)
To prevent unintended triggering of the alarm, unlock the doors using the wireless
remote control and open and close a door once after the settings have been
changed. (If a door is not opened within 60 seconds after is pressed, the doors
will be locked again and the alarm will automatically be set.)
In case that the alarm is triggered, immediately stop the alarm. ( P. 8 8 )
STEP1
STEP2
Multi-information
displayUnlocking doorsBeep
Hold the driver's door handle
to unlock only the driver's
door.
Exterior: Beeps three
times
Interior: Pings once
Hold the front passenger’s
door handle to unlock all
doors.
Hold either front door handle
to unlock all doors.Exterior: Beeps twice
Interior: Pings once

48
1-2. Opening, closing and locking the doors and trunk
■Setting and canceling the functions
To switch between setting and canceling, follow the procedure below:
Close all the doors and switch the “ENGINE START STOP”
switch to IGNITION ON mode. (Perform the step 2 within 10
seconds.)
Shift the shift lever to P or N, press
and hold the driver's door lock
switch (
or ) for about
5 seconds then release.
The shift lever and switch positions
corresponding to the desired func-
tion to be set are shown as follows.
Use the same procedure to cancel
the function.
When the setting or canceling operat ion is complete, all doors are locked
and then unlocked.
STEP1
STEP2
FunctionShift lever positionDriver’s door lock
switch position
Shift position linked door locking
function
PShift position linked door unlock-
ing function
Speed linked door locking function
NDriver's door linked door unlocking
function

49
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■Impact detection door lock release system
In the event that the vehicle is subject to a strong impact, all the doors are unlocked.
Depending on the force of the impact or the type of accident, however, the system
may not operate.
■Using the mechanical key
The doors can also be locked and unlocked with the mechanical key. (P. 4 9 9 )
■Customization that can be configured at Lexus dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features  P. 5 3 8 )
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door open ing and an occupant falling out, resulting in
death or serious injury.
●Always use a seat belt.
●Always lock all doors.
●Ensure that all doors are properly closed.
●Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers may be thrown out of the vehicle,
resulting in death or serious injury.
Be especially careful for the front doors, as the doors may be opened even if the
inside lock buttons are in locked position.
●Set the rear door child protector locks when children are seated in the rear seat.

51
1-2. Opening, closing and locking the doors and trunk
1
Before driving
■Tr u n k l i g h t
When the trunk light switch is set to on, the trunk light turns on when the trunk is
opened.
■Tr u n k h a n d l e
■Internal trunk release lever
■Using the mechanical key
The trunk can be also opened using the mechanical key. ( P. 4 9 9 )
■Which key to the vehicle is to leave with a parking attendant after disabling the
trunk opener main switch
 P. 3 0
On
Off
Use the trunk handle when closing the trunk.
Be careful not to pull the trunk lid sideways
when closing the trunk with the handle.
The trunk lid can be opened by pulling down
on the glow-in-the-dark lever located on the
inside of the trunk lid.
The lever will continue to glow for some time
after the trunk lid is closed.

335
3-6. Using the storage features
3
Interior features
Glove boxOpen (push button)
Lock with the mechanical key
Unlock with the mechanical key
Console boxPull up the knob to release the
lock.
Slide the armrest.
Pull up the knob to release the
lock.
Lift the armrest to open.
■Glove box light
The glove box light turns on when the “ENGINE START STOP” switch is in IGNI-
TION ON mode.
■Trunk opener main switch
The trunk opener main switch is located in the glove box. (  P. 5 0 )
CAUTION
■Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box and console box

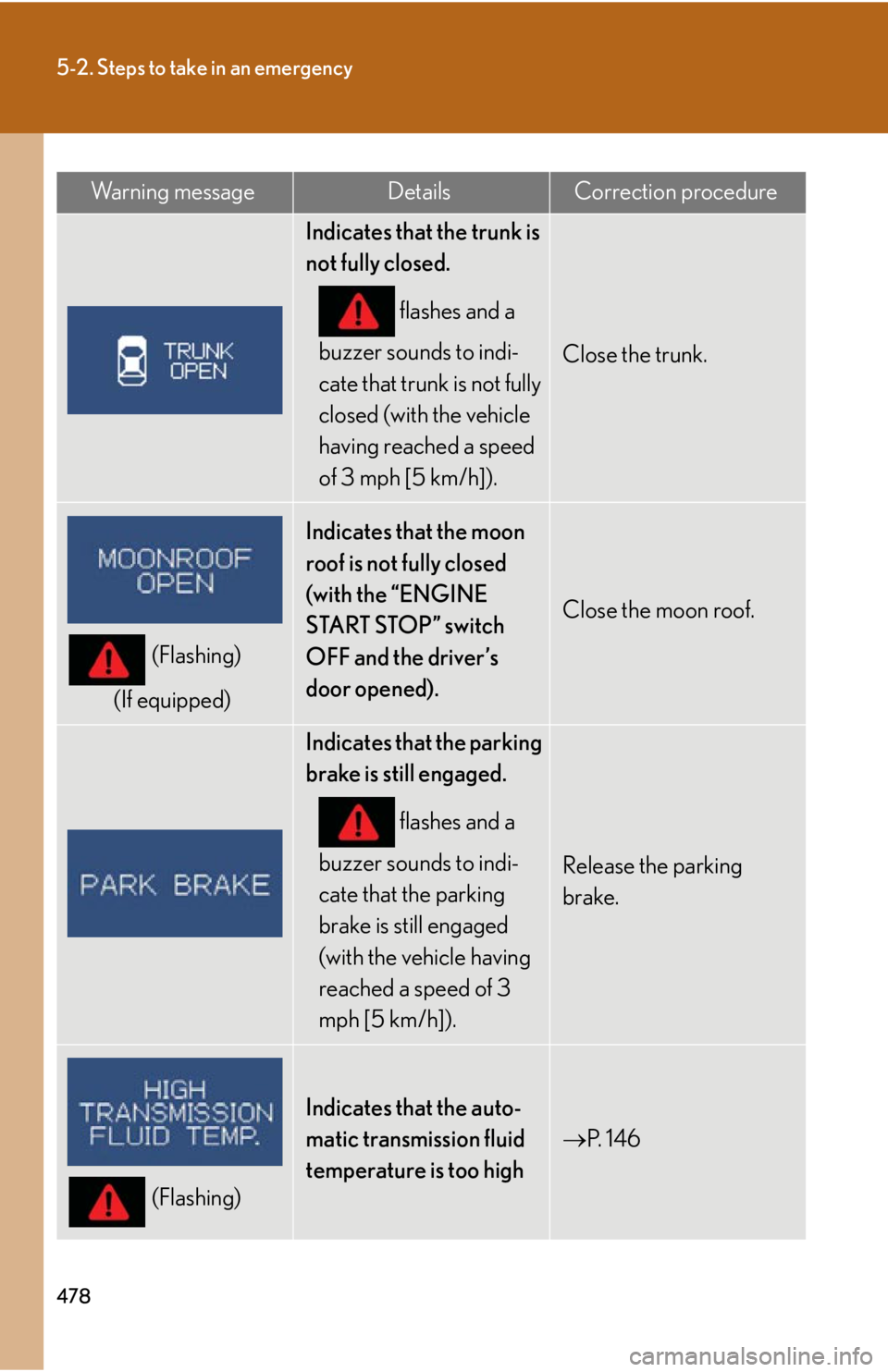

478
5-2. Steps to take in an emergency
Indicates that the trunk is
not fully closed. flashes and a
buzzer sounds to indi-
cate that trunk is not fully
closed (with the vehicle
having reached a speed
of 3 mph [5 km/h]).
Close the trunk.
(Flashing)
(If equipped)
Indicates that the moon
roof is not fully closed
(with the “ENGINE
START STOP” switch
OFF and the driver’s
door opened).
Close the moon roof.
Indicates that the parking
brake is still engaged.
flashes and a
buzzer sounds to indi-
cate that the parking
brake is still engaged
(with the vehicle having
reached a speed of 3
mph [5 km/h]).
Release the parking
brake.
(Flashing)
Indicates that the auto-
matic transmission fluid
temperature is too high
 P. 1 4 6
Wa r n i n g m e s s a g eDetailsCorrection procedure

576
GAS STATION INFORMATION
Auxiliary catch leverP. 3 9 3Trunk openerP. 5 0Fuel filler door P. 8 3
Hood lock release lever P. 3 9 3Fuel filler door openerP. 8 3Tire inflation pressureP. 5 2 1
Fuel tank capacity
(Reference)16.9 gal. (64 L, 14.0 Imp. gal.)
Fuel typeP. 8 4 , 5 1 5
Cold tire inflation
pressureP. 5 2 1
Engine oil capacity
(Drain and refill
reference)qt. (L, Imp. qt.)
Without filter 8.7 (8.2, 7. 2)
With filter 9.8 (9.3, 8.2)
Engine oil typeToyota Genuine Motor Oil or equivalent
Oil grade: ILSAC multigrade engine oil P. 516
Recommended viscosity: SAE 5W-30
