2-1. Driving procedures
2
When driving
IS F_U
Selecting shift ranges in the D positionTo drive using temporary shift range selection, operate the “-”paddle shift
switch. The shift range can then be selected by operating the “-” and “+”
paddle shift switches. Changing the shift range allows restriction of the
highest gear, preventing unnecessary upshifting and enabling the level of
engine braking force to be selected. Higher shift range
Lower shift range
The selected shift range, from 1 to
8, will be displayed in the meter
cluster.
To return to normal D position
driving, the “+” paddle shift switch
must be held down for a period of
time.

146
2-1. Driving procedures
IS F_U■
Shift ranges and their functions
*: “D” is also displayed to indicate the shift position.
A lower shift range will provide greater engine braking force than a higher shift
range.
Meter cluster dis-
play*Function
8Gears between 1 and 8 are automatically selected
according to vehicle speed and driving conditions
7Gears between 1 and 7 are automatically selected
according to vehicle speed and driving conditions
6Gears between 1 and 6 are automatically selected
according to vehicle speed and driving conditions
5Gears between 1 and 5 are automatically selected
according to vehicle speed and driving conditions
4Gears between 1 and 4 are automatically selected
according to vehicle speed and driving conditions
3Gears between 1 and 3 are automatically selected
according to vehicle speed and driving conditions
2Gears between 1 and 2 are automatically selected
according to vehicle speed and driving conditions
1The gear is set at 1

147
2-1. Driving procedures
2
When driving
IS F_U
Selecting gears in the M positionTo enter M mode, shift the shift lever to the M position. Gears can then be
selected by operating the shift lever or paddle shift switches, allowing you
to drive in the gear of your choosing. Upshifting
Downshifting
The gear changes once every time
the shift lever or paddle shift switch
is operated.
The selected gear, from 1 to 8, will
be displayed in the meter cluster.
When in the M position, the gear will not change unless the shift lever or
paddle shift switches are operated.
However, even when in the M position, the gears will be automatically
changed in the following situations:
● When vehicle speed drops (downshift only).
● When the automatic transmission fluid or engine coolant temperature
is low.

148
2-1. Driving procedures
IS F_U■

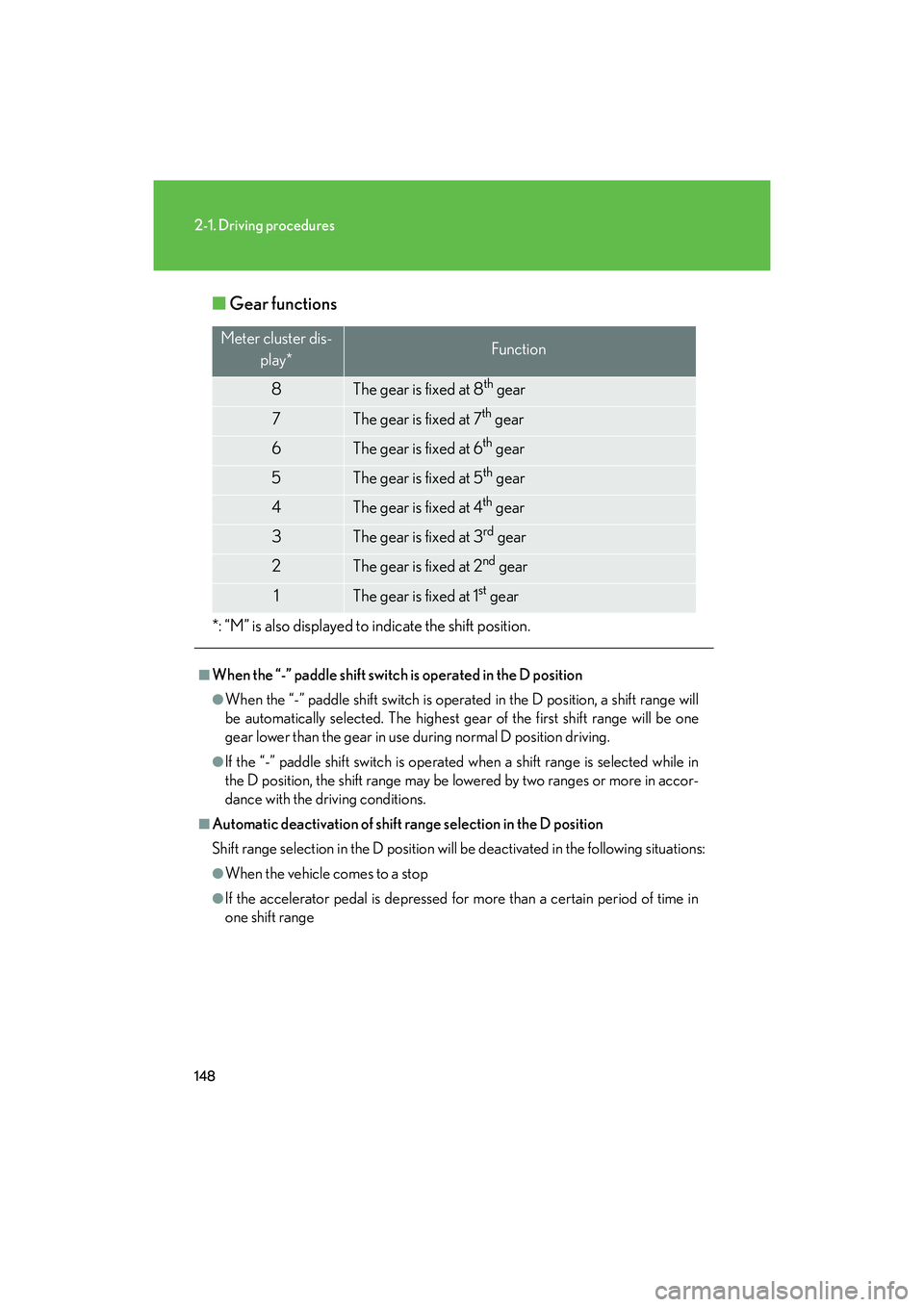

Gear functions
*: “M” is also displayed to indicate the shift position.
■When the “-” paddle shift switch is operated in the D position
●When the “-” paddle shift switch is oper ated in the D position, a shift range will
be automatically selected. The highest gear of the first shift range will be one
gear lower than the gear in use during normal D position driving.
●If the “-” paddle shift switch is operated when a shift range is selected while in
the D position, the shift range may be lowered by two ranges or more in accor-
dance with the driving conditions.
■Automatic deactivation of shift range selection in the D position
Shift range selection in the D position will be deactivated in the following situations:
●When the vehicle comes to a stop
●If the accelerator pedal is depressed for more than a certain period of time in
one shift range
Meter cluster dis-
play*Function
8The gear is fixed at 8th gear
7The gear is fixed at 7th gear
6The gear is fixed at 6th gear
5The gear is fixed at 5th gear
4The gear is fixed at 4th gear
3The gear is fixed at 3rd gear
2The gear is fixed at 2nd gear
1The gear is fixed at 1st gear

150
2-1. Driving procedures
IS F_U
■Automatic gear selection when the vehicle is stopped
●When the vehicle comes to a stop, the transmission will automatically downshift
to allow you to start off in 1st gear.
●When the vehicle is idling at high rpm in order to warm up, and the vehicle is on
a slippery road, the transmission will automatically shift to 2nd gear for stopping
and starting off.
■If the automatic transmission fluid te mperature warning message is displayed
■AI-SHIFT
The AI-SHIFT automatically selects the suitable gear according to driver perfor-
mance and driving conditions.
The AI-SHIFT automatically operates when the shift lever is in the D position. How-
ever, operating the “-” paddle shift switch will restrict the function’s operation. (Shift-
ing the shift lever to the M position cancels the function.)
CAUTION
■When driving on slippery road surfaces
Be careful of downshifting and sudden acceleration, as this could result in the vehi-
cle skidding to the side or spinning.
If the automatic transmission fluid tempera-
ture warning message is displayed while driv-
ing, make sure you return to normal D
position driving and reduce speed by easing
off the accelerator pedal. Stop the vehicle in a
safe place, shift the shift lever to the P position
and let the engine idle until the warning mes-
sage goes out.
When the warning message goes out, the
vehicle can be driven again.
If the warning message does not go out after
waiting a while, have your vehicle inspected
by your Lexus dealer.
