remote start Lexus IS F 2014 User Guide

367
3-7. Other interior features
3
Interior features
IS F_U■
Programming a Rolling Code sy stem (for U.S.A. owners)
If your device is Rolling Code equipped, follow the steps under the
heading “Programming the HomeLink
” before proceeding with the
steps listed below.
Locate the learn button on the ceiling mounted garage door
opener motor. The exact location and color of the button may
vary by brand of garage door opener motor.
Refer to the operation manual supplied with the garage door opener
motor for the location of the learn button.
Press the learn button.
Following this step, you have 30 seconds in which to initiate step 3
below.
Press and hold the vehicle's programmed HomeLink button for
2 seconds and release it. Repeat this step once again. The garage
door may open.
If the garage door opens, the programming process is complete. If the
door does not open, press and release the button a third time. This third
press and release will complete the programming process by opening
the garage door.
The ceiling mounted garage door op ener motor should now recognize
the HomeLink
 signal and operate the garage door.
Repeat the steps above to program another rolling code system
for any of the remaining HomeLink buttons.
■ Programming an entry gate (for U.S.A. owners)/Programming all
devices in the Canadian market
Place your transmit ter 1 to 3 in. (25 to 75 mm) away from the sur-
face of the HomeLink
.
Keep the HomeLink indicator light in view while programming.
Press and hold the selected HomeLink button.
Repeatedly press and release (cycle) the device’s remote control
button for two seconds each until step 4 is complete.
When the indicator light on the HomeLink
 compatible trans-
ceiver starts to flash rapidly, release the buttons.
STEP1
STEP2
STEP3
STEP4
STEP1
STEP2
STEP3
STEP4

437
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_U
■If the electronic key battery is discharged
The following symptoms may occur.
●The smart access system with push-button start and wireless remote control will
not function properly.
●The operational range is reduced.
■Use a CR1632 lithium battery
●Batteries can be purchased at your Lexus dealer, jewelers, or camera stores.
●Replace only with the same or equivalent type recommended by a Lexus dealer.
●Dispose of used batteries according to the local laws.
■When the card key battery needs to be replaced (Canada only)
The battery for the card key is available only at Lexus dealers. Your Lexus dealer
can replace the battery for you.
CAUTION
■Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking. Keep
away from children. Failure to do so could result in death or serious injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents.
●Always work with dry hands.
Moisture may cause the battery to rust.
●Do not touch or move any other components inside the remote control.
●Do not bend either of the battery terminals.

5
When trouble arises
505
5-2. Steps to take in an emergency
IS F_U
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk and key linked functions
Use the mechanical key built in to the electronic keys to operate the
doors. (→P. 2 9 )
Doors Remove the cover on the driver’s
door handle.
Locks all the doors
Closes the windows/moon roof
(turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows/moon roof
(turn and hold)
If communication between the electronic key and vehicle is interrupted
(→ P. 36) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors and trunk can be
opened or the engine can be started by following the procedure below.
STEP1
STEP2

544
IS F_U

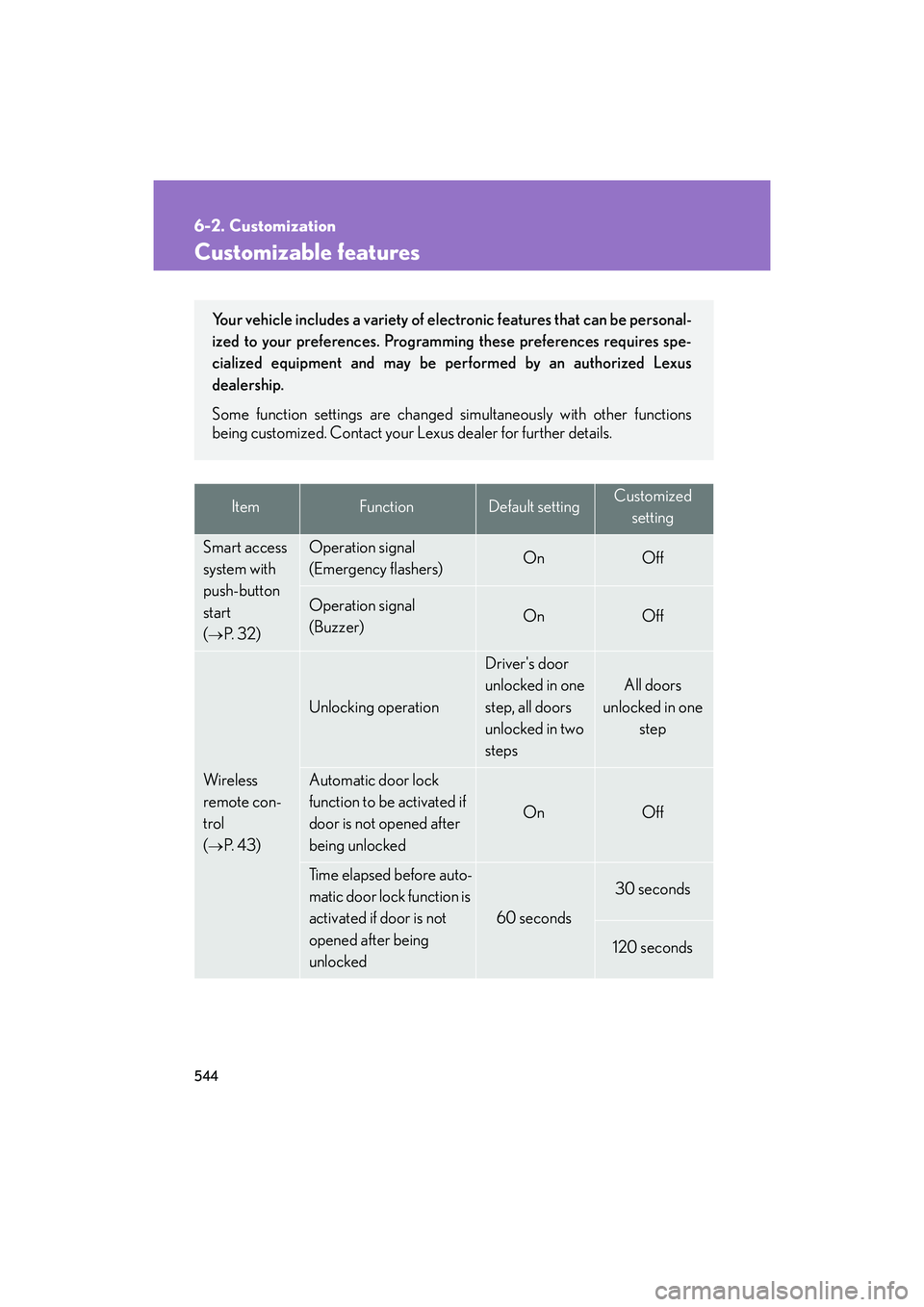

6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Smart access
system with
push-button
start
(
→P. 3 2 )
Operation signal
(Emergency flashers)OnOff
Operation signal
(Buzzer)OnOff
Wi re le ss
remote con-
trol
(
→P. 4 3 )
Unlocking operation
Driver's door
unlocked in one
step, all doors
unlocked in two
steps
All doors
unlocked in one step
Automatic door lock
function to be activated if
door is not opened after
being unlocked
OnOff
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds
30 seconds
120 seconds
Your vehicle includes a variety of electr onic features that can be personal-
ized to your preferences. Programming these preferences requires spe-
cialized equipment and may be performed by an authorized Lexus
dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.

574
Alphabetical index
IS F_U
HeatersSeat heaters.......................................... 354
Side mirrors .......................................... 232
Hill-start assist control ......................... 201
Hood ......................................................... 400
Hooks
Cargo ...................................................... 362
Coat .........................................................359
Shopping bag...................................... 362
Horn ............................................................ 153
I/M test ......................................................396
Identification Engine ...................................................... 519
Vehicle ..................................................... 519
Ignition switch.......................................... 138
Illuminated entry system ....................334
Indicator lights......................................... 158
Initialization Items to initialize ................................. 549
Inside rear view mirror .......................... 74
Interior lights Interior lights......................................... 334
Switch ...................................................... 336
Wattage..................................................528
Jack Positioning a floor jack..................... 401
Vehicle-equipped jack ................... 493
Jack handle ..............................................493 Keyless entry ............................................. 43
Keys
Electronic key .........................................28
Engine switch ........................................ 138
If the electronic key does not operate properly............................505
If you lose your keys ........................ 504
Key number..............................................28
Keyless entry............................................ 43
Keys..............................................................28
Mechanical key ...................................... 29
Wireless remote control key...........43
Lexus Enform*
Light bulbs Replacing .............................................. 454
Wattage ................................................. 528
Lights
Door courtesy lights ........................ 334
Emergency flasher switch............. 460
Fog light switch .................................... 170
Hazard light switch .......................... 460
Headlights switch................................ 166
Interior light switch ........................... 336
Outer foot lights................................. 334
Personal light switch ........................ 336
Replacing light bulbs ....................... 454
Shift lever light..................................... 334
Turn signal lever.....................................151
Vanity lights.......................................... 346
Wattage ................................................. 528
Load capacity........................................... 217
I
J
K
L
