447
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_U■
Driver’s side instrument panel
FuseAmpereCircuit
1FR P/SEAT LH30 APo w e r s e a t
2A/C7. 5 AAir conditioning system
3MIR HTR15 AOutside rear view mirror defoggers
4TV NO. 110 ADisplay
5FUEL OPEN10 AFuel filler door opener
6TV NO. 27. 5 A
7PSB30 APre-collision seat belt
8S/ROOF25 AMoon roof
9TA I L10 ATail lights, license plate lights, rear side
marker lights
10PA N E L7. 5 A
Switch illumination, air conditioning
system, display, cigarette lighter illumi-
nation, shift lever light, instrument
panel lights
11RR FOG7. 5 A
12ECU-IG LH10 A
Cruise control, air conditioning sys-
tem, electric power steering, shift lock
system, moon roof, tire inflation pres-
sure warning system
Page 483 of 586

482
5-2. Steps to take in an emergency
IS F_U

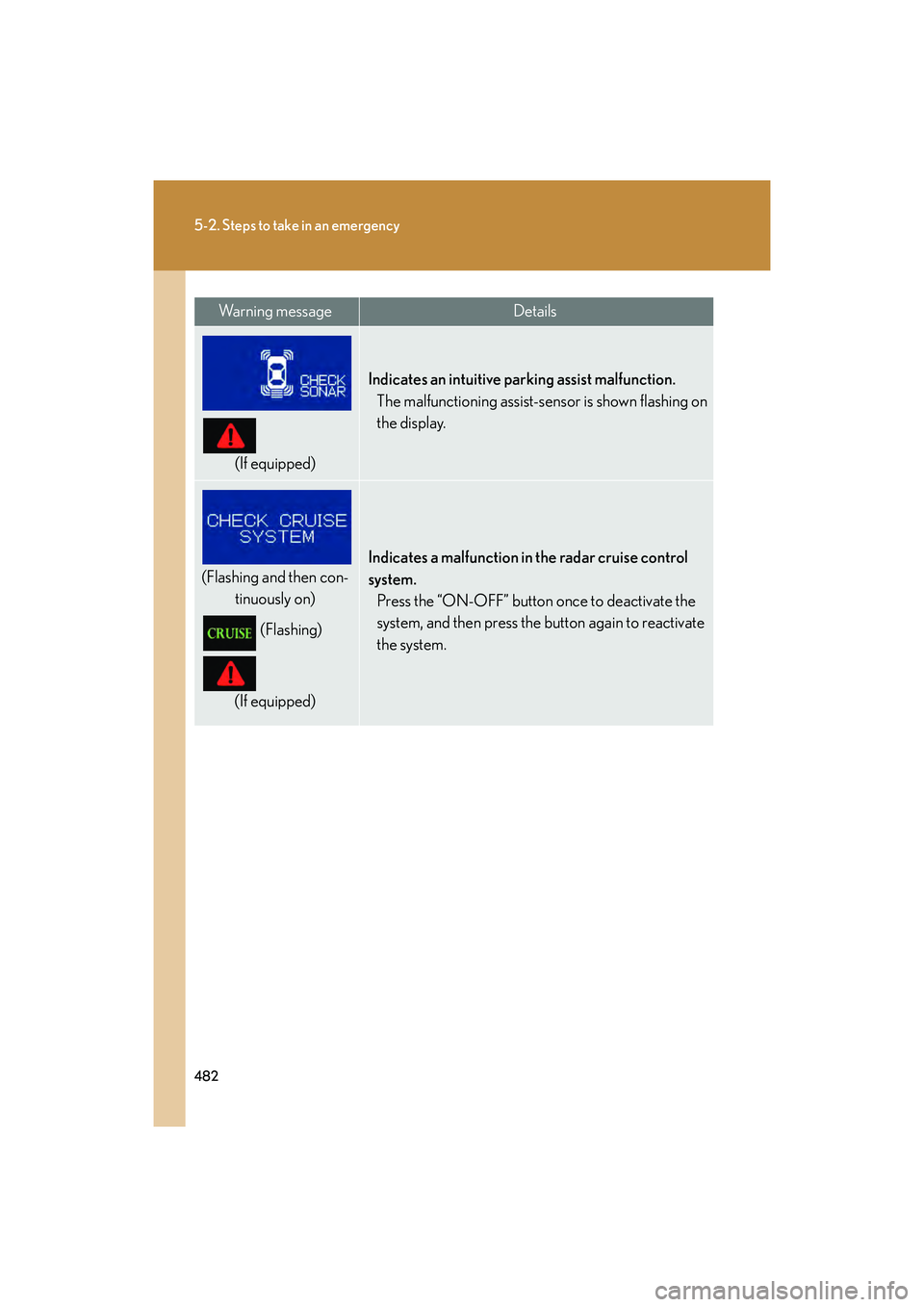

(If equipped)
Indicates an intuitive parking assist malfunction.The malfunctioning assist-sensor is shown flashing on
the display.
(Flashing and then con- tinuously on)
(Flashing)
(If equipped)
Indicates a malfunction in the radar cruise control
system. Press the “ON-OFF” button once to deactivate the
system, and then press the button again to reactivate
the system.
Wa r n i n g m e s s a g eDetails
Page 488 of 586

5
When trouble arises
487
5-2. Steps to take in an emergency
IS F_U
(Flashing and then con-tinuously on)
(Flashing)
(If equipped)Indicates that the radar
cruise control sensor is
dirty or covered with ice.
Clean the sensor.
(Flashing and then con- tinuously on)
(Flashing)
(If equipped)Indicates that the radar
cruise control system is
unable to judge vehicle-
to-vehicle distance.
• Switch the driving mode to either the normal or
“Sport” mode.
• If the windshield wipers are on, turn them off or
set them to either the
intermittent or the slow
mode.
(Flashing)
(If equipped)
Indicates that your vehi-
cle is nearing the vehicle
ahead (in radar cruise
mode).
Slow the vehicle by apply-
ing the brakes.
Wa r n i n g m e s s a g eDetailsCorrection procedure
Page 489 of 586

488
5-2. Steps to take in an emergency
IS F_U
*: Refer to the separate “Scheduled Maintenance” or “Owner’s Manual Supple-ment” for the maintenance interval applicable to your vehicle.
(Flashing
quickly)
(If equipped)
Indicates that there is a
high possibility of a fron-
tal collision, or that the
pre-collision braking
function is operating.
Slow the vehicle by apply-
ing the brakes.
■Warning light display in dynamic radar cruise mode (if equipped)
In the following cases, the warning light may not be displayed even if vehicle-to-
vehicle distance decreases.
●When your vehicle and the vehicle ahead are traveling at the same speed or the
vehicle ahead is traveling more quickly than your vehicle
●When the vehicle ahead is traveling at a very low speed
●Immediately after cruise control speed is set
●At the instant the accelerator pedal is depressed
Wa r n i n g m e s s a g eDetailsCorrection procedure
Page 501 of 586

500
5-2. Steps to take in an emergency
IS F_U

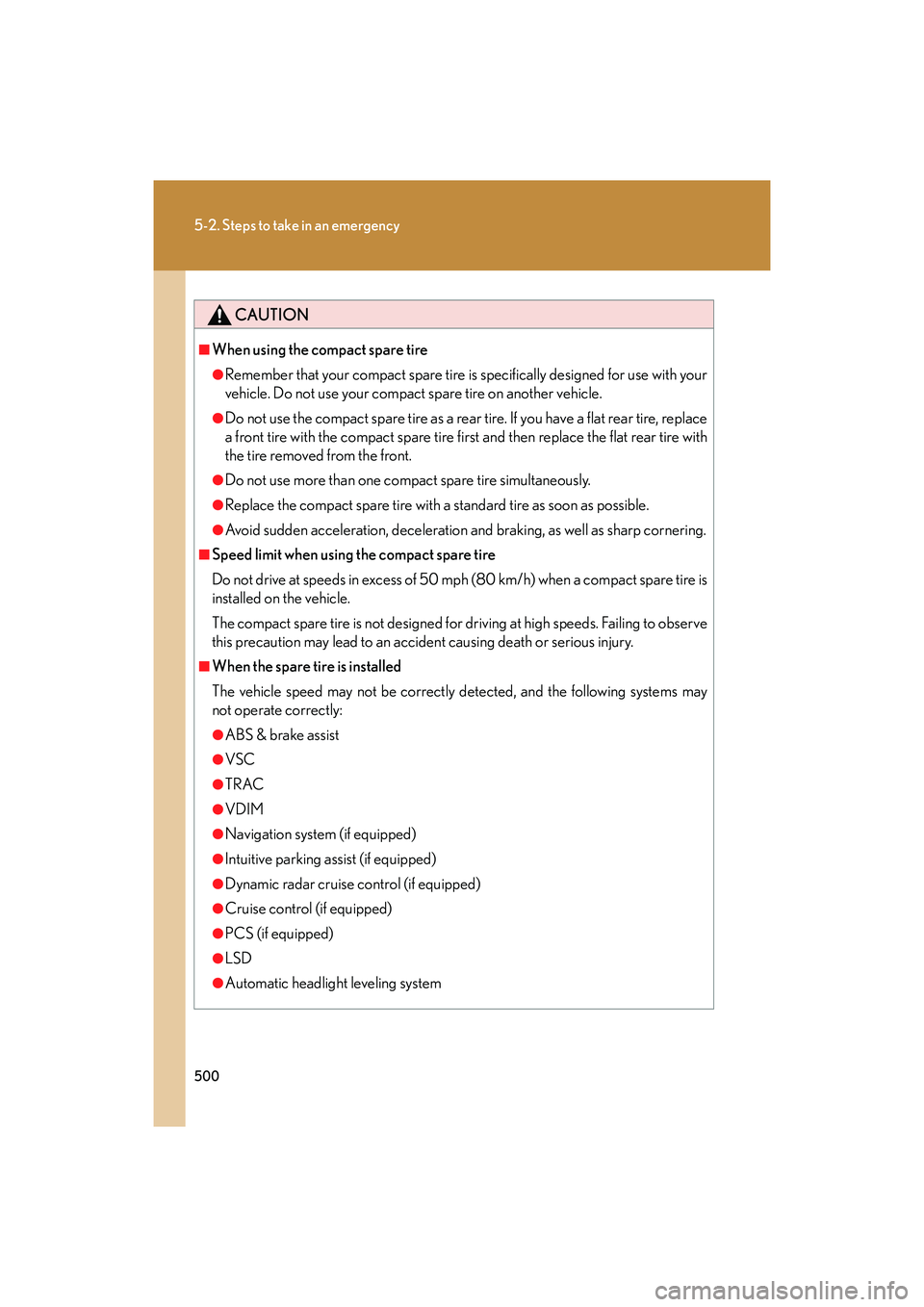

CAUTION
■When using the compact spare tire
●Remember that your compact spare tire is specifically designed for use with your
vehicle. Do not use your compact spare tire on another vehicle.
●Do not use the compact spare tire as a rear tire. If you have a flat rear tire, replace
a front tire with the compact spare tire first and then replace the flat rear tire with
the tire removed from the front.
●Do not use more than one compact spare tire simultaneously.
●Replace the compact spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, deceleration and braking, as well as sharp cornering.
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to observe
this precaution may lead to an accident causing death or serious injury.
■When the spare tire is installed
The vehicle speed may not be correctly detected, and the following systems may
not operate correctly:
●ABS & brake assist
●VSC
●TRAC
●VDIM
●Navigation system (if equipped)
●Intuitive parking assist (if equipped)
●Dynamic radar cruise control (if equipped)
●Cruise control (if equipped)
●PCS (if equipped)
●LSD
●Automatic headlight leveling system
Page 572 of 586

571
Alphabetical index
IS F_U
BrakeFluid .............................................................. 411
Parking brake ........................................ 152
Brake assist ............................................... 201
Care
Exterior ................................................... 384
Interior.....................................................388
Seat belts ............................................... 389
Cargo capacity ....................................... 214
Cargo hooks ...........................................362
CD changer* ..........................................245
CD player* ..............................................245
Chains......................................................... 218
Child restraint system Booster seats, definition.....................113
Booster seats, installation ..................119
Convertible seats, definition ............113
Convertible seats, installation .........119
Front passenger occupant
classification system ...................... 108
Infant seats, definition ..........................113
Infant seats, installation........................119
Installing CRS with lower
anchorages .......................................... 118
Installing CRS with seat belts ..........119
Installing CRS with top straps ....... 123
Child safety
Airbag precautions ............................103
Battery precautions................. 415, 510
Child restraint system .........................113
Child-protectors.................................... 47
How your child should wear the seat belt .......................................... 68 Installing child restraints..................... 117
Moon roof precautions......................84
Power window lock switch .............. 78
Power window precautions ........... 80
Removed electronic key battery
precautions........................................ 437
Seat belt comfort guide .....................66
Seat belt extender precautions...... 70
Seat belt precautions ..........................69
Seat heater precautions................. 355
Trunk precautions................................. 53
Child-protectors ...................................... 47
Cigarette lighter....................................352
Cleaning
Exterior................................................... 384
Interior .................................................... 388
Seat belts ............................................... 389
Clock ......................................................... 347
Coat hooks ..............................................359
Compass .................................................. 372
Condenser ................................................. 411
Console box ...........................................340
Cooling system Engine overheating.............................. 511
Cornering assist sensors .................... 195
Cruise control Cruise control........................................ 177
Dynamic radar cruise control......... 181
Cup holders ............................................ 342
Curtain shield airbags............................ 96
Customizable features .......................544
C
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
Page 577 of 586

576
Alphabetical index
IS F_U
Radar cruise control ...............................181
Radiator ....................................................... 411
Radio* ........................................................ 237
RDS* .......................................................... 239
Rear turn signal lightsReplacing light bulbs........................ 454
Wattage..................................................528
Rear view mirror
Compass ............................................... 372
Rear window defogger* .................... 232
Replacing Electronic key battery...................... 436
Fuses ........................................................438
Light bulbs............................................. 454
Reporting safety defects for U.S. owners ..........................................552
Safety connect ....................................... 376
Seat belts Adjusting the seat belt........................ 66
Automatic locking retractor............ 67
Child restraint system
installation ..............................................117
Cleaning and maintaining
the seat belts .....................................389
Emergency locking retractor ......... 67
How to wear your seat belt............. 65
How your child should wear
the seat belt .......................................... 68
Pregnant women,
proper seat belt use......................... 67
Reminder light ......................................472
Seat belt extenders .............................. 68
Seat belt pretensioners...................... 66 Seat heaters ............................................ 354
Seat position memory............................ 60
Seating capacity...................................... 217
Seats
Adjustment .............................................. 55
Adjustment precautions ................... 55
Child seats/child restraint system installation .............................. 117
Cleaning ................................................388
Driver’s seat position memory ...... 56
Front passenger seat position memory ................................................. 60
Head restraints ....................................... 62
Properly sitting in the seat.................94
Seat heaters ......................................... 354
Service reminder indicators ............ 158
Shift lever If the shift lever cannot be
shifted from P................................... 503
Transmission.......................................... 142
Shift lever light ....................................... 334
Shift lock system....................................503
Shopping bag hooks ........................... 362
Side airbags ............................................... 96
Side marker lights Switch........................................................ 166
Side mirrors Adjusting and folding .......................... 76
Mirror position memory ................... 56
Smart access system with
push-button start Entry function .......................................... 32
Starting the engine.............................. 138
“SOS” button.......................................... 376R
S
Page 580 of 586

579
Alphabetical index
IS F_U
Warning lightsAnti-lock brake system .................. 470
Brake assist system .......................... 470
Brake system ....................................... 469
Charging system ............................... 470
Electric power steering system
warning light ..................................... 470
Low fuel level........................................472
Malfunction indicator lamp .......... 470
Master warning light .........................472
Open door ............................................472
Pre-collision system ......................... 470
Pretensioners ...................................... 470
Seat belt reminder light ...................472
SRS airbags .......................................... 470
Tire pressure warning
light.........................................................472 Warning messages
Automatic transmission
fluid ....................................................... 483
Dynamic radar
cruise control.........................481, 483
Engine oil level ................................... 483
Engine oil maintenance ................. 483
Engine oil pressure .......................... 480
Engine oil temperature .................. 480
Headlight................................................. 481
Hood ....................................................... 483
Intuitive parking assist ...........481, 483
Moon roof ............................................ 483
Open door ........................................... 483
Parking brake ..................................... 483
Pre-collision system...............481, 483
Smart access system with push-button start ........................... 489
Steering lock.......................................... 481
Trunk ....................................................... 483
Washer fluid ........................................ 483
Washer
Checking ................................................ 416
Preparing and checking before winter ..................................... 218
Switch.........................................................172
Washing and waxing ...........................384
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
