steering Lexus IS F 2014 Owner's Guide

70
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_U
CAUTION
■Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoul-
der. The belt should be kept away from your neck, but not falling off your shoulder.
Failure to do so could reduce the amount of protection in an accident and cause
death or serious injuries in the event of a sudden stop, sudden swerve or collision.
(→ P. 6 6 )
■Seat belt damage and wear
Inappropriate handling of the pretensioner may prevent it from operating properly
resulting in death or serious injury.
●Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed
in the door.
●Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts.
Do not use a damaged seat belt until it is replaced. Damaged seat belts cannot
protect an occupant from death or serious injury.
●Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus
dealer.
●Replace the seat assembly, including the belts, if your vehicle has been involved in
a serious accident, even if there's no obvious damage.
●Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer.
■Using a seat belt extender
●Do not wear the seat belt extender if you can fasten the seat belt without the
extender.
●Do not use the seat belt extender when installing a child restraint system because
the belt will not securely hold the child restraint system, increasing the risk of
death or serious injury in the event of an accident.
●The personalized extender may not be safe on another vehicle, when used by
another person, or at a different seatin g position other than the one originally
intended.

71
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_U
NOTICE
■When using a seat belt extender
When releasing the seat belt, press on the buckle release button on the extender,
not on the seat belt.
This helps prevent damage to the vehicle interior and the extender itself.

72
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_U
Steering wheel
Auto tilt awayWhen the “ENGINE START
STOP” switch is turned OFF, the
steering wheel returns to its
stowed position by moving up and
away to enable easier driver entry
and exit.
Switching to ACCESSORY or
IGNITION ON mode will return
the steering wheel to the original
position.
The steering wheel can be adjusted to a comfortable position.
Up
Down
Away from the driver
Toward the driver

73
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_U
■The steering wheel can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■Automatic adjustment of the steering position
A desired steering position can be entered to memory and recalled automatically
by the driving position memory. (→P. 5 6 )
■Customization that can be configured at Lexus dealer
It is possible to deactivate the auto tilt-away function.
(Customizable features →P. 544)
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.

74
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_U
Anti-glare inside rear view mirror
In automatic mode, sensors are used to detect the headlights of vehicles
behind and automatically reduce the reflected light.
Without compassTurns automatic mode on
Turns automatic mode off
The indicator comes on when
automatic mode is turned on.
The anti-glare mirror default
mode is automatic. The anti-
glare mirror is automatically set
to automatic whenever the
“ENGINE START STOP” switch
is turned IGNITION ON mode.
With compassTurns automatic mode on/off
The indicator comes on when
automatic mode is turned on.
The anti-glare mirror default
mode is automatic. The anti-
glare mirror is automatically set
to automatic whenever the
“ENGINE START STOP” switch
is turned IGNITION ON mode.

75
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_U
Adjusting the height of rear view mirrorAdjust the height of the rear view
mirror by moving it up and down.
■To prevent sensor error
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, resulting in death
or serious injury.
To ensure that the sensors operate properly,
do not touch or cover them.

76
1-3. Adjustable components (seats, mirrors, steering wheel)
IS F_U
Outside rear view mirrors
■The mirrors can be operated when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION ON mode.
■When the mirrors are fogged up
Turn on the mirror defoggers to defog the mirrors. (→P. 2 3 2 )
■Folding back the mirrors
■One-touch adjustment of the mirror angle
A desired mirror face angle can be entered to memory and adjusted with the touch
of a button. (→ P. 5 6 )
Mirror angle can be adjusted using the switch when the “ENGINE START
STOP” switch is in ACCESSORY or IGNITION ON mode.
Select a mirror to adjust
(“L”: left or “R”: right)
Adjust the mirror up, down,
in, or out using the switch
Push back in the direction of the vehicle's
rear.

77
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS F_U
■Linked mirror function when reversing
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between “L” and
“R”).
■Auto anti-glare function
When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. (→P. 74 )
CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded back.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and burn
you.

94
IS F_U
1-7. Safety information

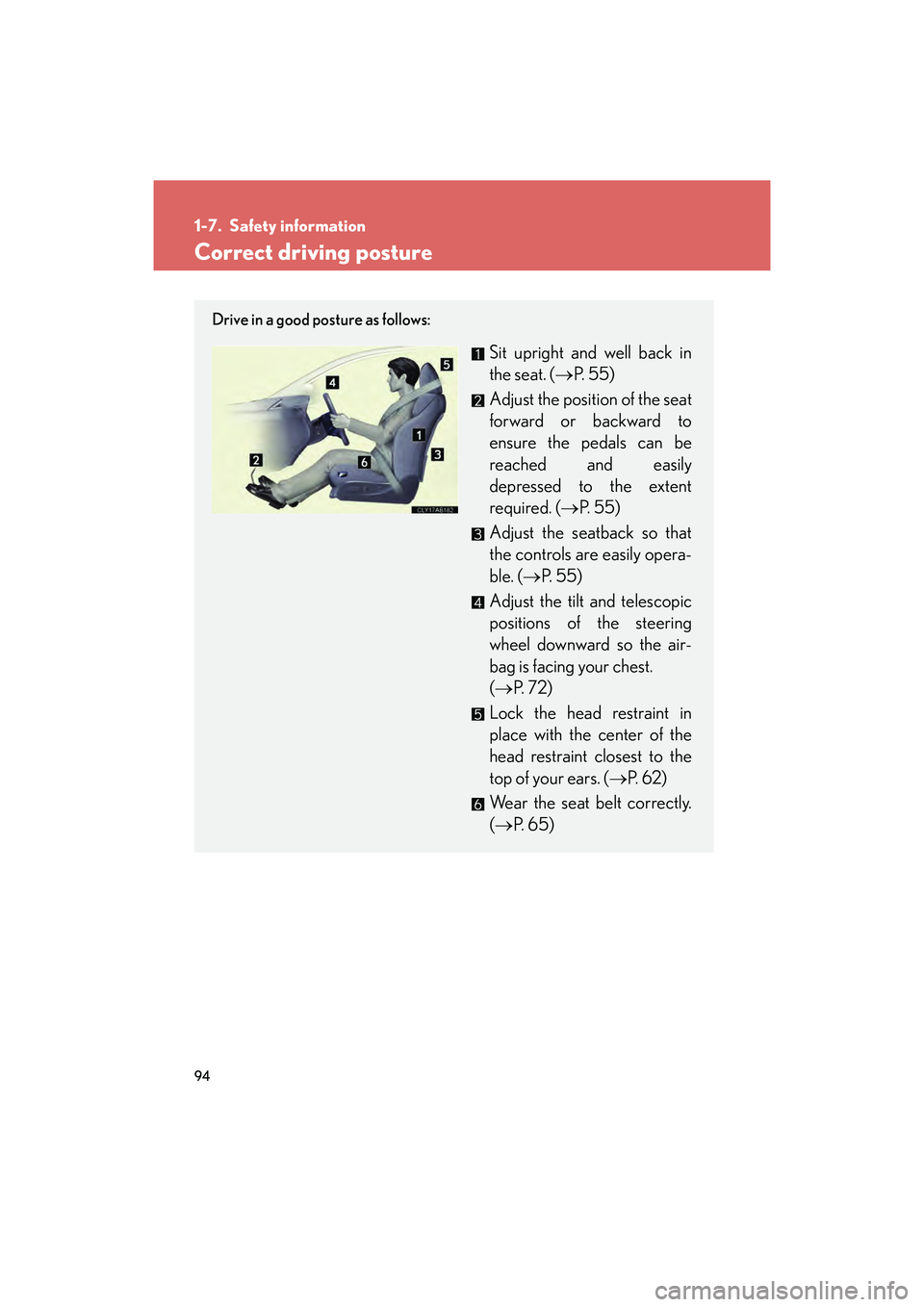

Correct driving posture
Drive in a good posture as follows:
Sit upright and well back in
the seat. (→P. 5 5 )
Adjust the position of the seat
forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. ( →P. 5 5 )
Adjust the seatback so that
the controls are easily opera-
ble. ( →P. 5 5 )
Adjust the tilt and telescopic
positions of the steering
wheel downward so the air-
bag is facing your chest.
(→ P. 7 2 )
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. ( →P. 6 2 )
Wear the seat belt correctly.
(→ P. 6 5 )

98
1-7. Safety information
IS F_UYour vehicle is equipped with ADVANCED AIRBAGS designed based
on the US motor vehicle safety standards (FMVSS208). The airbag sen-
sor assembly (ECU) controls airbag deployment based on information
obtained from the sensors etc. show
n in the system components diagram
above. This information includes crash severity and occupant informa-
tion. As the airbags deploy, a chemical reaction in the inflators quickly fills
the airbags with non-toxic gas to he lp restrain the motion of the occu-
pants.
■SRS warning light
This warning light system monitors the airbag sensor assembly, front airbag sensors,
side and curtain shield airbag sensor assemblies, curtain shield airbag sensor
assemblies, driver's seat position sensor, driver's seat belt buckle switch, front pas-
senger occupant classification system (ECU and sensors), “AIR BAG ON” indica-
tor light, “AIR BAG OFF” indicator light, front passenger’s seat belt buckle switch,
seat belt pretensioner assemblies, airbags, interconnecting wiring and power
sources. ( →P. 4 7 0 )
■If the SRS airbags deploy (inflate)
●Bruising and slight abrasions may result from contact with a deploying (inflating)
SRS airbag.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel, airbag cover and inflator) as well as
the front seats, and parts of the front pillar, rear pillar and roof side rail, may be
hot for several minutes. The airbag itself may also be hot.
●The windshield may crack.
●For Safety Connect subscribers, if the SRS airbags deploy or in the event of a
severe rear-end collision, the system is designed to send an emergency call to
the response center, notifying them of the vehicle’s location (without needing to
push the “SOS” button) and an agent will attempt to speak with the occupants
to ascertain the level of emergency and assistance required. If the occupants
are unable to communicate, the agent automatically treats the call as an emer-
gency and helps to dispatch the necessary emergency services. ( →P. 3 76 )
