Maintenance and care
IS F_U
4-2. Maintenance
Maintenance requirements
■Repair and replacement
It is recommended that genuine Lexus parts be used for repair to ensure perfor-
mance of each system. If non-Lexus parts are used in replacement or if a repair
shop other than a Lexus dealer performs repairs, confirm the warranty coverage.
To ensure safe and economical driving, day-to-day care and regular main-
tenance is essential. It is the owner’s responsibility to perform regular
checks. Lexus recommends the following maintenance.
■General maintenance
General maintenance should be performed on a daily basis. This
can be done by yourself or by a Lexus dealer.
■ Scheduled maintenance
Scheduled maintenance should be performed at specified intervals
according to the maintenance schedule.
For details about maintenance items and schedules, refer to the
“Warranty and Services Guide/Owner’s Manual Supplement/
Scheduled Maintenance”.
■Do-it-yourself maintenance
You can perform some maintenance procedures yourself.
Please be aware that do-it-yourself maintenance may affect war-
ranty coverage.
The use of Lexus Repair Manuals is recommended.
For details about warranty coverage, see the separate “Owner’s Guide”,
“Warranty and Services Guide”, “Owner’s Manual Supplement” or
“Warranty Booklet”.

425
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS F_U
■Tire pressure warning system certification
FCC ID: PAXPMV107J
FCC ID: HYQ13BCEFor vehicles sold in the U.S.A.
This device complies with part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment. For vehicles sold in Canada
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interfer-
ence that may cause undesired operation of the device.
L’utilisation de ce dispositif est autorisée seulement aux deux conditions suivantes:
(1) il ne doit pas produire de brouillage, et (2) l’utilisateur du dispositif doit être prêt
à accepter tout brouillage radioélectrique reçu, même si ce brouillage est
susceptible de compromettre le fonctionnement du dispositif.

5
When trouble arises
477
5-2. Steps to take in an emergency
IS F_U
CAUTION
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly when cold
and inflated to the inflation pressure recommended by the vehicle manufacturer on
the vehicle placard or tire inflation pressure label (tire and load information label).
(If your vehicle has tires of a different size than the size indicated on the vehicle
placard or tire inflation pressure label [tire and load information label], you should
determine the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire pressure
monitoring system (TPMS-tire pressure warning system) that illuminates a low tire
pressure telltale (tire pressure warning light) when one or more of your tires is sig-
nificantly under-inflated. Accordingly, when the low tire pressure telltale (tire pres-
sure warning light) illuminates, you should stop and check your tires as soon as
possible, and inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation
also reduces fuel efficiency and tire tread life, and may affect the vehicle's handling
and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a substitute for
proper tire maintenance, and it is the driver's responsibility to maintain correct tire
pressure, even if under-inflation has not reached the level to trigger illumination of
the TPMS low tire pressure telltale (tire pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning system)
malfunction indicator to indicate when the system is not operating properly. The
TPMS (tire pressure warning system) malfunction indicator is combined with the
low tire pressure telltale (tire pressure warning light). When the system detects a
malfunction, the telltale will flash for approximately one minute and then remain
continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illumi-
nated, the system may not be able to detect or signal low tire pressure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a variety of rea-
sons, including the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS (tire pressure warning system) from functioning
properly. Always check the TPMS (tire pressure warning system) malfunction tell-
tale after replacing one or more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS (tire pressure warning
system) to continue to function properly.

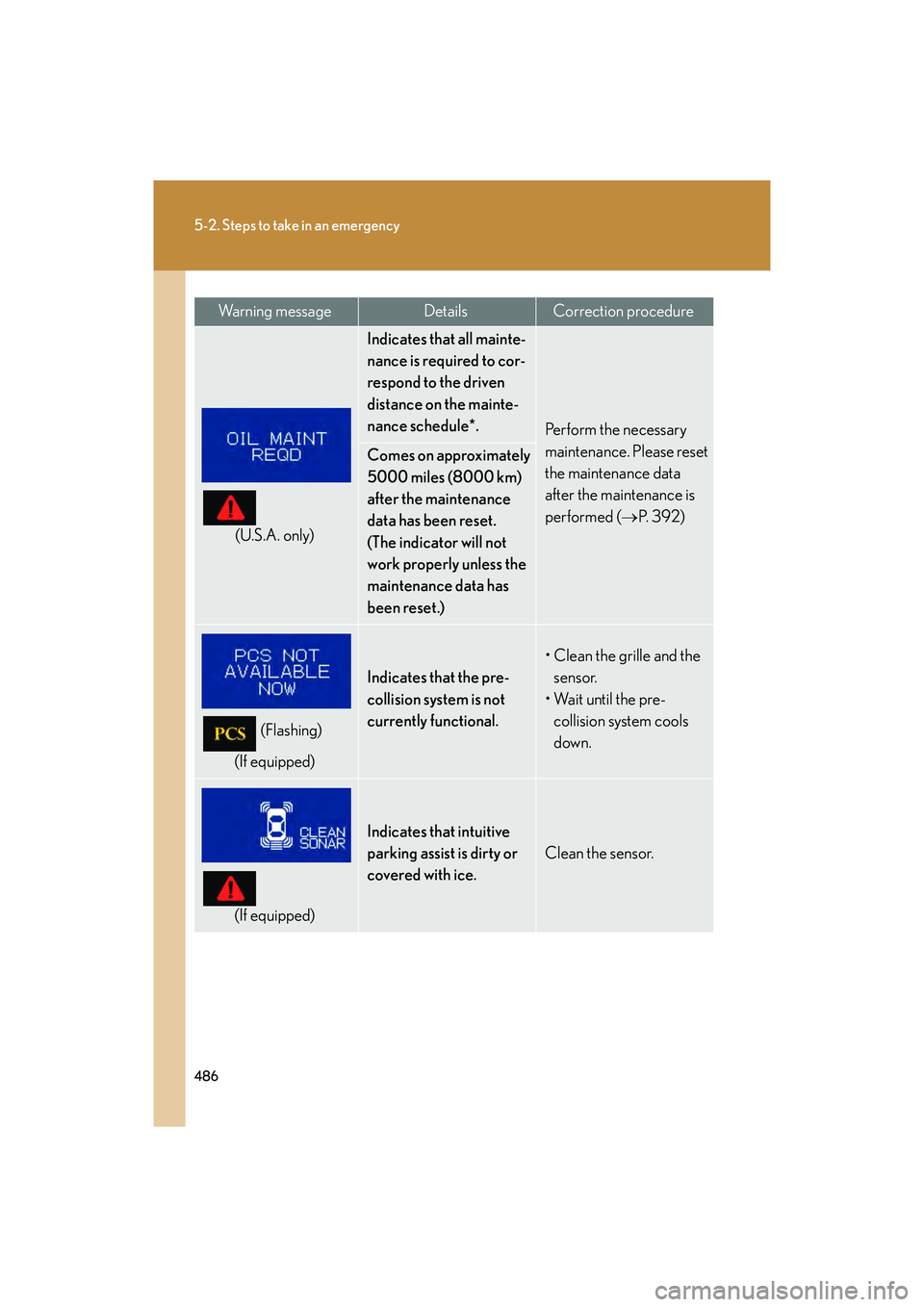

486
5-2. Steps to take in an emergency
IS F_U
(U.S.A. only)
Indicates that all mainte-
nance is required to cor-
respond to the driven
distance on the mainte-
nance schedule*.
Pe r f o r m t h e n e c e s s a r y
maintenance. Please reset
the maintenance data
after the maintenance is
performed (→P. 3 9 2 )
Comes on approximately
5000 miles (8000 km)
after the maintenance
data has been reset.
(The indicator will not
work properly unless the
maintenance data has
been reset.)
(Flashing)
(If equipped)
Indicates that the pre-
collision system is not
currently functional.
• Clean the grille and the sensor.
• Wait until the pre- collision system cools
down.
(If equipped)
Indicates that intuitive
parking assist is dirty or
covered with ice.
Clean the sensor.
Wa r n i n g m e s s a g eDetailsCorrection procedure

537
6-1. Specifications
6
Vehicle specifications
IS F_U■
Temperature A, B, C
The temperature grades are A (the highest), B, and C, representing
the tire's resistance to the generation of heat and its ability to dissipate
heat when tested under controlled conditions on a specified indoor
laboratory test wheel.
Sustained high temperature can cause the material of the tire to degenerate
and reduce tire life, and excessive temperature can lead to sudden tire fail-
ure.
The grade C corresponds to a level of performance which all passenger car
tires must meet under the Federal Motor Vehicle Safety Standard No. 109.
Grades B and A represent higher levels of performance on the laboratory
test wheel than the minimum required by law.
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in
combination, can cause heat buildup and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Recommended inflation
pressureCold tire inflation pressure recommended by a man-
ufacturer.
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of transmission, power
steering, power brakes, power windows, power seats,
radio and heater, to the extent that these items are
available as factory-installed equipment (whether
installed or not)

540
6-1. Specifications
IS F_U
CT
A pneumatic tire with an inverted flange tire and rim
system in which the rim is designed with rim flanges
pointed radially inward and the tire is designed to fit
on the underside of the rim in a manner that encloses
the rim flanges inside the air cavity of the tire
Extra load tire
A tire designed to operate at higher loads and at
higher inflation pressures than the corresponding
standard tire
GrooveThe space between two adjacent tread ribs
InnerlinerThe layer(s) forming the inside surface of a tubeless
tire that contains the inflating medium within the tire
Innerliner separationThe parting of the innerliner from cord material in the
carcass
Intended outboard side-
wall
(a) The sidewall that contains a whitewall, bears
white lettering, or bears manufacturer, brand,
and/or model name molding that is higher or
deeper than the same molding on the other side-
wall of the tire, or
(b) The outward facing sidewall of an asymmetrical
tire that has a particular side that must always
face outward when mounted on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as primarily
intended for use on lightweight trucks or multipur-
pose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry for a
given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum permissible
inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which a tire
may be inflated
Tire related termMeaning

541
6-1. Specifications
6
Vehicle specifications
IS F_U
Measuring rimThe rim on which a tire is fitted for physical dimension
requirements
Open spliceAny parting at any junction of tread, sidewall, or
innerliner that extends to cord material
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of the side-
walls of an inflated tire, including elevations due to
labeling, decorations, or protective bands or ribs
Passenger car tire
A tire intended for use on passenger cars, multipur-
pose passenger vehicles, and trucks, that have a
gross vehicle weight rating (GVWR) of 10,000 lb. or
less.
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adjacent
plies
Pneumatic tire
A mechanical device made of rubber, chemicals, fab-
ric and steel or other materials, that, when mounted
on an automotive wheel, provides the traction and
contains the gas or fluid that sustains the load
Radial ply tire
A pneumatic tire in which the ply cords that extend to
the beads are laid at substantially 90 degrees to the
centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and at
higher inflation pressures than the corresponding
standard tire
Section width
The linear distance between the exteriors of the side-
walls of an inflated tire, excluding elevations due to
labeling, decoration, or protective bands
Tire related termMeaning

559
7
IS F_U
For owners
ATTENTION
■Précautions concernant les coussins gonflables SRS
Respectez les précautions suivantes concernant les coussins gonflables.
Autrement, des blessures graves, voire mortelles, pourraient s’ensuivre.
●Le conducteur et les passagers du véhicule doivent porter correctement leur
ceinture de sécurité.
Les coussins gonflables SRS sont des dispositifs supplémentaires à utiliser avec
les ceintures de sécurité.
●Le coussin gonflable SRS conducteur se déploie avec une violence considérable,
qui peut être très dangereuse, voire mortelle, si le conducteur se trouve très près
du coussin gonflable. L’agence fédérale chargée de la sécurité routière aux
États-Unis (“NHTSA”) conseille:
La zone à risque du coussin gonflable conducteur se situant dans les premiers 2 à
3 in. (50 à 75 mm) de déploiement, vous disposez d'une marge de sécurité
confortable en vous plaçant à 10 in. (250 mm) de votre coussin gonflable
conducteur. Cette distance est à mesurer entre l’axe du volant et le sternum. Si
vous êtes assis à moins de 10 in. (250 mm), vous pouvez changer votre position
de conduite de plusieurs façons:
 Reculez votre siège le plus possible, de manière à pouvoir encore atteindreconfortablement les pédales.
 Inclinez légèrement le dossier du siège. Bien que les véhicules puissent être différents les uns des autres, la plupart
des conducteurs peuvent s’asseoir à une distance de 10 in. (250 mm), même
avec le siège conducteur complètement avancé, simplement en inclinant un
peu le dossier de siège. Si vous avez des difficultés à voir la route après avoir
incliné votre siège, utilisez un coussin ferme et antidérapant pour vous
rehausser ou, si votre véhicule est équipé du réglage en hauteur du siège,
remontez-le.
 Si votre volant est réglable, inclinez-le vers le bas. Cela a pour effet d’orienter le coussin gonflable en direction de votre poitrine plutôt que de votre tête et
de votre cou.
Réglez votre siège selon ces recommandations de la NHTSA, tout en conservant le
contrôle des pédales, du volant de direction et la vue des commandes du tableau
de bord.

563
7
IS F_U
For owners
ATTENTION
■Précautions concernant les coussins gonflables SRS
●Si vous avez des difficultés à respirer après le déploiement du coussin gonflable
SRS, ouvrez une porte ou une vitre pour faire entrer de l’air frais, ou bien
descendez du véhicule si cela ne présente pas de danger. Essuyez tout résidu
dès que possible afin d’éviter d’éventuelles irritations de la peau.
●Si les parties renfermant les coussins gonflables SRS, telles que la garniture du
moyeu de volant et la garniture de montant avant, apparaissent abîmées ou
craquelées, faites-les remplacer par votre concessionnaire Lexus.
■Modification et mise au rebut des éléments du système de coussins gonflables
SRS
Consultez impérativement votre concessionnaire Lexus avant de mettre votre
véhicule au rebut ou de procéder à l'une des modifications suivantes.
Le coussin gonflable SRS risque de ne pas fonctionner correctement ou de se
déclencher (déployer) accidentellement, ce qui pourrait risquer de vous tuer ou
blesser grièvement.
●Installation, dépose, démontage et réparation des coussins gonflables SRS
●Réparations, modifications, démontage ou remplacement du volant, du tableau
de bord, de la planche de bord, des sièges ou de leur garnissage, des montants
avant, latéraux et arrière ou des rails latéraux de toit.
●Réparation ou modification des ailes avant, du bouclier avant, ou des flancs de
l'habitacle
●Installation d'un chasse-neige, d'un treuil, etc. sur la calandre (pare-buffle, pare-
kangourou, etc.)
●Modification des suspensions du véhicule
●Installation d'appareils électroniques, tels qu'un radioémetteur/récepteur ou d'un
lecteur CD
●Aménagements du véhicule visant à permettre sa conduite par une personne
atteinte d'un handicap physique

581
IS F_U
What to do if...
What to do if...
A tire puncturesP. 4 9 3If you have a flat tire
The engine does not start
P. 5 0 2If the engine will not start
P. 8 8Engine immobilizer system
P. 5 0 8If the vehicle battery is discharged
The shift lever cannot be
moved out of PP. 5 0 3If the shift lever cannot be shifted
from P
The display on the engine cool-
ant temperature gauge flashes
Steam can be seen coming
from under the hood
P. 5 1 1If your vehicle overheats
The key is lostP. 5 0 4If you lose your keys
The battery runs outP. 5 0 8If the vehicle battery is discharged
The doors cannot be lockedP. 4 6Doors
The horn begins to soundP. 9 0Alarm
The vehicle is stuck in mud or
sandP. 5 1 4If the vehicle becomes stuck
