6-1. Specifications
IS F_U■
Engine number
The engine number is stamped on the engine block as shown.

521
6-1. Specifications
6
Vehicle specifications
IS F_U
Engine
Fuel
Model2UR-GSE
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70 × 3.52 in. (94.0 × 89.5 mm)
Displacement303.2 cu. in. (4969 cm3)
Drive belt tensionAutomatic adjustment
Fuel typeUnleaded gasoline only
Octane rating91 (Research octane number 96) or higher
Fuel tank capacity
(Reference)16.9 gal. (64 L, 14.0 Imp. gal.)

522
6-1. Specifications
IS F_U
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchanging.
Warm up and turn off the engine, wait more than 5 minutes, and check the oil
level on the dipstick.
■ Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 5W-30
SAE 5W-30 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 5W-30 is not available,
SAE 10W-30 oil may be used.
However, it should be replaced
with SAE 5W-30 at the next oil
change.
Oil capacity
(Drain and refill
 reference
*)
without filter8.7 qt. (8.2 L, 7.2 Imp. qt.)
with filter 9.8 qt. (9.3 L, 8.2 Imp. qt.)
Outside temperature

523
6-1. Specifications
6
Vehicle specifications
IS F_U
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows coldstartability. Oils with a lower value before the W allow for easier starting of
the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity (one with a higher
value) may be better suited if the vehicle is operated at high speeds, or
under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval Com-
mittee) Certification Mark is added to some oil containers to help you
select the oil you should use.
Cooling system
Capacity12.6 qt. (11.9 L, 10.5 Imp. qt.)
Coolant type
Use either of the following.
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-sili-cate, non-amine, non-nitrite, and non-borate cool-
ant with long-life hybrid organic acid technology
Do not use plain water alone.

524
6-1. Specifications
IS F_U
Ignition system
Electrical system
Differential
*: Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the
factory. Use Lexus approved “Toyota Genuine Differential Gear Oil” or an
equivalent oil of matching quality that satisfies the above specifications. Please
contact your Lexus dealer for further details.
Spark plug
Make
GapDENSO FK20HBR11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust gap when tuning the engine.
Battery
Open voltage* at
68 °F (20 °C):12.6  12.8 V Fully charged
12.2 
12.4 V Half charged
11.8 
12.0 V Discharged
(*: Voltage checked 20 minutes after
the engine and all the lights are turned
off)
Charging rates5 A max.
Oil capacity1.42 qt. (1.35 L, 1.19 Imp. qt.)
Oil type and viscosity*“Toyota Genuine Differential Gear Oil
LX 75W-85 GL-5” or equivalent

525
6-1. Specifications
6
Vehicle specifications
IS F_U

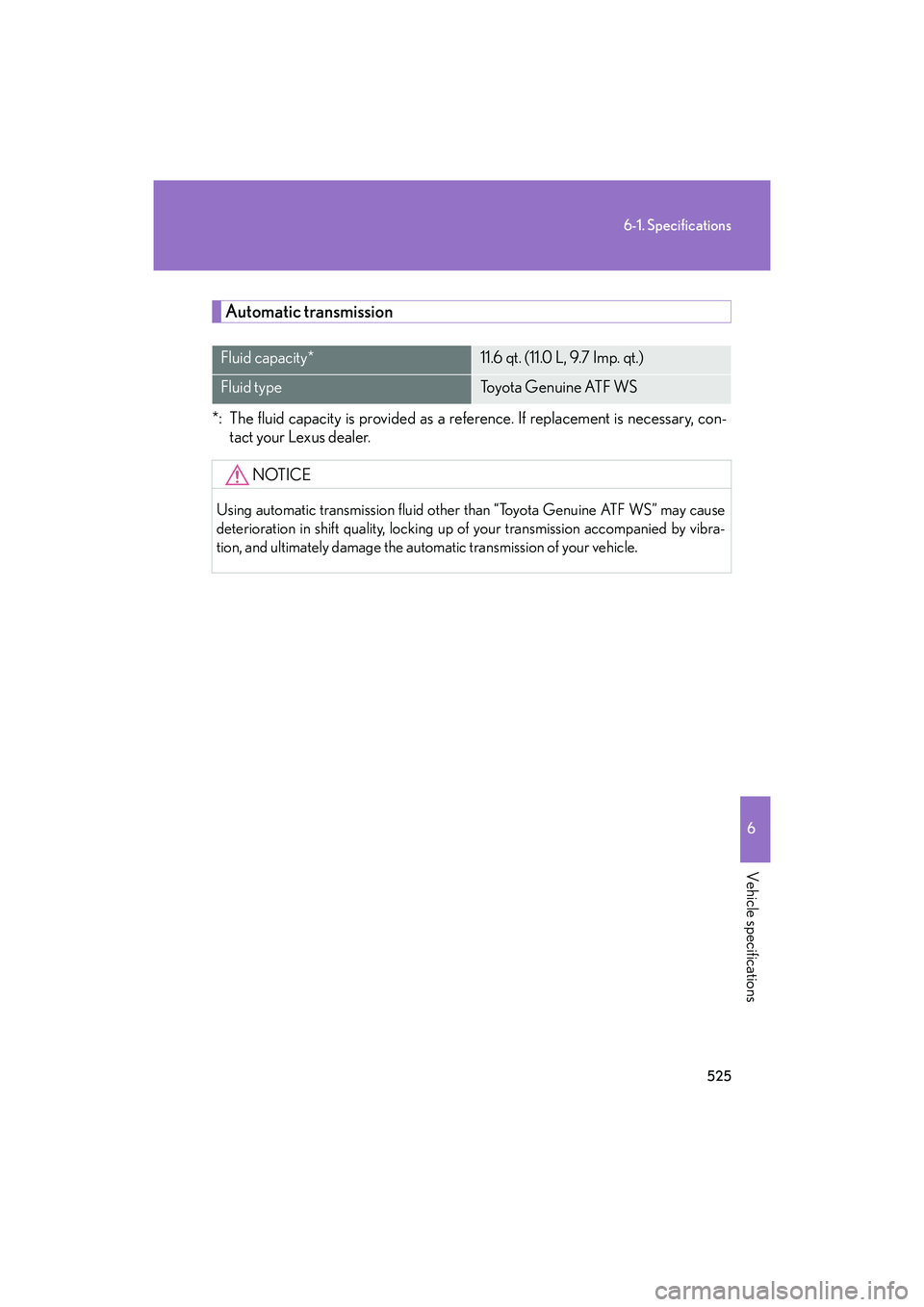

Automatic transmission
*: The fluid capacity is provided as a reference. If replacement is necessary, con-
tact your Lexus dealer.
Fluid capacity*11.6 qt. (11.0 L, 9.7 Imp. qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
Using automatic transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by vibra-
tion, and ultimately damage the automatic transmission of your vehicle.

526
6-1. Specifications
IS F_U
Brakes
*1: Minimum pedal clearance when depressed with a force of 110 lbf (490 N, 50
kgf) while the engine is running.
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,30.6 kgf).
Pe d a l c l e a r a n c e *14.3 in. (110 mm) Min.
Pedal free play0.04  0.08 in. (1.0  2.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel *27  9 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3

527
6-1. Specifications
6
Vehicle specifications
IS F_U
Steering
Tires and wheels
Free playLess than 1.2 in. (30 mm)
Ti r e s i z e
Front: 225/40R19 93Y
Rear: 255/ 35R19 96Y
Spare: T135/70R18 103M
Front and rear tire inflation pres-
sure
(Recommended cold tire inflation
pressure)
Front:
36 psi (250 kPa, 2.5 kgf/cm2 or bar)*
Rear:
36 psi (250 kPa, 2.5 kgf/cm
2 or bar)*
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
*: When driving at high speeds above 100 mph
(160 km/h), in countries where such speeds
are permitted by law, add 9.0 psi (60 kPa, 0.6
kgf/cm
2 or bar) to the front tires and rear tires.
Never exceed the maximum cold tire inflation
pressure indicated on the tire sidewall.
Wheel size
Ty p e A
Front wheels: 19 × 8J
Rear wheels: 19 × 9J
Spare wheel: 18 × 4T
Ty p e B
Front wheels: 19 × 8 1 /2J
Rear wheels: 19 × 9 1 /2J
Spare wheel: 18 × 4T
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

528
6-1. Specifications
IS F_U
Light bulbs
A: D4S discharge bulbs B: Wedge base bulbs (amber)
C: HB3 halogen bulbs D: Wedge base bulbs (clear)
E: Double end bulbs
Light BulbsBulb No.WTy p e
Exterior
Headlights
High beam
Low/high beam
9005D4S6035CA
Front turn signal lights21B
Rear turn signal lights21B
Back-up lights92116D
Outer foot lights5D
Interior
Vanity lights8D
Interior lights
Front
Rear
5
3DE
Rear overhead courtesy light3E
Front door courtesy lights5D
Tr u n k l i g h t5E

529
6-1. Specifications
6
Vehicle specifications
IS F_U
Fuel information
■Fuel tank opening for unleaded gasoline
To help prevent incorrect fueling, your Lexus has a fuel tank opening that only
accommodates the special nozzle on unleaded fuel pumps.
■If your engine knocks
●Consult your Lexus dealer.
●You may occasionally notice light knocking for a short time while accelerating
or driving uphill. This is normal and there is no need for concern.
■Gasoline quality
In very few cases, driveability problems may be caused by the brand of gasoline you
are using. If driveability problems persist, try changing the brand of gasoline. If this
does not correct the problem, consult your Lexus dealer.
■Gasoline quality standards
●Automotive manufacturers in the US, Europe and Japan have developed a
specification for fuel quality called World-Wide Fuel Charter (WWFC) that is
expected to be applied worldwide.
●The WWFC consists of four categories that are based on required emission
levels. In the US, category 4 has been adopted.
●The WWFC improves air quality by lowering emissions in vehicle fleets, and
customer satisfaction through better performance.
Your vehicle must use only unleaded gasoline.
Premium unleaded gasoline with an octane rating of 91 (Research Octane
Number 96) or higher required for optimum engine performance. If 91
octane cannot be obtained, you may use unleaded gasoline with an octane
rating as low as 87 (Research Octane Number 91). Use of unleaded gaso-
line with an octane rating lower than 91 may result in engine knocking and
significantly reduced performance. Persistent knocking can lead to engine
damage and should be corrected by refueling with higher octane unleaded
gasoline.
At minimum, the gasoline you use should meet the specifications of
ASTM D4814 in the U.S.A. and CGSB3.5-M93 in Canada.
