490
5-2. Steps to take in an emergency
IS F_U
Once3 times
Indicates that the
driver’s door has
been opened and
closed with the
shift lever in P, the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
has been taken
out of the detec-
tion area.
Tu r n t h e
“ENGINE START
STOP” switch
OFF or confirm
the location of the
electronic key.
Con-
tinuousCon-
tinuous
(Displayed alternately)(Flashing)
Indicates that the
driver’s door has
been opened and
closed with the
shift lever out of
in P, the
“ENGINE START
STOP” switch in
any mode other
than OFF and the
electronic key
has been taken
out of the detec-
tion area.
• Shift the shift lever to P.
•Confirm the
location of the
electronic key.
InteriorbuzzerExterior buzzerWarning messageDetailsCorrection
procedure

5
When trouble arises

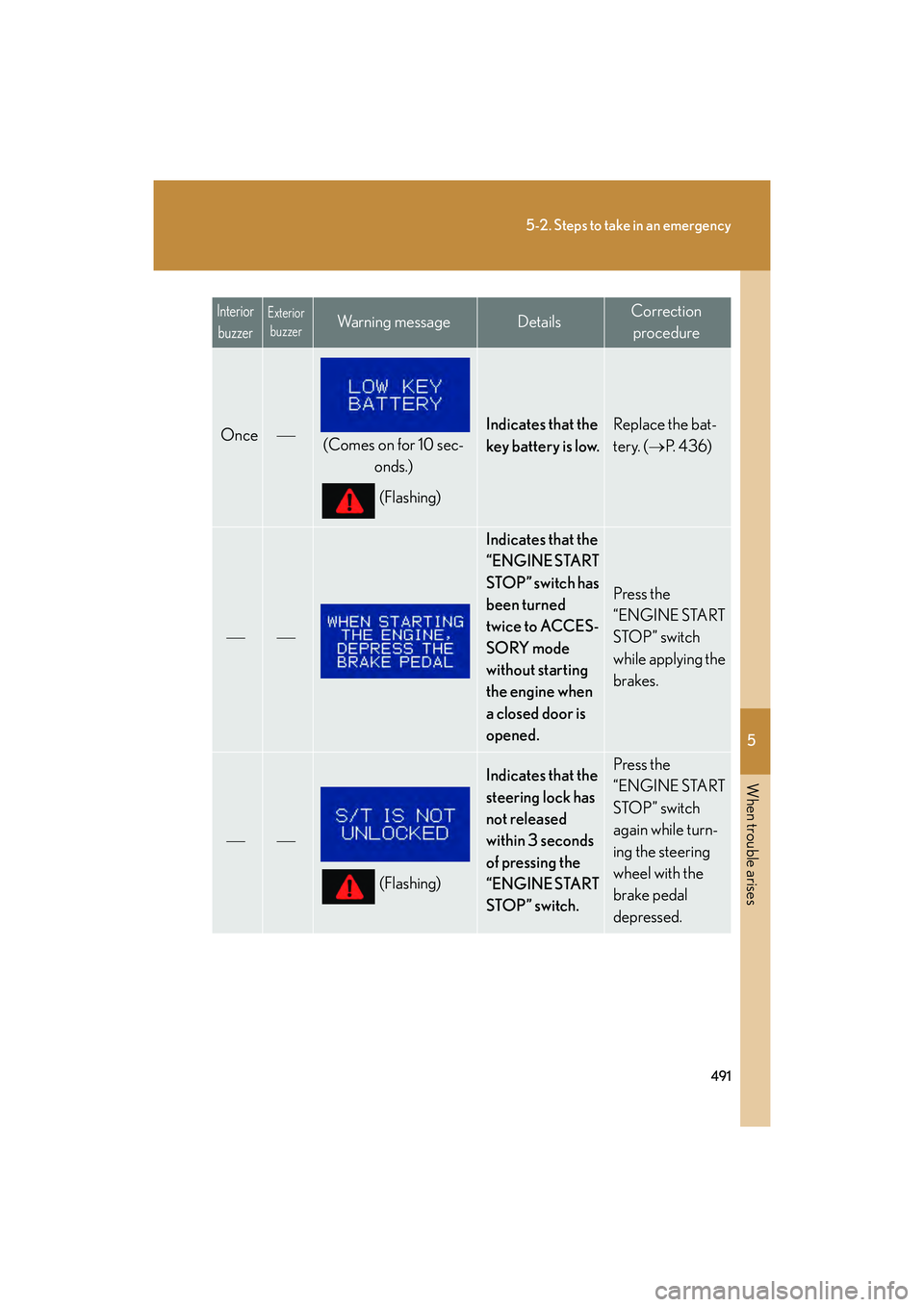

491
5-2. Steps to take in an emergency
IS F_U
Once(Comes on for 10 sec-onds.)
(Flashing)
Indicates that the
key battery is low.Replace the bat-
tery. ( →P. 436)

Indicates that the
“ENGINE START
STOP” switch has
been turned
twice to ACCES-
SORY mode
without starting
the engine when
a closed door is
opened.
Press the
“ENGINE START
STOP” switch
while applying the
brakes.

(Flashing)
Indicates that the
steering lock has
not released
within 3 seconds
of pressing the
“ENGINE START
STOP” switch.Press the
“ENGINE START
STOP” switch
again while turn-
ing the steering
wheel with the
brake pedal
depressed.
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure

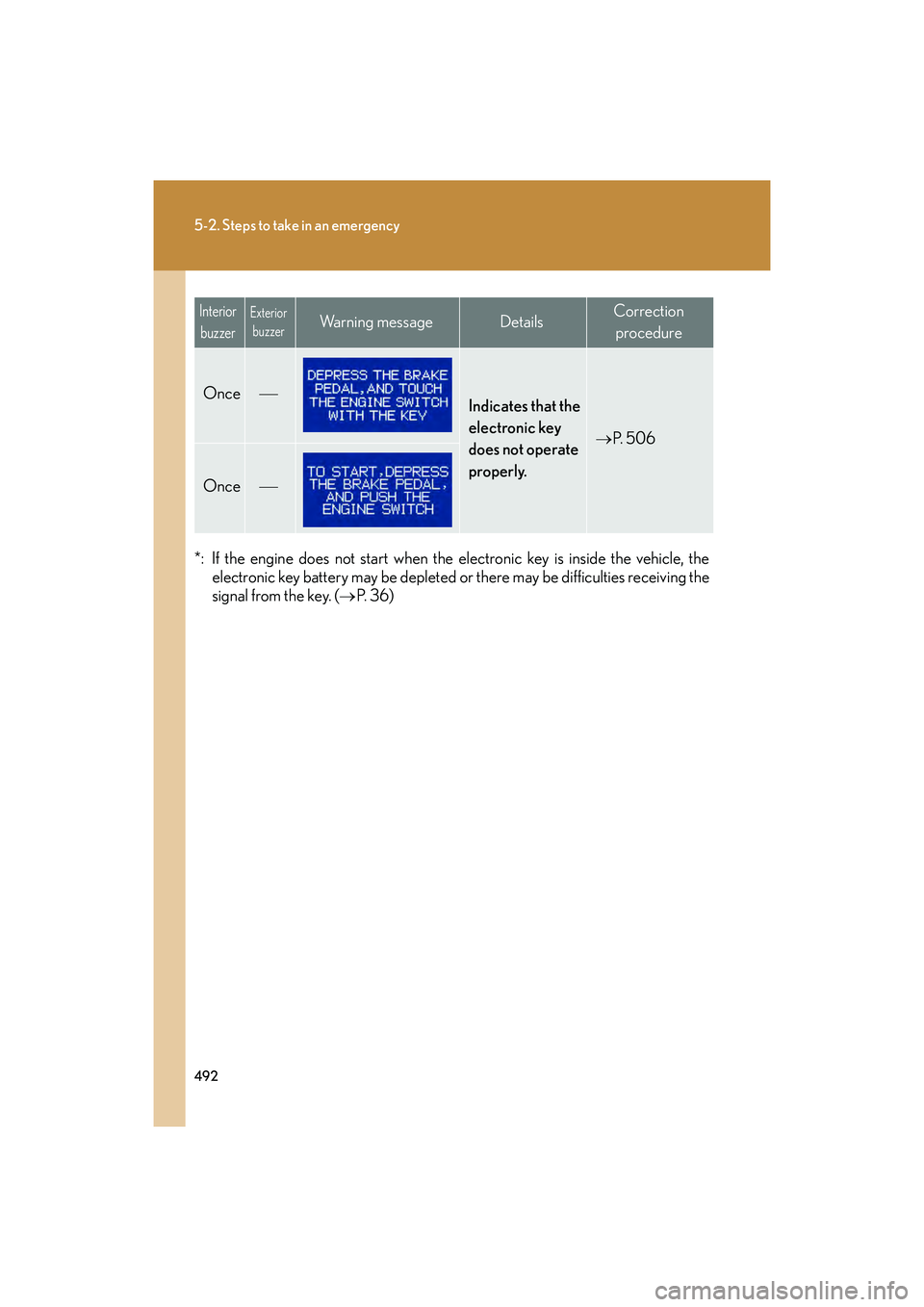

492
5-2. Steps to take in an emergency
IS F_U
*: If the engine does not start when the electronic key is inside the vehicle, theelectronic key battery may be depleted or there may be difficulties receiving the
signal from the key. ( →P. 36)
OnceIndicates that the
electronic key
does not operate
properly.
→P. 5 0 6
Once
Interior
buzzerExterior buzzerWarning messageDetailsCorrection
procedure

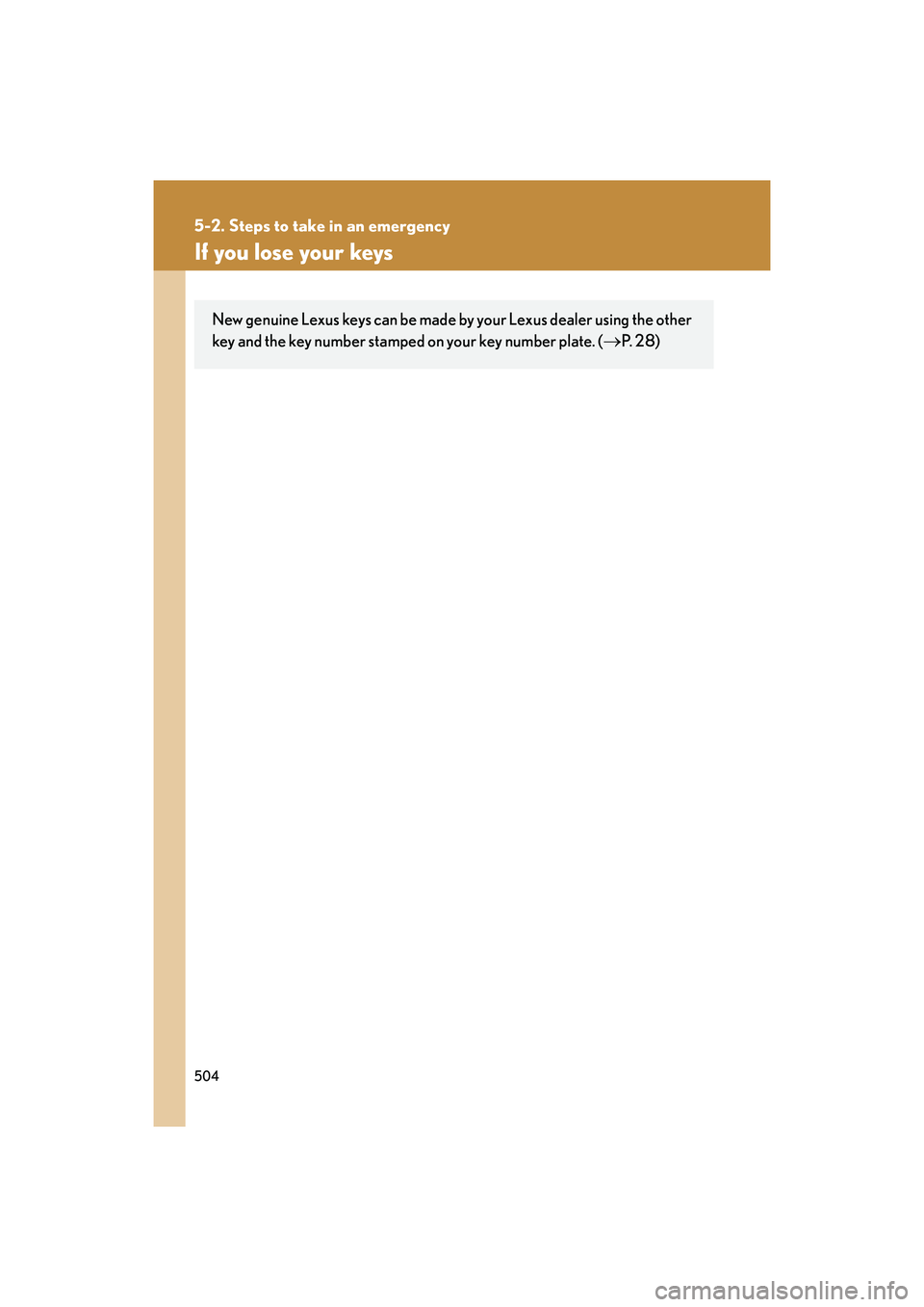

504
5-2. Steps to take in an emergency
IS F_U
If you lose your keys
New genuine Lexus keys can be made by your Lexus dealer using the other
key and the key number stamped on your key number plate. (
→P. 2 8 )

5
When trouble arises
505
5-2. Steps to take in an emergency
IS F_U
If the electronic key does not operate properly
Locking and unlocking the doors, unlocking the trunk and key linked functions
Use the mechanical key built in to the electronic keys to operate the
doors. (→P. 2 9 )
Doors Remove the cover on the driver’s
door handle.
Locks all the doors
Closes the windows/moon roof
(turn and hold)
Unlocks the door
Turning the key rearward unlocks
the driver's door. Turning the key
once again unlocks the other
doors.
Opens the windows/moon roof
(turn and hold)
If communication between the electronic key and vehicle is interrupted
(→ P. 36) or the electronic key cannot be used because the battery is
depleted, the smart access system with push-button start and wireless
remote control cannot be used. In such cases, the doors and trunk can be
opened or the engine can be started by following the procedure below.
STEP1
STEP2

506
5-2. Steps to take in an emergency
IS F_UAfter the operation is completed,
reinstall the cover.
Hook the upper claw of the cover
onto the upper catch on the vehi-
cle side, and then push on the
lower side of the cover.
Make sure that the lower claw of
the cover is securely fastened to
the lower catch on the vehicle side.
If the cover is not securely
attached, it may fall off while driv-
ing.
Tr u n k
Turn the mechanical key clock-
wise to open.
Starting the engine
Shift the shift lever to P and apply the brakes.
STEP3
STEP1

5
When trouble arises
507
5-2. Steps to take in an emergency
IS F_UTouch the Lexus emblem side of
the electronic key to the
“ENGINE START STOP” switch.
An alarm will sound to indicate that
the start function cannot detect the
electronic key that is touched to
the “ENGINE START STOP”
switch if any of the doors is opened
and closed while the key is touched
to the switch.
Press the “ENGINE START STOP” switch within 10 seconds
after the buzzer sounds, keeping the brake pedal depressed.
In the event that the engine still cannot be started, contact your Lexus
dealer.
STEP2
■Stopping the engine
Shift the shift lever to P and press the “ENGINE START STOP” switch as you nor-
mally do when stopping the engine.
■Replacing the key battery
As the above procedure is a temporary measure, it is recommended that the elec-
tronic key battery be replaced immediately when the battery depletes.
( → P. 4 3 6 )
■Changing “ENGINE START STOP” switch modes
Within 10 seconds of the buzzer sounding, release the brake pedal and press the
“ENGINE START STOP” switch.
The engine does not start and modes w ill be changed each time the switch is
pressed. ( →P. 1 3 9 )
STEP3

5
When trouble arises
509
5-2. Steps to take in an emergency
IS F_U
■Starting the engine when the battery is discharged
The engine cannot be started by push-starting.
■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■Charging the battery
The electricity stored in the battery will discharge gradually even when the vehi-
cle is not in use, due to natural discharge and the draining effects of certain
electrical appliances. If the vehicle is left for a long time, the battery may dis-
charge, and the engine may be unable to start. (The battery recharges automat-
ically during driving.)
■When the battery is removed or discharged
Make sure that the key is not inside the vehicle when recharging or replacing the
battery. The key may be locked in the vehicle if the alarm is activated. (→P. 9 1 )
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Open and close any of the doors with the “ENGINE START
STOP” switch OFF.
Maintain the engine speed of the second vehicle and turn the
“ENGINE START STOP” switch to IGNITION ON mode,
then start the vehicle’s engine.
Once the vehicle’s engine has started, remove the jumper
cables in the exact reverse order in which they were con-
nected.
Once the engine starts, have the vehicle checked at your Lexus dealer
as soon as possible.STEP2
STEP3
STEP4
STEP5

545
6-2. Customization
6
Vehicle specifications
IS F_U
Wireless
remote con-
trol
(
→P. 4 3 )
Operation signal
(Emergency flashers)OnOff
Operation signal
(Buzzer) OnOff
Door lock buzzerOnOff
Trunk unlocking functionOnOff
Trunk unlocking operationPush and holdPush twice
One short push
Pa n i c f u n c t i o nOnOff
Door lock
(
→P. 4 6 )
Unlocking using a key
Driver's door
unlocked in one
step, all doors
unlocked in two
steps
All doors
unlocked in one step
Speed-detecting auto-
matic door lock functionOffOn
Opening driver's door
unlocks all doorsOffOn
Shifting gears to P
unlocks all doorsOnOff
Shifting gears to a posi-
tion other than P locks all
doors
OnOff
Steering
wheel
(
→P. 7 2 )
Auto tilt-away functionOnOff
ItemFunctionDefault settingCustomized
setting

546
6-2. Customization
IS F_U
Power win-
dows
(
→P. 7 8 )
Linked door lock opera-
tionOnOff
Linked door key opera-
tionOpen and closeOpen only
Close only
Wireless remote control
linked operationOffOpen only
Moon roof
(
→P. 8 1 )
Linked door lock opera-
tionOnOff
Linked door key opera-
tionOpen and closeOpen only
Close only
Linked operation of com-
ponents when door key is
used
Slide onlyTilt only
Wireless remote control
linked operationOffOpen only
Linked operation of com-
ponents when wireless
remote control is used
Off
Slide only
Tilt only
Automatic
light control
system
(
→P. 166)
Light sensor sensitivityLevel 3Level 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Lights
(
→P. 1 6 8 )
Daytime running light sys-
tem (U.S.A. only)OnOff
ItemFunctionDefault settingCustomizedsetting
