display Lexus IS F 2014 Repair Manual

289
3-3. Using the Bluetooth® audio system
3
Interior features
IS F_U
Using the Bluetooth® audio system for the first time
Before using the Bluetooth
® audio system, it is necessary to register a
Bluetooth® enabled portable player in the system. Follow the procedure
below to register (pair) a portable player:
Press and select “BT•A MENU” using , and.
Press the talk switch or select “BT•A Setup” using ,
and .
The introductory guidance and portable player name registration
instructions are heard*.
Select “Pair Audio Player (Pair Audio)” using a voice command
or , and .
Register a portable player name by either of the following meth-
ods:
a. Select “Record Name” using , and , and saythe name to be registered.
b. Press the talk switch and say the name to be registered.
A voice guidance instruction to confirm the input is heard*.
Select “Confirm” using a voice command or , and.
A passkey is displayed and heard, and a voice guidance instruction for
inputting the passkey into the portable player is heard*.
Input the passkey into the portable player.
Refer to the manual that comes with the portable player for the opera-
tion of the portable player.
STEP1
STEP2
*: For vehicles sold in U.S. mainland, Canada and Hawaii only
STEP3
STEP4
STEP5
STEP6

290
3-3. Using the Bluetooth® audio system
IS F_UGuidance for registration completion is heard*.
If the portable player has a Bluetooth
® phone, the phone can be reg-
istered at the same time. A voice guidance instruction to register a
Bluetooth
® phone is heard*.
Select “Yes” or “No” using a voice command or ,
and . (Bluetooth
® phone →P. 305)
Menu list of the Bluetooth® audio system
First menuSecond
menuThird menuOperation detail
“Setup”
“BT•A
Setup”
“Pair Audio”Registering a portable player
“Connect”Selecting a portable player to
be used
“Change Name”Changing the registered name
of a portable player
“List Audios”Listing the registered portable
players
“Set Passkey”Changing the passkey
“Delete Audio”Deleting a registered portable
player
“System
Setup”
“Guidance Vol”*Setting voice guidance volume
“Device Name”Displaying the Bluetooth®
device address and name
“Initialize”Initializing the system
*: For vehicles sold in U.S. mainland, Canada and Hawaii only
STEP7

292
3-3. Using the Bluetooth® audio system
IS F_U
Operating a Bluetooth® enabled portable player
Ty p e A
Repeat playPlayback
Playback/Pause
Album selection
Track selection
Random playback
Po w e r Vo l u m e Displays text message
Search playback
BT•A menu

293
3-3. Using the Bluetooth® audio system
3
Interior features
IS F_U
Selecting an albumTo select the desired album, press ( ∧) or ( ∨).
Selecting tracks
Press “ ∧” or “ ∨” on to select the desired track.
Playing and pausing tracks
To play or pause a track, press ( ).
Ty p e B
Repeat play
Playback/Pause
Album selection
Track selection
Random playback
Po w e r Vo l u m e Displays text message
Playback
BT•A menu

294
3-3. Using the Bluetooth® audio system
IS F_U
Fast-forwarding and rewinding tracksTo fast-forward or rewind, press and hold “ ∧” or “ ∨” on until you
hear a beep.
Random playback Press (RAND).
Repeat playPress (RPT).
Scanning tracks (type A)Press .
Switching the displayPress .
Each time is pressed, the display changes in the order of Elapsed time
→ Album title → Tr a c k t i t l e → Artist name.
Using the steering wheel audio switches
→ P. 2 8 1

295
3-3. Using the Bluetooth® audio system
3
Interior features
IS F_U
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain functions
may not be available.
■Display
Up to 12 characters can be displayed at a time.
If there are 13 characters or more, pressing and holding until you hear a
beep will display the remaining characters.
A maximum of 24 characters can be displayed.
If is pressed until you hear a beep again or has not been pressed for 6 sec-
onds or more, the display will return to the first 12 characters.
Depending on the contents recorded, the characters may not be displayed prop-
erly or may not be displayed at all.
■Canceling random, repeat and scan playback
Press (RAND), (RPT), or (type A) again.
■Error messages
“Memory Error”: This indicates a problem in the system.

302
3-3. Using the Bluetooth® audio system
IS F_U
Bluetooth® audio system setup
*: For vehicles sold in U.S. mainland, Canada and Hawaii only
■System setup items and operation procedures
Pattern A
To enter the menu for each function, follow the steps below using a
voice command or , and :
(→ P. 324)
Pattern B Press to select “BT•A MENU”.
Select “System Setup” using , and .
Select one of the following items using , and :
● Setting voice guidance volume*
“Guidance Vol” (
→P. 326)
● Displaying the Bluetooth
® device address and name
“Device Name” (
→P. 326)
● Initializing the system
“Initialize” (
→P. 326)
STEP1
STEP2
STEP3

307
3-4. Using the hands-free phone system (for mobile phones)
3
Interior features
IS F_U
Using the hands-free system (for mobile phones)
■Audio unit
Display
A message, name, phone
number, etc. is displayed.
Lower-case characters and
special characters cannot be
displayed.
Displays information that is
too long to be displayed at
one time on the display (press
and hold)
Selects speed dials
Selects items such as menu
and number : Selects an item
: Inputs the selected
item
Bluetooth
® connection con-
dition
If “BT” is not displayed, the
hands-free phone system
cannot be used.
Reception level

309

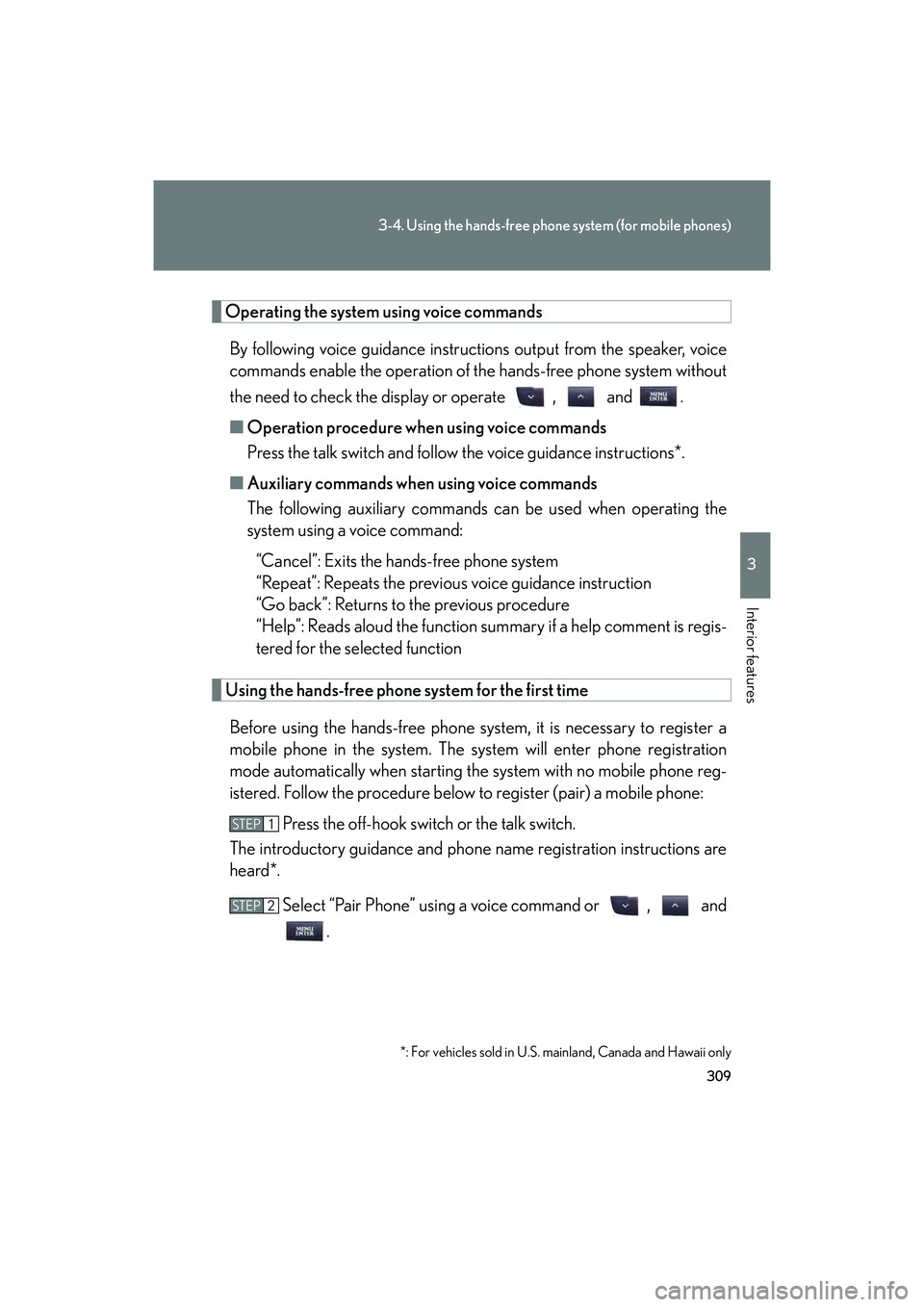

3-4. Using the hands-free phone system (for mobile phones)
3
Interior features
IS F_U
Operating the system using voice commandsBy following voice guidance instructions output from the speaker, voice
commands enable the operation of the hands-free phone system without
the need to check the display or operate , and .
■ Operation procedure when using voice commands
Press the talk switch and follow the voice guidance instructions*.
■ Auxiliary commands when using voice commands
The following auxiliary commands can be used when operating the
system using a voice command:
“Cancel”: Exits the hands-free phone system
“Repeat”: Repeats the previous voice guidance instruction
“Go back”: Returns to the previous procedure
“Help”: Reads aloud the function summary if a help comment is regis-
tered for the selected function
Using the hands-free phone system for the first time
Before using the hands-free phone system, it is necessary to register a
mobile phone in the system. The system will enter phone registration
mode automatically when starting the system with no mobile phone reg-
istered. Follow the procedure below to register (pair) a mobile phone: Press the off-hook switch or the talk switch.
The introductory guidance and phone name registration instructions are
heard*.
Select “Pair Phone” using a voice command or , and.
*: For vehicles sold in U.S. mainland, Canada and Hawaii only
STEP1
STEP2

310
3-4. Using the hands-free phone system (for mobile phones)
IS F_URegister a phone name by either of the following methods:
a. Select “Record Name” using , and , and
say the name to be registered.
b. Press the talk switch and say the name to be registered.
A voice guidance instruction to confirm the input is heardd*.
Select “Confirm” using a voice command or , and.
For vehicles sold in Guam and Puerto Rico
A passkey will be displayed.
For vehicles sold in U.S. mainland, Canada and Hawaii
A passkey is displayed and heard, and a voice guidance instruction for
inputting the passkey into the mobile phone is heard.
Input the passkey into the mobile phone.
Refer to the manual that comes with the mobile phone for the operation
of the phone.
Guidance for registration completion is heard*.
If the mobile phone has a Bluetooth
® audio player, the audio player can
be registered at the same time. A voice guidance instruction to register a
Bluetooth
® audio player is heard*.
Select “Yes” or “No” using a voice command or ,
and . (Bluetooth
® audio player →P. 285)
STEP3
*: For vehicles sold in U.S. mainland, Canada and Hawaii only
STEP4
STEP5
STEP6
