Lexus IS200d 2011 Owner's Manuals

334
3-4. Using the hands-free phone system (for mobile phones)
IS250/220d/200d_EE
Menu list of the hands-free phone system
First menuSecond
menuThird menuOperation detail
“Callback”--
Dialing a number stored in
the incoming call history
memory
“Redial”--
Dialing a number stored in
the outgoing call history
memory
“Phone-
book”
“Add
Entry”-Adding a new phone number
“Change
Name”-Changing the registered
name in the phone book
“Delete
Entry”-Deleting the registered data
“Del Spd
Dial”-Deleting speed dials
“List
Names”-Listing the registered data
“Speed
Dial”-Setting speed dials

335
3-4. Using the hands-free phone system (for mobile phones)
3
Interior features
IS250/220d/200d_EE

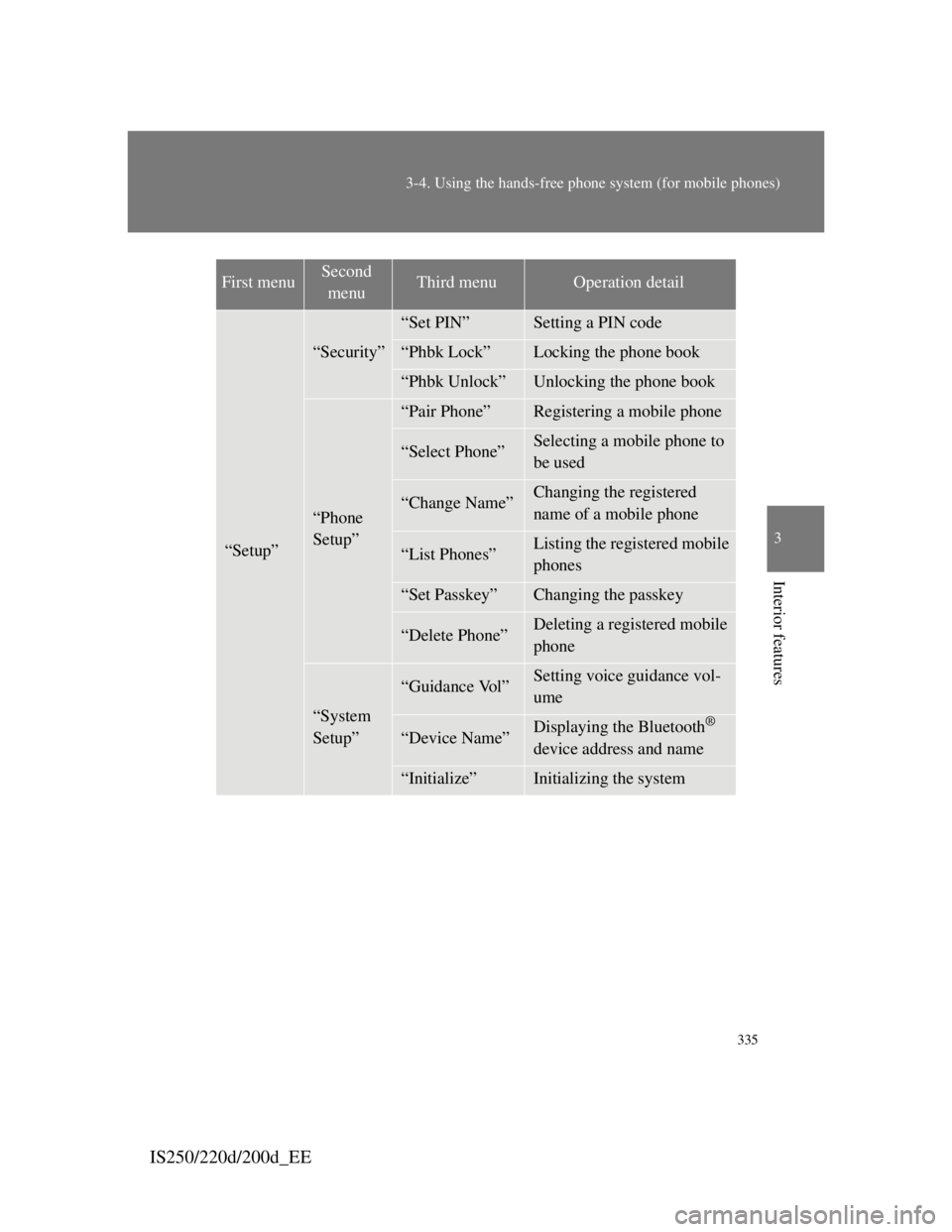

“Setup”
“Security”
“Set PIN”Setting a PIN code
“Phbk Lock”Locking the phone book
“Phbk Unlock”Unlocking the phone book
“Phone
Setup”
“Pair Phone”Registering a mobile phone
“Select Phone”Selecting a mobile phone to
be used
“Change Name”Changing the registered
name of a mobile phone
“List Phones”Listing the registered mobile
phones
“Set Passkey”Changing the passkey
“Delete Phone”Deleting a registered mobile
phone
“System
Setup”
“Guidance Vol”Setting voice guidance vol-
ume
“Device Name”Displaying the Bluetooth®
device address and name
“Initialize”Initializing the system
First menuSecond
menuThird menuOperation detail

336
3-4. Using the hands-free phone system (for mobile phones)
IS250/220d/200d_EE
Automatic volume adjustment
When vehicle speed reaches 80 km/h (50 mph) or more, the volume auto-
matically increases. The volume returns to the previous volume setting
when vehicle speed drops to 70 km/h (43 mph) or less.
Operations that cannot be performed while driving
Operating the system with , and
Registering a mobile phone to the system
Changing the passkey
P. 3 4 3

337
3-4. Using the hands-free phone system (for mobile phones)
3
Interior features
IS250/220d/200d_EE

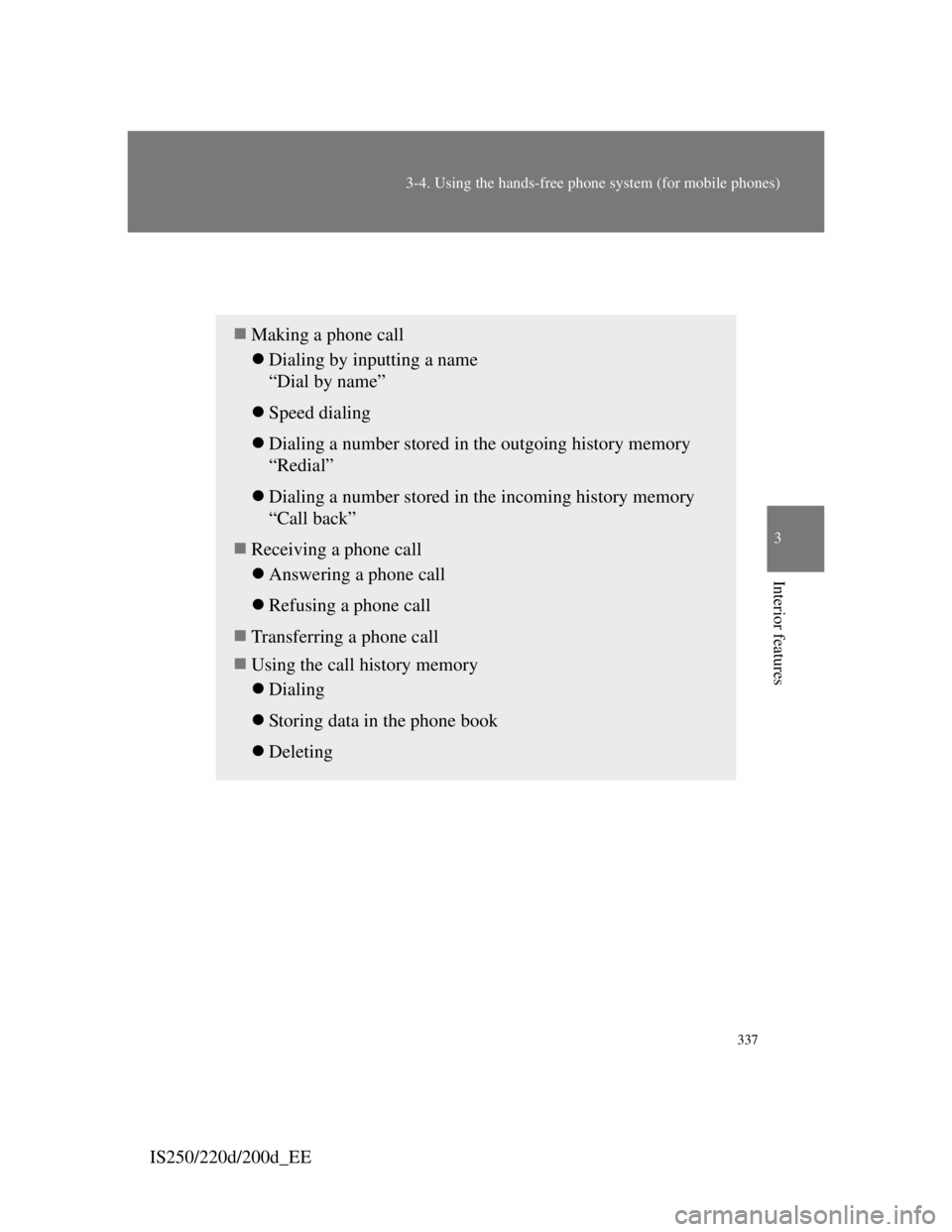

Making a phone call
Making a phone call
Dialing by inputting a name
“Dial by name”
Speed dialing
Dialing a number stored in the outgoing history memory
“Redial”
Dialing a number stored in the incoming history memory
“Call back”
Receiving a phone call
Answering a phone call
Refusing a phone call
Transferring a phone call
Using the call history memory
Dialing
Storing data in the phone book
Deleting

338
3-4. Using the hands-free phone system (for mobile phones)
IS250/220d/200d_EE
Dialing by inputting a name
Press the talk switch and say a registered name.
The desired name or number is displayed.
Dial by one of the following methods:
a. Press the off-hook switch.
b. Select “Dial” using , and .
In , if the pronounced name cannot be recognized, select
the desired name using
, and .
Speed dialing
Press the off-hook switch.
Press the preset button in which the desired number is regis-
tered.
Press the off-hook switch.
When receiving a phone call
Answering a phone call
Press the off-hook switch.
Refusing a phone call
Press the on-hook switch.
STEP1
STEP2
STEP1
STEP1
STEP2
STEP3

339
3-4. Using the hands-free phone system (for mobile phones)
3
Interior features
IS250/220d/200d_EE
Transferring a phone call
A call can be transferred between the mobile phone and system
while dialing, receiving a call, or during a call. Use one of the fol-
lowing methods:
a. Operate the mobile phone.
Refer to the manual that comes with the mobile phone for the
operation of the phone.
b. Press the off-hook switch*.
*:This operation can be performed only when transferring a call
from the mobile phone to the system during a call.

340
3-4. Using the hands-free phone system (for mobile phones)
IS250/220d/200d_EE
Using the call history memory
Follow the procedure below to use a number stored in the call his-
tory memory:
Press the off-hook switch and select “Redial” (when using a
number stored in the outgoing call history memory) or
“Call back” (when using a number stored in the incoming
call history memory) using , and .
Select the desired number using , and .
The following operations can be performed:
Dialing: Press the off-hook switch or select “Dial” using ,
and .
Storing the number in the phone book: Select “Store” and then
“Confirm” using , and .
Deleting: Select “Delete” and then “Confirm” using ,
and .
Call history
Up to 5 numbers can be stored in each of the outgoing and incoming call
history memories.
When talking on the phone
Do not talk at the same time as the other party.
Keep the volume of the incoming voice down. Otherwise, voice echo
will increase.
STEP1
STEP2
STEP3

341
3-4. Using the hands-free phone system (for mobile phones)
3
Interior features
IS250/220d/200d_EE

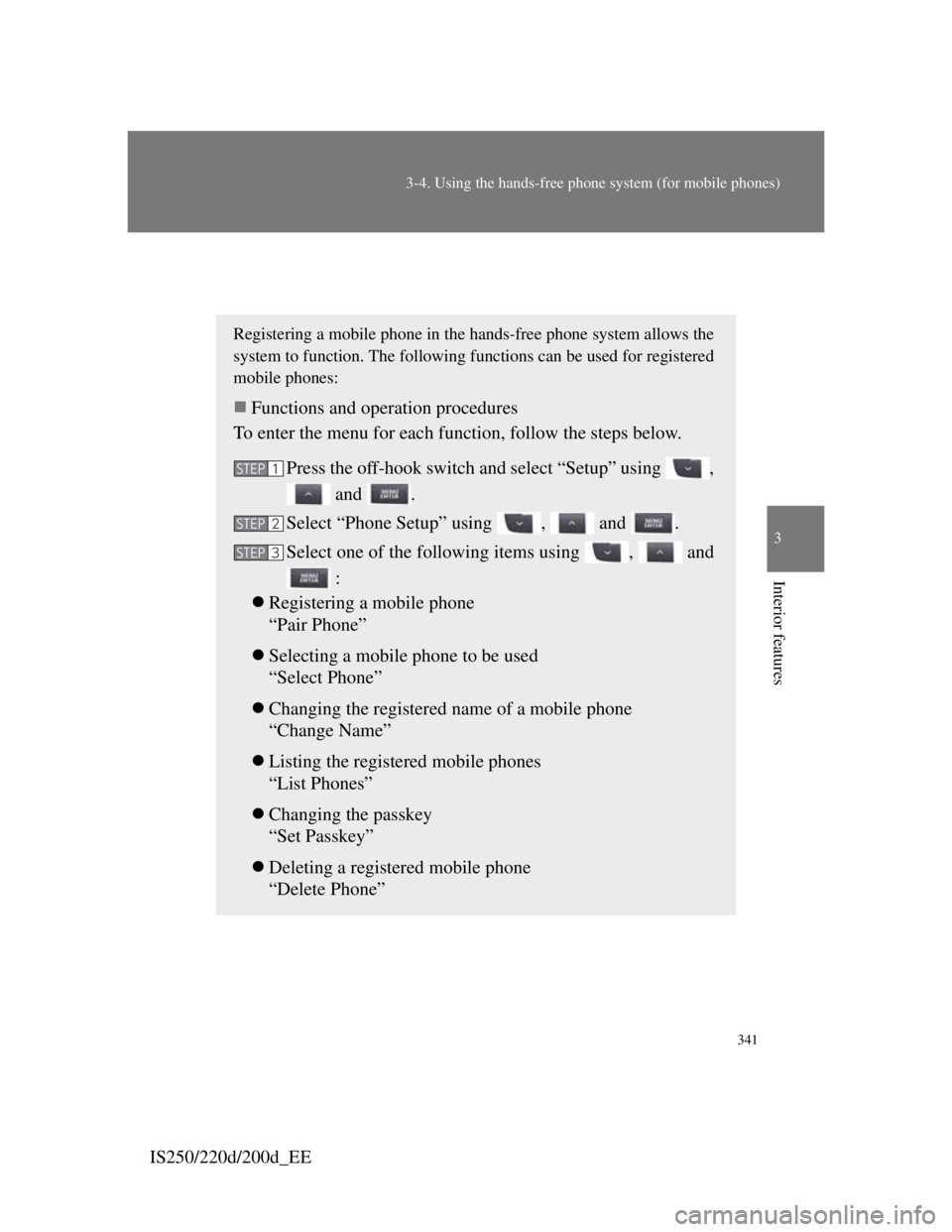

Setting a mobile phone
Registering a mobile phone in the hands-free phone system allows the
system to function. The following functions can be used for registered
mobile phones:
Functions and operation procedures
To enter the menu for each function, follow the steps below.
Press the off-hook switch and select “Setup” using ,
and .
Select “Phone Setup” using , and .
Select one of the following items using , and
:
Registering a mobile phone
“Pair Phone”
Selecting a mobile phone to be used
“Select Phone”
Changing the registered name of a mobile phone
“Change Name”
Listing the registered mobile phones
“List Phones”
Changing the passkey
“Set Passkey”
Deleting a registered mobile phone
“Delete Phone”
STEP1
STEP2
STEP3

342
3-4. Using the hands-free phone system (for mobile phones)
IS250/220d/200d_EE
Registering a mobile phone
Select “Pair Phone” using , and , and perform
the procedure for registering a mobile phone. (P. 333)
Selecting a mobile phone to be used
Select “Select Phone” using , and .
Select the mobile phone to be used using , and
.
Changing the registered name of a mobile phone
Select “Change Name” using , and .
Select the desired mobile phone name to be changed using
, and .
Select “Record Name” using , and , and
say the new name after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using , and .
Listing the registered mobile phones
Select “List Phones” using , and . The list of reg-
istered mobile phones will be read aloud.
When listing is complete, the system returns to “Phone Setup”.
STEP1
STEP2
STEP1
STEP2
STEP3
STEP4

343
3-4. Using the hands-free phone system (for mobile phones)
3
Interior features
IS250/220d/200d_EE
Changing the passkey
Select “Set Passkey” using , and .
Select a 4 to 8-digit number using , and .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has
been input, press again.
If the number to be registered has 8 digits, pressing is not
necessary.
Deleting a registered mobile phone
Select “Delete Phone” using , and .
Select the desired mobile phone to be deleted using ,
and .
If the mobile phone to be deleted is paired as a Bluetooth
® audio
player, the registration of the audio player can be deleted at the
same time.
When “Del Audio?” is displayed, select “Yes” or “No”
using , and . (Bluetooth
® audio player
P. 309)
The number of mobile phones that can be registered
Up to 6 mobile phones can be registered in the system.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
