5-2. Steps to take in an emergency
When trouble arises
IS250/220d/200d_EE

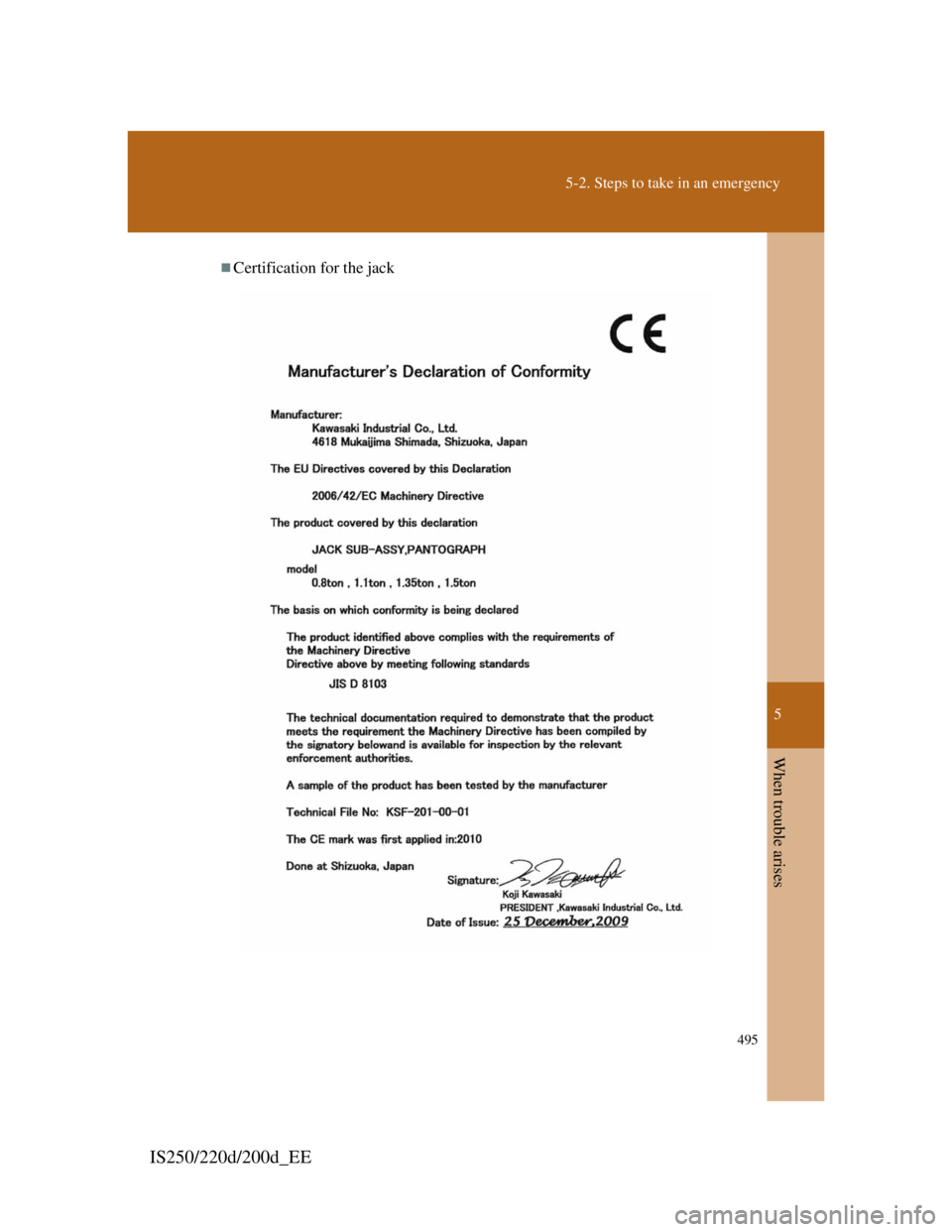

Certification for the jack

496
5-2. Steps to take in an emergency
IS250/220d/200d_EE
CAUTION
Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to the
vehicle suddenly falling off the jack.
Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Always check that the tire jack is securely set to the jack point.
Do not put any part of your body under the vehicle supported by a jack.
Do not start or run the engine while your vehicle is supported by the jack.
Do not raise the vehicle while someone is in it.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace the
tire.
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one work-
ing on or near the vehicle may be injured.
Replacing a flat tire
Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
Failure to follow these precautions could cause the wheel nuts to loosen
and the tire to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts.
Oil and grease may cause the wheel nuts to be excessively tightened,
leading to bolt or disc wheel damage. In addition, the oil or grease can
cause the wheel nuts to loosen and the wheel may fall off, causing a
serious accident. Remove any oil or grease from the wheel bolts or
wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 103 N
•m (10.5
kgf
•m, 76 ft•lbf) as soon as possible after changing wheels.

5
497
5-2. Steps to take in an emergency
When trouble arises
IS250/220d/200d_EE
CAUTION
When using the compact spare tire or directional spare tire
Remember that your spare tire is specifically designed for use with your
vehicle. Do not use your spare tire on another vehicle.
Do not use more than one spare tires simultaneously.
Replace the spare tire with a standard tire as soon as possible.
Avoid sudden acceleration, deceleration and braking, as well as sharp cor-
nering.
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact
spare tire is installed on the vehicle.
The spare tire is not designed for driving at high speeds. Failing to observe
this precaution may lead to an accident causing death or serious injury.
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare
tire is installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failing to
observe this precaution may lead to an accident causing death or serious
injury.
When installing a directional tire
Install it on the correct side of the vehicle. If installed on the wrong side of
the vehicle, tire performance will be affected, possibly leading to an acci-
dent. If it is necessary to install a directional spare tire on the wrong side of
the vehicle, use it only temporarily and observe all the precautions listed for
operation with a compact spare tire.

498
5-2. Steps to take in an emergency
IS250/220d/200d_EE
CAUTION
When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems
may not operate correctly:
ABS & Brake assist
VSC
TRC
EPS
VDIM
Navigation system (if equipped)
Lexus parking assist-sensor (if equipped)
Dynamic radar cruise control (if equipped)
Cruise control (if equipped)
PCS (if equipped)
NOTICE
Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
Be careful when driving over bumps with the compact spare tire installed on
the vehicle.
The vehicle becomes lower when driving with the compact spare tire com-
pared to when driving with standard tires. Be careful when driving over
uneven road surfaces.
Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving per-
formance.

5
499
5-2. Steps to take in an emergency
When trouble arises
IS250/220d/200d_EE

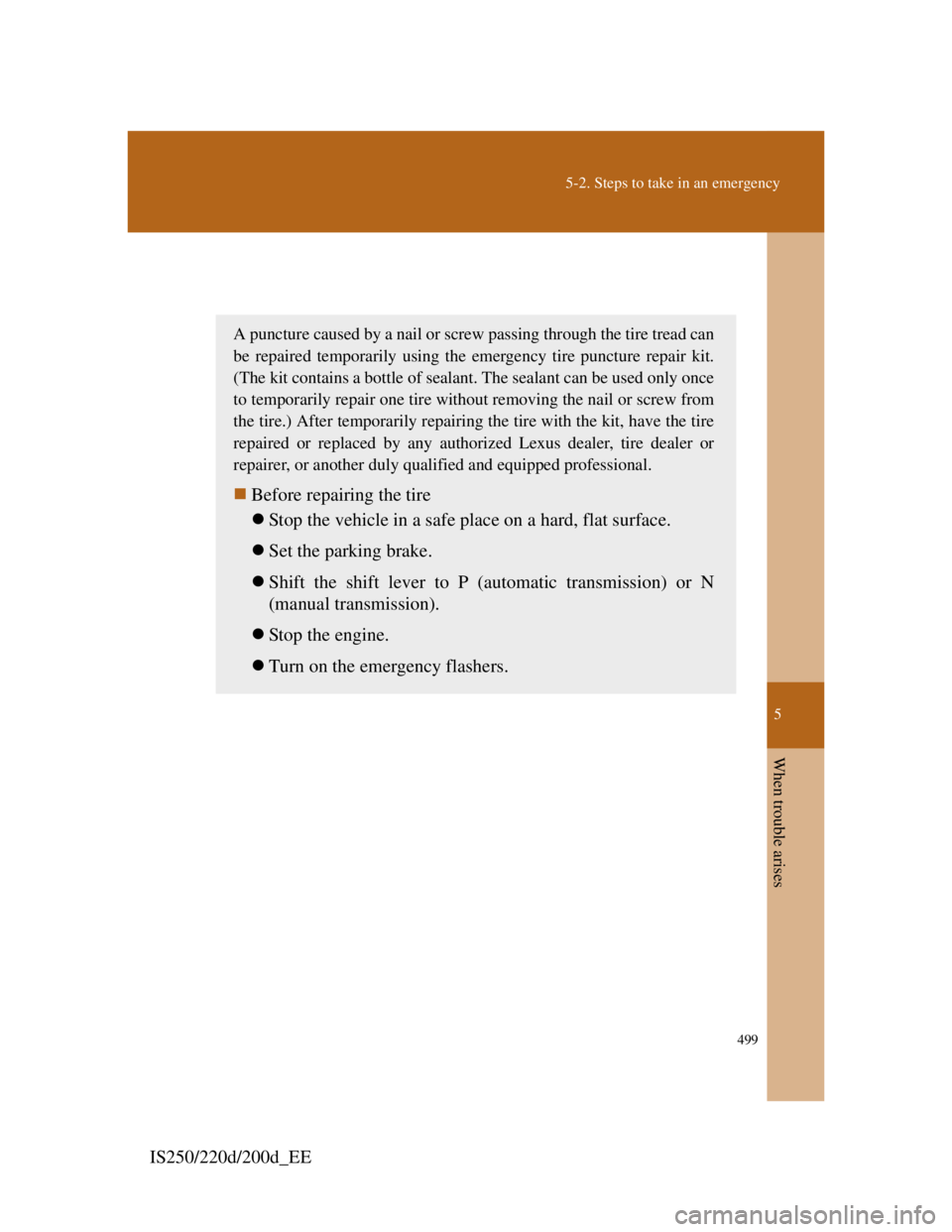

If you have a flat tire (vehicles with an emergency tire puncture repair kit)
A puncture caused by a nail or screw passing through the tire tread can
be repaired temporarily using the emergency tire puncture repair kit.
(The kit contains a bottle of sealant. The sealant can be used only once
to temporarily repair one tire without removing the nail or screw from
the tire.) After temporarily repairing the tire with the kit, have the tire
repaired or replaced by any authorized Lexus dealer, tire dealer or
repairer, or another duly qualified and equipped professional.
Before repairing the tire
Stop the vehicle in a safe place on a hard, flat surface.
Set the parking brake.
Shift the shift lever to P (automatic transmission) or N
(manual transmission).
Stop the engine.
Turn on the emergency flashers.

500
5-2. Steps to take in an emergency
IS250/220d/200d_EE
Location of the emergency tire puncture repair kit, jack and
tools
Jack*
(if Jack handle
(if
Tool bag
(including
towing eye- Emergency tire
puncture
repair kit

5
501
5-2. Steps to take in an emergency
When trouble arises
IS250/220d/200d_EE

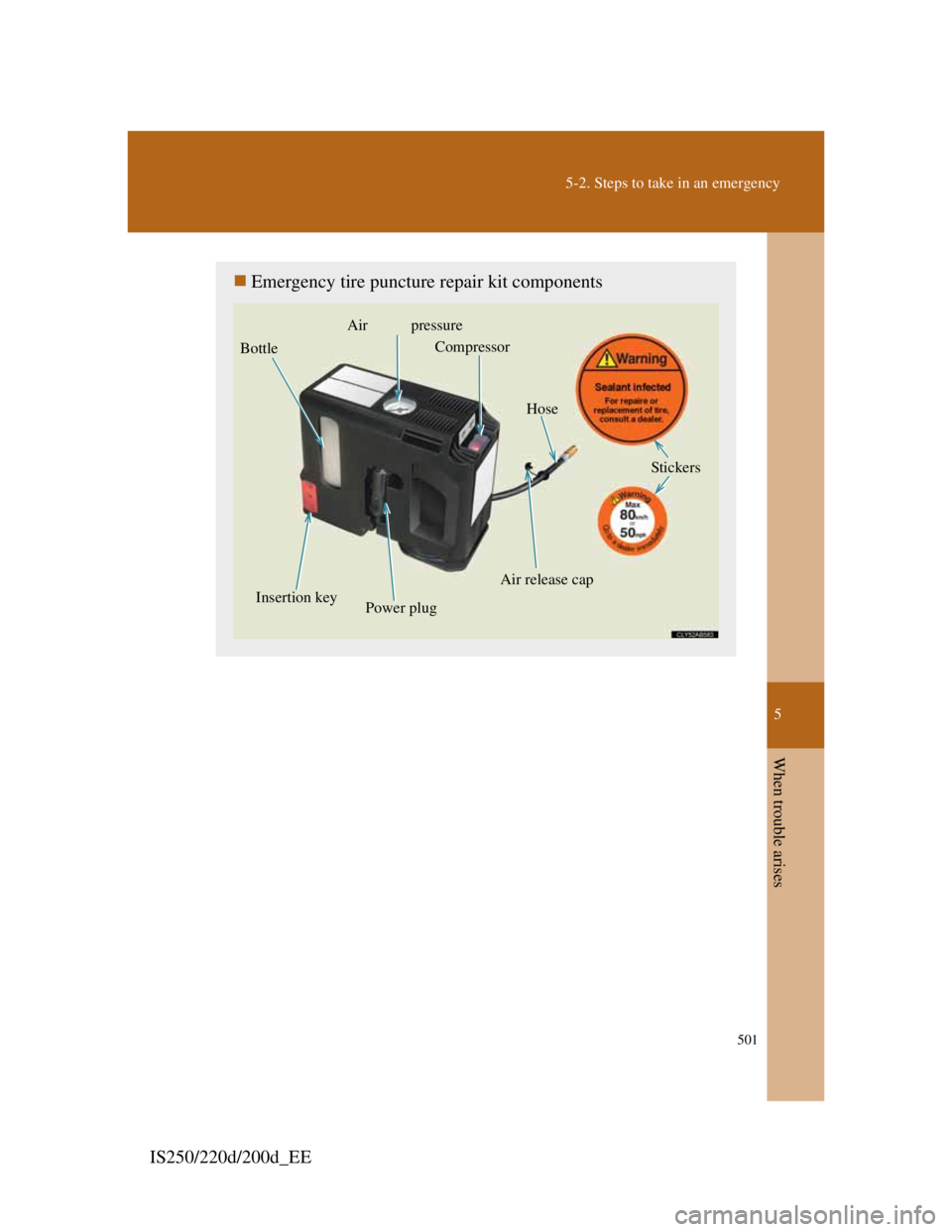

Emergency tire puncture repair kit components
BottleAir pressure
Compressor
Hose
Stickers
Air release cap
Power plug Insertion key

502
5-2. Steps to take in an emergency
IS250/220d/200d_EE
Taking out the emergency tire puncture repair kit
Lift up the hook of the panel on
the trunk floor.
Secure the panel using the hook
provided.
Take out the emergency tire puncture repair kit.
STEP1
STEP2
STEP3

5
503
5-2. Steps to take in an emergency
When trouble arises
IS250/220d/200d_EE
Before performing emergency repair
Check the degree of the tire damage.
A tire should only be repaired
with the emergency tire punc-
ture repair kit if the damage is
caused by a nail or screw pass-
ing through the tire tread.
• Do not remove the nail or screw
from the tire. Removing the
object may widen the opening
and disenable emergency repair
with the kit.
• To avoid sealant leakage, move
the vehicle until the area of the
puncture, if known, is posi-
tioned at the top of the tire.

504
5-2. Steps to take in an emergency
IS250/220d/200d_EE
Emergency repair method
Pull the insertion key out of the
kit.
Place the kit with the bottom
facing upward.
Peel off the label, and push in
the insertion key until a click is
heard.
Return the kit to an upright
position and make sure that the
compressor switch is off.
Use the kit with the top facing
upward.
STEP1
STEP2
STEP3
