Lexus IS200d 2011 s Manual Online

77
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
IS250/220d/200d_EE
Child seat belt usage
The seat belts of your vehicle are principally designed for persons of adult
size.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle's seat belt. (P. 121)
When the child becomes large enough to properly wear the vehicle's seat
belt, follow the instructions on P. 74 regarding seat belt usage.
Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will acti-
vate for the first collision, but will not activate for the second or subsequent
collisions.
Seat belt regulations
If seat belt regulations exist in the country where you reside, please contact
any authorized Lexus dealer or repairer, or another duly qualified and
equipped professional, for seat belt replacement or installation.
CAUTION
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failing to do so may cause death or severe injury.
Wearing a seat belt
Ensure that all passengers wear a seat belt.
Always wear a seat belt properly.
Each seat belt should be used by one person only. Do not use a seat belt
for more than one person at once, including children.
Lexus recommends that children be seated in the rear seat and always use
a seat belt and/or an appropriate child restraint system.
Do not recline the seat any more than necessary to achieve a proper seat-
ing position. The seat belt is most effective when the occupants are sitting
up straight and well back in the seats.
Do not wear the shoulder belt under your arm.
Always wear your seat belt low and snug across your hips.

78
1-3. Adjustable components (seats, mirrors, steering wheel)
IS250/220d/200d_EE
CAUTION
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious inju-
ries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that
case, the seat belt cannot be used again and must be replaced at any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
Seat belt damage and wear
Inappropriate handling of the pretensioner may prevent it from operating
properly resulting in death or serious injury.
Do not damage the seat belts by allowing the belt, plate, or buckle to be
jammed in the door.
Inspect the seat belt system periodically. Check for cuts, fraying, and
loose parts. Do not use a damaged seat belt until it is replaced. Damaged
seat belts cannot protect an occupant from death or serious injury.
Ensure that the belt and tab are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact any autho-
rized Lexus dealer or repairer, or another duly qualified and equipped pro-
fessional.
Replace the seat assembly, including the belts, if your vehicle has been
involved in a serious accident, even if there's no obvious damage.
Do not attempt to install, remove, modify, disassemble or dispose of the
seat belts. Have any necessary repairs carried out by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.

79
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS250/220d/200d_EE

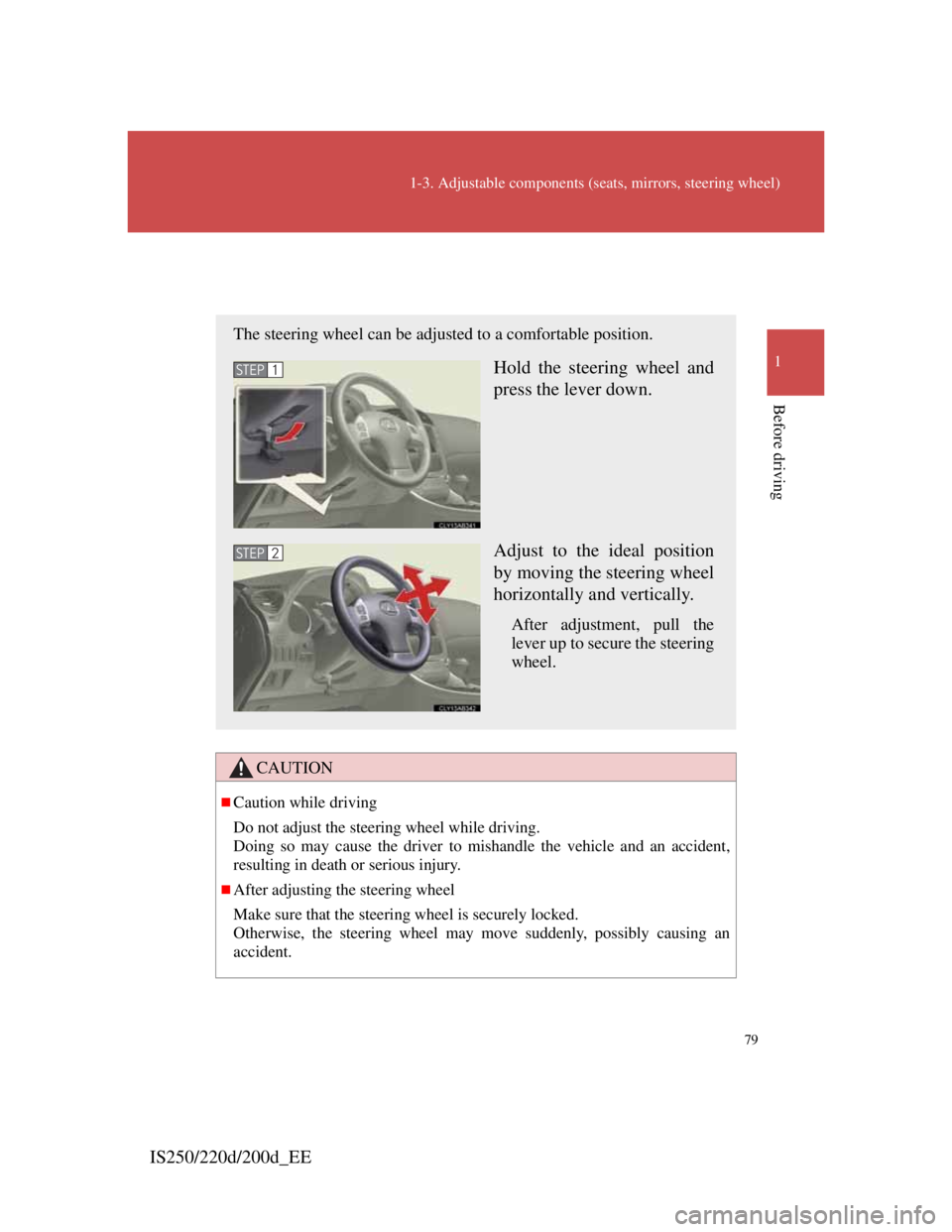

Steering wheel (manually adjustable type)
CAUTION
Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident,
resulting in death or serious injury.
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an
accident.
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel and
press the lever down.
Adjust to the ideal position
by moving the steering wheel
horizontally and vertically.
After adjustment, pull the
lever up to secure the steering
wheel.
STEP1
STEP2

80
1-3. Adjustable components (seats, mirrors, steering wheel)
IS250/220d/200d_EE
Steering wheel (power-adjustable type)
Auto tilt away
When the “ENGINE START
STOP” switch is turned OFF,
the steering wheel returns to its
stowed position by moving up
and away to enable easier
driver entry and exit.
Switching to ACCESSORY or
IGNITION ON mode will
return the steering wheel to the
original position.
The steering wheel can be adjusted to a comfortable position.
Up
Down
Away from the driver
Toward the driver

81
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS250/220d/200d_EE
The steering wheel can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
Automatic adjustment of the steering position (vehicles with driving posi-
tion memory)
A desired steering position can be entered to memory and recalled automat-
ically by the driving position memory. (P. 6 6 )
Customization that can be configured at any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional
It is possible to deactivate the auto tilt-away function.
(Customizable featuresP. 556)
CAUTION
Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an acci-
dent, resulting in death or serious injury.

82
1-3. Adjustable components (seats, mirrors, steering wheel)
IS250/220d/200d_EE
Anti-glare inside rear view mirror
Glare from the headlights of vehicles behind can be reduced by using
the following functions.
Manual anti-glare inside rear view mirror (if equipped)
Normal position
Anti-glare position
Auto anti-glare inside rear view mirror (if equipped)
In automatic mode, sensors are used to detect the headlights
of vehicles behind and automatically reduce the reflected
light.
Turns automatic mode on/off
The indicator comes on when
automatic mode is turned on.
The anti-glare mirror default
mode is automatic. The anti-
glare mirror is automatically
set to automatic whenever the
“ENGINE START STOP”
switch is turned to IGNI-

83
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS250/220d/200d_EE
Adjusting the height of rear view mirror
Adjust the height of the rear
view mirror by moving it up
and down.
To prevent sensor error (vehicles with auto anti-glare inside rear view mir-
ror)
CAUTION
Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, resulting
in death or serious injury.
To ensure that the sensors operate prop-
erly, do not touch or cover them.

84
1-3. Adjustable components (seats, mirrors, steering wheel)
IS250/220d/200d_EE

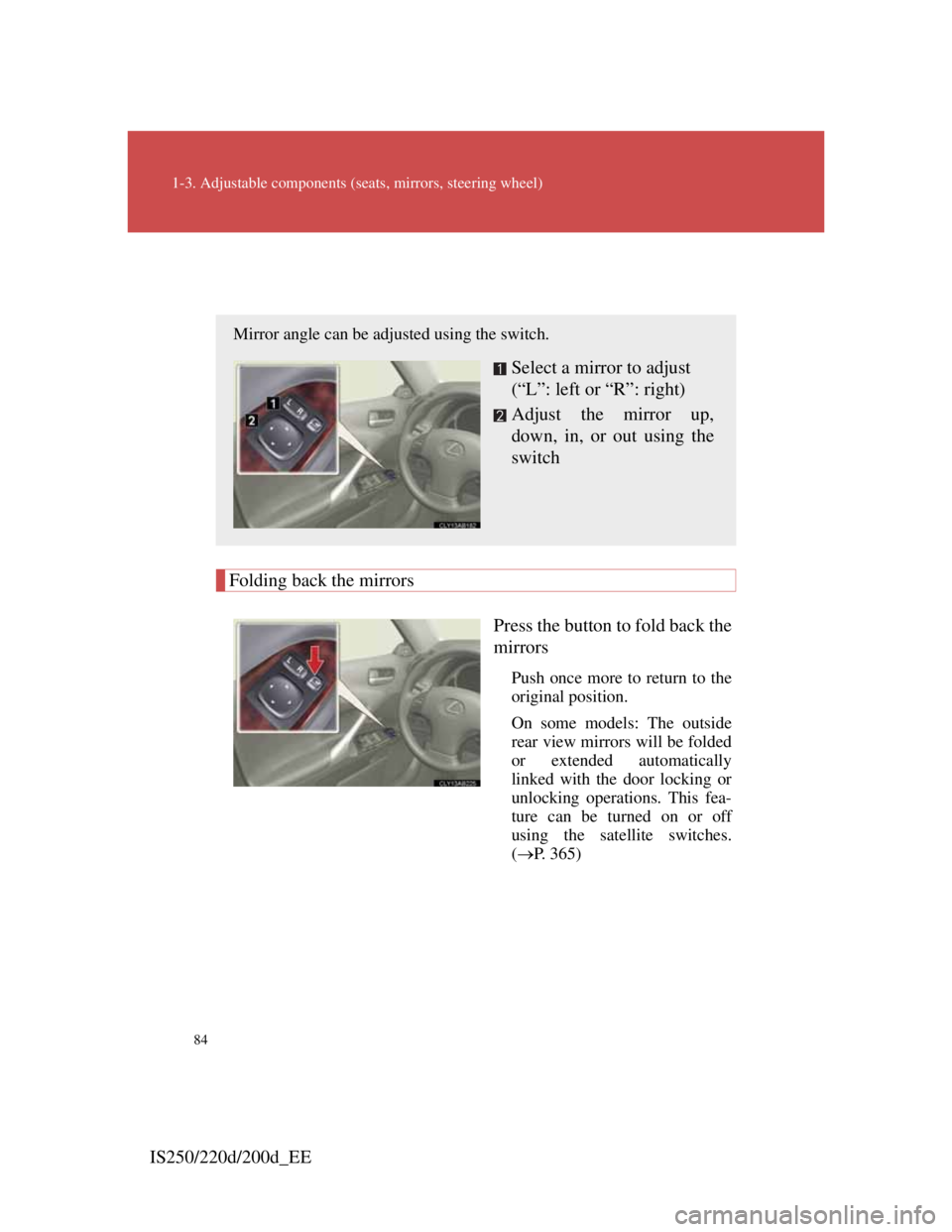

Outside rear view mirrors
Folding back the mirrors
Press the button to fold back the
mirrors
Push once more to return to the
original position.
On some models: The outside
rear view mirrors will be folded
or extended automatically
linked with the door locking or
unlocking operations. This fea-
ture can be turned on or off
using the satellite switches.
(P. 365)
Mirror angle can be adjusted using the switch.
Select a mirror to adjust
(“L”: left or “R”: right)
Adjust the mirror up,
down, in, or out using the
switch

85
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
IS250/220d/200d_EE
The mirrors can be adjusted when
The “ENGINE START STOP” switch is in ACCESSORY or IGNITION
ON mode.
When the mirrors are fogged up
Turn on the mirror defoggers to defog the mirrors. (P. 264)
One-touch adjustment of the mirror angle
(vehicles with driving position memory)
A desired mirror face angle can be entered to memory and adjusted with the
touch of a button. (P. 6 6 )
Linked mirror function when reversing (vehicles with driving position
memory)
The outside rear view mirrors will automatically angle downwards when the
vehicle is reversing in order to give a better view of the ground. However,
this function will not operate when the mirror select switch is in the neutral
position (between “L” and “R”).
Auto anti-glare function (vehicles with auto anti-glare mirror)
When the anti-glare inside rear view mirror is set to automatic mode, the
outside rear view mirrors will activate in conjunction with the anti-glare
inside rear view mirror to reduce reflected light. (P. 8 2 )
Rain clearing mirrors (if equipped)
When water droplets collects on the mirror surface, for example when it
rains, the rain clearing (hydrophilic) effect of the mirrors causes the droplets
to be spread out into a film making the rear view clearer. In the following
cases, the rain clearing effect will be reduced temporarily, but will return
after 1 or 2 days' exposure to direct sunlight.
After wiping dirt off the mirrors
When the mirrors fog up
After waxing your vehicle in an automatic car wash
After your vehicle has been parked for a long period in underground
parking lots, etc. where there is no direct sunlight

86
1-3. Adjustable components (seats, mirrors, steering wheel)
IS250/220d/200d_EE
CAUTION
When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
Do not adjust the mirrors while driving.
Do not drive with the mirrors folded back.
Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.
NOTICE
If the mirrors become iced up
In order to retain the rain-clearing properties of the mirror, do not attempt to
scrape the ice off. Instead, remove it by turning on the mirror defoggers or
by applying warm water.
