474
5-2. Steps to take in an emergency
IS250/220d/200d_EE

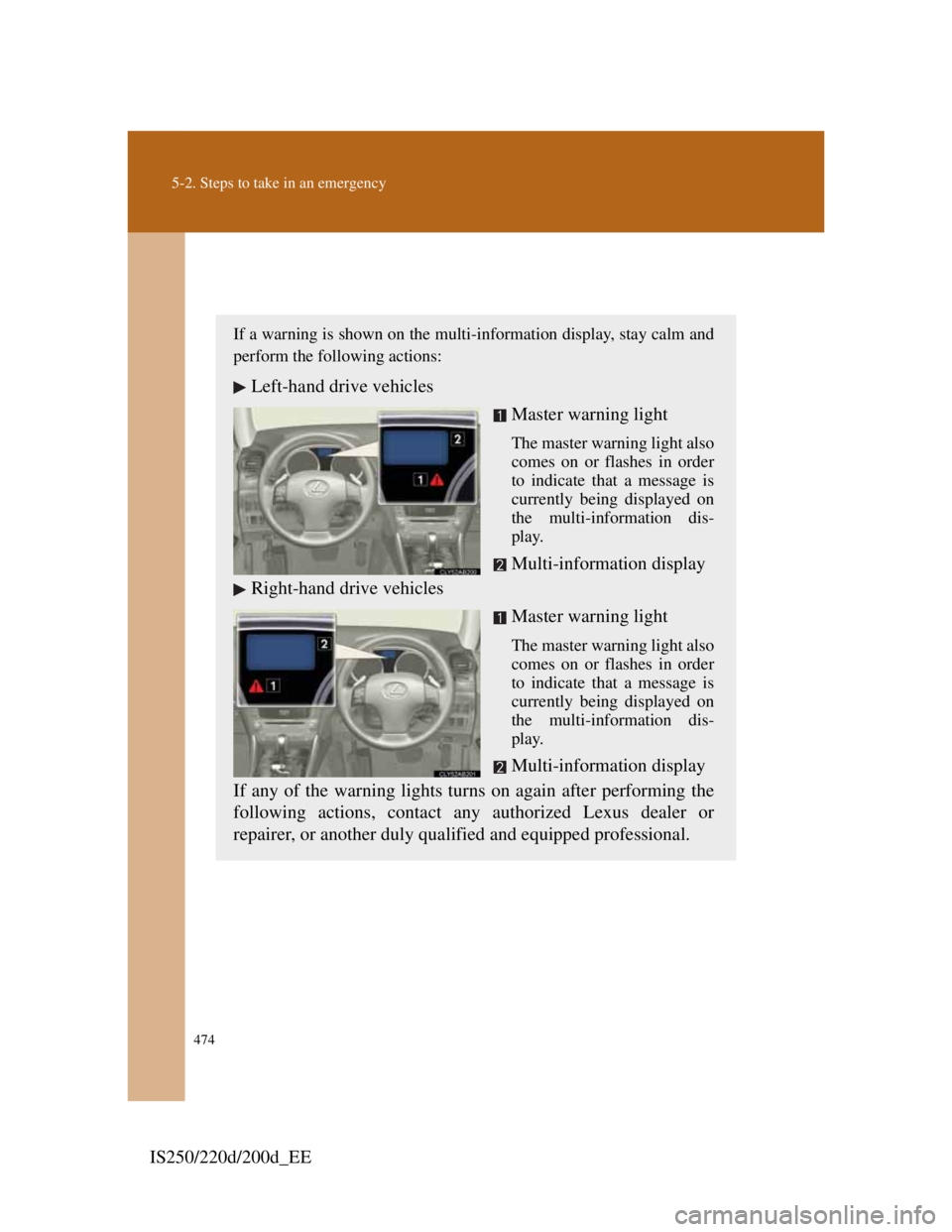

If a warning message is displayed
If a warning is shown on the multi-information display, stay calm and
perform the following actions:
Left-hand drive vehicles
Master warning light
The master warning light also
comes on or flashes in order
to indicate that a message is
currently being displayed on
the multi-information dis-
play.
Multi-information display
Right-hand drive vehicles
Master warning light
The master warning light also
comes on or flashes in order
to indicate that a message is
currently being displayed on
the multi-information dis-
play.
Multi-information display
If any of the warning lights turns on again after performing the
following actions, contact any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.

5
475
5-2. Steps to take in an emergency
When trouble arises
IS250/220d/200d_EE
Stop the vehicle immediately.
A buzzer sounds and a warning message is shown on the multi-
information display. The following warning indicates the possibil-
ity of damage to the vehicle that may lead to an accident. Immedi-
ately stop the vehicle in a safe place and contact any authorized
Lexus dealer or repairer, or another duly qualified and equipped
professional.
Have the vehicle inspected immediately.
A buzzer sounds and a warning message is shown on the multi-
information display. Failing to investigate the cause of the follow-
ing warnings may lead to the system operating abnormally and
possibly cause an accident. Have the vehicle inspected by any
authorized Lexus dealer or repairer, or another duly qualified and
equipped professional, immediately.
Warning messageDetails
(Flashing)
Indicates an abnormal engine oil pressure.
The warning light may turn on if the engine oil
pressure is too low.
Warning messageDetails
(Flashing)
Indicates a malfunction in the steering lock sys-
tem.

476
5-2. Steps to take in an emergency
IS250/220d/200d_EE
(If equipped)
Indicates a malfunction in the pre-crash safety
system.
(If equipped)
Indicates a malfunction in the automatic headlight
leveling system
(If equipped)
Indicates a Lexus parking assist-sensor malfunc-
tion.
The malfunctioning assist-sensor is shown flash-
ing on the display.
(Flashing)
(If equipped)
Indicates a malfunction in the dynamic radar
cruise control system.
Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
Warning messageDetails

482
5-2. Steps to take in an emergency
IS250/220d/200d_EE
Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Inte-
rior
buzzerExte-
rior
buzzer
Warning messageDetailsCorrection
procedure
Once(Comes on for 10 sec-
onds.)
(Flashing)
Indicates that an
attempt was
made to start the
engine without
the electronic
key being pres-
ent, or the elec-
tronic key was
not functioning
normally.
Start the engine
with the elec-
tronic key
present. *
Once3
times
(Flashing)
Indicates that a
door other than
the driver’s door
has been opened
or closed with
the “ENGINE
START STOP”
switch in any
mode other than
OFF and the
electronic key
outside of the
detection area.
Confirm the
location of the
electronic key.

563
IS250/220d/200d_EE
Alphabetical index
Alphabetical index
A/C* ..........................................254
ABS ...........................................224
Air conditioning filter ...............430
Air conditioning system
Air conditioning filter ...........430
Automatic air conditioning
system*...............................254
Airbags
Airbag manual ON/OFF
system.................................140
Airbag operating conditions .112
Airbag precautions for your
child....................................116
Airbag warning light ............468
Curtain shield airbag operating
conditions ...........................112
Curtain shield airbag
precautions .........................116
General airbag precautions ...116
Locations of airbags .............110
Modification and disposal of
airbags ................................120
Proper driving posture ..108, 116
Side airbag operating
conditions ...........................112
Side airbag precautions.........116
SRS airbags ..........................110
Alarm.........................................102
Antenna* ...................................272
Anti-lock brake system .............224Armrest ..................................... 377
Ashtrays .................................... 368
Audio input* ............................. 306
Audio system*
Antenna................................ 272
Audio input .......................... 306
AUX port ............................. 306
Bluetooth
® audio ................. 308
CD player/changer ............... 273
iPod ...................................... 288
MP3/WMA disc................... 280
Optimal use .......................... 304
Portable music player .......... 306
Radio.................................... 269
Steering wheel audio switch 307
USB memory ....................... 296
USB port .............................. 296
Automatic air conditioning
system* .................................. 254
Automatic headlight leveling
system .................................... 189
Automatic light control system 186
Automatic transmission
Automatic transmission ....... 161
If the shift lever cannot be
shifted from P .................... 517
S mode ................................. 165
AUX adapter*........................... 306
Auxiliary box............................ 361
A
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.

565
Alphabetical index
IS250/220d/200d_EE
Cruise control
Cruise control .......................198
Dynamic radar cruise control .....
202
Cup holder .................................359
Curtain shield airbags ................110
Customizable features ...............556
Daytime running light system ...188
Defogger*
Rear window.........................265
Side mirror ............................265
Dimension .................................534
Display
Dynamic radar cruise control .....
202
Satellite switch mode............365
Trip information ...................182
Warning message..................474
Do-it-yourself maintenance .......398
Door courtesy lights
Door courtesy lights .............351
Wattage .................................552
Door pockets .............................360
Doors
Door lock ....................37, 55, 58
Door windows ........................85
Double locking system .........101
Side mirrors ............................84
Driver's seat belt reminder light 470
Driving
Correct posture .....................108
Procedures ............................142
Driving position memory ............66Electric power steering ............. 224
Electronic key
If your electronic key battery is
discharged ......................... 519
Emergency, in case of
If a warning message is
displayed ........................... 474
If the engine will not start .... 515
If the shift lever cannot be
shifted from P .................... 517
If the vehicle has a discharged
battery................................ 524
If the warning buzzer sounds467
If the warning light turns on 467
If you have a flat tire ... 487, 499
If you lose your keys ........... 518
If you run out of fuel and
the engine stalls ................. 531
If you think something is
wrong................................. 465
If your electronic key does not
operate properly ................ 519
If your vehicle becomes stuck ...
532
If your vehicle has to be
stopped in an emergency ... 534
If your vehicle needs to be
towed ................................. 459
If your vehicle overheats ..... 528
Emergency flashers
Switch .................................. 458
Emergency tire puncture
repair kit ................................. 499
D
E
*: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.

572
Alphabetical index
IS250/220d/200d_EE
Warning buzzers
Brake system ........................467
Open door ............................470
Seat belt reminder .................470
Warning lights
Anti-lock brake system .........468
Brake assist system...............468
Brake system ........................467
Charging system ...................468
Electric power steering warning
light ....................................468
Electronic engine control
system.................................468
Fuel filter warning light........468
Low fuel level .......................470
Malfunction indicator lamp ..468
Master warning light ............470
Open door .............................470
Pre-crash safety system ........468
Pretensioners ........................468
Seat belt reminder light ........470
SRS airbags ..........................468Warning messages
Dynamic radar cruise
control ....................... 475, 477
Engine oil level .................... 477
Engine oil maintenance ....... 477
Engine oil pressure .............. 475
Hood .................................... 477
Lexus parking assist
sensor......................... 475, 477
Moon roof ............................ 477
Open door ............................ 477
Parking brake ....................... 477
Pre-crash safety system 475, 477
Smart entry & start system .. 482
Steering lock ........................ 475
Trunk ................................... 477
Washer fluid ........................ 477
Washer
Checking .............................. 420
Preparing and checking
before winter ..................... 239
Switch .................................. 191
Washing and waxing ................ 388
Weight ...................................... 534
Wheels ...................................... 428
Window glasses ......................... 85
Window lock switch ................... 85
Windows
Power windows...................... 85
Rear window defogger......... 265
Washer ................................. 191W

575
What to do if...
IS250/220d/200d_EE
A warning light or indicator
light comes onP. 467If the warning light turns on or a
warning buzzer sound...
Warning lights
P. 4 6 7P. 470
P. 4 6 8P. 470
P. 4 7 0P. 470
P. 4 6 8P. 468
P. 4 7 0P. 468
P. 4 6 8P. 468
P. 4 6 8P. 468
Brake system warning
lightDriver’s seat belt
reminder light
ABS warning lightFront passenger’s seat
belt reminder light
Low fuel level warning
lightMaster warning light
SRS warning lightElectric power steering
warning light
Open door warning lightPre-crash safety system
warning light
Malfunction indicator
lampFuel filter warning light
Charging system warn-
ing lightSlip indicator
A warning message is dis-P. 474If a warning message is displayed
