ECO mode Lexus IS220d 2012 Owner's Guide

320
3-3. Using the Bluetooth® audio system
IS250/220d/200d_EE
Registering a portable player
Select “Pair Audio” using , and , and perform
the procedure for registering a portable player. (P. 314)
Selecting a portable player to be used
Select “Select Audio” using , and .
Select the portable player to be used using , and
.
Select “From Car” or “From Audio” using ,
and .
If “From Car” is selected, the portable player will be automati-
cally connected whenever the “ENGINE START STOP” switch
is in either ACCESSORY or IGNITION ON mode.
Changing the registered name of a portable player
Select “Change Name” using , and .
Select the desired portable player name to be changed using
, and .
Select “Record Name” using , and , and
say the new name after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using , and .
Listing the registered portable players
Select “List Audios” using , and . The list of reg-
istered portable players will be read aloud.
When listing is complete, the system returns to “BT•A Setup”.
STEP1
STEP2
STEP3
STEP1
STEP2
STEP3
STEP4

333
3-4. Using the hands-free phone system (for mobile phones)
3
Interior features
IS250/220d/200d_EE
Using the hands-free phone system for the first time
Before using the hands-free phone system, it is necessary to regis-
ter a mobile phone in the system. The system will enter phone reg-
istration mode automatically when starting the system with no
mobile phone registered. Follow the procedure below to register
(pair) a mobile phone:
Press the off-hook switch or the talk switch, and select “Pair
Phone” using , and .
Select “Record Name” using , and , and
say the name to be registered after the beep.
The name to be registered will be repeated aloud.
Select “Confirm” using , and .
A passkey will be displayed.
Input the passkey into the mobile phone.
Refer to the manual that comes with the mobile phone for the
operation of the phone.
If the mobile phone has a Bluetooth® audio player, the audio
player can be registered at the same time.
When “Pair Audio?” is displayed, select “Yes” or “No”
using , and . (Bluetooth
® audio player
P. 309)
STEP1
STEP2
STEP3
STEP4
STEP5

372
3-7. Other interior features
IS250/220d/200d_EE
The seat heaters can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
When not in use
Set the dial to “0”. The indicator light turns off.
Vehicles with a manual transmission
Heats the seats
The indicator light comes on.
The higher the number, the
warmer the seats become.
Left frontRight front

375
3-7. Other interior features
3
Interior features
IS250/220d/200d_EE
The seat heaters and ventilators can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
When not in use
Set the dial to “0”. The indicator light turns off.
Vehicles with a manual transmission
Heats the seats
The indicator light (amber)
comes on.
The higher the number, the
warmer the seats become.
Blows air from the seats
The indicator light (green)
comes on.
The higher the number, the
stronger the airflow becomes.
Left frontRight front

378
3-7. Other interior features
IS250/220d/200d_EE
Rear sunshade
Reverse operation feature
This function will become operational after the vehicle has been driven at
15 km/h (9 mph) or more with the rear sunshade in the raised position.
To ensure adequate rear visibility, the sunshade automatically lowers when
the shift lever is shifted to R and the function is in an operational condition.
However, the rear sunshade is raised again if either of the following occurs:
The switch is pressed again.
The shift lever is shifted out of R, and the vehicle reaches a speed of 15
km/h (9 mph).
If the engine is turned off when the rear sunshade has been lowered due to
the reverse operation feature, it will not be raised even when the engine is
turned on again and the vehicle reaches a speed of 15 km/h (9 mph). To raise
the sunshade again, press the switch.
The rear sunshade can be used when
The “ENGINE START STOP” switch is in IGNITION ON mode.
The rear sunshade can be raised and lowered by operating the switch
shown below.
Raise/lower
: If equipped

383
3-7. Other interior features
3
Interior features
IS250/220d/200d_EE
CAUTION
Observe the following precautions.
Failure to do so may cause the driver's floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it
may become difficult to stop the vehicle, leading to a serious accident.
When installing the driver's floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Lexus Genuine floor mats.
Only use floor mats designed for the driver's seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in P (automatic transmission) or
N (manual transmission), fully depress
each pedal to the floor to make sure it
does not interfere with the floor mat.

400
4-3. Do-it-yourself maintenance
IS250/220d/200d_EE
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
When working on the engine compartment
Keep hands, clothing, and tools away from the moving fan and engine
drive belt.
Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
Do not leave anything that may burn easily, such as paper or rags, in the
engine compartment.
Do not smoke, cause sparks or expose an open flame to fuel or the battery.
Fuel and battery fumes are flammable.
Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
Take care because brake fluid can harm your hands or eyes and damage
painted surfaces.
If fluid gets on your hands or in your eyes, flush the affected area with
clean water immediately.
If you still experience discomfort, see a doctor.
When working near the electric cooling fan or radiator grille
Be sure the “ENGINE START STOP” switch is OFF.
With the “ENGINE START STOP” switch in IGNITION ON mode, the
electric cooling fan may automatically start to run if the air conditioning is
on and/or the coolant temperature is high. (P. 415)
CAUTION
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.
from getting in the eyes.

411
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EE
Engine oil consumption
The amount of engine oil consumed depends on the oil viscosity, the
quality of the oil and the way the vehicle is driven.
More oil is consumed under driving conditions such as high speeds and
frequent acceleration and deceleration.
A new engine consumes more oil.
When judging the amount of oil consumption, keep in mind that the oil
may have become diluted, making it difficult to judge the true level
accurately.
Oil consumption: Max. 1.0 L per 1,000 km (1.1 qt./600 miles, 0.9 Imp.
qt./600 miles)
If your vehicle consumes more than 1.0 L (1.1 qt., 0.9 Imp. qt.) every
1000 km (600 miles), contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
After changing the engine oil (IS220d and IS200d)
The oil change system should be reset. Perform the following procedures:
Switch the display to the odometer (P. 171) when the engine is
running.
Turn the “ENGINE START STOP” switch OFF.
While pressing the trip meter reset button, set the “ENGINE
START STOP” switch to IGNITION ON mode (but do not start the
engine because otherwise the reset mode will be cancelled). Con-
tinue to press and hold the button until the trip meter displays
“000000”.
STEP1
STEP2
STEP3

422
4-3. Do-it-yourself maintenance
IS250/220d/200d_EE
Replace the tires when the treadwear indicators show.
Checking tires
New tread
Treadwear indicator
Wo r n t r e a d
The location of treadwear
indicators is shown by the
“TWI” or “ ” marks, etc.,
molded on the sidewall of
each tire.
Check spare tire condition
and inflation pressure if not
rotated.
Tire rotation
Models with 16-inch tires (with a compact spare tire or an
emergency tire puncture repair kit)
Rotate the tires in the order
shown.
To equalize tire wear and
help extend tire life, Lexus
recommends that you rotate
your tires approximately
every 10000 km (6000
miles).
Models with 16-inch tires (with a full-size spare tire)
Rotate the tires in the order
shown.
To equalize tire wear and
help extend tire life, Lexus
recommends that you rotate
your tires approximately
10000 k (6000
Front

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
IS250/220d/200d_EE
Directional tires
Tire direction marks
The tire sidewalls are marked
with arrows indicating the roll-
ing direction of the tire. If
mounted on the wrong side of
the vehicle, directional tires
will not perform properly.
The directional spare tire sup-
plied is for the front passenger
side of the vehicle. If mounted
on the front driver side or rear,
the directional tire will not per-
form properly.

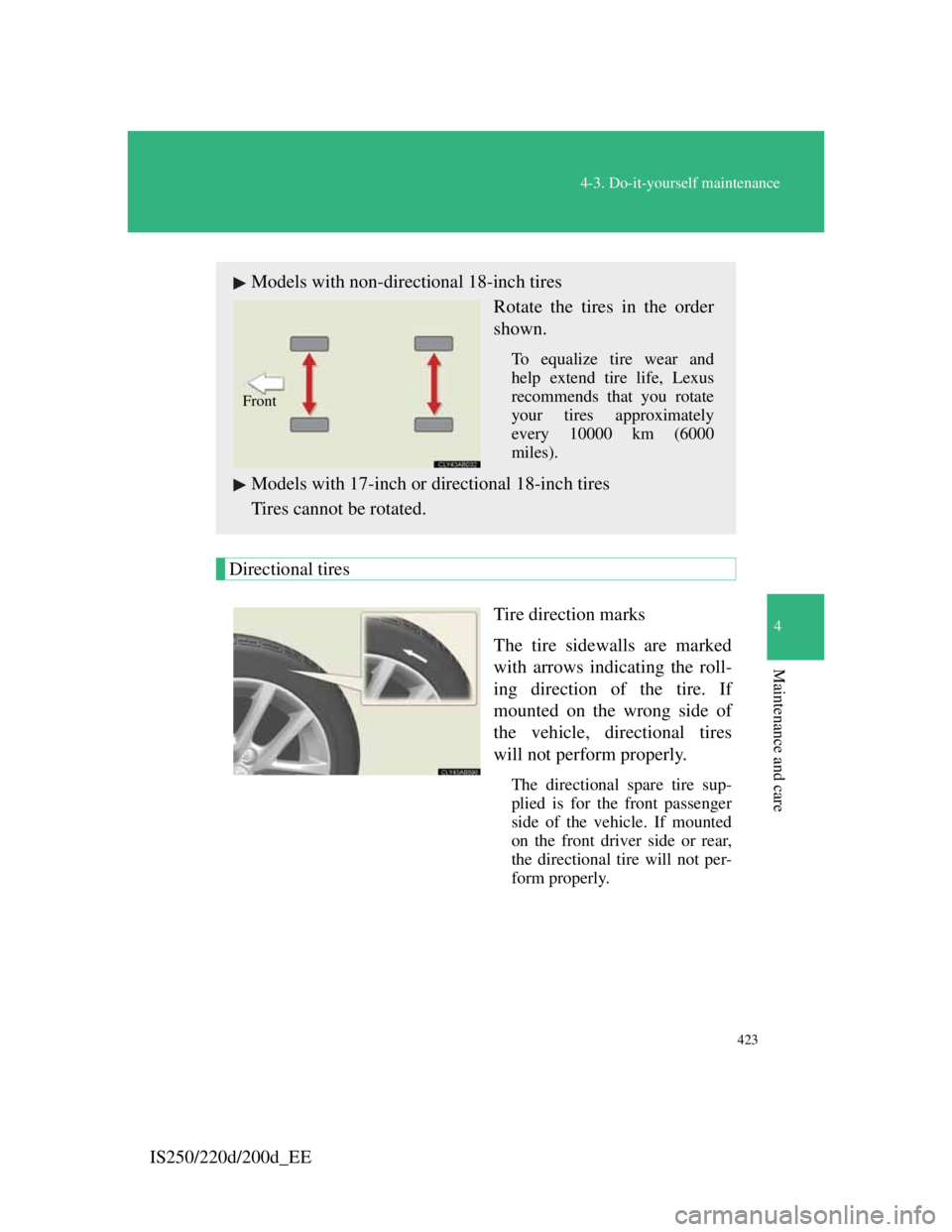

Models with non-directional 18-inch tires
Rotate the tires in the order
shown.
To equalize tire wear and
help extend tire life, Lexus
recommends that you rotate
your tires approximately
every 10000 km (6000
miles).
Models with 17-inch or directional 18-inch tires
Tires cannot be rotated.
Front
