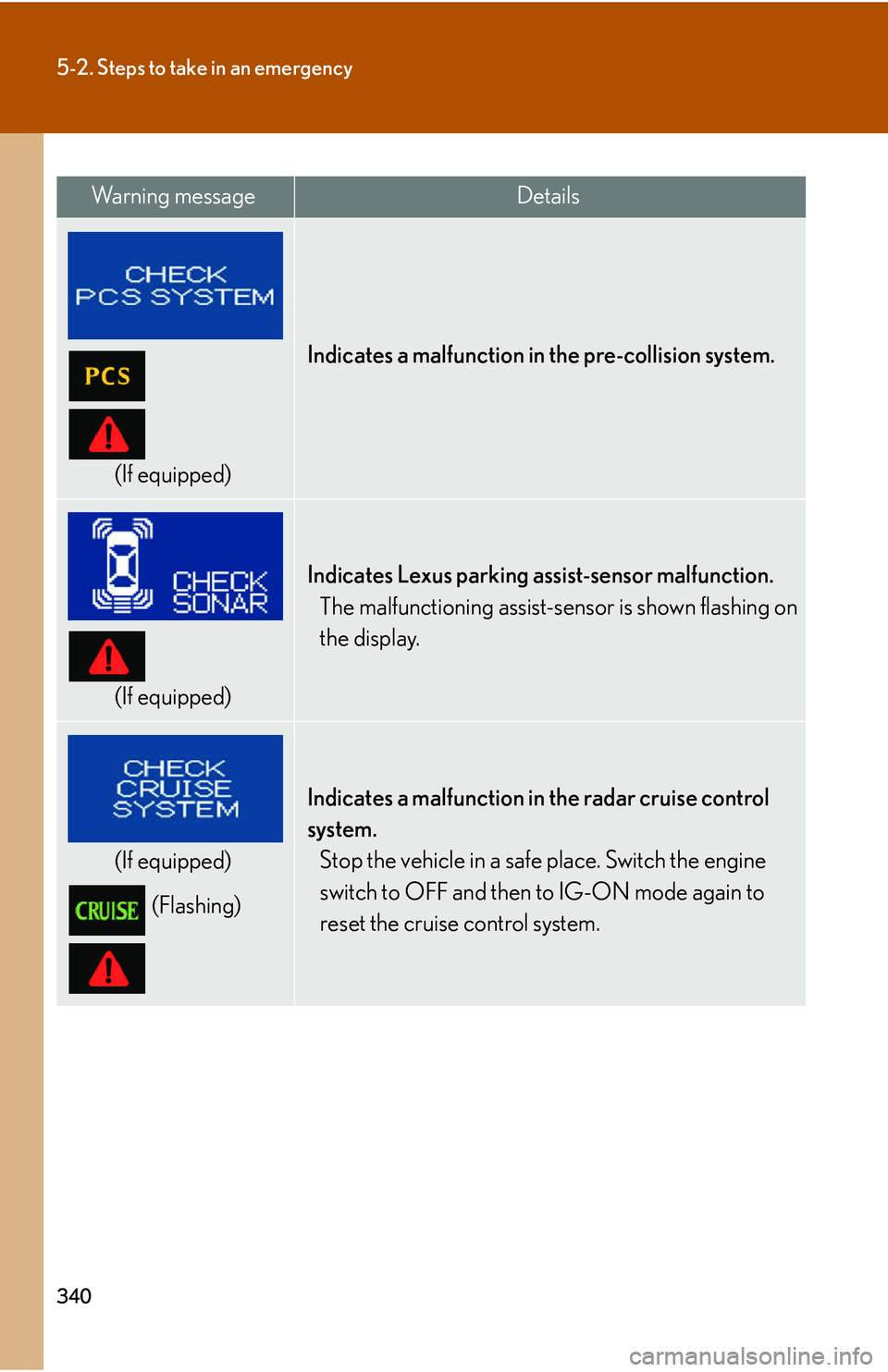

340
5-2. Steps to take in an emergency
Wa r n i n g m e s s a g eDetails
(If equipped)
Indicates a malfunction in the pre-collision system.
(If equipped)
Indicates Lexus parking assist-sensor malfunction.The malfunctioning assist-sensor is shown flashing on
the display.
(If equipped)
(Flashing)
Indicates a malfunction in the radar cruise control
system.Stop the vehicle in a safe place. Switch the engine
switch to OFF and then to IG-ON mode again to
reset the cruise control system.

5
When trouble arises

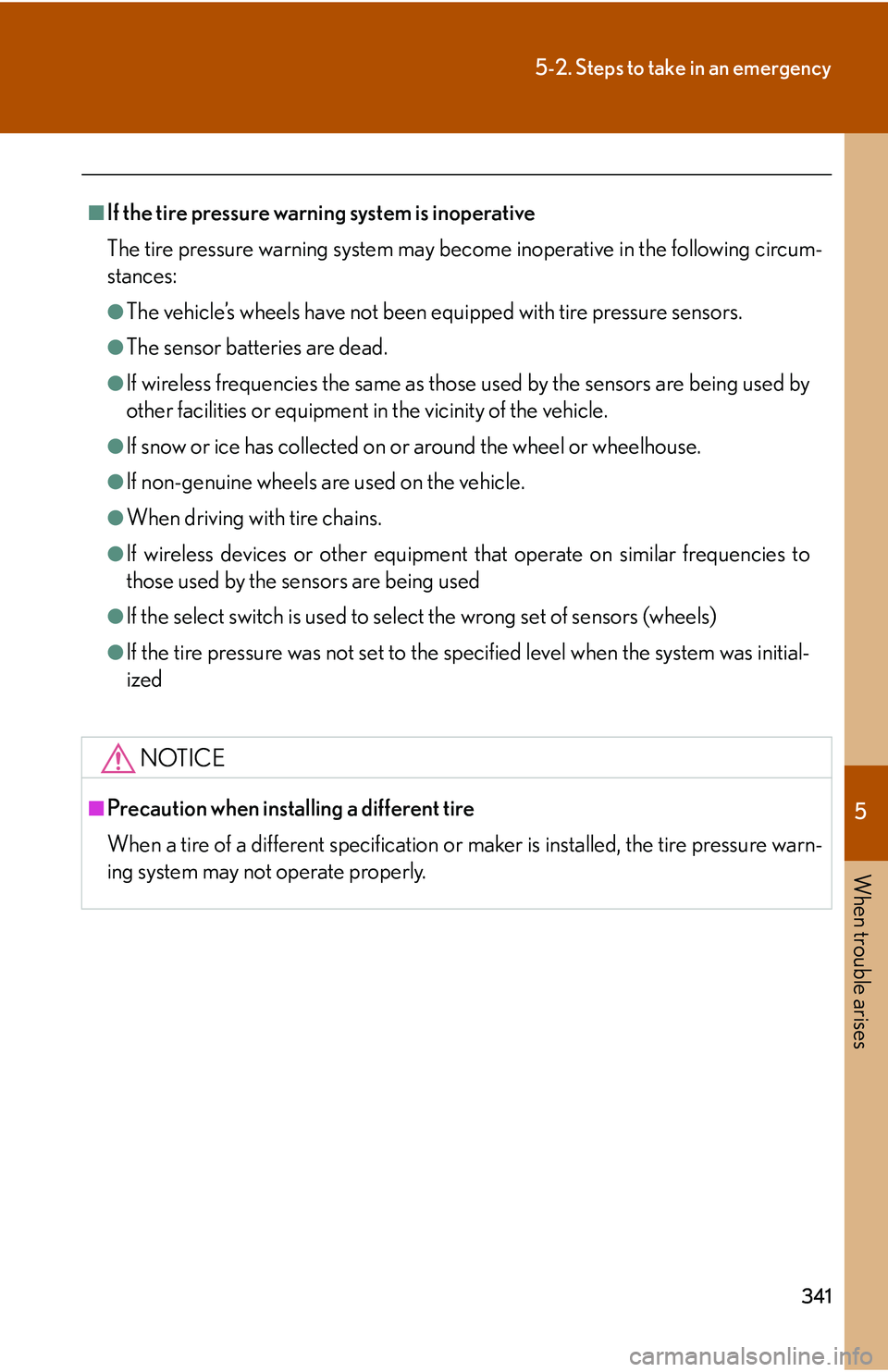

341
5-2. Steps to take in an emergency
■If the tire pressure warning system is inoperative
The tire pressure warning system may become inoperative in the following circum-
stances:
●The vehicle’s wheels have not been equipped with tire pressure sensors.
●The sensor batteries are dead.
●If wireless frequencies the same as those used by the sensors are being used by
other facilities or equipment in the vicinity of the vehicle.
●If snow or ice has collected on or around the wheel or wheelhouse.
●If non-genuine wheels are used on the vehicle.
●When driving with tire chains.
●If wireless devices or other equipment that operate on similar frequencies to
those used by the sensors are being used
●If the select switch is used to select the wrong set of sensors (wheels)
●If the tire pressure was not set to the specified level when the system was initial-
ized
NOTICE
■Precaution when insta lling a different tire
When a tire of a different specification or maker is installed, the tire pressure warn-
ing system may not operate properly.

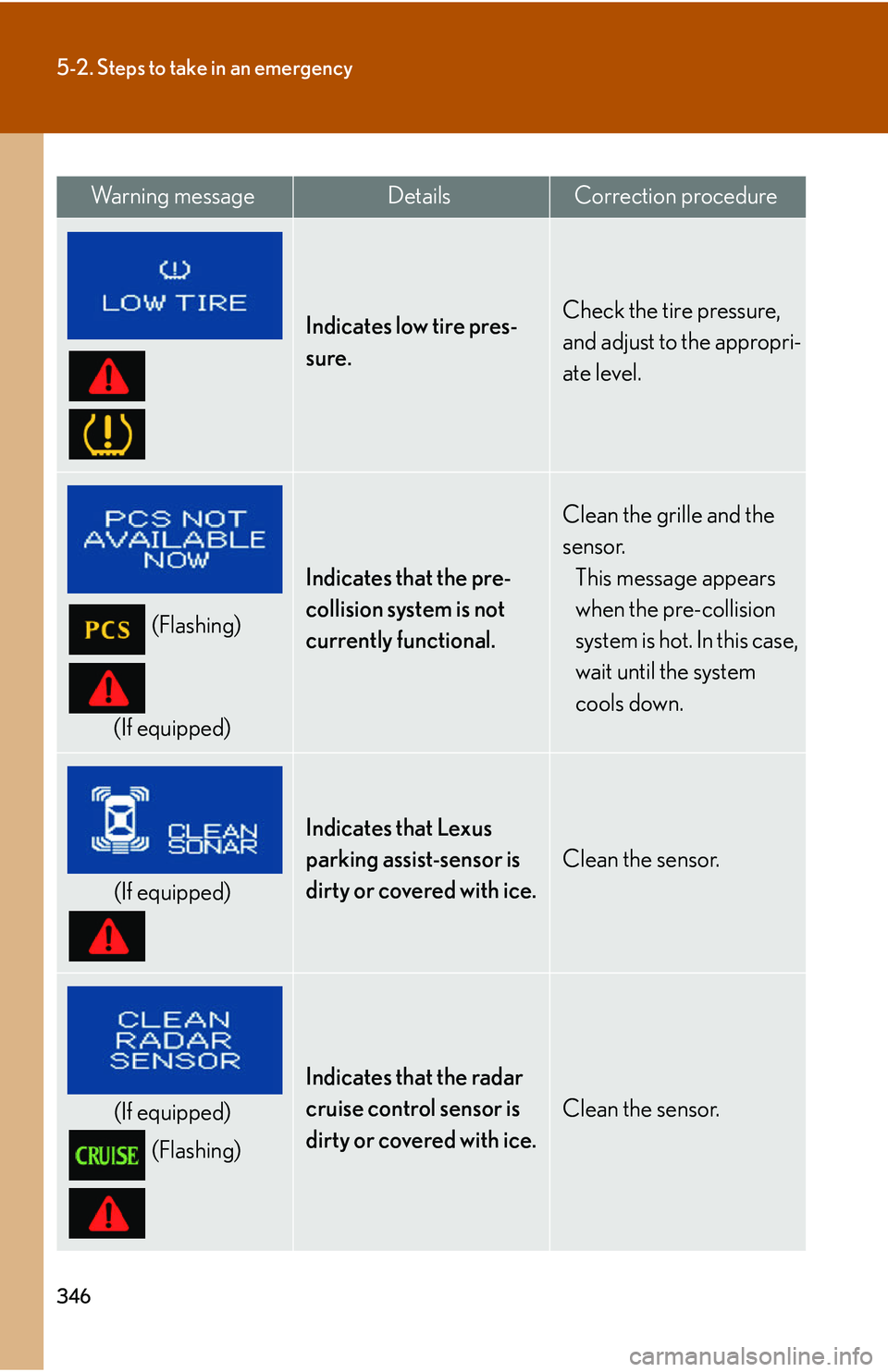

346
5-2. Steps to take in an emergency
Wa r n i n g m e s s a g eDetailsCorrection procedure
Indicates low tire pres-
sure.Check the tire pressure,
and adjust to the appropri-
ate level.
(Flashing)
(If equipped)
Indicates that the pre-
collision system is not
currently functional.
Clean the grille and the
sensor. This message appears
when the pre-collision
system is hot. In this case,
wait until the system
cools down.
(If equipped)
Indicates that Lexus
parking assist-sensor is
dirty or covered with ice.
Clean the sensor.
(If equipped)
(Flashing)
Indicates that the radar
cruise control sensor is
dirty or covered with ice.
Clean the sensor.

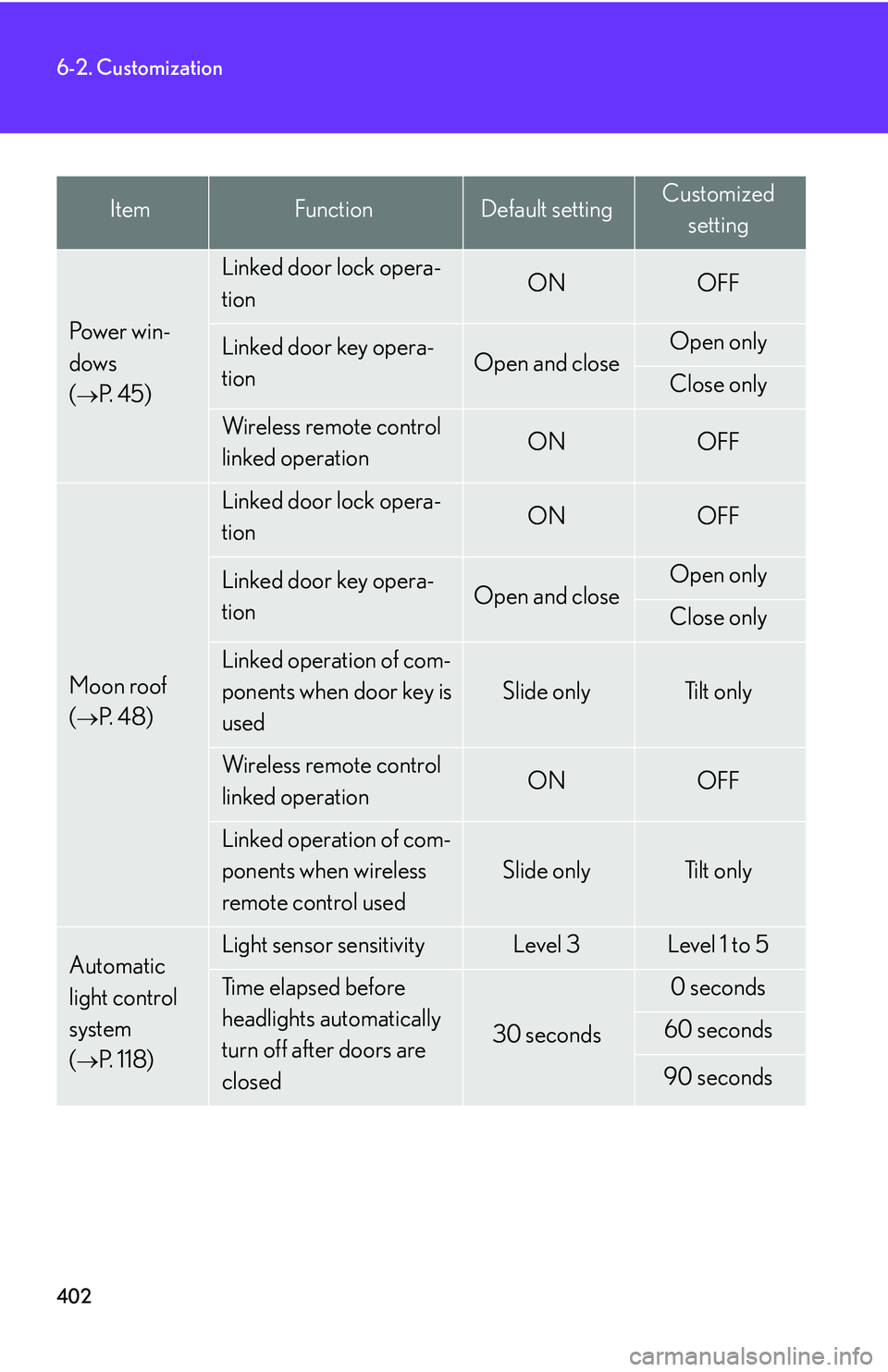

402
6-2. Customization
ItemFunctionDefault settingCustomizedsetting
Pow e r w i n -
dows
(
P. 4 5 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Wireless remote control
linked operationONOFF
Moon roof
(
P. 4 8 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Linked operation of com-
ponents when door key is
used
Slide onlyTilt only
Wireless remote control
linked operationONOFF
Linked operation of com-
ponents when wireless
remote control used
Slide onlyTilt only
Automatic
light control
system
(
P. 1 1 8 )
Light sensor sensitivityLevel 3Level 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds

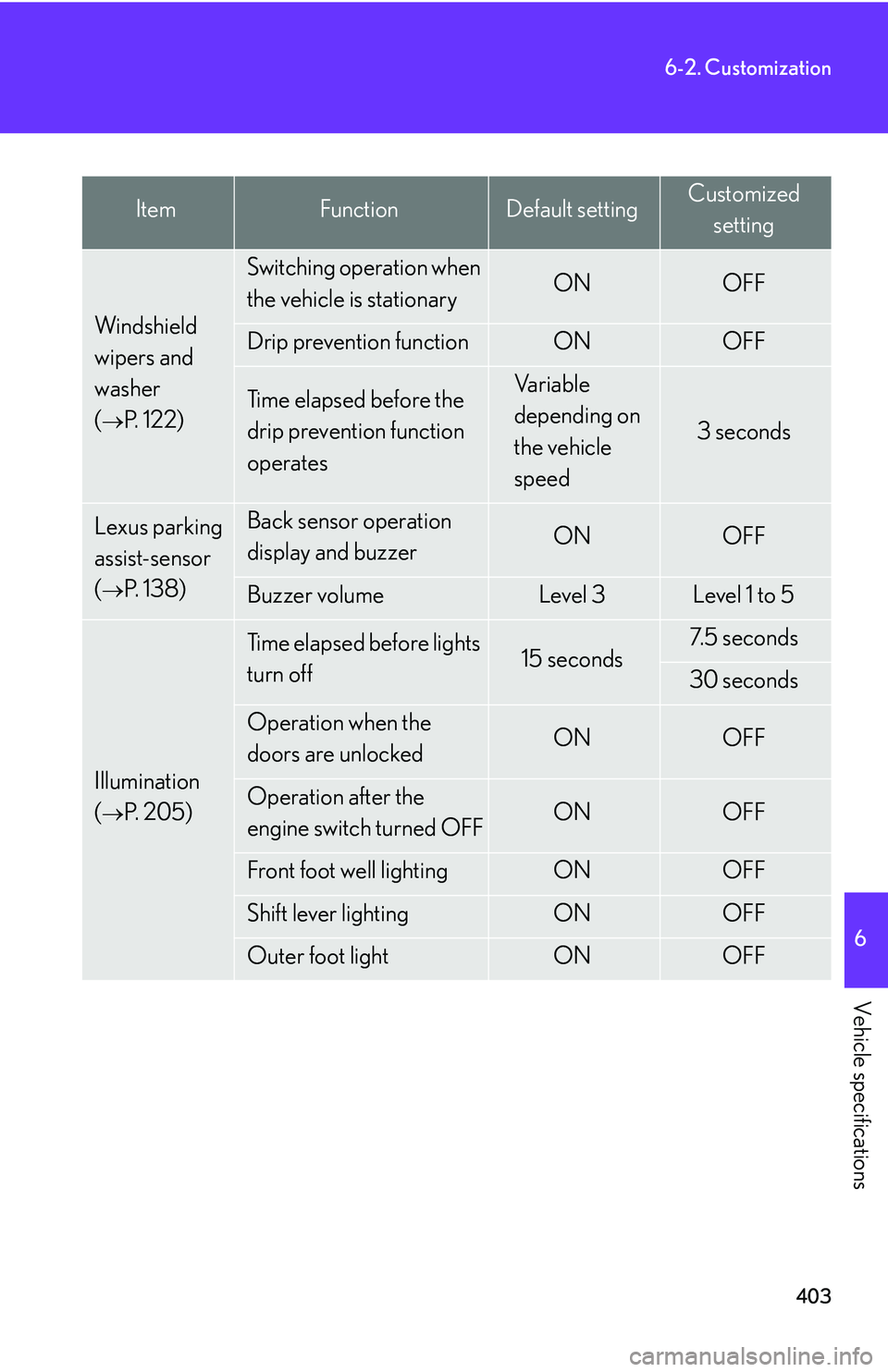

403
6-2. Customization
6
Vehicle specifications
ItemFunctionDefault settingCustomizedsetting
Windshield
wipers and
washer
(
P. 122)
Switching operation when
the vehicle is stationaryONOFF
Drip prevention functionONOFF
Time elapsed before the
drip prevention function
operatesVa r i a b l e
depending on
the vehicle
speed
3 seconds
Lexus parking
assist-sensor
(
P. 1 3 8 )
Back sensor operation
display and buzzerONOFF
Buzzer volumeLevel 3Level 1 to 5
Illumination
(
P. 2 0 5 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedONOFF
Operation after the
engine switch turned OFFONOFF
Front foot well lightingONOFF
Shift lever lightingONOFF
Outer foot lightONOFF

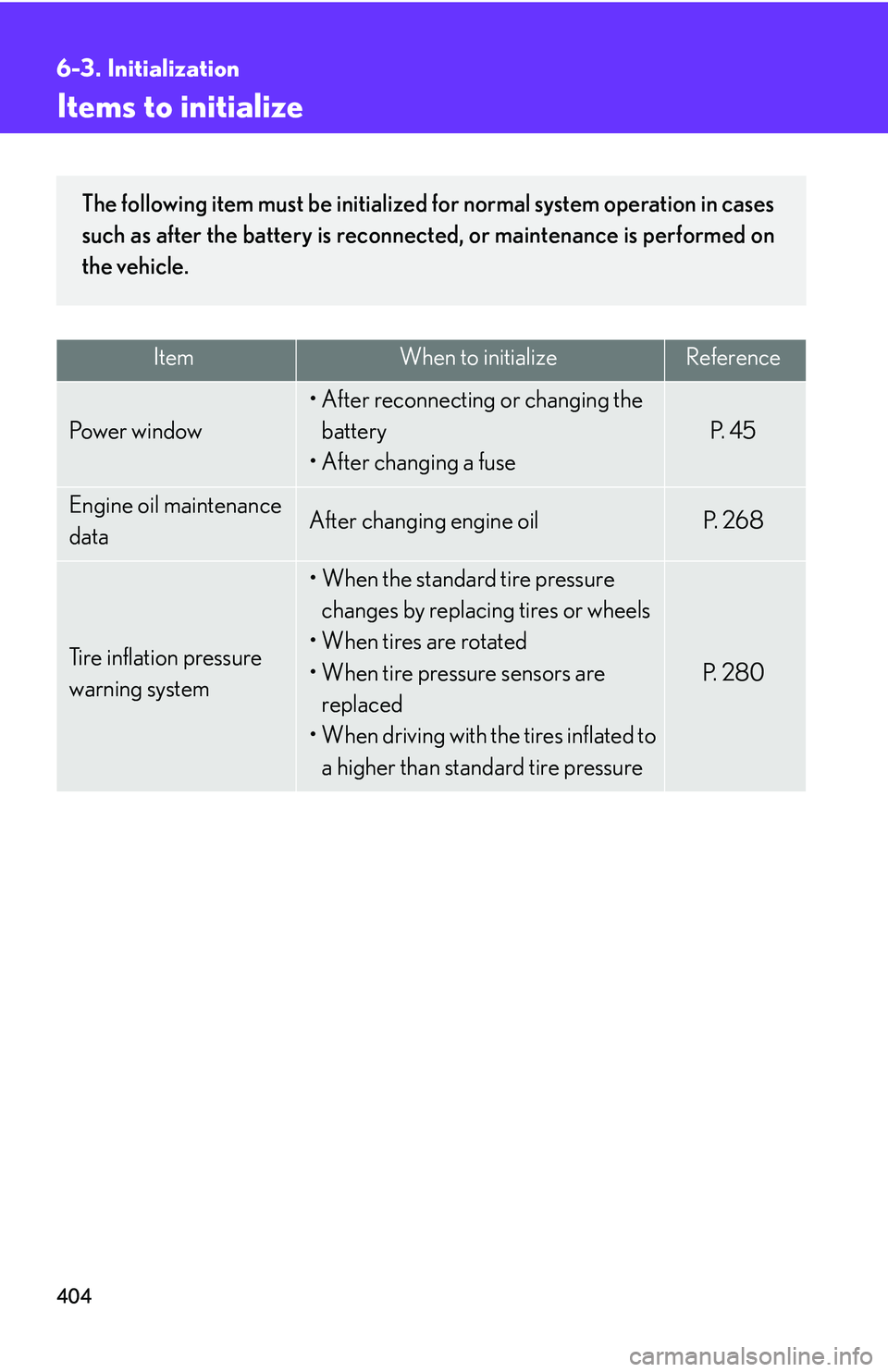

404
6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Pow e r w i n d ow
• After reconnecting or changing the battery
• After changing a fuse
P. 4 5
Engine oil maintenance
dataAfter changing engine oilP. 2 6 8
Tire inflation pressure
warning system
• When the standard tire pressure changes by replacing tires or wheels
• When tires are rotated
• When tire pressure sensors are replaced
• When driving with the tires inflated to
a higher than standard tire pressure
P. 2 8 0
The following item must be initialized for normal system operation in cases
such as after the battery is reconnected, or maintenance is performed on
the vehicle.

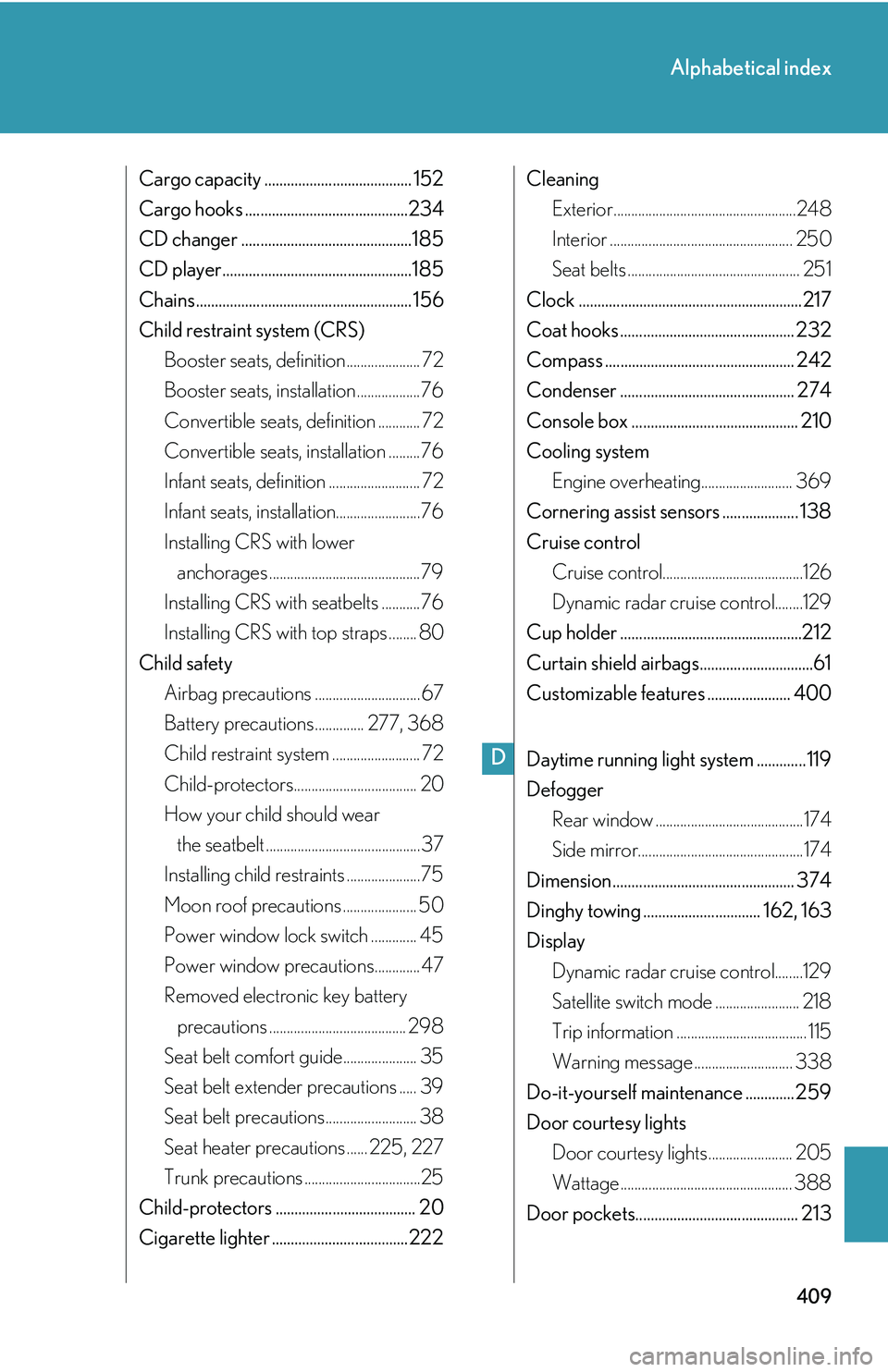

409
Alphabetical index
Cargo capacity ....................................... 152
Cargo hooks ...........................................234
CD changer .............................................185
CD player..................................................185
Chains ......................................................... 156
Child restraint system (CRS)Booster seats, definition..................... 72
Booster seats, installation ..................76
Convertible seats, definition ............ 72
Convertible seats, installation .........76
Infant seats, definition .......................... 72
Infant seats, installation........................76
Installing CRS with lower anchorages ...........................................79
Installing CRS with seatbelts ...........76
Installing CRS with top straps ........ 80
Child safety Airbag precautions ..............................67
Battery precautions .............. 277, 368
Child restraint system ......................... 72
Child-protectors................................... 20
How your child should wear the seatbelt ............................................ 37
Installing child restraints .....................75
Moon roof precautions ..................... 50
Power window lock switch ............. 45
Power window precautions............. 47
Removed electronic key battery precautions ....................................... 298
Seat belt comfort guide..................... 35
Seat belt extender precautions ..... 39
Seat belt precautions.......................... 38
Seat heater precautions ...... 225, 227
Trunk precautions .................................25
Child-protectors ..................................... 20
Cigarette lighter ....................................222 Cleaning
Exterior....................................................248
Interior .................................................... 250
Seat belts ................................................. 251
Clock ...........................................................217
Coat hooks .............................................. 232
Compass .................................................. 242
Condenser .............................................. 274
Console box ............................................ 210
Cooling system Engine overheating.......................... 369
Cornering assist sensors .................... 138
Cruise control Cruise control........................................126
Dynamic radar cruise control........129
Cup holder ................................................212
Curtain shield airbags..............................61
Customizable features ...................... 400
Daytime running light system .............119
Defogger Rear window ..........................................174
Side mirror...............................................174
Dimension................................................ 374
Dinghy towing ............................... 162, 163
Display Dynamic radar cruise control........129
Satellite switch mode ........................ 218
Trip information ..................................... 115
Warning message ............................ 338
Do-it-yourself maintenance .............259
Door courtesy lights Door courtesy lights ........................ 205
Wattage ................................................. 388
Door pockets........................................... 213
D

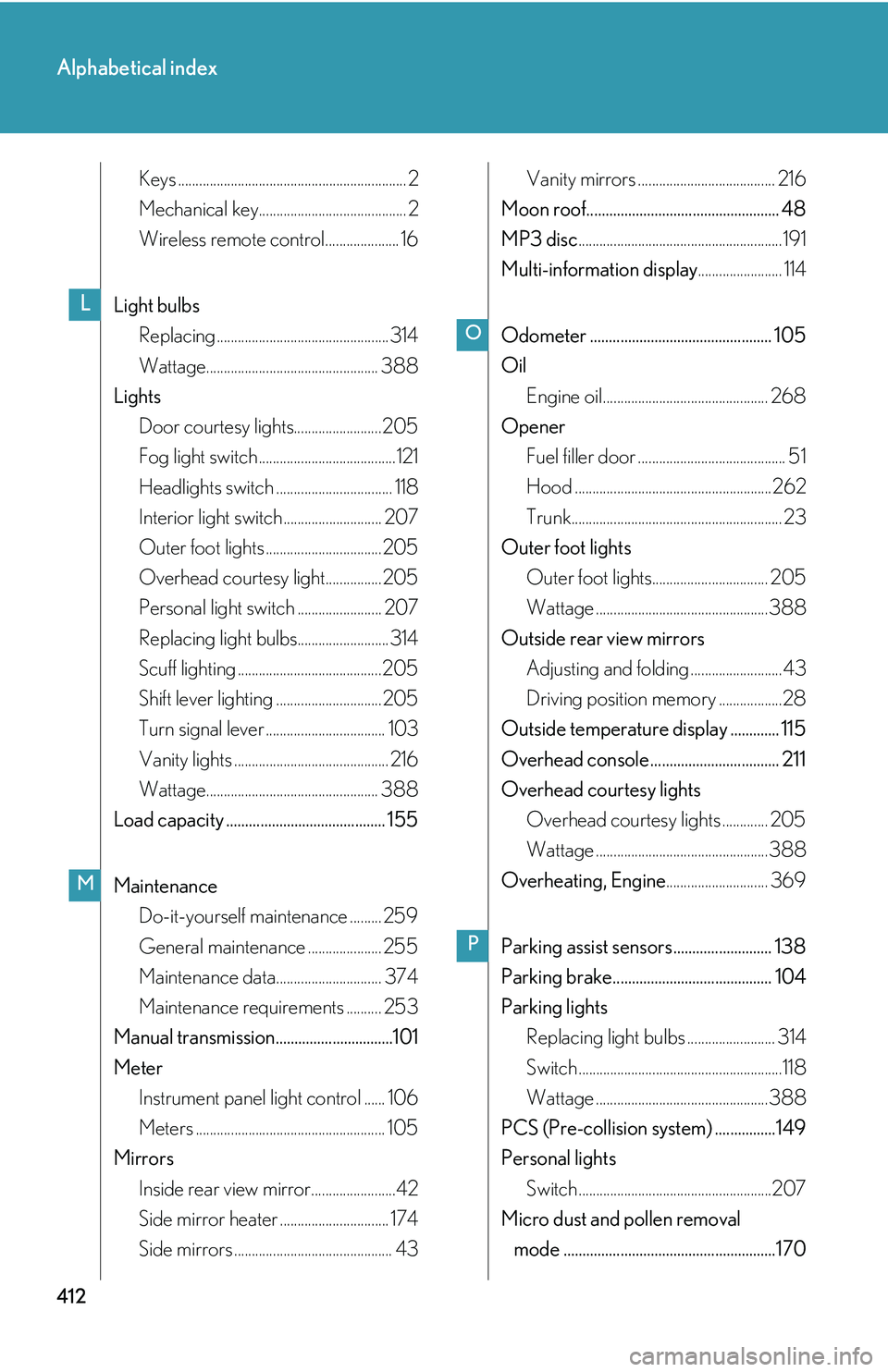

412
Alphabetical index
Keys ................................................................. 2
Mechanical key.......................................... 2
Wireless remote control..................... 16
Light bulbs Replacing ................................................. 314
Wattage................................................. 388
Lights Door courtesy lights.........................205
Fog light switch .......................................121
Headlights switch ................................. 118
Interior light switch ............................ 207
Outer foot lights .................................205
Overhead courtesy light................205
Personal light switch ........................ 207
Replacing light bulbs.......................... 314
Scuff lighting .........................................205
Shift lever lighting ..............................205
Turn signal lever .................................. 103
Vanity lights ............................................ 216
Wattage................................................. 388
Load capacity .......................................... 155
Maintenance Do-it-yourself maintenance ......... 259
General maintenance ..................... 255
Maintenance data.............................. 374
Maintenance requirements .......... 253
Manual transmission...............................101
Meter Instrument panel light control ...... 106
Meters ...................................................... 105
Mirrors Inside rear view mirror........................42
Side mirror heater ............................... 174
Side mirrors ............................................. 43 Vanity mirrors ....................................... 216
Moon roof................................................... 48
MP3 disc .......................................................... 191
Multi-information display ........................ 114
Odometer ................................................ 105
Oil Engine oil............................................... 268
Opener Fuel filler door .......................................... 51
Hood ........................................................262
Trunk............................................................ 23
Outer foot lights Outer foot lights................................. 205
Wattage .................................................388
Outside rear view mirrors Adjusting and folding .......................... 43
Driving position memory ..................28
Outside temperature display ............. 115
Overhead console .................................. 211
Overhead courtesy lights Overhead courtesy lights ............. 205
Wattage .................................................388
Overheating, Engine ............................. 369
Parking assist sensors.......................... 138
Parking brake.......................................... 104
Parking lights Replacing light bulbs ......................... 314
Switch ..........................................................118
Wattage .................................................388
PCS (Pre-collision system) ................149
Personal lights Switch .......................................................207
Micro dust and pollen removal mode ........................................................170
L
M
O
P

414
Alphabetical index
Smart access system with push-button startEntry function..............................................4
Starting the engine ............................... 94
Spare tire Inflation pressure................................289
Spare tire................................................ 352
Spark plug ................................................ 379
Specifications ......................................... 374
Speedometer Speed indicator ................................... 105
Speedometer........................................ 105
Steering wheel Audio switches ................................... 203
Driving position memory.................. 28
Manual adjustment .............................. 40
Power adjustment .................................. 41
Storage feature......................................209
Stuck If your vehicle becomes stuck....... 371
Sun visors .................................................. 215
Sunshade Rear .......................................................... 229
Roof ............................................................. 49
Switch ECT switch .............................................. 98
Engine switch.......................................... 94
ETCS switch............................................ 101
Fog light switch .......................................121
Light switches ......................................... 118
Power door lock switch ...................... 19
Power window switch ........................ 45
Satellite switches ..................................218
Transmission shift switches.............. 99
Window lock switch ........................... 45
Wipers and washer switch ............. 122 Tachometer
Tacho indicator ....................................105
Tachometer............................................105
Tail lights Switch ..........................................................118
Theft deterrent system Alarm.......................................................... 56
Engine immobilizer system ..............54
Theft prevention labels.......................... 58
Tire inflation pressure ......................... 289
Tire information Glossary .................................................397
Size ........................................................... 394
Tire identification number ............. 393
Uniform tire quality grading......... 395
Tires Chains....................................................... 156
Checking................................................279
If you have a flat tire ......................... 352
Inflation pressure ............................... 289
Inflation pressure sensor ............... 280
Information ............................................392
Replacing .............................................. 352
Rotating tires.........................................279
Size ........................................................... 383
Snow tires................................................ 156
Tools........................................................... 352
Total load capacity ................................ 155
Towing Dinghy towing ............................162, 163
Emergency towing ............................ 322
Trailer towing .......................................... 161
TRAC (Traction control).....................144
Traction control (TRAC).....................144
Transmission shift switches ....................99
Trip meter ................................................. 105T

415
Alphabetical index
TrunkExtending a space .............................. 231
Opener.......................................................23
Trunk light Trunk light ................................................. 24
Wattage .................................................388
Turn signal lights Replacing light bulbs ......................... 314
Switch ........................................................103
Wattage .................................................388
Vanity lights Vanity lights ............................................ 216
Wattage .................................................388
Vanity mirrors ............................................. 216
VDIM (Vehicle dynamics integrated managem ent)................. 144
Vehicle dynamics integrated management (VDIM) ....................... 144
Vehicle identification number .........375
Vehicle stability control (VSC) ........ 144
Ventilators................................................226
VSC (Vehicle stability control) ........ 144
Warning buzzers Brake system ....................................... 333
Open door .......................................... 335
Seat belt reminder ............................ 334
Warning lights Anti-lock brake system (ABS) ... 334
Brake assist system .......................... 334
Brake system ....................................... 333
Charging system ............................... 334
Electric power steering warning light ..................................... 334 Electronic engine control
system ..................................................334
Low fuel level ...................................... 335
Low tire pressure warning light ....................................................... 335
Master warning light........................ 335
Open door ........................................... 335
Pre-collision system..........................334
Pretensioners .......................................334
Seat belt reminder light.................. 335
SRS airbags...........................................334
Warning messages AWD system .......................................339
Dynamic radar cruise control....................... 339, 343
Engine oil level ....................................343
Engine oil maintenance ..................343
Engine oil pressure .......................... 338
Hill-start assist control ..................... 342
Hood ........................................................343
Lexus parking assist sensor ...................................... 339, 343
Moon roof .............................................343
Open door ............................................343
Parking brake ......................................343
Pre-collision system............. 339, 343
Smart access system with push-button start ............................349
Steering lock.........................................339
Tire inflation pressure warning system................... 339, 343
Traction control (TRC) ................... 342
Trunk ........................................................343
Vehicle stability control (VSC)................................................... 342
Washer fluid .........................................343
V
W
