check engine light Lexus IS250 2006 Instrument cluster / LEXUS 2006 IS350/250 THROUGH APRIL 2006 PROD. OWNER'S MANUAL (OM53508U)

TABLE OF CONTENTSIndex
• Bottle holders/door pockets ......................................... 209
3-5. Other interior features............. 211 Sun visors............................................ 211
Vanity mirror ................................... 212
Clock .................................................. 213
Satellite switch es ........................... 214
Ashtrays ............................................ 217
Cigarette lighter ............................ 218
Power outlet .................................... 219
Seat heaters .................................... 220
Seat heaters and ve ntilators .... 222
Armrest ............................................ 224
Rear sunshade ............................... 225
Extended trunk.............................. 227
Coat hooks ..................................... 228
Floor mat.......................................... 229
Trunk features............................... 230
Garage door opener .................. 233
Compass......................................... 238
4-1. Maintenance and care............ 244 Cleaning and protecting the vehicle exterior................... 244
Cleaning and protecting the vehicle interior .................... 246 4-2. Maintenance.............................. 249
Maintenance requirements ..... 249
General maintena nce ................. 251
Emission inspection and maintenance (I/M)
programs ...................................... 254
4-3. Do-it-yourself maintenance............................ 255
Do-it-yourself service precautions .................................. 255
Hood................................................. 258
Positioning the jack ..................... 259
Engine compartment................... 261
Tires ................................................... 275
Tire inflation pressure................ 285
Wheels............................................. 289
Air conditioning filter................... 291
Electronic key battery ................ 293
Checking and replacing fuses ................................................ 295
Headlight aim................................ 309
Light bulbs ........................................ 310
5-1. Essential information ................ 318 If your vehicle needs to be towed ........................................ 318
If you think something is wrong ............................................. 325
4Maintenance and care
5When trouble arises

52

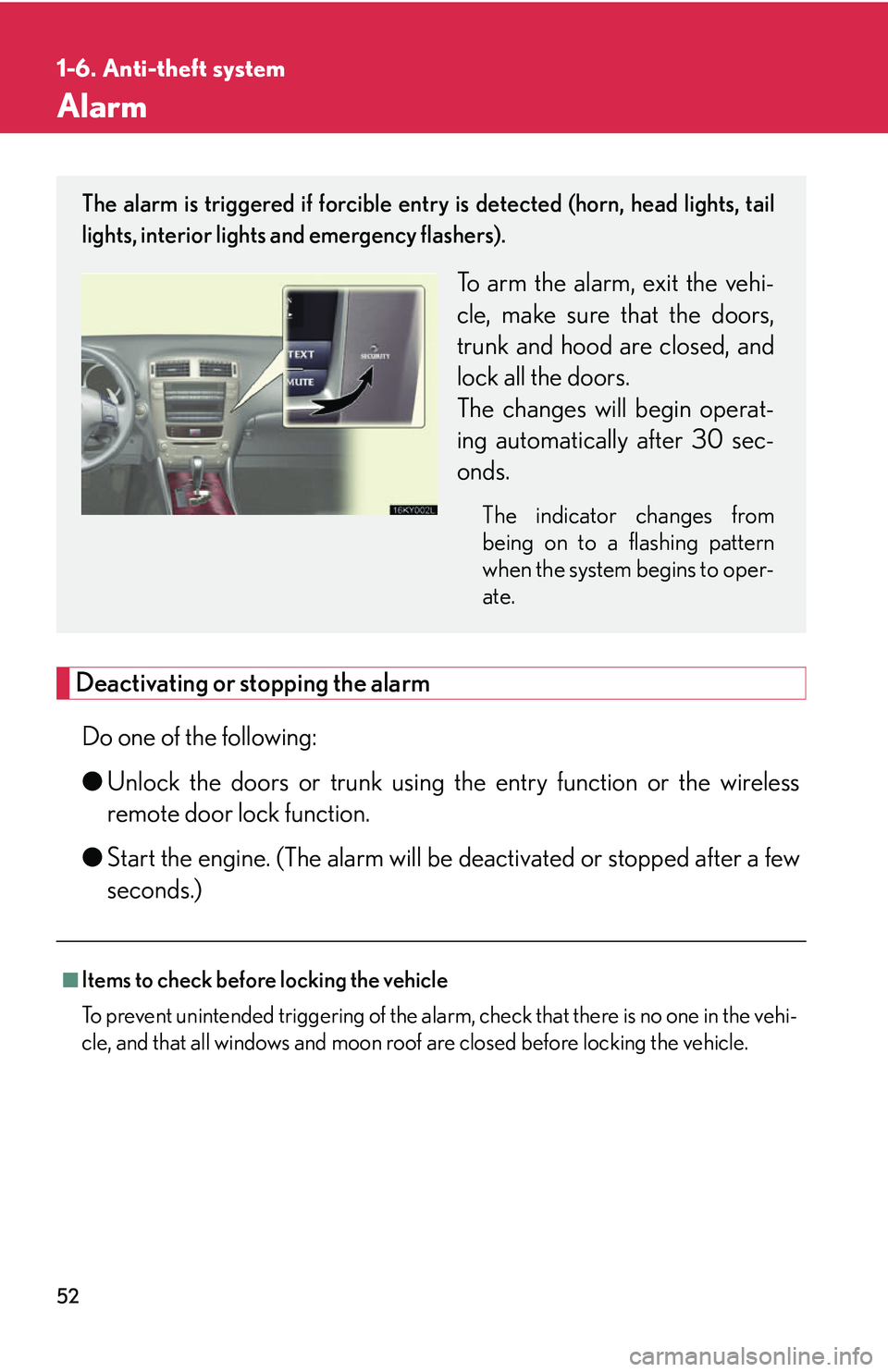

1-6. Anti-theft system
Alarm
Deactivating or stopping the alarmDo one of the following:
● Unlock the doors or trunk using th e entry function or the wireless
remote door lock function.
● Start the engine. (The alarm will be deactivated or stopped after a few
seconds.)
■Items to check before locking the vehicle
To prevent unintended triggering of the alar m, check that there is no one in the vehi-
cle, and that all windows and moon roof are closed before locking the vehicle.
The alarm is triggered if forcible entry is detected (horn, head lights, tail
lights, interior lights and emergency flashers).
To arm the alarm, exit the vehi-
cle, make sure that the doors,
trunk and hood are closed, and
lock all the doors.
The changes will begin operat-
ing automatically after 30 sec-
onds.
The indicator changes from
being on to a flashing pattern
when the system begins to oper-
ate.

86

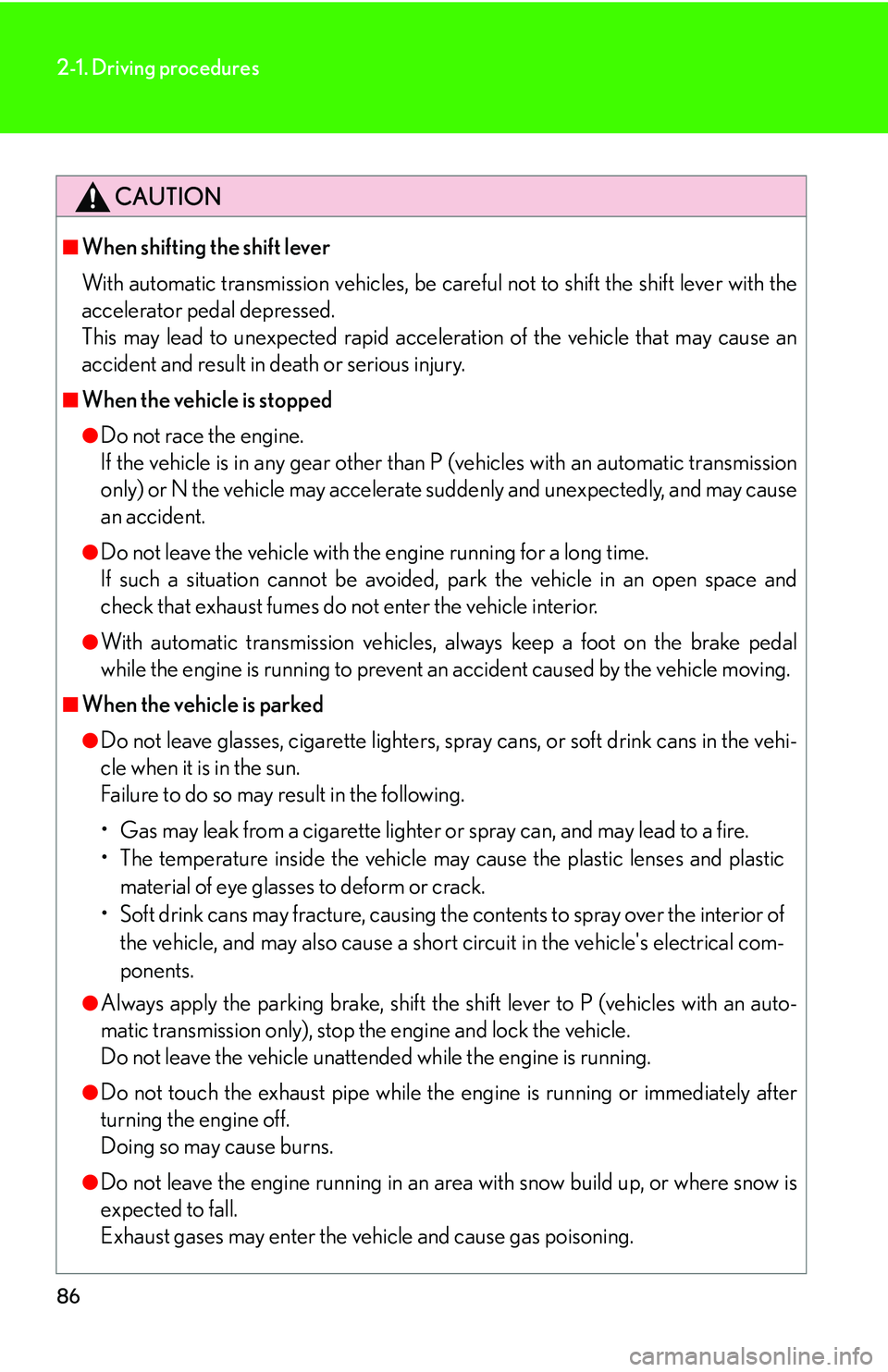

2-1. Driving procedures
CAUTION
■When shifting the shift lever
With automatic transmission vehicles, be careful not to shift the shift lever with the
accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may cause an
accident and result in death or serious injury.
■When the vehicle is stopped
●Do not race the engine.
If the vehicle is in any gear other than P (vehicles with an automatic transmission
only) or N the vehicle may accelerate suddenly and unexpectedly, and may cause
an accident.
●Do not leave the vehicle with the engine running for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and
check that exhaust fumes do no t enter the vehicle interior.
●With automatic transmission vehicles, always keep a foot on the brake pedal
while the engine is running to prevent an accident caused by the vehicle moving.
■When the vehicle is parked
●Do not leave glasses, cigarette lighters, spray cans, or soft drink cans in the vehi-
cle when it is in the sun.
Failure to do so may result in the following.
• Gas may leak from a cigarette lighter or spray can, and may lead to a fire.
• The temperature inside the vehicle may cause the plastic lenses and plastic material of eye glasses to deform or crack.
• Soft drink cans may fracture, causing the contents to spray over the interior of
the vehicle, and may also cause a short circuit in the vehicle's electrical com-
ponents.
●Always apply the parking brake, shift the shift lever to P (vehicles with an auto-
matic transmission only), stop the engine and lock the vehicle.
Do not leave the vehicle unattend ed while the engine is running.
●Do not touch the exhaust pipe while the engine is running or immediately after
turning the engine off.
Doing so may cause burns.
●Do not leave the engine running in an area with snow build up, or where snow is
expected to fall.
Exhaust gases may enter the vehicle and cause gas poisoning.

98

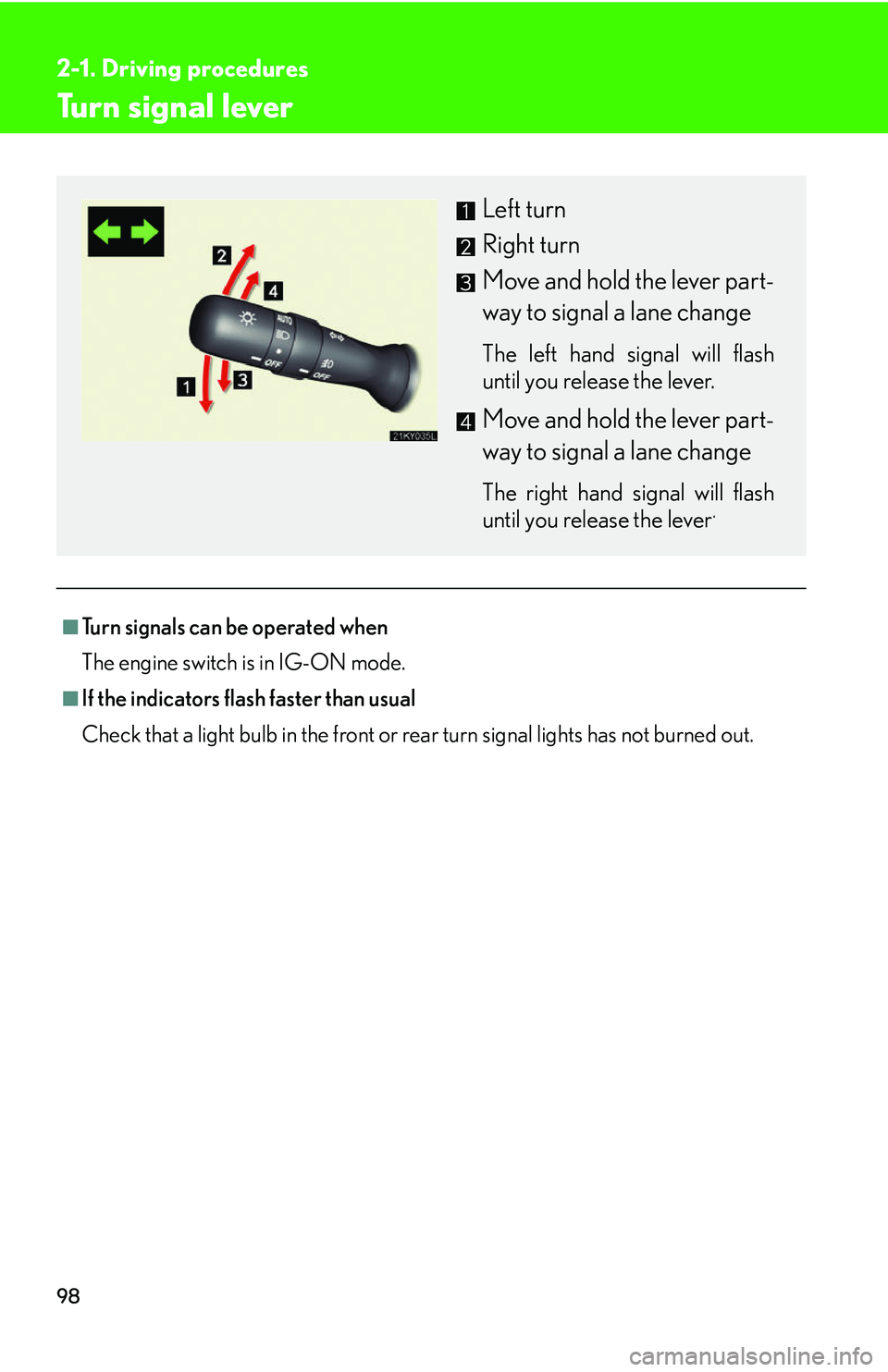

2-1. Driving procedures
Turn signal lever
■Turn signals can be operated when
The engine switch is in IG-ON mode.
■If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned out.
Left turn
Right turn
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash
until you release the lever.
Move and hold the lever part-
way to signal a lane change
The right hand signal will flash
until you release the lever.

108
2-2. Instrument cluster
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light not
come on when you start the engine, this could mean that these systems are not
available to help protect you in an accident, which could result in death or serious
injury. Have the vehicle inspected by your Lexus dealer immediately if this occurs.
■ Warning lights
Warning lights inform the driver of malfunctions in any of the vehi-
cle’s systems. ( P. 329)
*: These lights turn on when the engi ne switch is turned to IG-ON mode
to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds.There may be a mal-
function in a system if a light does no t come on, or if the lights do not turn
off. Have the vehicle inspected by your Lexus dealer.
(U.S.A.)(Canada)(Canada)(U.S.A.)
(Canada)(U.S.A.)(if equipped)
******
******

Maintenance and care4
243
4-1. Maintenance and care ......... 244Cleaning and protecting the vehicle exterior ................ 244
Cleaning and protecting the vehicle interior ................. 246
4-2. Maintenance ........................... 249 Maintenance requirements ............................ 249
General maintena nce .............. 251
Emission inspection and maintenance (I/M)
programs ................................... 254
4-3. Do-it-yourself maintenance ......................... 255
Do-it-yourself service precautions ............................... 255
Hood.............................................. 258
Positioning the jack................... 259
Engine compartment................. 261
Tires ................................................. 275
Tire inflation pressure.............. 285
Wheels........................................... 289 Air conditioning filter ............... 291
Electronic key battery ............. 293
Checking and replacing
fuses ............................................. 295
Headlight aim ............................. 309
Light bulbs..................................... 310

254
4-2. Maintenance
Emission inspection and maintenance (I/M) programs
Some states have vehicle emission inspection programs which include
OBD (On Board Diagnostics) checks. The OBD system monitors the oper-
ation of the emission control system.
■ If the electronic engine control system warning light comes on
The OBD system determines that a problem exists somewhere in
the emission control system. Your vehicle may not pass the I/M test
and may need to be repaired. Contact your Lexus dealer to service
the vehicle.
■ Your vehicle may not pass the I/M test:
●When the battery is disconnected or discharged
Readiness codes that are set during ordinary driving are erased.
Also, depending on your driving habits, the readiness codes may
not be completely set.
● When the fuel tank cap is loose
The electronic engine control sy stem warning light comes on as a
temporary malfunction and your vehicle may not pass the I/M
test.
■ When the electronic engine contro l system warning light goes off
after several driving trips
The error code in the OBD system will not be cleared unless the
vehicle is driven 40 or more times.
■ If your vehicle does not pass the I/M test
Contact your Lexus dealer to prep are the vehicle for re-testing.

310
4-3. Do-it-yourself maintenance
Light bulbs
You may replace the following bulbs yourself. For more information about
replacing other light bulbs, contact your Lexus dealer.
■Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. ( P. 383)
■ Remove the engine compartment cover.
 P. 2 6 3
■ Front bulb locations
■ Rear bulb locations
Parking light
Headlight
high beam
Rear turn signal light
Back-up light

5
When trouble arises
333

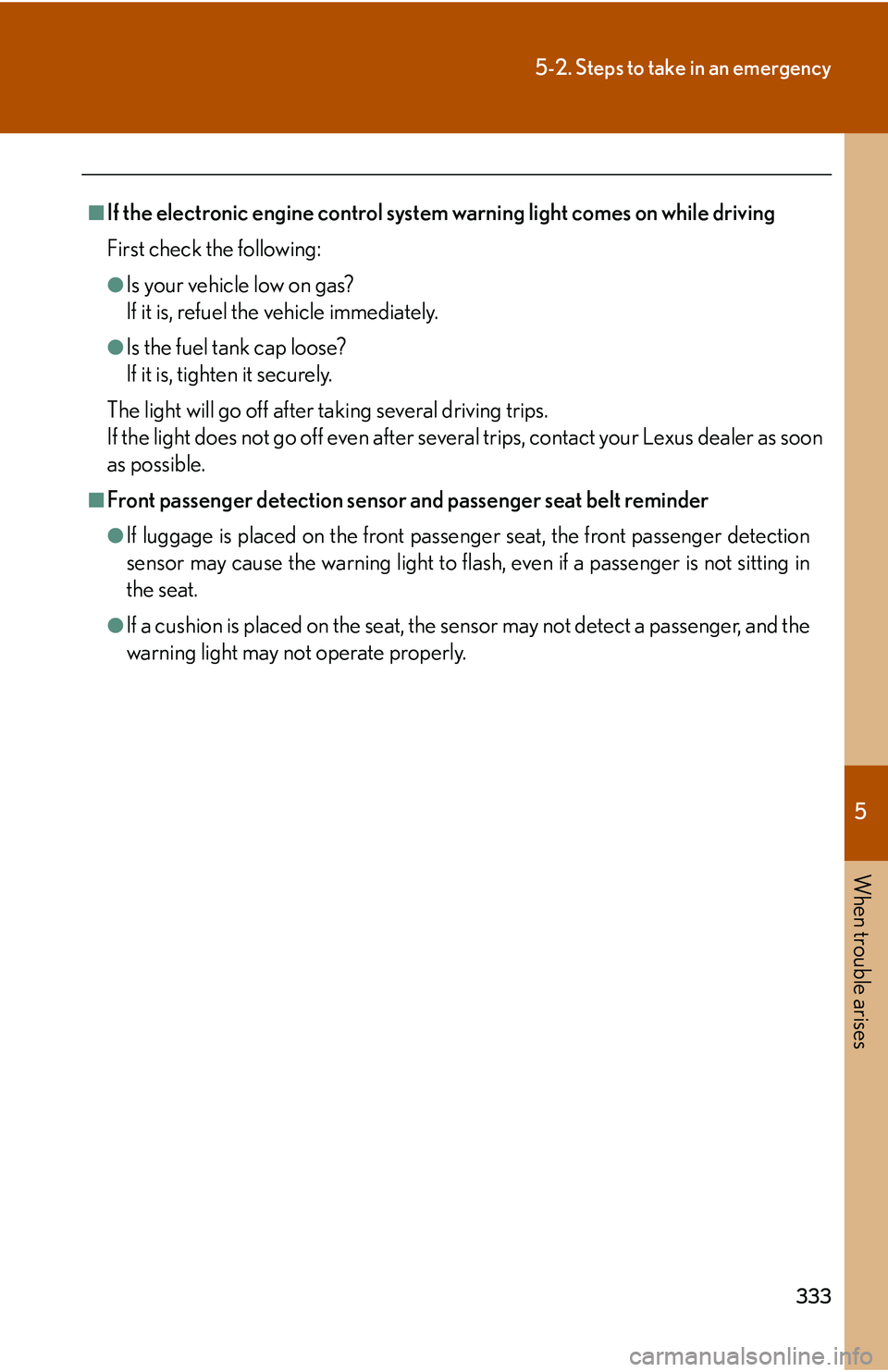

5-2. Steps to take in an emergency
■If the electronic engine control system warning light comes on while driving
First check the following:
●Is your vehicle low on gas?
If it is, refuel the vehicle immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after taking several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
■Front passenger detection sensor and passenger seat belt reminder
●If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash, even if a passenger is not sitting in
the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.

5
When trouble arises
345

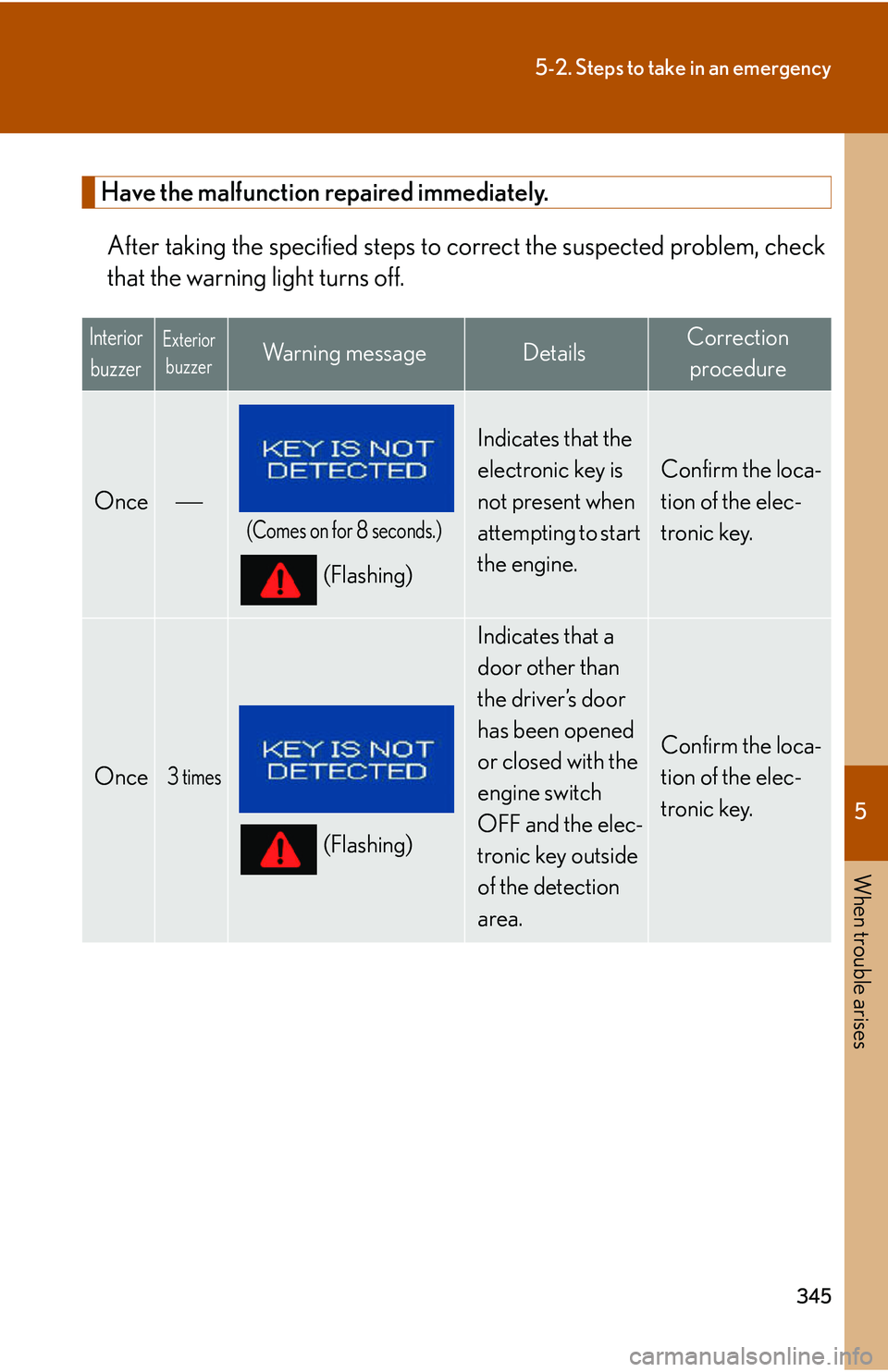

5-2. Steps to take in an emergency
Have the malfunction repaired immediately.After taking the specified steps to co rrect the suspected problem, check
that the warning light turns off.
Interior
buzzerExterior buzzerWa r n i n g m e s s a g eDetailsCorrection
procedure
Once
(Comes on for 8 seconds.)
(Flashing)
Indicates that the
electronic key is
not present when
attempting to start
the engine.
Confirm the loca-
tion of the elec-
tronic key.
Once3 times
(Flashing)
Indicates that a
door other than
the driver’s door
has been opened
or closed with the
engine switch
OFF and the elec-
tronic key outside
of the detection
area.
Confirm the loca-
tion of the elec-
tronic key.
