4-3. Do-it-yourself maintenance
4
Maintenance and care

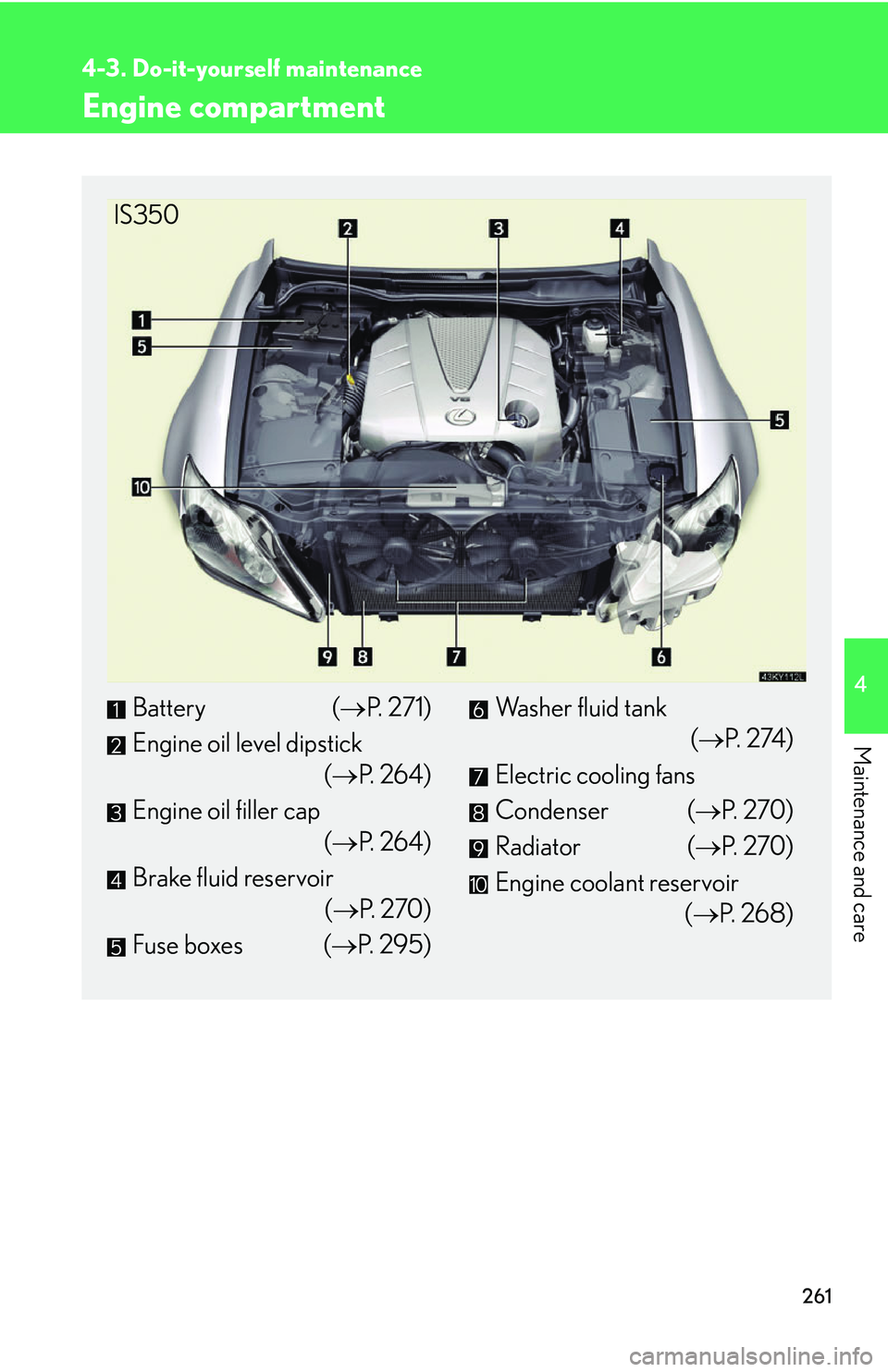

Engine compartment
Battery (P. 271)
Engine oil level dipstick (P. 2 6 4 )
Engine oil filler cap (P. 2 6 4 )
Brake fluid reservoir (P. 270)
Fuse boxes ( P. 295)Washer fluid tank
(P. 2 74 )
Electric cooling fans
Condenser ( P. 2 7 0 )
Radiator ( P. 2 7 0 )
Engine coolant reservoir (P. 2 6 8 )
IS350

262

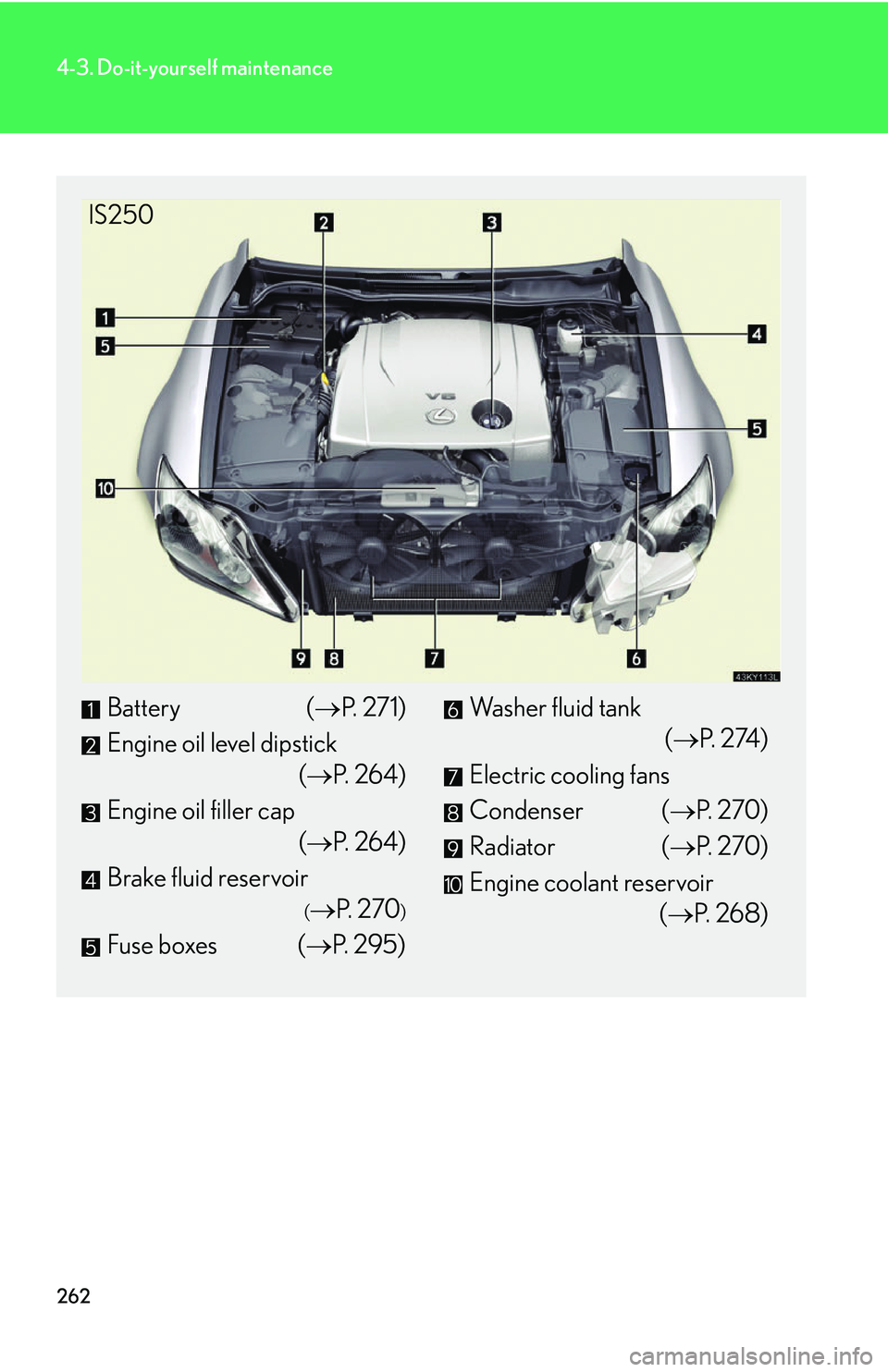

4-3. Do-it-yourself maintenance
Battery (P. 271)
Engine oil level dipstick (P. 2 6 4 )
Engine oil filler cap (P. 2 6 4 )
Brake fluid reservoir
( P. 2 7 0)
Fuse boxes ( P. 295)
Washer fluid tank
(P. 2 74 )
Electric cooling fans
Condenser ( P. 2 7 0 )
Radiator ( P. 2 7 0 )
Engine coolant reservoir (P. 2 6 8 )
IS250

295
4-3. Do-it-yourself maintenance
4
Maintenance and care

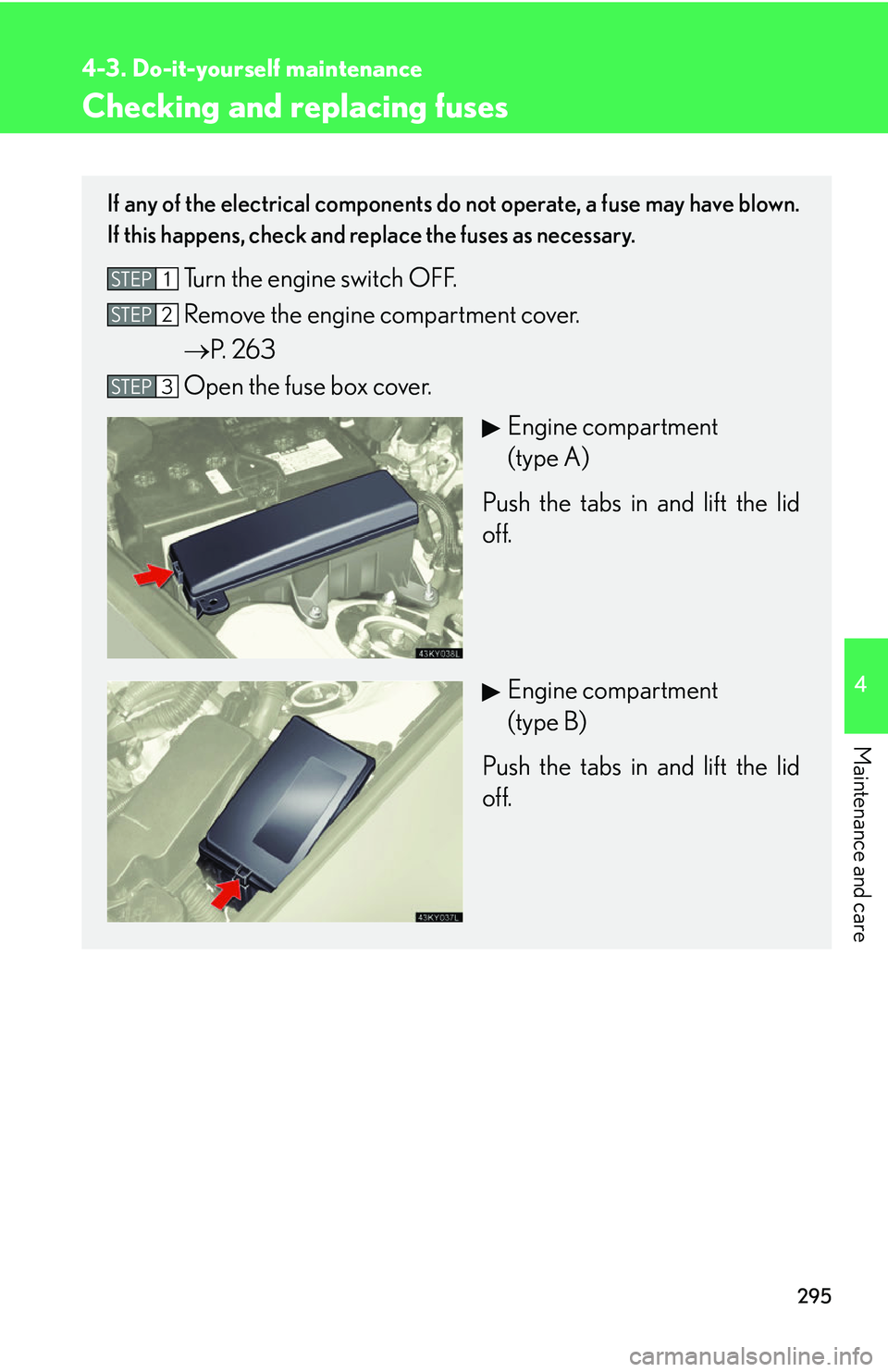

Checking and replacing fuses
If any of the electrical components do not operate, a fuse may have blown.
If this happens, check and replace the fuses as necessary.
Turn the engine switch OFF.
Remove the engine compartment cover.
P. 2 6 3
Open the fuse box cover.
Engine compartment
(type A)
Push the tabs in and lift the lid
off.
Engine compartment
(type B)
Push the tabs in and lift the lid
off.STEP1
STEP2
STEP3

297
4-3. Do-it-yourself maintenance
4
Maintenance and care

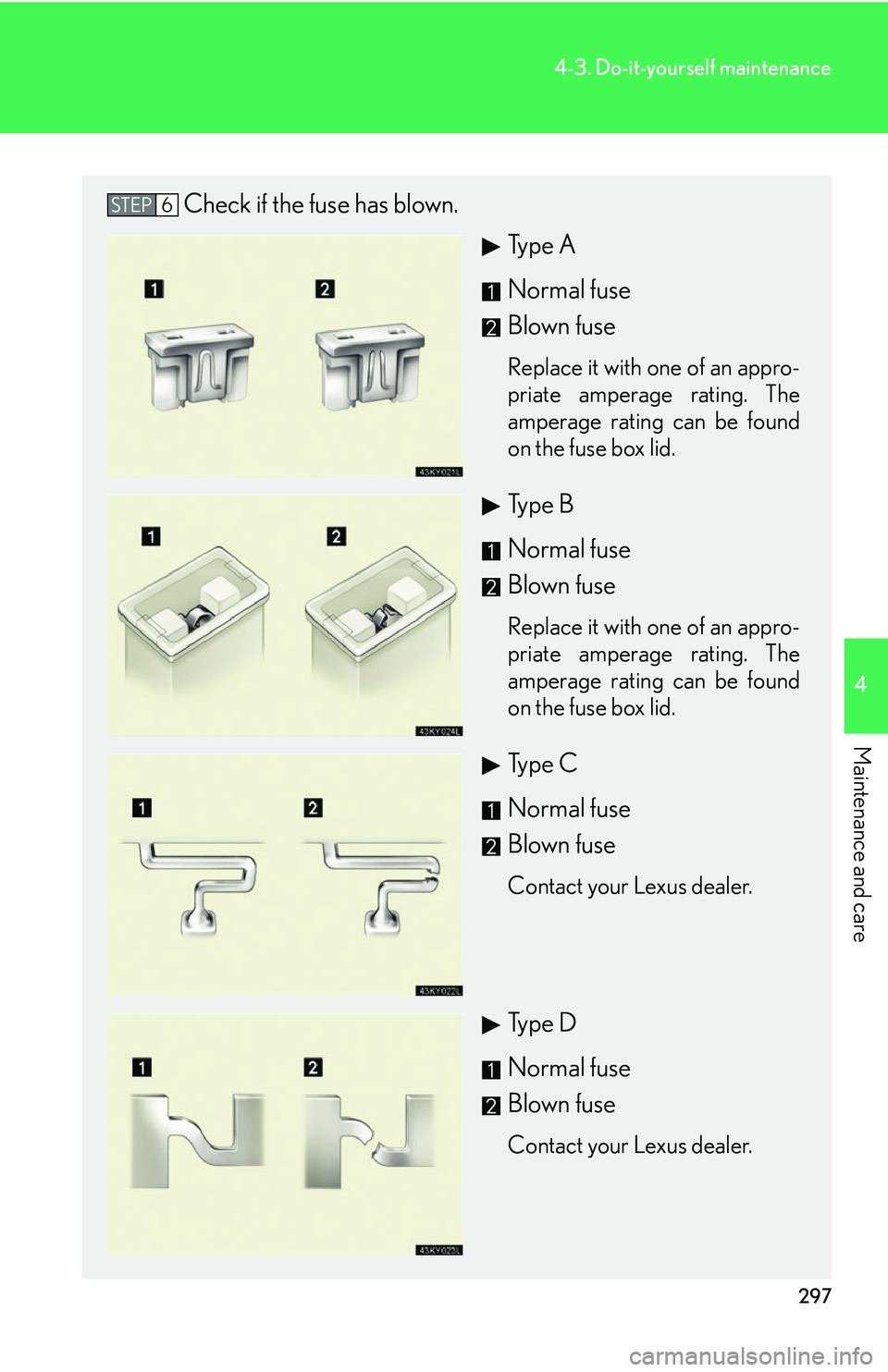

Check if the fuse has blown.Ty p e A
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Ty p e B
Normal fuse
Blown fuse
Replace it with one of an appro-
priate amperage rating. The
amperage rating can be found
on the fuse box lid.
Ty p e C
Normal fuse
Blown fuse
Contact your Lexus dealer.
Ty p e D
Normal fuse
Blown fuse
Contact your Lexus dealer.
STEP6

308
4-3. Do-it-yourself maintenance

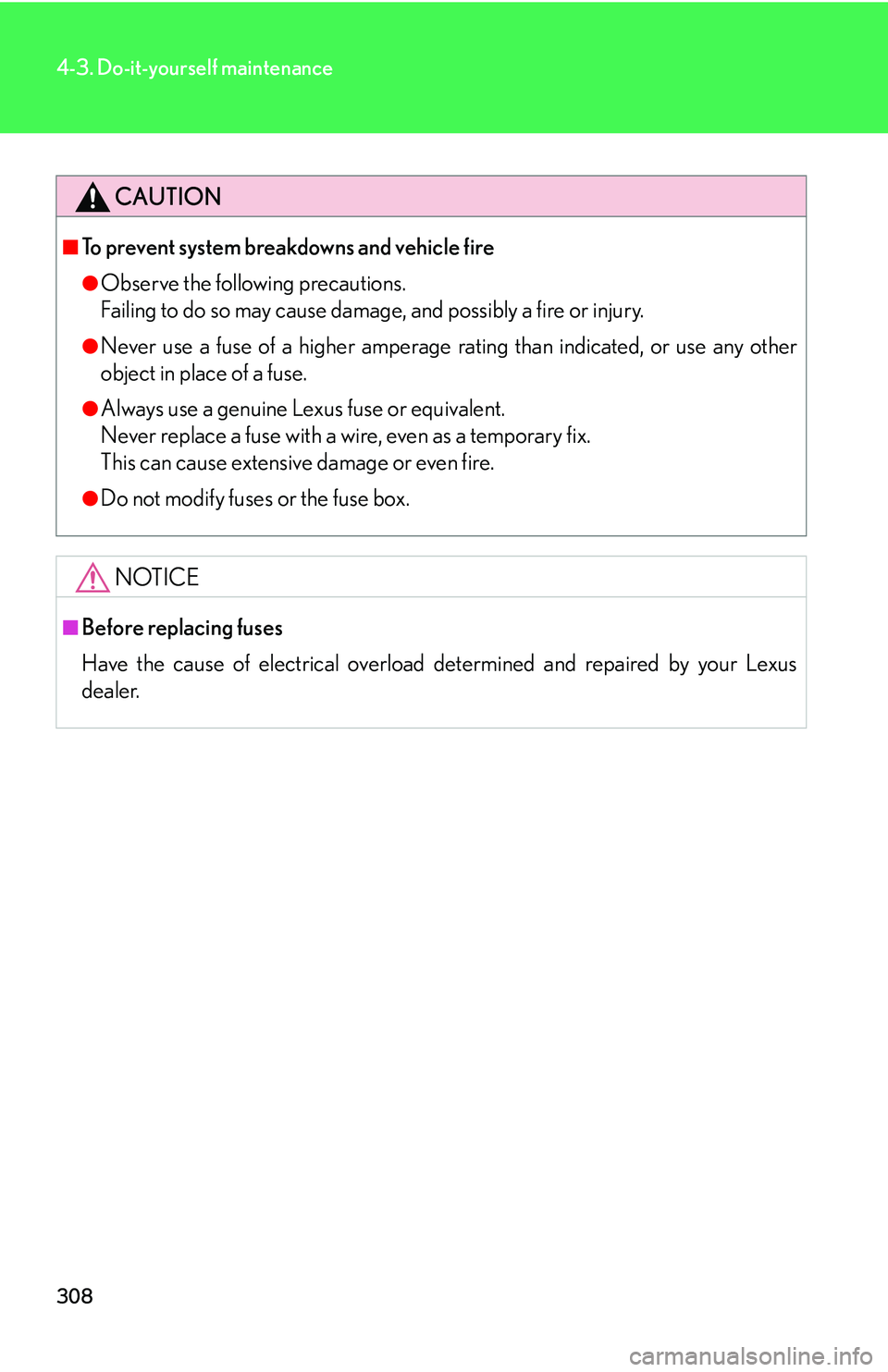

CAUTION
■To prevent system breakdowns and vehicle fire
●Observe the following precautions.
Failing to do so may cause damage, and possibly a fire or injury.
●Never use a fuse of a higher amperage rating than indicated, or use any other
object in place of a fuse.
●Always use a genuine Lexus fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
This can cause extensive damage or even fire.
●Do not modify fuses or the fuse box.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your Lexus
dealer.
