2-3. Operating the lights and windshield wipers ..................... 113
Headlight switch .............................. 113
Fog light switch ................................ 116
Windshield wipers and washer............................................... 117
Headlight cleaner switch ........... 120
2-4. Using other driving systems..... 121 Cruise control .................................. 121
Dynamic radar cruise control............................................. 124
Lexus parking assist-sensor...... 133
Driving assist systems.................. 139
PCS (Pre-Collision System) ........................................... 144
2-5. Driving information ................... 147 Cargo and luggage ...................... 147
Vehicle load limits ......................... 150
Winter driving tips .......................... 151
Trailer towing .................................. 156
Dinghy towing (vehicles with an automatic
transmission) ................................ 157
Dinghy towing (vehicles with a manual
transmission) ................................ 158 3-1. Using the air conditioning
system and defogger .............. 162
Automatic air conditioning system ............................................. 162
Rear window and outside rear view mirror defoggers ............. 170
3-2. Using the audio system.............. 171 Audio system type .......................... 171
Using the radio................................ 174
Using the CD player..................... 181
Playing back MP3 and WMA discs................................... 187
Optimal use of the audio system ............................................. 195
Using the AUX adapter ............. 198
Using the steering wheel audio switches ............................. 199
3-3. Using the interi or lights ........... 201
Interior lights list............................. 201
• Interior lights and personal lights ............................ 203
3-4. Using the storage features .... 205 List of storage features ............. 205
• Glove box ................................... 205
• Console boxes ........................... 206
• Overhead console ................... 207
• Cup holders................................ 208
3Interior features

When driving2
81
2-1. Driving procedures ................. 82Driving the vehicle ....................... 82
Starting the engine ...................... 89
Automatic Transmission ............ 92
Manual Transmission .................. 96
Turn signal lever ............................ 98
Parking brake ................................. 99
2-2. Instrument cluster................... 100 Gauges and meters .................. 100
Indicators and warning lights.............................................. 106
Multi-information display........ 109
2-3. Operating the lights and windshield wipers .................. 113
Headlight switch ........................... 113
Fog light switch.............................. 116
Windshield wipers and washer............................................ 117
Headlight cleaner switch ........ 120 2-4. Using other driving
systems ..................................... 121
Cruise control ............................... 121
Dynamic radar cruise control .......................................... 124
Lexus parking assist-sensor .............................. 133
Driving assist systems............... 139
PCS (Pre-Collision System)........................................ 144
2-5. Driving information................ 147 Cargo and luggage.................... 147
Vehicle load limits ...................... 150
Winter driving tips ....................... 151
Trailer towing................................ 156
Dinghy towing (vehicles with an
automatic transmission) ........ 157
Dinghy towing (vehicles with a manual
transmission) ............................. 158

87
2-1. Driving procedures
2
When driving
CAUTION
■When taking a nap in the vehicle
Always turn the engine off.
Otherwise, you may accidentally move the shift lever or press the accelerator
pedal, which could cause an accident or fire due to abnormal engine overheating.
Additionally, if the vehicle is parked in a poorly ventilated area, exhaust fumes may
enter the vehicle and cause gas poisoning.
■When braking the vehicle
●When the brakes are wet, drive more cautiously.
Braking distance increases when the brakes are wet, and may cause one side of
the vehicle to brake differently than the other side. Also the parking brake may
not securely hold the vehicle.
●If the power brake assist function does not operate, do not follow other vehicles
closely and avoid downhills or sharp turns that require making.
In this case, braking is still possible, but it will require more force on the pedal than
usual. Braking distance may also increase.
●Do not pump the brake pedal if the engine stalls.
Each push on the pedal uses up your reserved brake fluid pressure.
●The brake system consists of 2 individual hydraulic systems: if one of the systems
fails, the other will still operate. In this case, the brake pedal should be depressed
more firmly than usual and braking distance becomes longer.
Do not drive your vehicle with only a single brake system. Have your brakes fixed
immediately.
■If the vehicle becomes stuc k or bogged (AWD models)
Do not spin the wheels recklessly when any of the tires is up in the air, or stuck in
sand or mud, etc. This may damage the drive system components or propel the
vehicle forward (or in another direction) and cause an accident.

107
2-2. Instrument cluster
2
When driving
■Indicators
The indicators inform the driver of th e operating state of the vehi-
cle’s various systems.
Turn signal indicator
( P. 9 8 )
(vehicles with
an automatic
transmission)
ECT SNOW indicator
( P. 9 3 )
Headlight high beam indi-
cator ( P. 113)
(vehicles with
a manual
transmission)
ETCS SNOW indicator
( P. 9 6 )
(U.S.A.)
Headlight indicator
( P. 113)
(vehicles with
an automatic
transmission)
ECT PWR indicator
( P. 9 3 )
(CANADA)
Tail light indicator
( P. 113) Cruise control indicator
( P. 121)
(vehicles with an automatic trans-
mission)
Shift position and shift range indica-
tors ( 
P. 9 2)
(if equipped)
AFS OFF indicator light
(P. 114)
(if equipped)
Lexus parking assist-sen-
sor indicator ( P. 1 3 3 )
Slip indicator ( P. 1 4 0 )
*
*

109
2-2. Instrument cluster
2
When driving
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data, including the current outside air temperature.
Trip information (P. 110)
Displays driving range, fuel con-
sumption and other cruising
related information.
Satellite switch mode display
(P. 214)
Lexus parking as sist-sensor dis-
play (if equipped)
Automatically displayed when
using Lexus parking assist-sen-
sor.
This switch is used to configure
various function settings.
Dynamic radar cruise control
display (if equipped) ( P. 1 2 4 )
Automatically displayed when
using dynamic radar cruise con-
trol.
Warning messages ( P. 3 3 4 )
Automatically displayed when a
malfunction occurs in one of the
vehicle’s systems.

133
2-4. Using other driving systems
2
When driving
Lexus parking assist-sensor (if equipped)
The distance to obstacles measured by the sensors is communicated via
the multi-information display and a buzzer when parallel parking or
maneuvering into a garage. Always check the surrounding area when
using this system.
For vehicles equipped with a navigation system, refer to the separate “Navi-
gation System Owner’s Manual” for further details.
■ Types of sensors
Front corner sensors
Rear corner sensors
Back sensors
■ Multi-information display ( P. 109)
Front corner sensor opera-
tion
Rear corner sensor operation
Back sensor operation

134
2-4. Using other driving systems

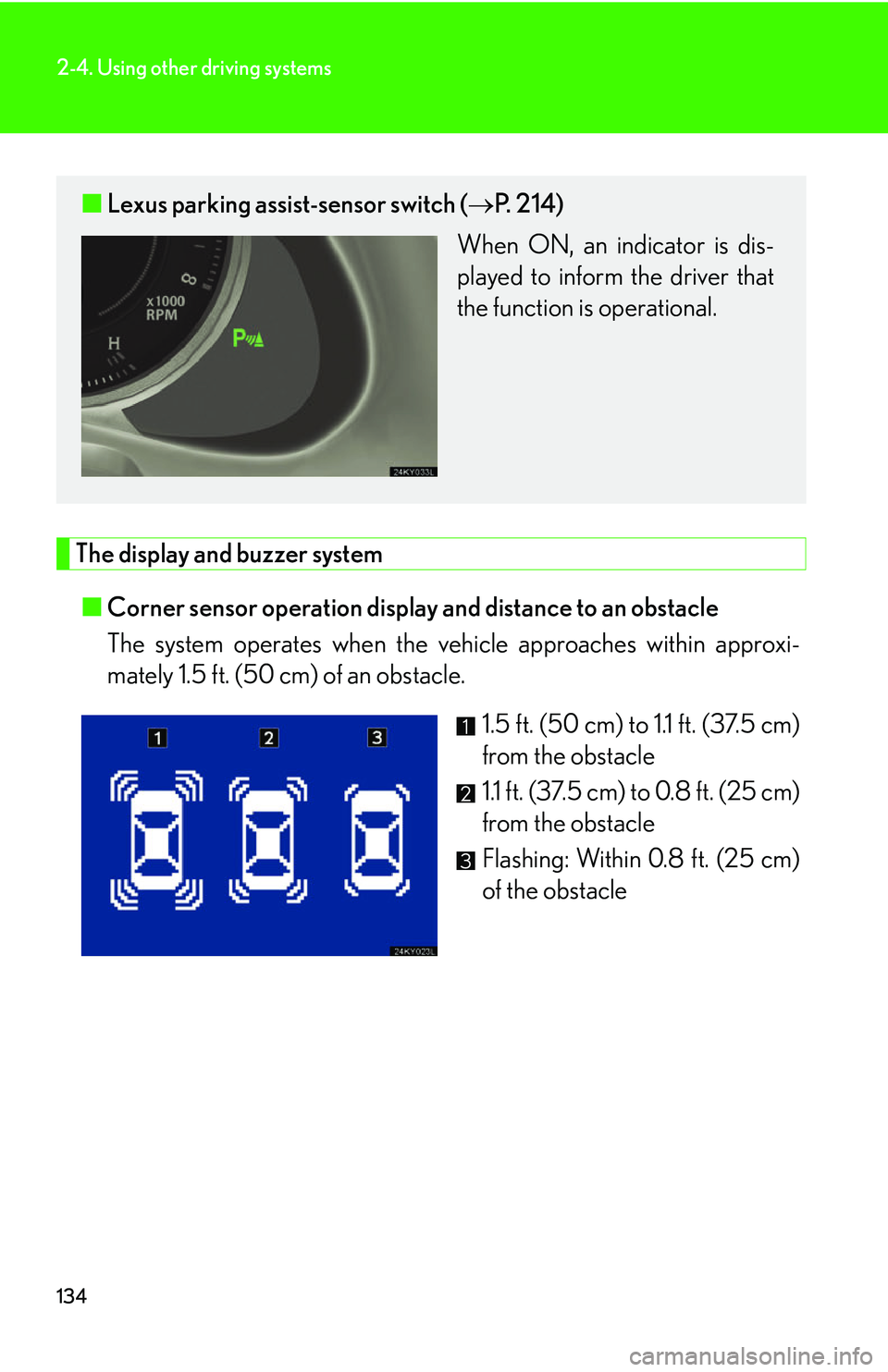

The display and buzzer system■ Corner sensor operation display and distance to an obstacle
The system operates when the vehicle approaches within approxi-
mately 1.5 ft. (50 cm) of an obstacle.
1.5 ft. (50 cm) to 1.1 ft. (37.5 cm)
from the obstacle
1.1 ft. (37.5 cm) to 0.8 ft. (25 cm)
from the obstacle
Flashing: Within 0.8 ft. (25 cm)
of the obstacle
■Lexus parking assist-sensor switch ( P. 214)
When ON, an indicator is dis-
played to inform the driver that
the function is operational.

137
2-4. Using other driving systems
2
When driving
■Sensor detection information
●Certain vehicle conditions and the surrounding environment may affect the
ability of the sensor to correctly detect obstacles. Particular instances where this
may occur are listed below.
• There is dirt, snow or ice on the sensor.
• The sensor is frozen.
• The sensor is covered in any way.
• The vehicle is leaning considerably to one side.
• On an extremely bumpy road, on an incline, on gravel, or on grass.
• The vicinity of the vehicle is noisy due to vehicle horns, motorcycle engines,
air brakes of large vehicles, or other loud noises producing ultrasonic waves.
• There is another vehicle equipped with parking assist sensors in the vicinity.
• The sensor is coated with a sheet of spray or heavy rain
• The vehicle is equipped with a fender pole or wireless antenna.
• Towing eyelets are installed.
• The bumper or sensor receives a strong impact.
• The vehicle is approaching a tall or curved curb.
• In addition to the examples above, th ere are instances in which, because of
their shapes, signs and other objects may be judged by the sensor to be
closer than they are.
●The shape of the obstacle may prevent th e sensor from detecting it. Pay particu-
lar attention to the following obstacles.
• Wires, fences, ropes etc.
• Cotton, snow and other materials that absorb radio waves
• Sharply-angled objects
•Low obstacles
• Tall obstacles with upper sections projec ting outwards in the direction of your
vehicle
■When the display flashes and a message is displayed
 P. 3 3 4
■Certification (Canada only)
This ISM device compiles with Canadian ICES-001.
■Customization
Settings (e.g. buzzer volume) can be changed. ( P. 3 9 5 )

138
2-4. Using other driving systems

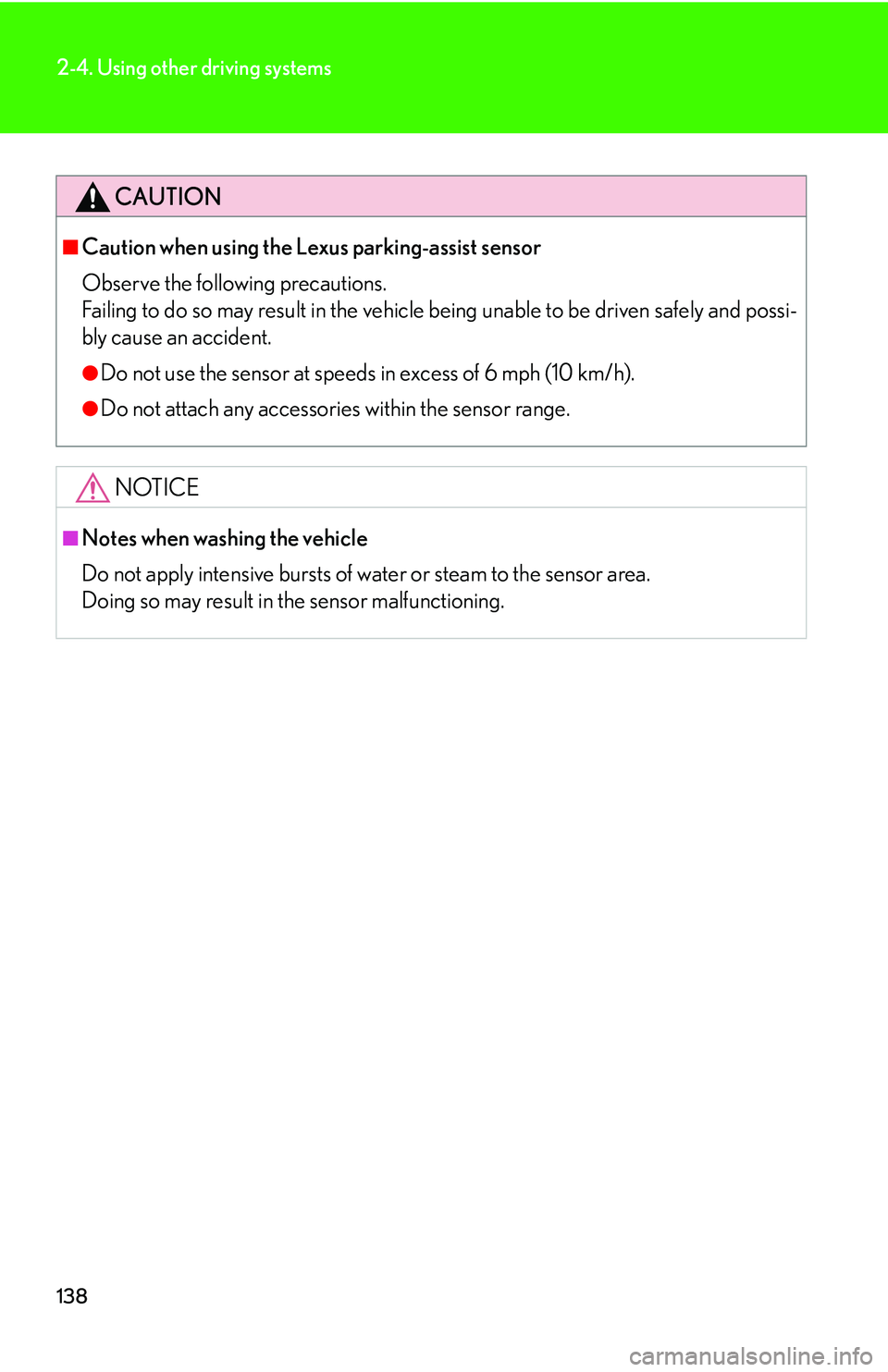

CAUTION
■Caution when using the Lexus parking-assist sensor
Observe the following precautions.
Failing to do so may result in the vehicle being unable to be driven safely and possi-
bly cause an accident.
●Do not use the sensor at speeds in excess of 6 mph (10 km/h).
●Do not attach any accessories within the sensor range.
NOTICE
■Notes when washing the vehicle
Do not apply intensive bursts of water or steam to the sensor area.
Doing so may result in the sensor malfunctioning.

215
3-5. Other interior features
3
Interior features

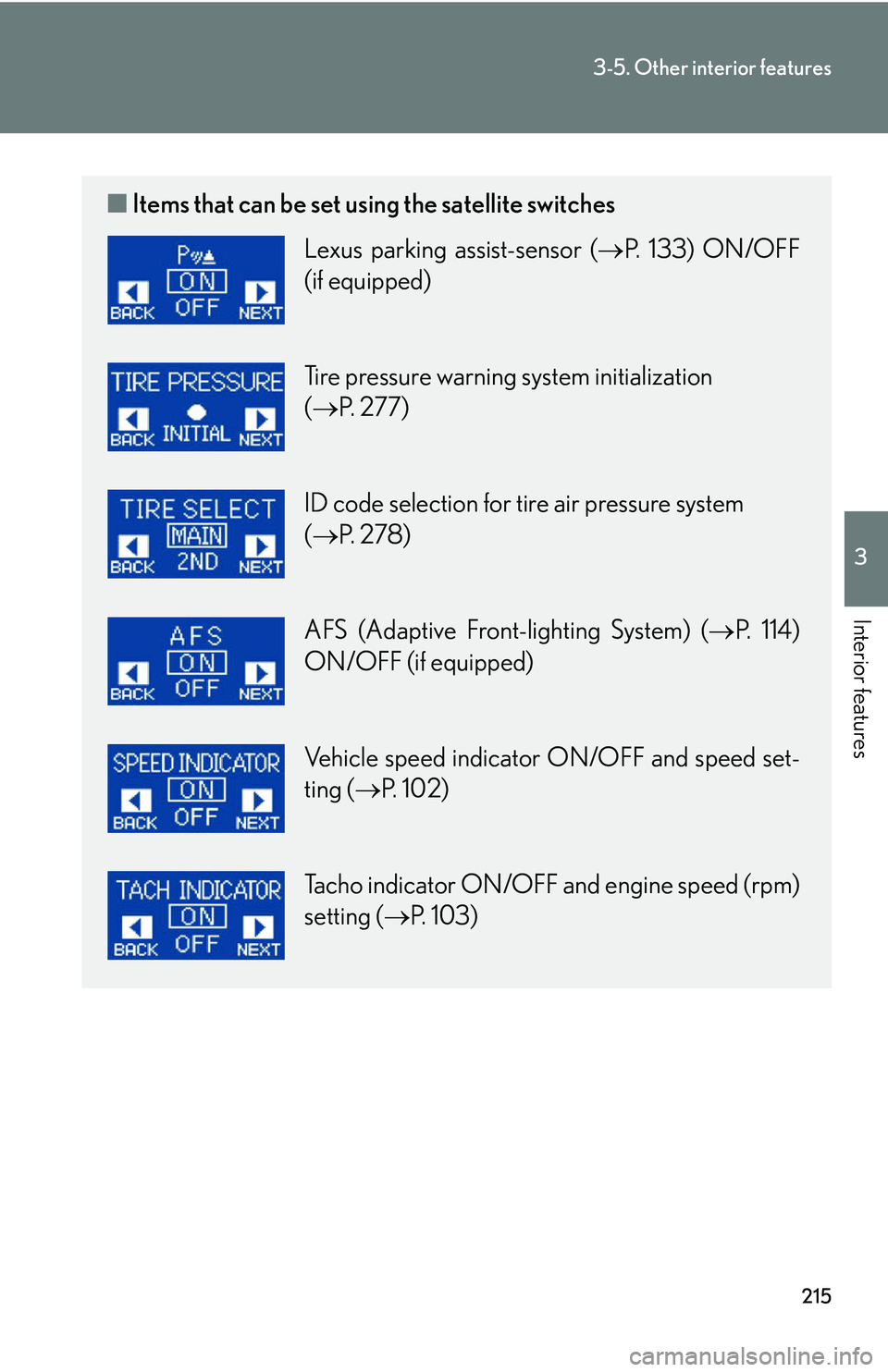

■Items that can be set using the satellite switches
Lexus parking assist-sensor ( P. 133) ON/OFF
(if equipped)
Tire pressure warning system initialization
( P. 2 7 7 )
ID code selection for tire air pressure system
( P. 2 7 8 )
AFS (Adaptive Front-lighting System) ( P. 1 1 4 )
ON/OFF (if equipped)
Vehicle speed indicator ON/OFF and speed set-
ting ( P. 1 0 2 )
Tacho indicator ON/OFF and engine speed (rpm)
setting ( P. 103)
