TABLE OF CONTENTSIndex
1-1. Key information .............................. 2Keys ......................................................... 2
1-2. Opening, closing and locking the doors and trunk ..................... 4
Smart access system with push-button start ............................. 4
Wireless remote control ............... 12
Doors..................................................... 15
Trunk...................................................... 19
1-3. Adjustable components ............ 22 Front seats .......................................... 22
Driving position memory ............. 24
Seat position memory ................... 27
Head restraints................................. 29
Seat belts ........................................... 30
Steering wheel (manually adjustable type) ....... 36
Steering wheel (power-adjustable type)............ 37
Anti-glare inside rear view mirror ............................................... 38
Outside rear view mirrors ........... 39
1-4. Opening and closing the windows and moon roof ........... 41
Power windows................................. 41
Moon roof .......................................... 44 1-5. Refueling ........................................ 47
Opening the fuel tank cap........... 47
1-6. Anti-theft system ........................ 50 Engine immobilizer system ........ 50
Alarm.................................................... 52
Theft prevention labels (U.S.A.) ............................................. 54
1-7. Safety information ....................... 55 Correct driving posture ............... 55
SRS airbags ....................................... 57
Child restraint sy stems ................. 68
Installing child restraints ................. 71
2-1. Driving procedures.................... 82 Driving the vehicle .......................... 82
Starting the engine ......................... 89
Automatic Transmission .............. 92
Manual Transmission..................... 96
Turn signal lever............................... 98
Parking brake ................................... 99
2-2. Instrument cluster ..................... 100 Gauges and meters ..................... 100
Indicators and warning lights................................................. 106
Multi-information display........... 109
1Before driving
2When driving

1
2
3
4
5
6
7
2-3. Operating the lights and windshield wipers ..................... 113
Headlight switch .............................. 113
Fog light switch ................................ 116
Windshield wipers and washer............................................... 117
Headlight cleaner switch ........... 120
2-4. Using other driving systems..... 121 Cruise control .................................. 121
Dynamic radar cruise control............................................. 124
Lexus parking assist-sensor...... 133
Driving assist systems.................. 139
PCS (Pre-Collision System) ........................................... 144
2-5. Driving information ................... 147 Cargo and luggage ...................... 147
Vehicle load limits ......................... 150
Winter driving tips .......................... 151
Trailer towing .................................. 156
Dinghy towing (vehicles with an automatic
transmission) ................................ 157
Dinghy towing (vehicles with a manual
transmission) ................................ 158 3-1. Using the air conditioning
system and defogger .............. 162
Automatic air conditioning system ............................................. 162
Rear window and outside rear view mirror defoggers ............. 170
3-2. Using the audio system.............. 171 Audio system type .......................... 171
Using the radio................................ 174
Using the CD player..................... 181
Playing back MP3 and WMA discs................................... 187
Optimal use of the audio system ............................................. 195
Using the AUX adapter ............. 198
Using the steering wheel audio switches ............................. 199
3-3. Using the interi or lights ........... 201
Interior lights list............................. 201
• Interior lights and personal lights ............................ 203
3-4. Using the storage features .... 205 List of storage features ............. 205
• Glove box ................................... 205
• Console boxes ........................... 206
• Overhead console ................... 207
• Cup holders................................ 208
3Interior features

TABLE OF CONTENTSIndex
• Bottle holders/door pockets ......................................... 209
3-5. Other interior features............. 211 Sun visors............................................ 211
Vanity mirror ................................... 212
Clock .................................................. 213
Satellite switch es ........................... 214
Ashtrays ............................................ 217
Cigarette lighter ............................ 218
Power outlet .................................... 219
Seat heaters .................................... 220
Seat heaters and ve ntilators .... 222
Armrest ............................................ 224
Rear sunshade ............................... 225
Extended trunk.............................. 227
Coat hooks ..................................... 228
Floor mat.......................................... 229
Trunk features............................... 230
Garage door opener .................. 233
Compass......................................... 238
4-1. Maintenance and care............ 244 Cleaning and protecting the vehicle exterior................... 244
Cleaning and protecting the vehicle interior .................... 246 4-2. Maintenance.............................. 249
Maintenance requirements ..... 249
General maintena nce ................. 251
Emission inspection and maintenance (I/M)
programs ...................................... 254
4-3. Do-it-yourself maintenance............................ 255
Do-it-yourself service precautions .................................. 255
Hood................................................. 258
Positioning the jack ..................... 259
Engine compartment................... 261
Tires ................................................... 275
Tire inflation pressure................ 285
Wheels............................................. 289
Air conditioning filter................... 291
Electronic key battery ................ 293
Checking and replacing fuses ................................................ 295
Headlight aim................................ 309
Light bulbs ........................................ 310
5-1. Essential information ................ 318 If your vehicle needs to be towed ........................................ 318
If you think something is wrong ............................................. 325
4Maintenance and care
5When trouble arises

Before driving1
1
1-1. Key information............................ 2Keys....................................................... 2
1-2. Opening, closing and locking the doors and trunk................... 4
Smart access system with push-button start .......................... 4
Wireless remote control............. 12
Doors.................................................. 15
Trunk ................................................... 19
1-3. Adjustable components .......... 22 Front seats ....................................... 22
Driving position memory .......... 24
Seat position memory ................ 27
Head restraints.............................. 29
Seat belts ......................................... 30
Steering wheel (manually adjustable type) .... 36
Steering wheel (power-adjustable type) ......... 37
Anti-glare inside rear view mirror ............................................. 38
Outside rear view mirrors ........ 39 1-4. Opening and closing the
windows and moon roof ........ 41
Power windows ............................... 41
Moon roof ....................................... 44
1-5. Refueling ..................................... 47 Opening the fuel tank cap ........ 47
1-6. Anti-theft system ...................... 50 Engine immobilizer system ...... 50
Alarm ................................................ 52
Theft prevention labels (U.S.A.) .......................................... 54
1-7. Safety information .................... 55 Correct driving posture ............ 55
SRS airbags .................................... 57
Child restraint systems .............. 68
Installing child restraints .............. 71

24
1-3. Adjustable components
Driving position memory (if equipped)
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be entered into the computer's
memory and recalled with the touch of a button. It is also possible to set this
function to activate automatically when the doors are unlocked.
Three different driving positions can be entered into memory.
■ Entering a position to memory
Vehicles with an automatic transmis sion: Check that the shift lever is
set in P.
Vehicles with a manual transmissi on: Check that the parking brake is
set.
Switch to IG-ON mode.
Adjust the driver’s seat, steeri ng wheel, and outside rear view
mirrors to the desired positions.
While pushing the SET button,
push button 1, 2 or 3 until the
signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
STEP1
STEP2
STEP3

26
1-3. Adjustable components
■Canceling the linked door unlock operation
Turn the engine switch OFF an d close the driver's door.
While pushing the SET button, push the or button on the
wireless remote control until the signal beeps.
■Retained accessory power
Memorized positions (except for the steering wheel positions) can be activated up
to 30 seconds after the driver's door is opened, even after turning the engine
switch OFF.
■To cancel seat position recall
Perform any of the following operations.
●Push the SET button.
●Push button 1, 2, or 3.
●Adjust the seat using the switches (only cancels seat position recall).
■If the battery is disconnected
The memorized positions must be reset be cause the computer's memory is erased
when the battery is disconnected.
CAUTION
■Seat adjustment caution
Take care during seat adjustment that the seat does not strike the rear passenger or
squeeze your body against the steering wheel.
STEP1
STEP2

36
1-3. Adjustable components

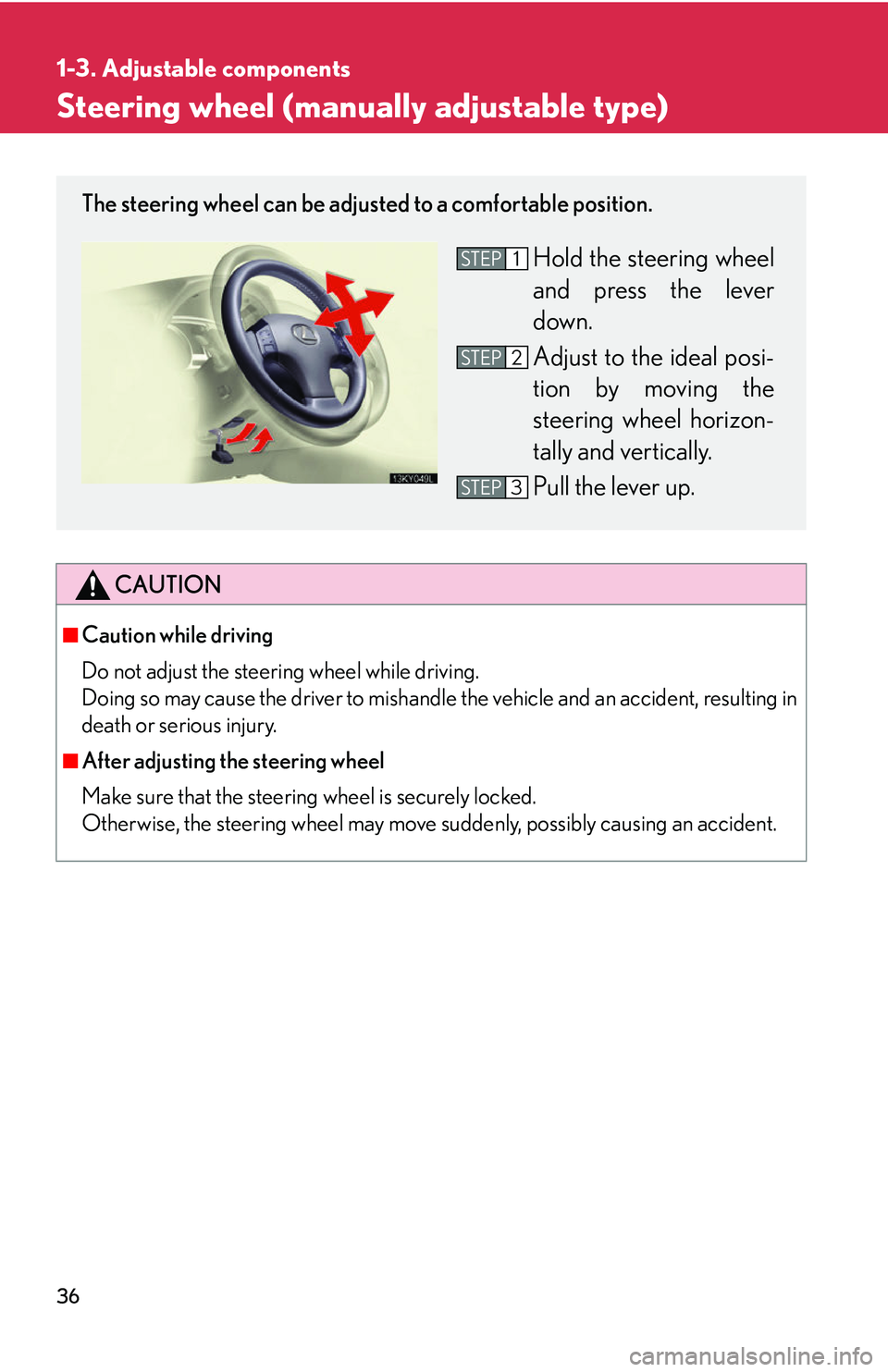

Steering wheel (manually adjustable type)
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.
■After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident.
The steering wheel can be adjusted to a comfortable position.
Hold the steering wheel
and press the lever
down.
Adjust to the ideal posi-
tion by moving the
steering wheel horizon-
tally and vertically.
Pull the lever up. STEP1
STEP2
STEP3

37
1
1-3. Adjustable components
Before driving

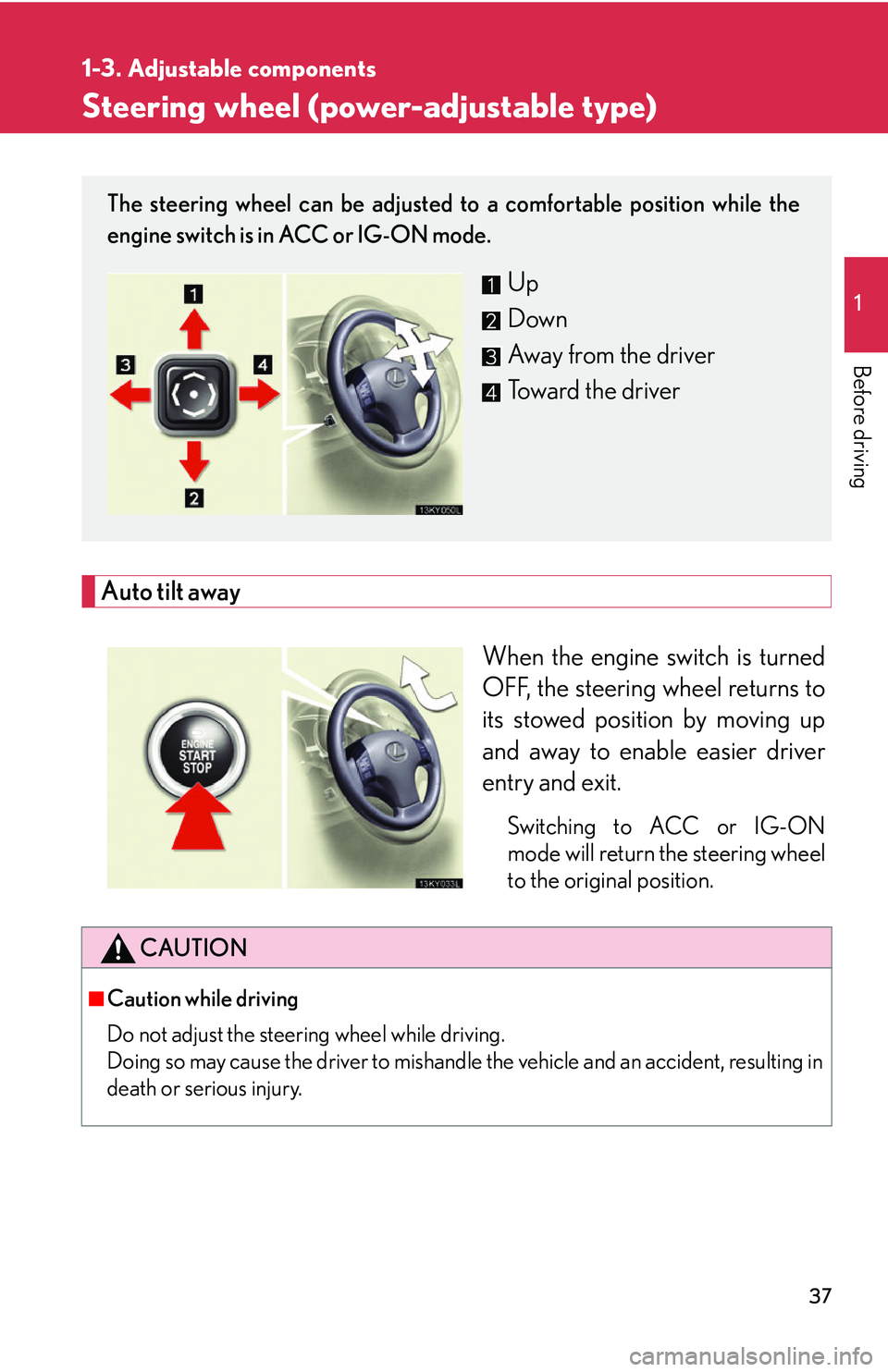

Steering wheel (power-adjustable type)
Auto tilt awayWhen the engine switch is turned
OFF, the steering wheel returns to
its stowed position by moving up
and away to enable easier driver
entry and exit.
Switching to ACC or IG-ON
mode will return the steering wheel
to the original position.
The steering wheel can be adjusted to a comfortable position while the
engine switch is in ACC or IG-ON mode.
Up
Down
Away from the driver
Toward the driver
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and an accident, resulting in
death or serious injury.

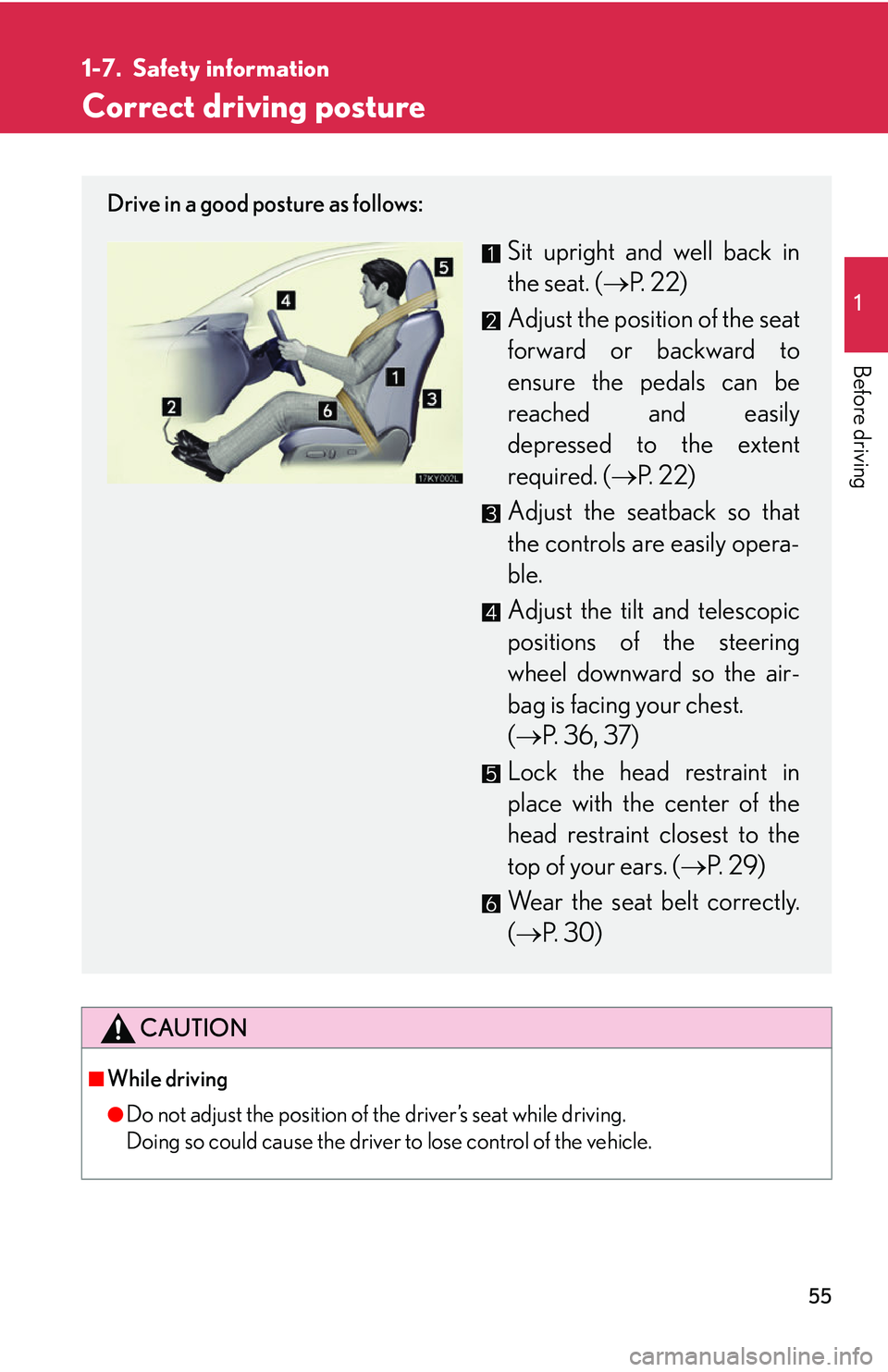

55
1
Before driving
1-7. Safety information
Correct driving posture
CAUTION
■While driving
●Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
Drive in a good posture as follows:
Sit upright and well back in
the seat. (P. 22)
Adjust the position of the seat
forward or backward to
ensure the pedals can be
reached and easily
depressed to the extent
required. ( P. 22)
Adjust the seatback so that
the controls are easily opera-
ble.
Adjust the tilt and telescopic
positions of the steering
wheel downward so the air-
bag is facing your chest.
( P. 36, 37)
Lock the head restraint in
place with the center of the
head restraint closest to the
top of your ears. ( P. 2 9 )
Wear the seat belt correctly.
( P. 30)

59
1-7. Safety information
1
Before driving

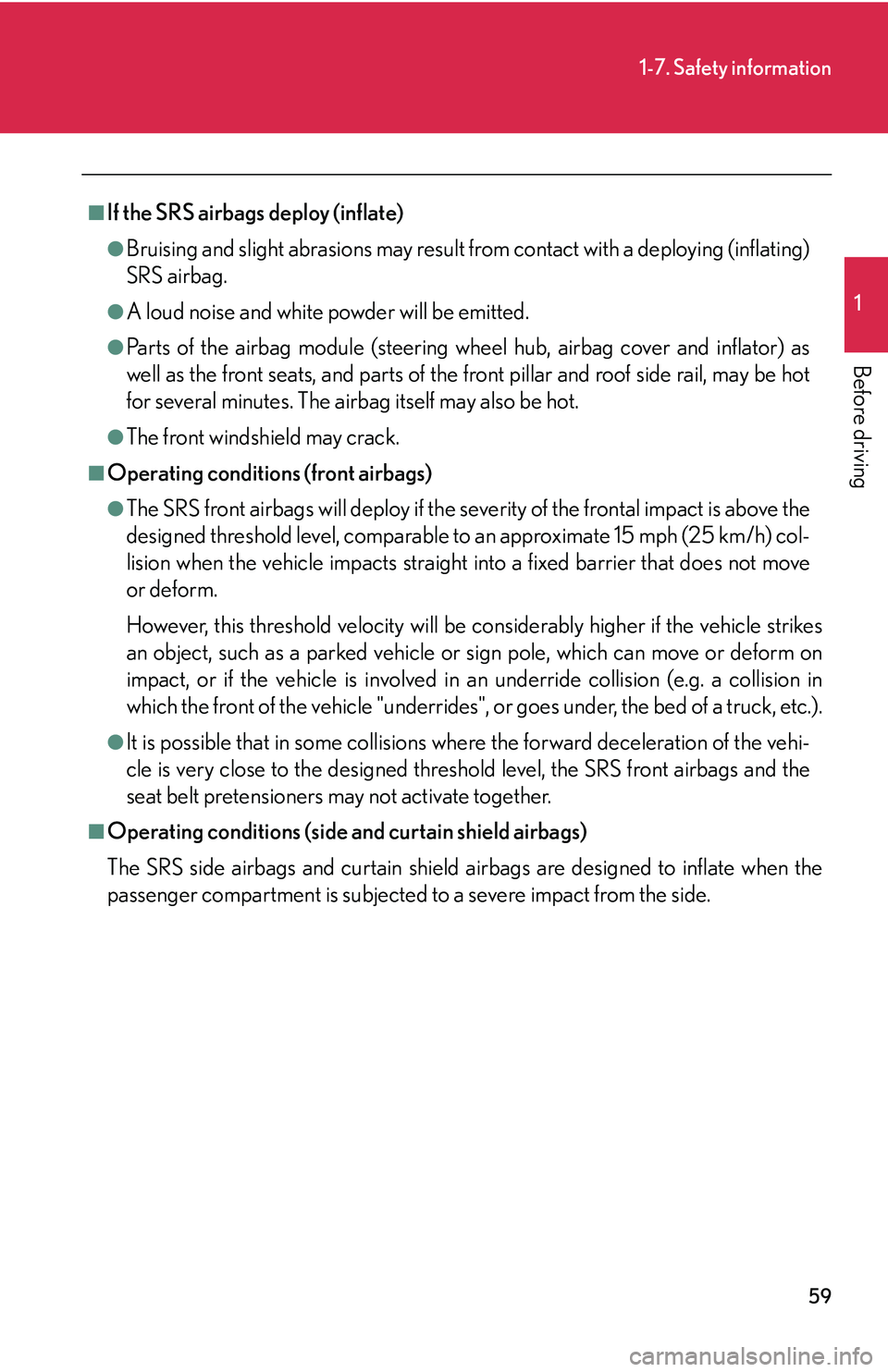

■If the SRS airbags deploy (inflate)
●Bruising and slight abrasions may result from contact with a deploying (inflating)
SRS airbag.
●A loud noise and white powder will be emitted.
●Parts of the airbag module (steering wheel hub, airbag cover and inflator) as
well as the front seats, and parts of the front pillar and roof side rail, may be hot
for several minutes. The airbag itself may also be hot.
●The front windshield may crack.
■Operating conditions (front airbags)
●The SRS front airbags will deploy if the severity of the frontal impact is above the
designed threshold level, comparable to an approximate 15 mph (25 km/h) col-
lision when the vehicle impacts straight into a fixed barrier that does not move
or deform.
However, this threshold velocity will be considerably higher if the vehicle strikes
an object, such as a parked vehicle or sign pole, which can move or deform on
impact, or if the vehicle is involved in an underride collision (e.g. a collision in
which the front of the vehicle "underrides", or goes under, the bed of a truck, etc.).
●It is possible that in some collisions where the forward deceleration of the vehi-
cle is very close to the designed thresh old level, the SRS front airbags and the
seat belt pretensioners ma y not activate together.
■Operating conditions (side and curtain shield airbags)
The SRS side airbags and curtain shield ai rbags are designed to inflate when the
passenger compartment is subjected to a severe impact from the side.
