Lexus IS250 2006 Lexus Parking Assist-sensor / LEXUS 2006 IS350/250 FROM MAY 2006 PROD. (OM53619U) Owner's Guide

3
1-1. Key information
1
Before driving

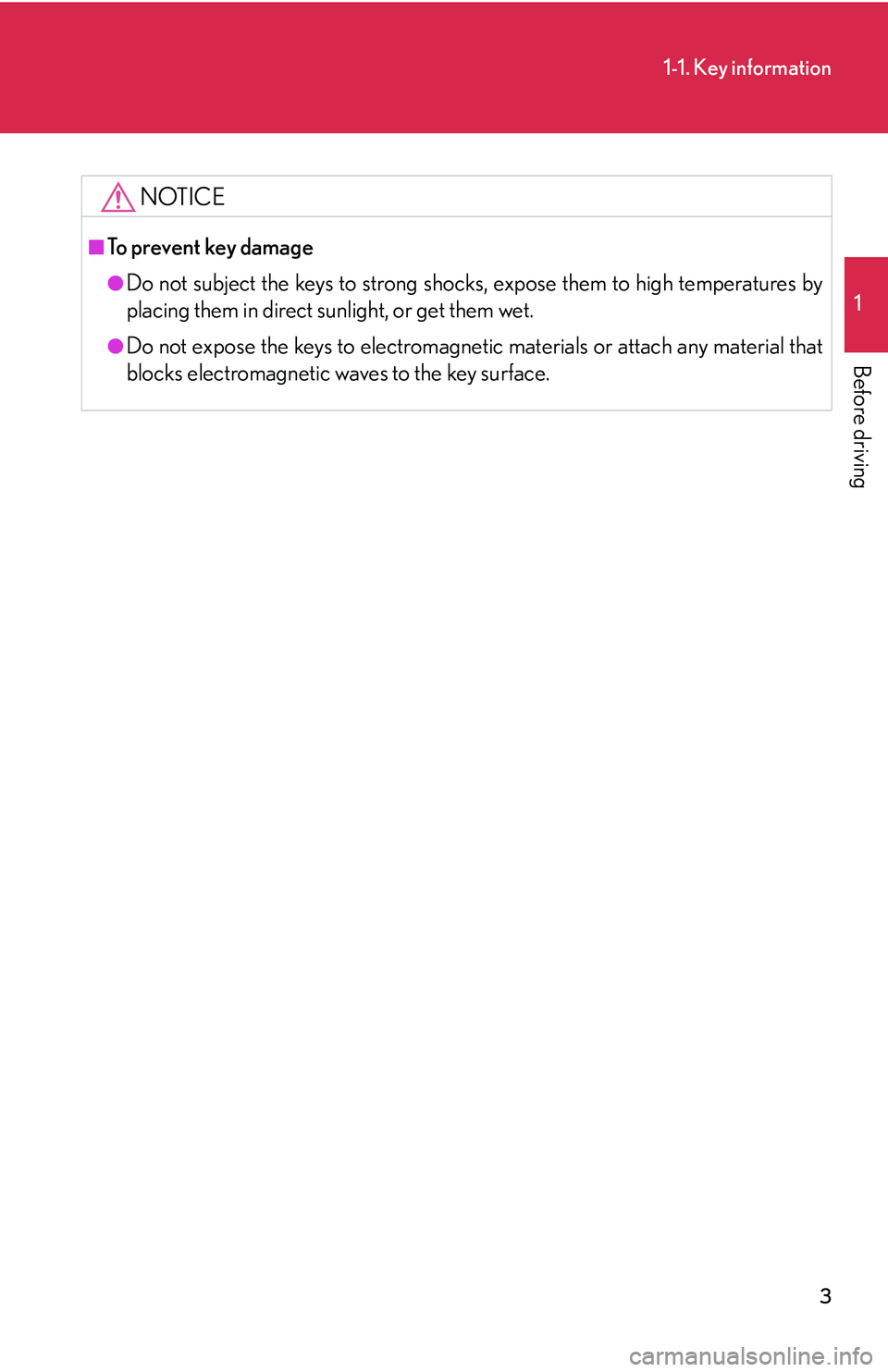

NOTICE
■To prevent key damage
●Do not subject the keys to strong shocks, expose them to high temperatures by
placing them in direct sunlight, or get them wet.
●Do not expose the keys to electromagneti c materials or attach any material that
blocks electromagnetic waves to the key surface.

4

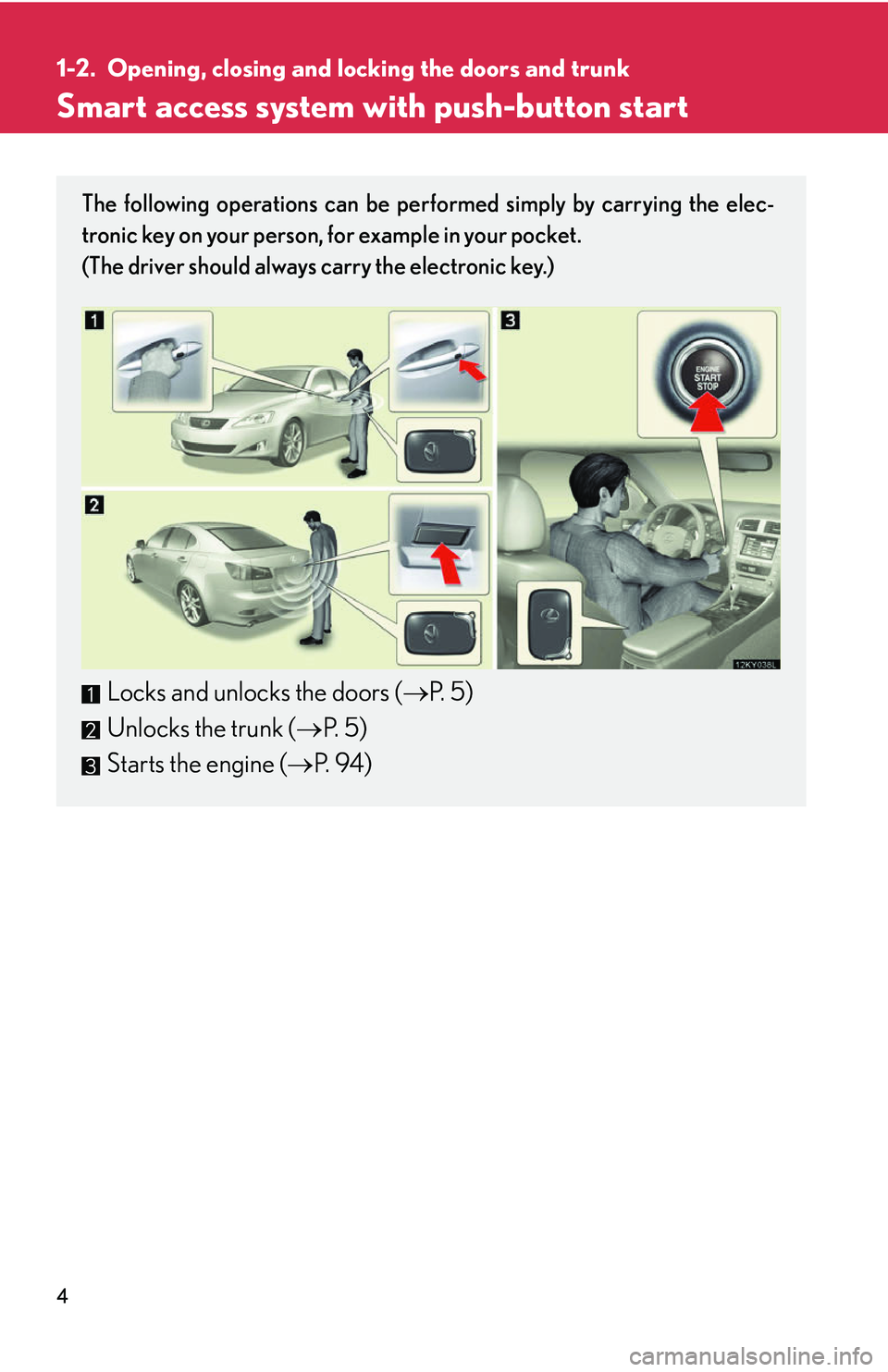

1-2. Opening, closing and locking the doors and trunk
Smart access system with push-button start
The following operations can be performed simply by carrying the elec-
tronic key on your person, for example in your pocket.
(The driver should always carry the electronic key.)
Locks and unlocks the doors (P. 5)
Unlocks the trunk ( P. 5)
Starts the engine ( P. 9 4 )

5
1-2. Opening, closing and locking the doors and trunk
1
Before driving

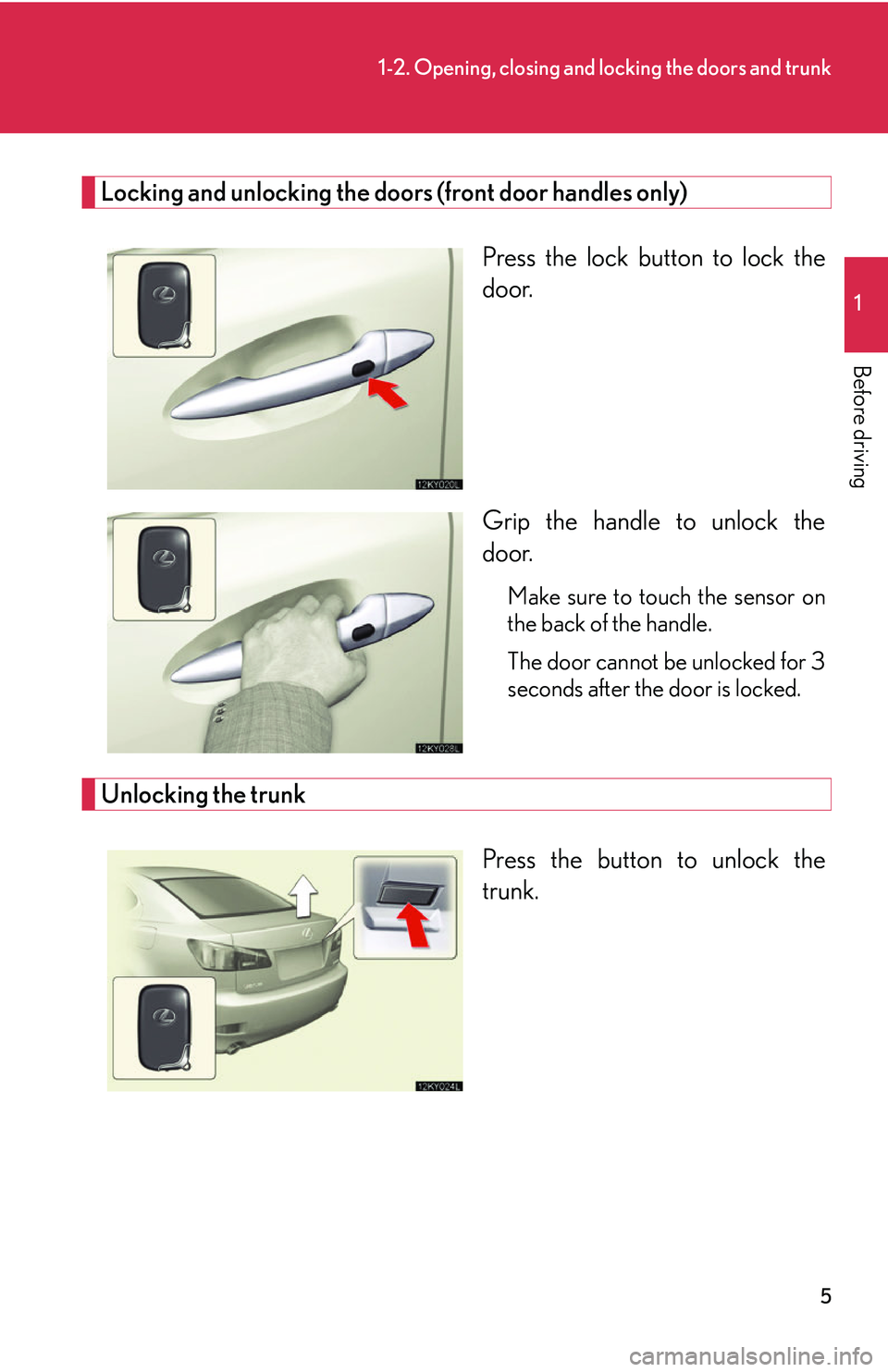

Locking and unlocking the doors (front door handles only)Press the lock button to lock the
door.
Grip the handle to unlock the
door.
Make sure to touch the sensor on
the back of the handle.
The door cannot be unlocked for 3
seconds after the door is locked.
Unlocking the trunkPress the button to unlock the
trunk.

6
1-2. Opening, closing and locking the doors and trunk

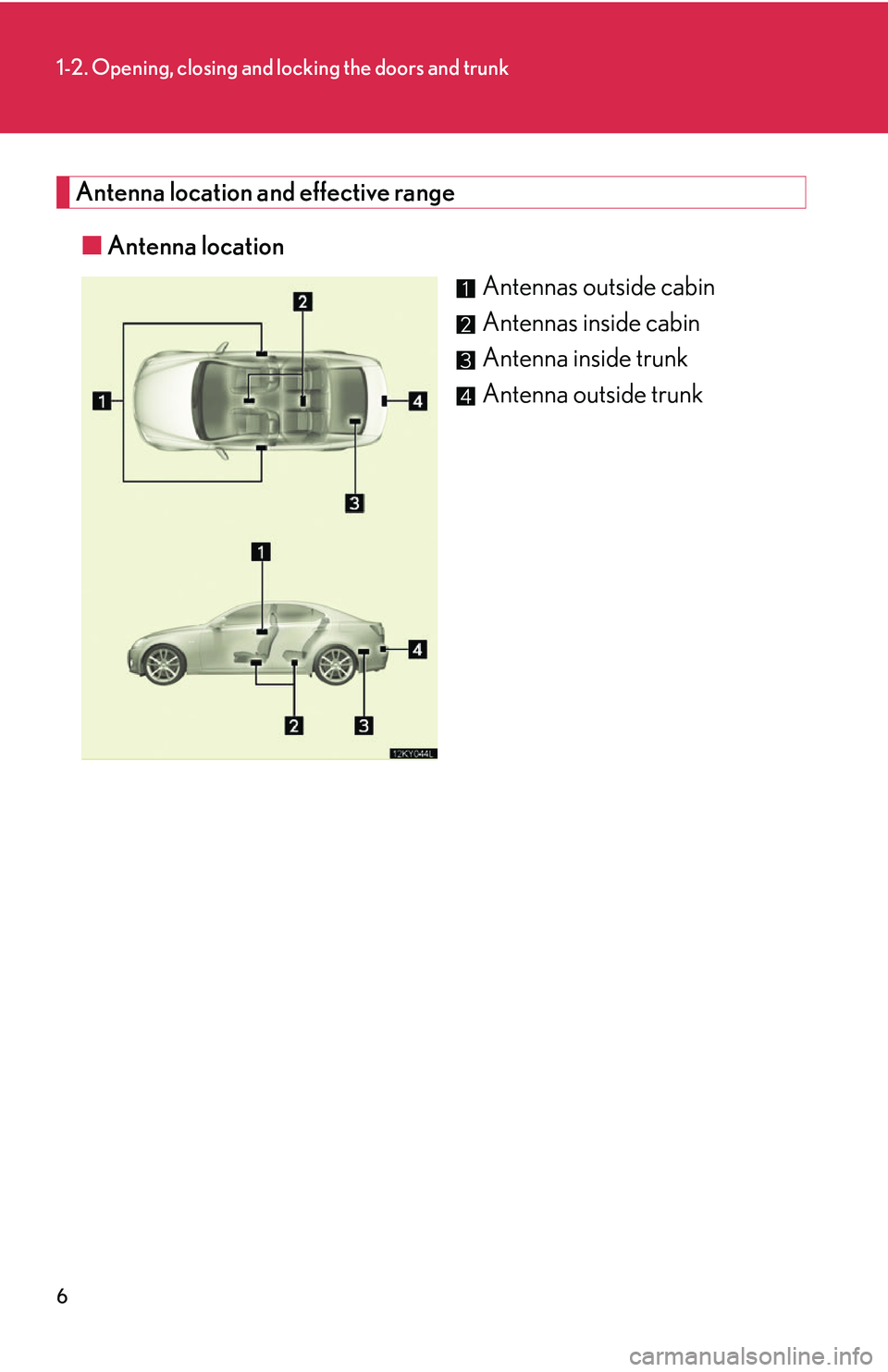

Antenna location and effective range■ Antenna location
Antennas outside cabin
Antennas inside cabin
Antenna inside trunk
Antenna outside trunk

7
1-2. Opening, closing and locking the doors and trunk
1
Before driving

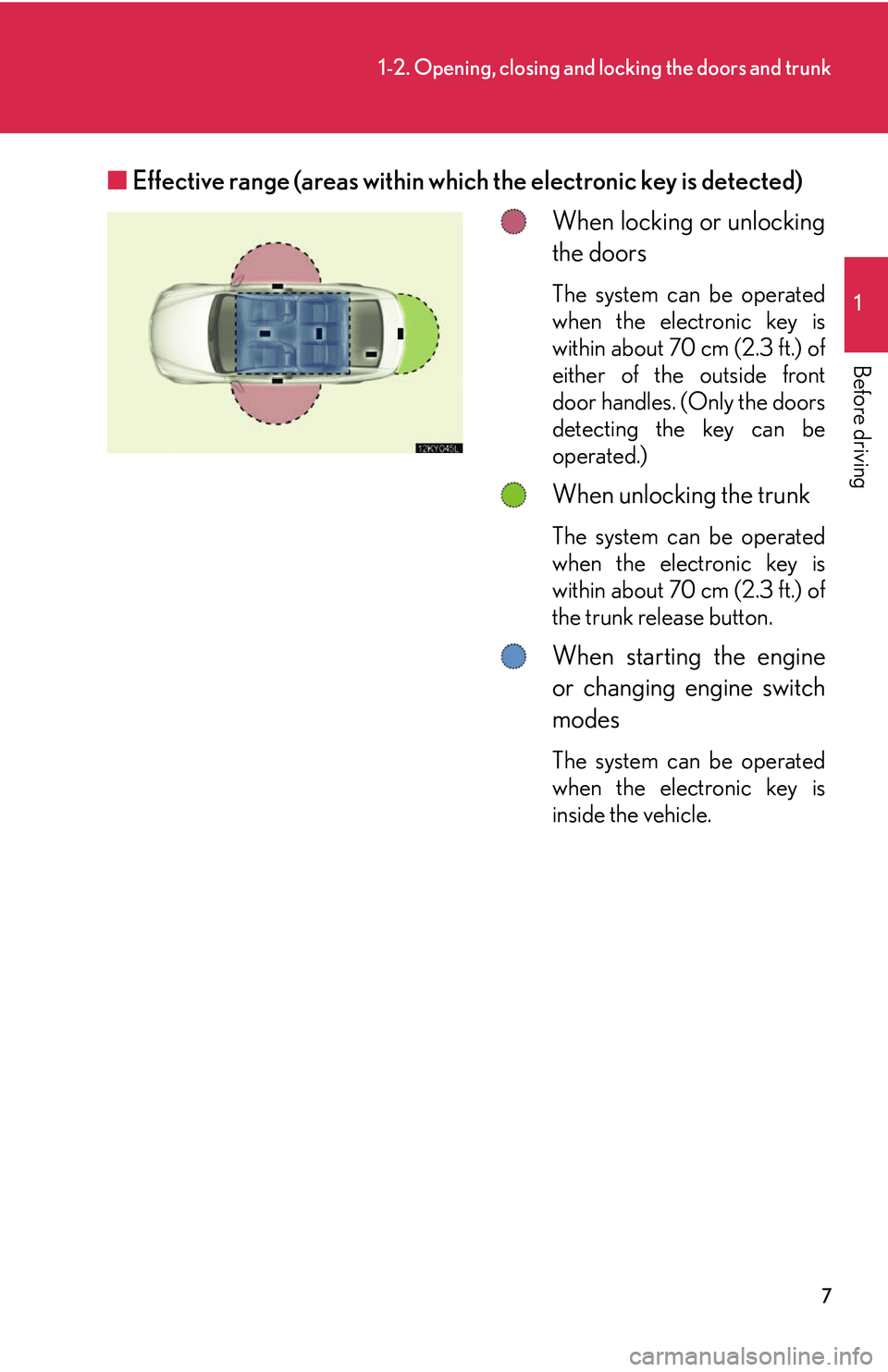

■Effective range (areas within wh ich the electronic key is detected)
When locking or unlocking
the doors
The system can be operated
when the electronic key is
within about 70 cm (2.3 ft.) of
either of the outside front
door handles. (Only the doors
detecting the key can be
operated.)
When unlocking the trunk
The system can be operated
when the electronic key is
within about 70 cm (2.3 ft.) of
the trunk release button.
When starting the engine
or changing engine switch
modes
The system can be operated
when the electronic key is
inside the vehicle.

8
1-2. Opening, closing and locking the doors and trunk

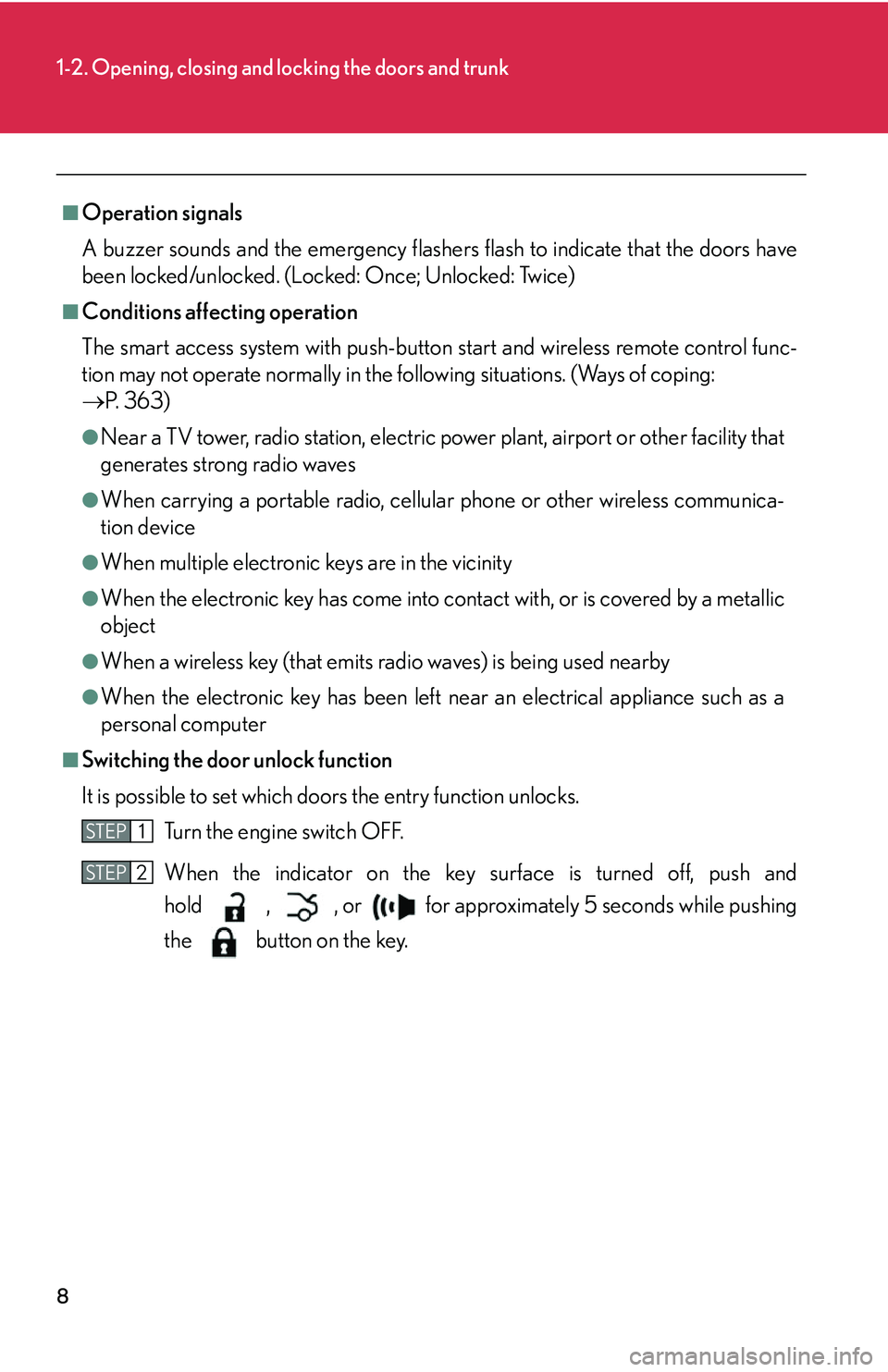

■Operation signals
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: Once; Unlocked: Twice)
■Conditions affecting operation
The smart access system with push-button start and wireless remote control func-
tion may not operate normally in the following situations. (Ways of coping:
 P. 3 6 3 )
●Near a TV tower, radio station, electric power plant, airport or other facility that
generates strong radio waves
●When carrying a portable radio, cellular phone or other wireless communica-
tion device
●When multiple electronic keys are in the vicinity
●When the electronic key has come into contact with, or is covered by a metallic
object
●When a wireless key (that emits radio waves) is being used nearby
●When the electronic key has been left ne ar an electrical appliance such as a
personal computer
■Switching the door unlock function
It is possible to set which doors the entry function unlocks.
Turn the engine switch OFF.
When the indicator on the key surface is turned off, push and
hold , , or for approximately 5 seconds while pushing
the button on the key.
STEP1
STEP2

9
1-2. Opening, closing and locking the doors and trunk
1
Before driving
The setting changes each time an operation is performed, as shown below. (When
changing the setting continuously, release the buttons, wait for at least 5 seconds,
and repeat step 2.)
■Battery-saving function
In the following circumstances, the entry func tion is disabled in order to prevent the
vehicle and electronic key batteries from discharging.
●When the entry function has not been used for 2 weeks or more
●When the electronic key has been left within approximately 3 ft. (1 m) of the
vehicle for 10 minutes or more
The system will resume operation when...
●The vehicle is locked using th e door handle lock switch.
●The vehicle is locked/unlocked using the wireless remote control function.
( P. 1 6 )
●The vehicle is locked/unlocked using the mechanical key. ( P. 3 6 3 )
Multi-information
displayUnlocking doorsBeep
Hold the driver's door handle
to unlock only the driver's
door.
Exterior: Beeps three
times
Interior: Pings once
Hold the front passenger’s
door handle to unlock all
doors
Hold either front door handle
to unlock all doorsExterior: Beeps twice
Interior: Pings once

10
1-2. Opening, closing and locking the doors and trunk

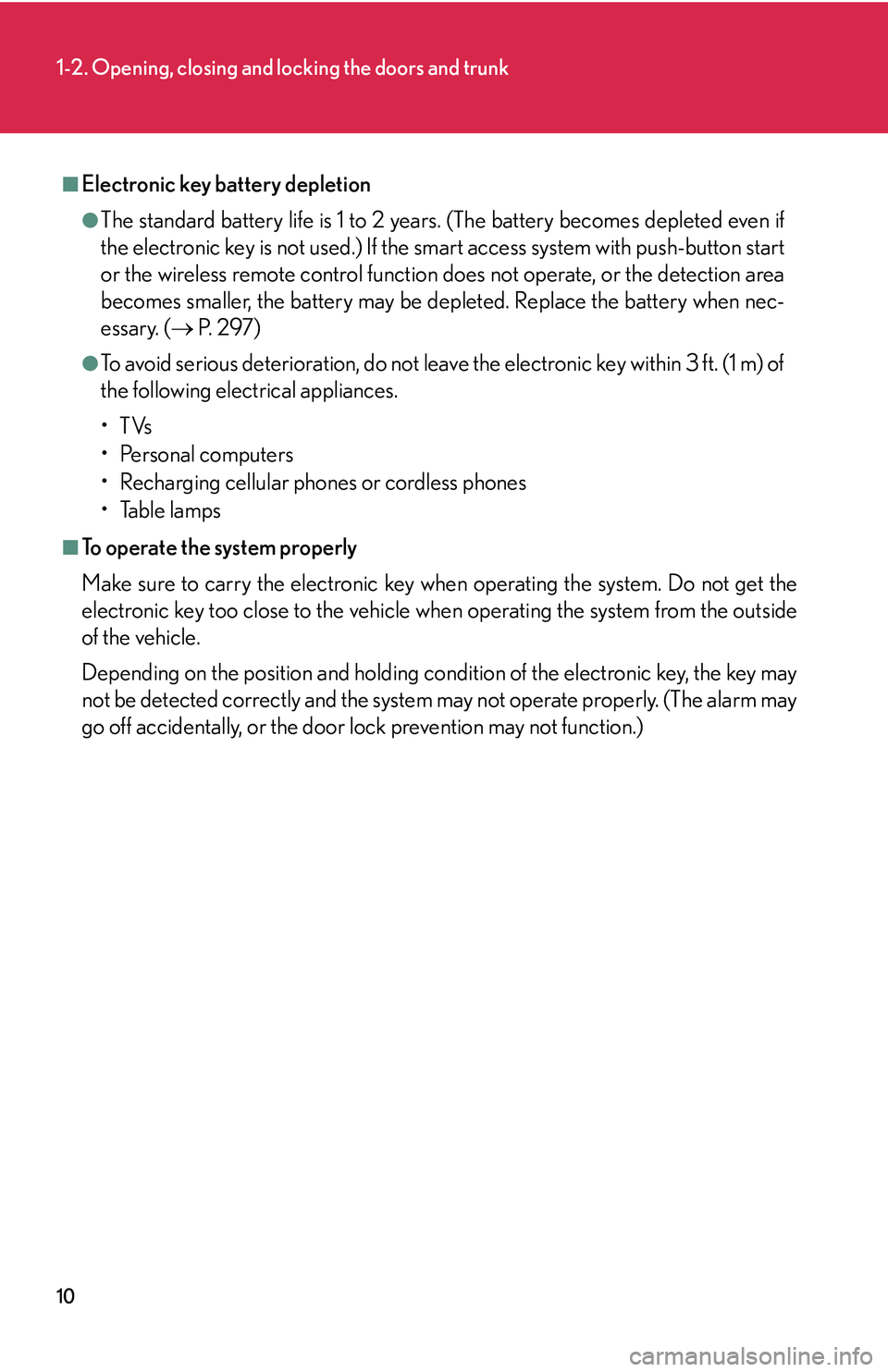

■Electronic key battery depletion
●The standard battery life is 1 to 2 years. (The battery becomes depleted even if
the electronic key is not used.) If the smart access system with push-button start
or the wireless remote control function does not operate, or the detection area
becomes smaller, the battery may be depleted. Replace the battery when nec-
essary. (  P. 2 9 7 )
●To avoid serious deterioration, do not leave the electronic key within 3 ft. (1 m) of
the following electrical appliances.
•TVs
• Personal computers
• Recharging cellular phones or cordless phones
• Table lamps
■To operate the system properly
Make sure to carry the electronic key wh en operating the system. Do not get the
electronic key too close to the vehicle when operating the system from the outside
of the vehicle.
Depending on the position and holding condition of the electronic key, the key may
not be detected corr ectly and the system may not operate properly. (The alarm may
go off accidentally, or the door lock prevention may not function.)

11
1-2. Opening, closing and locking the doors and trunk
1
Before driving

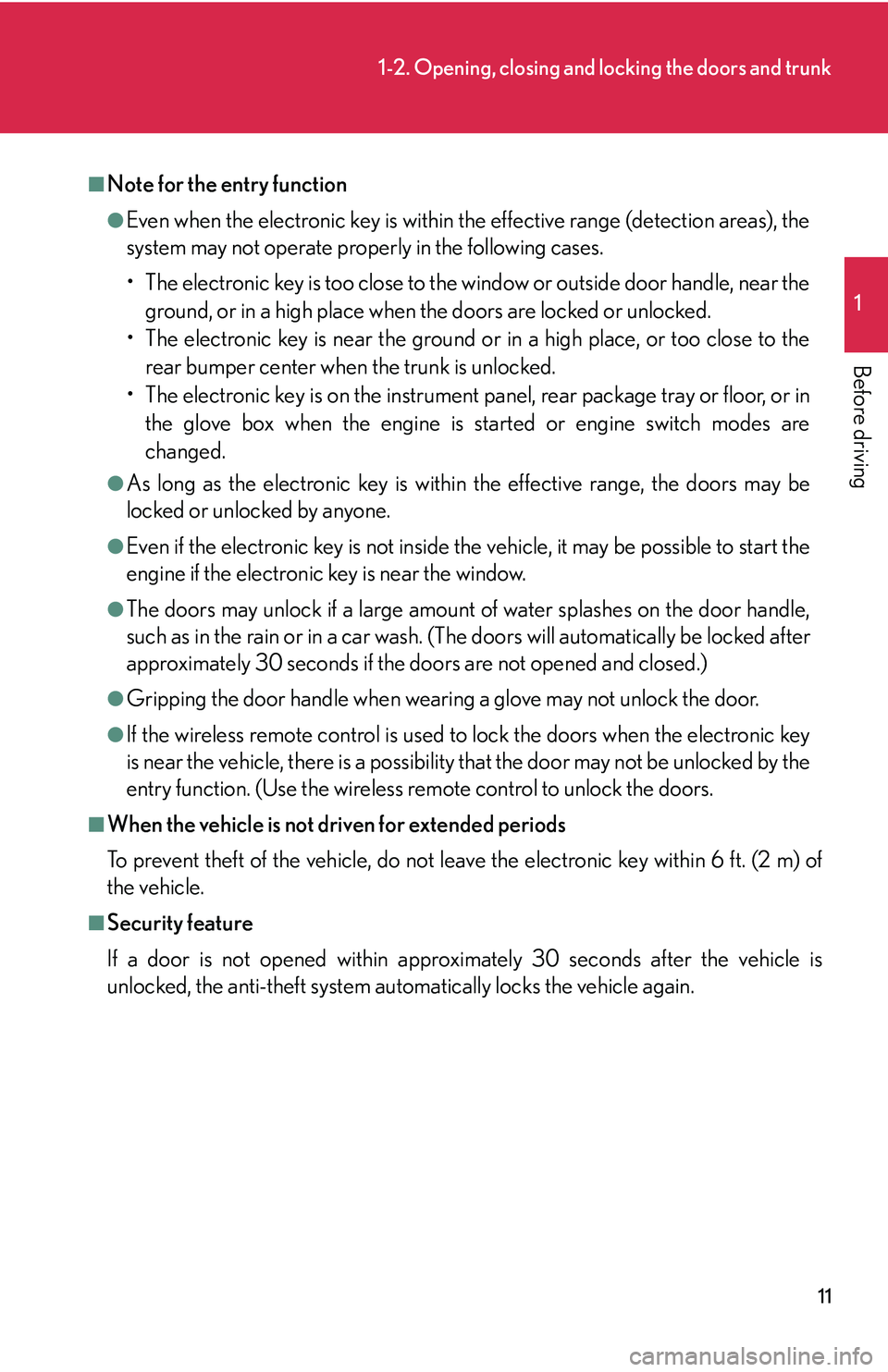

■Note for the entry function
●Even when the electronic key is within the effective range (detection areas), the
system may not operate properly in the following cases.
• The electronic key is too close to the window or outside door handle, near the
ground, or in a high place when the doors are locked or unlocked.
• The electronic key is near the ground or in a high place, or too close to the rear bumper center when the trunk is unlocked.
• The electronic key is on the instrument panel, rear package tray or floor, or in the glove box when the engine is started or engine switch modes are
changed.
●As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone.
●Even if the electronic key is not inside th e vehicle, it may be possible to start the
engine if the electronic key is near the window.
●The doors may unlock if a large amount of water splashes on the door handle,
such as in the rain or in a car wash. (The doors will automatically be locked after
approximately 30 seconds if the do ors are not opened and closed.)
●Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the electronic key
is near the vehicle, there is a possibility that the door may not be unlocked by the
entry function. (Use the wireless remote control to unlock the doors.
■When the vehicle is not driven for extended periods
To prevent theft of the vehicle, do not leave the electronic key within 6 ft. (2 m) of
the vehicle.
■Security feature
If a door is not opened within approximately 30 seconds after the vehicle is
unlocked, the anti-theft system automatically locks the vehicle again.

12
1-2. Opening, closing and locking the doors and trunk
■Alarms and warning indicators
A combination of exterior and interior alarms as well as warnings displayed on the
multi-information display are used to prevent theft of the vehicle and unforeseeable
accidents resulting from erroneous operation. Take appropriate measures in
response to any warning indications on the multi-information display. (P. 3 3 8 )
The following table describes circumstances and correction procedures when only
alarms are sounded.
AlarmSituationCorrection procedure
Exterior alarm
sounds once for 2
seconds
Tried to lock the doors using
the entry function while the
electronic key is still inside
the passenger compartmentRetrieve the electronic
key from the passenger
compartment and lock
the doors again.
Tried to exit the vehicle with
the electronic key and lock
the doors without first turning
the engine switch OFFTurn the engine switch
OFF and lock the doors
again.
Closed the trunk while the
electronic key is still inside
and all doors are lockedRetrieve the electronic
key from the trunk and
close the trunk lid.
Exterior alarm
sounds once for 10
secondsTried to lock the vehicle using
the entry function while a
door is openClose all of the doors
and lock the doors
again.
Interior alarm
sounds continu-
ously
*
Tried to open the door and
exit the vehicle without shift-
ing the shift lever to P
Shift the shift lever to P.
