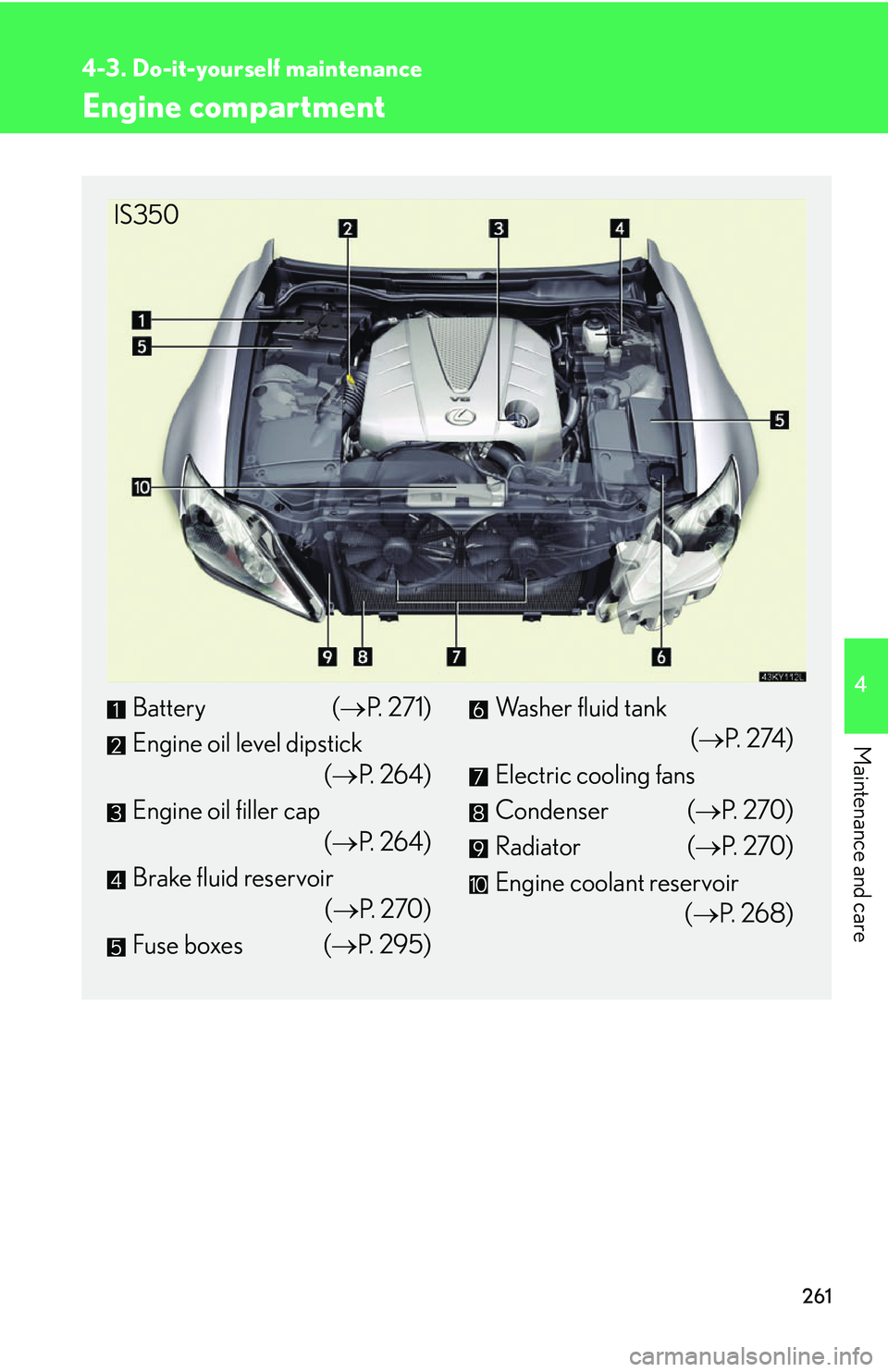

261
4-3. Do-it-yourself maintenance
4
Maintenance and care
Engine compartment
Battery (P. 271)
Engine oil level dipstick (P. 2 6 4 )
Engine oil filler cap (P. 2 6 4 )
Brake fluid reservoir (P. 270)
Fuse boxes ( P. 295)Washer fluid tank
(P. 2 74 )
Electric cooling fans
Condenser ( P. 2 7 0 )
Radiator ( P. 2 7 0 )
Engine coolant reservoir (P. 2 6 8 )
IS350

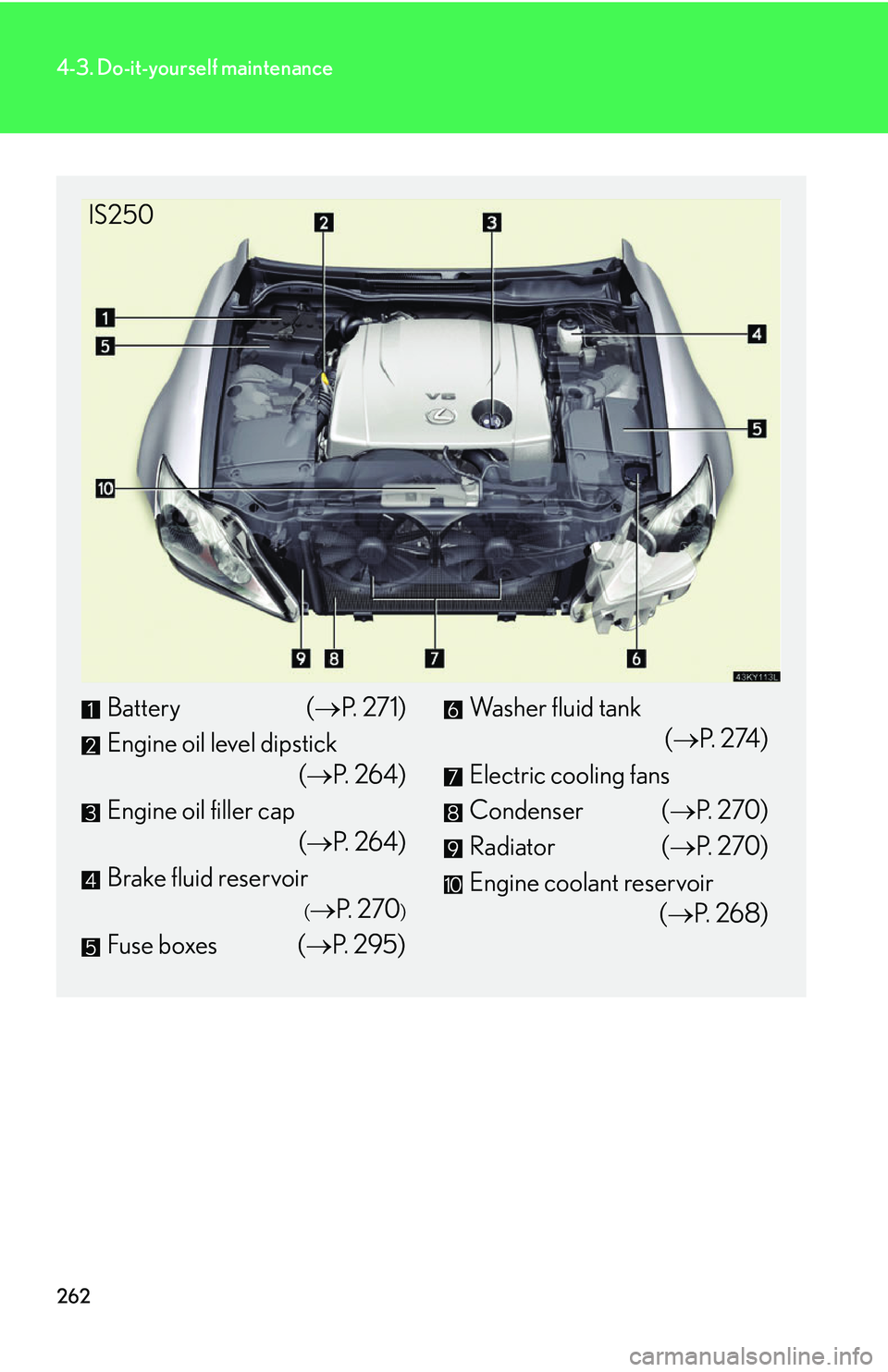

262
4-3. Do-it-yourself maintenance
Battery (P. 271)
Engine oil level dipstick (P. 2 6 4 )
Engine oil filler cap (P. 2 6 4 )
Brake fluid reservoir
( P. 2 7 0)
Fuse boxes ( P. 295)
Washer fluid tank
(P. 2 74 )
Electric cooling fans
Condenser ( P. 2 7 0 )
Radiator ( P. 2 7 0 )
Engine coolant reservoir (P. 2 6 8 )
IS250

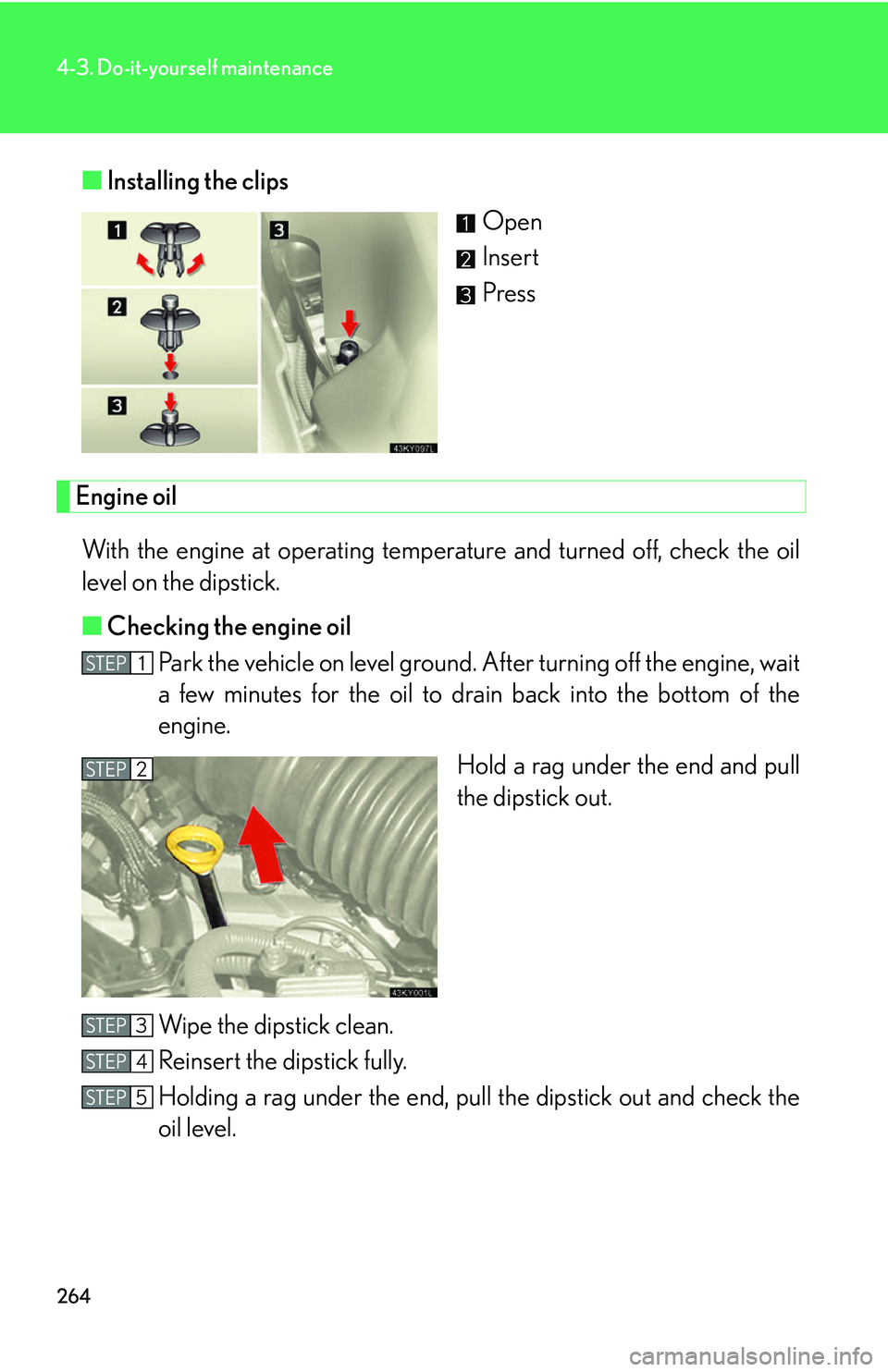

264
4-3. Do-it-yourself maintenance
■Installing the clips
Open
Insert
Press
Engine oil
With the engine at operating temperat ure and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground . After turning off the engine, wait
a few minutes for the oil to drain back into the bottom of the
engine.
Hold a rag under the end and pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
STEP1
STEP2
STEP3
STEP4
STEP5

265
4-3. Do-it-yourself maintenance
4
Maintenance and care
Wipe the dipstick and reinsert it fully.Low
Full
■ Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as already in the
engine.
Make sure to check th e oil type and prepare the items needed before
adding oil.
Remove the oil filler cap.
Add engine oil slowly, checking the dipstick.
Install the filler cap, turning it clockwise.STEP6
Oil gradeILSAC multi-grade engine oil
Oil capacity
(when adding)1.6 qt. (1.5 L, 1.3 Imp. qt.)
ItemsClean funnel
STEP1
STEP2
STEP3

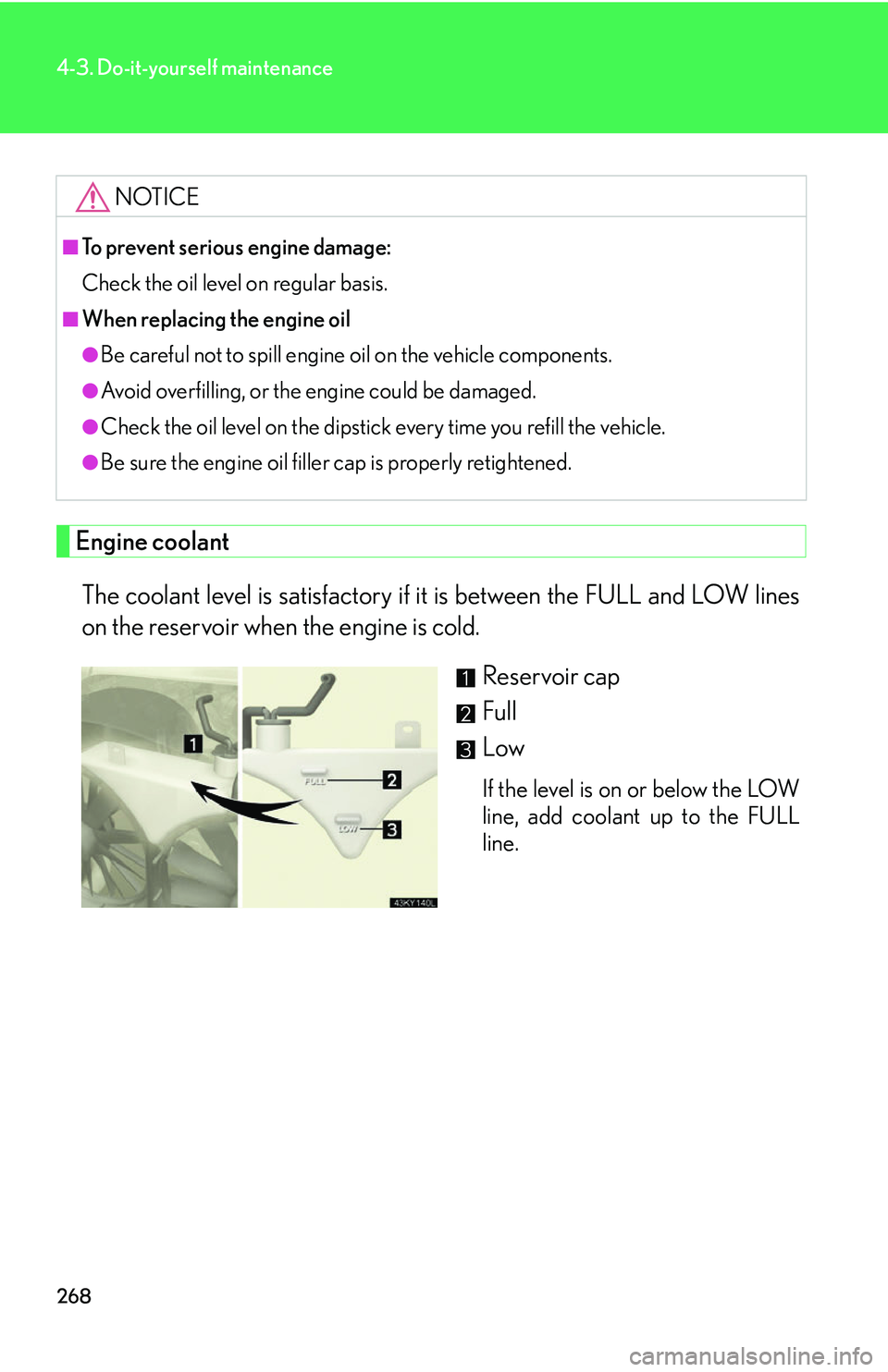

268
4-3. Do-it-yourself maintenance
Engine coolantThe coolant level is satisfactory if it is between the FULL and LOW lines
on the reservoir when the engine is cold. Reservoir cap
Full
Low
If the level is on or below the LOW
line, add coolant up to the FULL
line.
NOTICE
■To prevent serious engine damage:
Check the oil level on regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly retightened.
